In a split range control loop, output of the controller is split and sent
to two or more control valves. The splitter defines how each valve is
sequenced as the controller output changes from 0 to 100%. In most
split range applications, the controller adjusts the opening of one of
the valves when its output is in the range of 0 to 50% and the other
valve when its output is in the range of 50% to 100%.
The principle of a split range control is illustrated in the following
example:

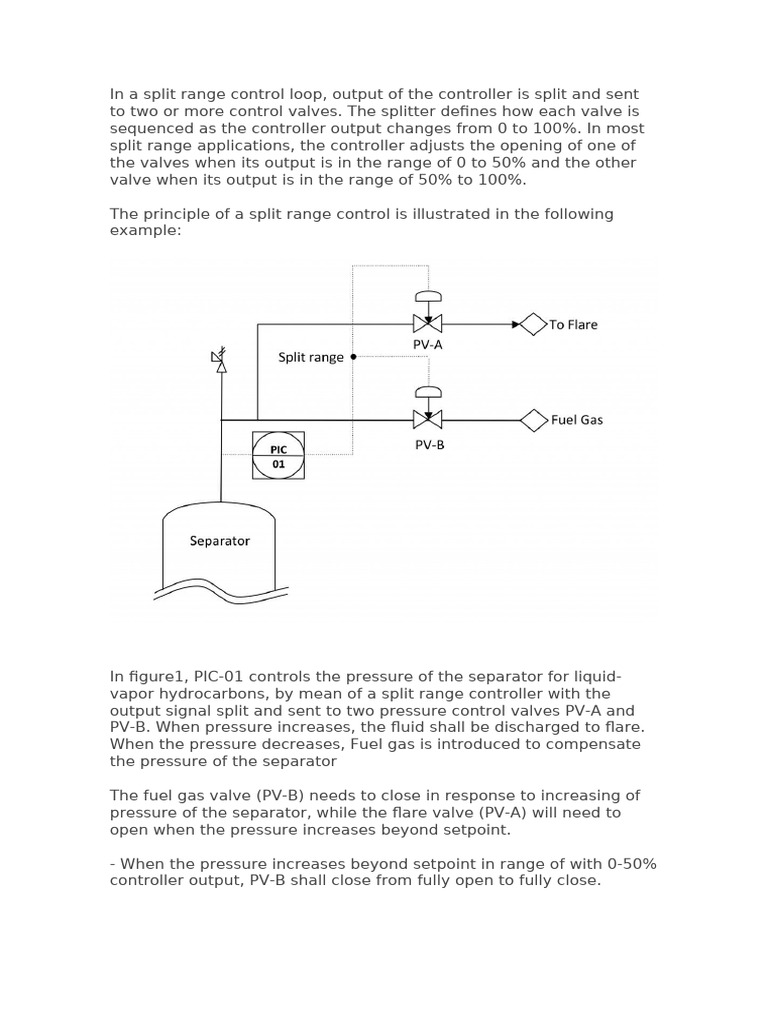

In figure1, PIC-01 controls the pressure of the separator for liquid-
vapor hydrocarbons, by mean of a split range controller with the
output signal split and sent to two pressure control valves PV-A and
PV-B. When pressure increases, the fluid shall be discharged to flare.
When the pressure decreases, Fuel gas is introduced to compensate
the pressure of the separator
The fuel gas valve (PV-B) needs to close in response to increasing of
pressure of the separator, while the flare valve (PV-A) will need to
open when the pressure increases beyond setpoint.
- When the pressure increases beyond setpoint in range of with 0-50%
controller output, PV-B shall close from fully open to fully close.
- When the pressure increases beyond setpoint in range of with 50-
100% controller output, PV-A shall open from fully close to fully open.
In summary, valve actions by PIC-01 is as follow:
In this case, the service of both control valves is different, with
respect to use of fuel gas and flaring for pressure control. Another
case of use of split range control loop is when one control valve
cannot be suitably designed to cover the complete operating range of
the controller. In that case, valve with a smaller Cv operated between
0-50% range and the other operates for 50-100% range. For example,
a pressure controller for accumulator drum in overhead of a stabilizer
column splits range to open 2 control valves. In the low range (0-50 %
range in response to high pressure of the stabilizer), the off gas is
routed to a gas plant downstream, in the high range (50-100% range
in response to high high pressure of the stabilizer) the off gas goes to
flare by opening of valve B. The control valve actions is as follow:
