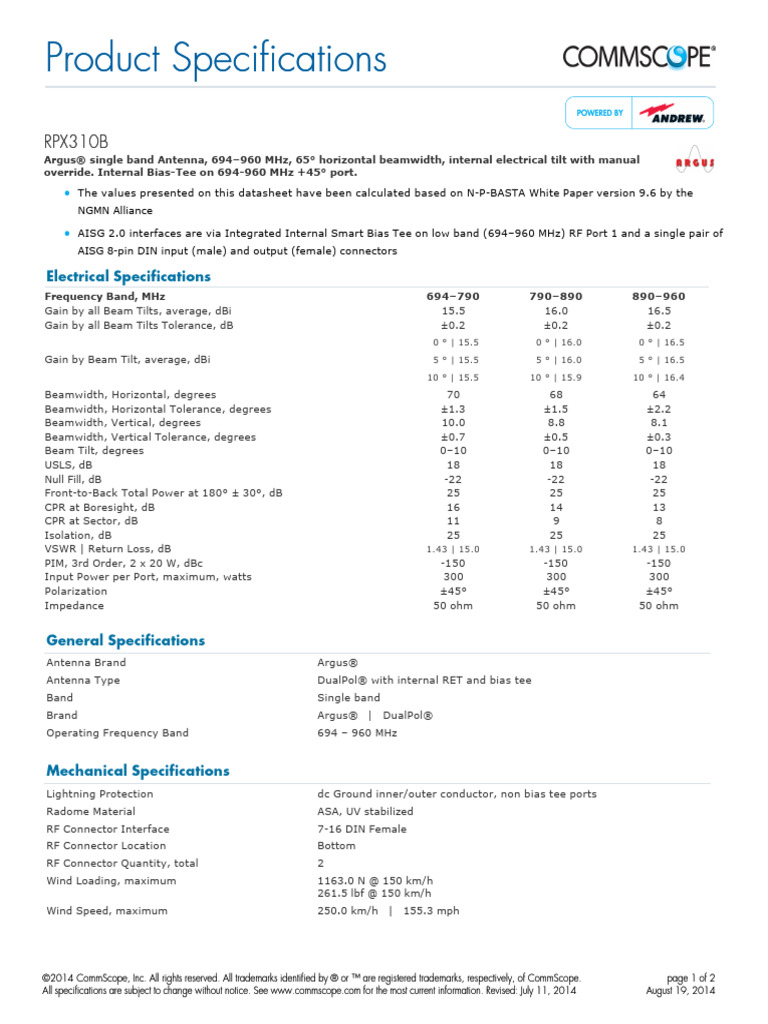

Product Specifications
RPX310B
Argus® single band Antenna, 694–960 MHz, 65° horizontal beamwidth, internal electrical tilt with manual
override. Internal BiasTee on 694960 MHz +45° port.
l The values presented on this datasheet have been calculated based on NPBASTA White Paper version 9.6 by the
NGMN Alliance
l AISG 2.0 interfaces are via Integrated Internal Smart Bias Tee on low band (694–960 MHz) RF Port 1 and a single pair of
AISG 8pin DIN input (male) and output (female) connectors
Electrical Specifications
Frequency Band, MHz 694–790 790–890 890–960
Gain by all Beam Tilts, average, dBi 15.5 16.0 16.5
Gain by all Beam Tilts Tolerance, dB ±0.2 ±0.2 ±0.2
0 ° | 15.5 0 ° | 16.0 0 ° | 16.5
Gain by Beam Tilt, average, dBi 5 ° | 15.5 5 ° | 16.0 5 ° | 16.5
10 ° | 15.5 10 ° | 15.9 10 ° | 16.4
Beamwidth, Horizontal, degrees 70 68 64
Beamwidth, Horizontal Tolerance, degrees ±1.3 ±1.5 ±2.2
Beamwidth, Vertical, degrees 10.0 8.8 8.1
Beamwidth, Vertical Tolerance, degrees ±0.7 ±0.5 ±0.3
Beam Tilt, degrees 0–10 0–10 0–10
USLS, dB 18 18 18
Null Fill, dB 22 22 22
FronttoBack Total Power at 180° ± 30°, dB 25 25 25
CPR at Boresight, dB 16 14 13
CPR at Sector, dB 11 9 8
Isolation, dB 25 25 25
VSWR | Return Loss, dB 1.43 | 15.0 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc 150 150 150
Input Power per Port, maximum, watts 300 300 300
Polarization ±45° ±45° ±45°
Impedance 50 ohm 50 ohm 50 ohm
General Specifications
Antenna Brand Argus®
Antenna Type DualPol® with internal RET and bias tee
Band Single band
Brand Argus® | DualPol®
Operating Frequency Band 694 – 960 MHz
Mechanical Specifications
Lightning Protection dc Ground inner/outer conductor, non bias tee ports
Radome Material ASA, UV stabilized
RF Connector Interface 716 DIN Female
RF Connector Location Bottom
RF Connector Quantity, total 2
Wind Loading, maximum 1163.0 N @ 150 km/h
261.5 lbf @ 150 km/h
Wind Speed, maximum 250.0 km/h | 155.3 mph
©2014 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. page 1 of 2
All specifications are subject to change without notice. See [Link] for the most current information. Revised: July 11, 2014 August 19, 2014
Product Specifications
RPX310B
Dimensions
Depth 209.0 mm | 8.2 in
Length 2533.0 mm | 99.7 in
Width 353.0 mm | 13.9 in
Net Weight 26.0 kg | 57.3 lb
Remote Electrical Tilt (RET) Information
Input Voltage 10–30 Vdc
Power Consumption, idle state, maximum 2.0 W
Power Consumption, normal conditions, maximum 13.0 W
Protocol 3GPP/AISG 2.0
RET Interface 8pin DIN Female | 8pin DIN Male
RET Interface, quantity 1 female | 1 male
Included Products
T029GLE — Argus® Adjustable Tilt Pipe Mounting Kit for 2.9"4.5" (75115mm) OD round members for panel antennas.
Includes 2 clamp sets.
©2014 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. page 2 of 2
All specifications are subject to change without notice. See [Link] for the most current information. Revised: July 11, 2014 August 19, 2014
