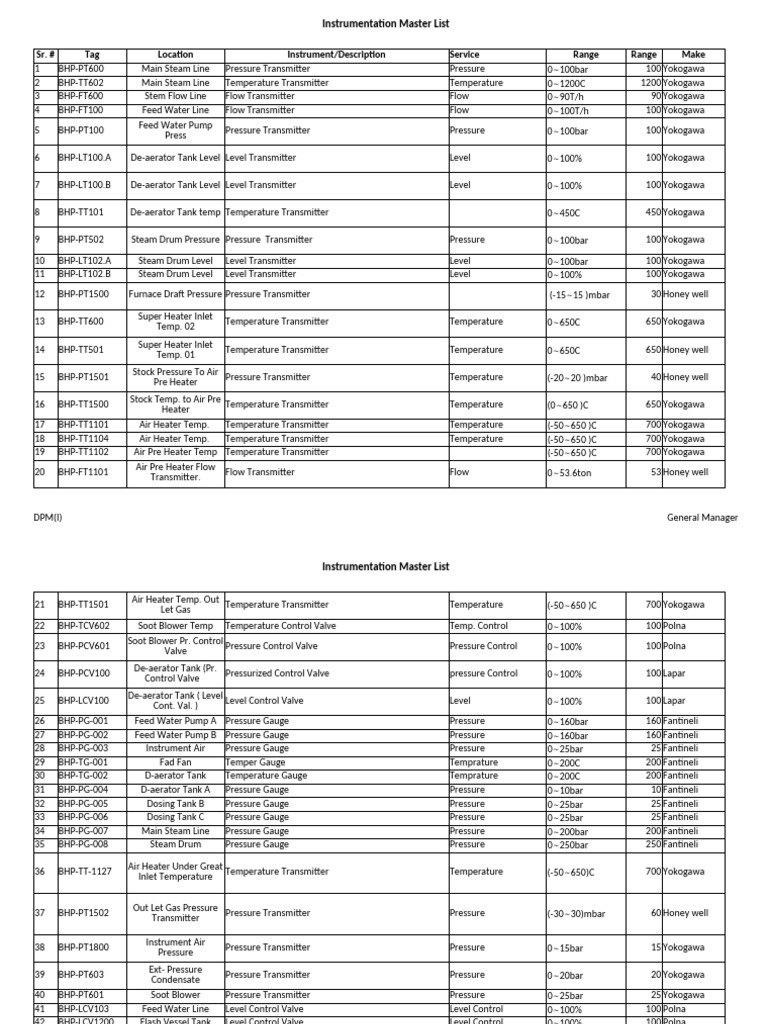

Instrumentation Master List

Sr. # Tag Location Instrument/Description Service Range Range Make

1 BHP-PT600 Main Steam Line Pressure Transmitter Pressure 0~100bar 100 Yokogawa
2 BHP-TT602 Main Steam Line Temperature Transmitter Temperature 0~1200C 1200 Yokogawa
3 BHP-FT600 Stem Flow Line Flow Transmitter Flow 0~90T/h 90 Yokogawa
4 BHP-FT100 Feed Water Line Flow Transmitter Flow 0~100T/h 100 Yokogawa
Feed Water Pump
5 BHP-PT100 Pressure Transmitter Pressure 0~100bar 100 Yokogawa
Press

6 BHP-LT100.A De-aerator Tank Level Level Transmitter Level 0~100% 100 Yokogawa

7 BHP-LT100.B De-aerator Tank Level Level Transmitter Level 0~100% 100 Yokogawa

8 BHP-TT101 De-aerator Tank temp Temperature Transmitter 0~450C 450 Yokogawa

9 BHP-PT502 Steam Drum Pressure Pressure Transmitter Pressure 0~100bar 100 Yokogawa

10 BHP-LT102.A Steam Drum Level Level Transmitter Level 0~100bar 100 Yokogawa
11 BHP-LT102.B Steam Drum Level Level Transmitter Level 0~100% 100 Yokogawa

12 BHP-PT1500 Furnace Draft Pressure Pressure Transmitter (-15~15 )mbar 30 Honey well

Super Heater Inlet

13 BHP-TT600 Temperature Transmitter Temperature 0~650C 650 Yokogawa
Temp. 02
Super Heater Inlet
14 BHP-TT501 Temperature Transmitter Temperature 0~650C 650 Honey well
Temp. 01
Stock Pressure To Air
15 BHP-PT1501 Pressure Transmitter Temperature (-20~20 )mbar 40 Honey well
Pre Heater
Stock Temp. to Air Pre
16 BHP-TT1500 Temperature Transmitter Temperature (0~650 )C 650 Yokogawa
Heater
17 BHP-TT1101 Air Heater Temp. Temperature Transmitter Temperature (-50~650 )C 700 Yokogawa
18 BHP-TT1104 Air Heater Temp. Temperature Transmitter Temperature (-50~650 )C 700 Yokogawa
19 BHP-TT1102 Air Pre Heater Temp Temperature Transmitter (-50~650 )C 700 Yokogawa
Air Pre Heater Flow
20 BHP-FT1101 Flow Transmitter Flow 0~53.6ton 53 Honey well
Transmitter.

DPM(I) General Manager

 Instrumentation Master List

Air Heater Temp. Out

21 BHP-TT1501 Temperature Transmitter Temperature (-50~650 )C 700 Yokogawa
Let Gas
22 BHP-TCV602 Soot Blower Temp Temperature Control Valve Temp. Control 0~100% 100 Polna
Soot Blower Pr. Control
23 BHP-PCV601 Pressure Control Valve Pressure Control 0~100% 100 Polna
Valve
De-aerator Tank (Pr.
24 BHP-PCV100 Pressurized Control Valve pressure Control 0~100% 100 Lapar
Control Valve
De-aerator Tank ( Level
25 BHP-LCV100 Level Control Valve Level 0~100% 100 Lapar
Cont. Val. )
26 BHP-PG-001 Feed Water Pump A Pressure Gauge Pressure 0~160bar 160 Fantineli
27 BHP-PG-002 Feed Water Pump B Pressure Gauge Pressure 0~160bar 160 Fantineli
28 BHP-PG-003 Instrument Air Pressure Gauge Pressure 0~25bar 25 Fantineli
29 BHP-TG-001 Fad Fan Temper Gauge Temprature 0~200C 200 Fantineli
30 BHP-TG-002 D-aerator Tank Temperature Gauge Temprature 0~200C 200 Fantineli
31 BHP-PG-004 D-aerator Tank A Pressure Gauge Pressure 0~10bar 10 Fantineli
32 BHP-PG-005 Dosing Tank B Pressure Gauge Pressure 0~25bar 25 Fantineli
33 BHP-PG-006 Dosing Tank C Pressure Gauge Pressure 0~25bar 25 Fantineli
34 BHP-PG-007 Main Steam Line Pressure Gauge Pressure 0~200bar 200 Fantineli
35 BHP-PG-008 Steam Drum Pressure Gauge Pressure 0~250bar 250 Fantineli

Air Heater Under Great

36 BHP-TT-1127 Temperature Transmitter Temperature (-50~650)C 700 Yokogawa
Inlet Temperature

Out Let Gas Pressure

37 BHP-PT1502 Pressure Transmitter Pressure (-30~30)mbar 60 Honey well
Transmitter

Instrument Air
38 BHP-PT1800 Pressure Transmitter Pressure 0~15bar 15 Yokogawa
Pressure
Ext- Pressure
39 BHP-PT603 Pressure Transmitter Pressure 0~20bar 20 Yokogawa
Condensate
40 BHP-PT601 Soot Blower Pressure Transmitter Pressure 0~25bar 25 Yokogawa
41 BHP-LCV103 Feed Water Line Level Control Valve Level Control 0~100% 100 Polna
42 BHP-LCV1200 Flash Vessel Tank Level Control Valve Level Control 0~100% 100 Polna

DPM(I) General Manager

 Instrumentation Master List

43 BHP-PG/009 Section Line A Pressure Gauge Pressure 0~6bar 6 Fantineli

44 OI HP001 Oxygen mearment Oxygen Analyzer Oxygen Analyze 0~21% 21 Yokogawa
45 OI HP002 Oxygen mearment Oxygen Analyzer Oxygen Analyze 0~21% 21 Yokogawa
46 BPH-PG-011 FEED WATER Pressure Gauge Pressure 0~6 BAR 6 Fantineli
47 BHP-PG/010 Section Line B Pressure Gauge Pressure 0~6bar 6 Fantineli
48 BHP-PG-012 STEAM DRUM Pressure Gauge Pressure 0~250BAR 250 Fantineli
49 BLP-FT-619 Feed Water Flow Flow Transmitter Flow 0~80t/hr 80 Yokogawa
50 BLP-PT607 Feed Water Line Pressure Transmitter Flow 0~40bar 40 Yokogawa
51 BLP-LT-612 Steam Drum Level Transmitter Level 0~100% 100 Yokogawa
52 BLP-PT606 Steam Drum Pressure Transmitter Pressure 0~30bar 30 Yokogawa
53 BLP.-RTD601 Steam Drum Temperature Transmitter Temperature 0~400C 400 Yokogawa
54 BLP-LT-613 D-aerator Tank Level Transmitter Level 0~100% 100 Yokogawa
55 BLP-PT609 D-aerator Tank Pressure Transmitter Pressure 0~10bar 10 Yokogawa
56 BLP-FT618 Main Steam Line Flow Transmitter Flow 0~75t/h 75 Yokogawa
57 BLP-TT602 Feed Water Line Temperature Transmitter Temperature 0~200C 200 Yokogawa
58 BLP-TT605 Out Let Gas Temperature Transmitter Temperature 0~200C 200 Yokogawa
59 BLP-PT611 Out Let Gas Pressure Transmitter Pressure 50~-150mmH2O 100 Yokogawa
60 BLP-LT-616 Condensate Tank .A Level Transmitter Level 0~100% 100 Yokogawa
61 BLP-LT-617 Condensate Tank .B Level Transmitter Level 0~100% 100 Yokogawa
62 BLP-LT614 Pressurize Tank .A Level Transmitter Level 0~100% 100 Yokogawa
63 BLP-LT615 Pressurized Tank B Level Transmitter Level 0~100% 100 Yokogawa
64 BLP-PT701 PRDS (HP) Side Pressure Transmitter Pressure 0~100% 100 Yokogawa
65 BLP-PT702 PRDS (LP) Side Pressure Transmitter Pressure 0~100% 100 Yokogawa
66 BLP-LCV620 Feed Water Line Level Control valve Level Control 0~100% 100 Polna
67 BLP-LCV621 D-aerator Tank Level Control Valve Level Control 0~100% 100 Valtek
68 BLP-PIC630 PRDS (HP) Side Pressure Control Valve Level Control 0~100% 100 Polna
69 BLP-PIC631 PRDS (LP) Side Pressure Control Valve Level Control 0~100% 100 Polna
70 BLP/TT/1001 GASES Temperature Transmitter Temperature 0~200C 200 Yokogawa
71 PWH-RTD-201 Rotor Before Bearing Temp. Temperature 0~200C 200 Waree
72 PWH-RTD-202 Rotor After Bearing Temp. Temperature 0~200C 200 Waree
73 PWH-RTD-203 Pinion Before Bearing Temp. Temperature 0~200C 200 Waree
74 PWH-RTD-204 Pinion After Bearing Temp. Temperature 0~200C 200 Waree

DPM(I) General Manager

 Instrumentation Master List

75 PWH-RTD-205 Gear Box Before Bearing Temp. Temperature 0~200C 200 Waree
76 PWH-RTD-206 Gear Box After Bearing Temp. Temperature 0~200C 200 Waree
77 PWH-RTD-202 Thrust Active top bearing temp. Temperature 0~200C 200 Waree
78 PWH-RTD-221 Thrust Non Active bear. temp. Temperature 0~200C 200 Waree
79 PWH-RTD-218 Cooler Before Lube oil temperature Temperature 0~200C 200 Waree
80 PWH-RTD-219 Cooler After Lube oil temperature Temperature 0~200C 200 Waree
81 PWH-ZI-600 Rotor axial z-axis-1 Turbine axial movement vibration Vibration 0~5mils 5 Waree
82 PWH-ZI-601 Rotor axial z-axis-2 Turbine axial movement vibration Vibration 0~5mils 5 Waree
83 PWH-XI-600 Rotor before x-axis bearing vibration Vibration 0~5mils 5 Waree
84 PWH-XI-601 Rotor before y-axis bearing vibration Vibration 0~5mils 5 Waree
85 PWH-XI-602 Rotor after x-axis Bearing vibration Vibration 0~5mils 5 Waree
86 PWH-XI-603 Rotor after y-axis Bearing vibration Vibration 0~5mils 5 Waree
87 PWH-XI-604 Pinion before x-axis Bearing vibration Vibration 0~5mils 5 Waree
88 PWH-XI-605 Pinion before y-axis Bearing vibration Vibration 0~5mils 5 Waree
89 PWH-XI-606 Rotor after x-axis Bearing vibration Vibration 0~5mils 5 Waree
90 PWH-XI-607 Rotor after y-axis Bearing vibration Vibration 0~5mils 5 Waree

91 PWH-PT-100 Inlet Steam Pressure Pressure Transmitter Pressure 0~100kg/cm2g 100 Yokogawa

Inlet Steam
92 PWH-TT-100 Temperature Transmitter Pressure 0~600C 600 Rosemount
Temperature
Exhaust Steam
93 PWH-PT-103 Pressure Transmitter Pressure 0~4kg/cm2g 4 Yokogawa
Pressure
Exhaust Steam
94 PWH-TT-102 Temperature Transmitter Pressure 0~400C 400 Rosemount
Temperature
95 PWH-PT-200 Lube Oil Line Pressure Transmitter Pressure 0~4kg/cm2g 4 Yokogawa
96 PWH-PT-201 Control Oil line Pressure Transmitter Pressure 0~40kg/cm2g 40 Yokogawa
97 PWH-PG-203 Lube Oil Pressure Pressure Gauge Pressure 0~4kg/cm2g 4 Baumar
98 PWH-PG-215 Control Oil Pressure Pressure Gauge Pressure 0~40kg/cm2g 40 Baumar
99 PWH-PG-206 Trip Oil Pressure Pressure Gauge Pressure 0~4kg/cm2g 4 Baumar
Exhaust Steam
100 PWH-PG-103 Pressure Gauge Pressure 0~4kg/cm2g 4 Baumar
Pressure

DPM(I) General Manager

 Instrumentation Master List

101 PWH-PG-100 Inlet Steam Pressure Pressure Gauge Pressure 0~100bar 100 Baumar

Wheel Case Steam

102 PWH-PG-101 Pressure Gauge Pressure 0~100bar 100 Baumar
Pressure
103 PWH-PG-001 Cooler in water Pressure Gauge Pressure 0~5kg 5 Fantineli
104 PWH-PG-006 Cooler out water Pressure Gauge Pressure 0~5kg 5 Fantineli
105 PWH-PG-003 Before Coiler Oil Pressure Gauge Pressure 0~10kg 10 Triveni
106 PWH-PG-004 Control Oil pump-1 Pressure Gauge Pressure 0~40bar 40 Triveni
107 PWH-PG-005 Control Oil pump-2 Pressure Gauge Pressure 0~100bar 100 Triveni

108 PWH-PG-009 Before Control Oil LP Pressure Gauge Pressure 0~100bar 100 Triveni

109 PWH-PG-010 Lube Oil Pressure Pressure Gauge Pressure 0~4bar 4 Triveni
110 PWH-PG-011 Control Oil After LP Pressure Gauge Pressure 0~100bar 100 Triveni
111 PWH-PG-013 Lube Oil Pressure Gauge Pressure 0~10bar 10 Triveni
112 PWH-PG-014 Lube Oil Pressure Gauge Pressure 0~4bar 4 Triveni
113 PWH-TG-003 Water Out Coiler Temperature Gauge 0~120C 120 Waree
114 PWH-TG-004 After oil coiler Temperature Gauge Temperature 0~120C 120 Waree
115 PWH-TG-002 Before Oil Coiler Temperature Gauge Temperature 0~120C 120 Waree
Pinion before
116 PWH-TG-006 Temperature Gauge Temperature 0~120C 120 Waree
temperature
Pinion after
117 PWH-TG-007 Temperature Gauge Temperature 0~120C 120 Waree
temperature
Gear before
118 PWH-TG-008 Temperature Gauge Temperature 0~120C 120 Waree
temperature
Gear after
119 PWH-TG-009 Temperature Gauge Temperature 0~120C 120 Waree
temperature

120 PWH-PS-200 Auto Start/Stop of Apo Pressure Switch Pressure 0~4bar 4 Switzer

121 PWH-PS-203 Auto start/Stop of Eon Pressure Switch Pressure 0~4bar 4 Switzer

122 PWH-PS-201 lube oil Pr. Low Alarm Pressure Switch Pressure 0~2bar 2 Switzer

DPM(I) General Manager

 Instrumentation Master List

Lube oil. Press V Low.

123 PWH-PS-204 Pressure Switch Pressure 0~2bar 2 Switzer
low Trip/Alarm

Bum Int. lock

124 PWH-PS-202 Pressure Switch Pressure 0~2bar 2 Switzer
Start/Stop Apo/Acop

Control oil pressure

125 PWH-PS-206 Pressure Switch Pressure 10~40bar 30 Switzer
low alarm
Control oil pr. V.low
126 PWH-PS-207 Pressure Switch Pressure 10~40bar 30 Switzer
alarm/trip
Auto Start/Stop of
127 PWH-PS-208 Pressure Switch Pressure 10~40bar 30 Switzer
Acop-1
Auto Start/Stop of
128 PWH-PS-209 Pressure Switch Pressure 10~40bar 30 Switzer
Acop-2
Trip oil pressure low
129 PWH-PS-210 Pressure Switch Pressure 0~4bar 4 Switzer
alarm
Exhaust Steam Press.
130 PWH-PSH-101 Pressure Switch Pressure 0~4bar 4 Switzer
high alarm

Exhaust. Steam Press.

131 PWH-PSHH-102 Pressure Switch Pressure 0~4bar 4 Switzer
V. high Trip/alarm

Inlet Steam pr.V. high

132 PWH-PS-100 Pressure Switch Pressure 10~100bar 90 Switzer
Trip/alarm
133 MHE/TCV/001 Mill House temperature control valve Temp. Control 0~100% 100
134 MHE/LCV/001 Mill House level control value Temp. Control 0~100% 100 Lapar
135 MHE/TCV/002 Mill House cool water control value Temp. Control 0~100% 100 Lapar
136 MHE/LT/001 Mill House level transmitter Temp. Control 0~100% 100 Lapar
137 MHE/TT/001 Mill House temperature transmitter Temp. Control 0~200C 200 Yokogawa
138 MHE/FT/001 Mill House flow meter Flow 0~300m3/hr 300 Yokogawa
139 MHE/LT/002 Mill House level transmitter Level 0~100% 100 Yokogawa
140 MHE/FT/002 Process House flow meter Flow 0~400m3/hr 400 Yokogawa
141 MHE/LT/003 Process House level transmitter level 0~100% 100 Yokogawa
142 MHE-TT-107 Fibrizer Bering temp.TX Temperature 0~200C 200 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

143 MHE-TT-108 Fibrizer Bering temperature transmitter Temperature 0~200C 200 Yokogawa
144 MHE-TT-109 Fibrizer Bering temperature transmitter Temperature 0~200C 200 Yokogawa
145 MHE-TT-110 Fibrizer Bering temperature transmitter Temperature 0~200C 200 Yokogawa
146 MHE-PT-106 Fibrizer pressure transmitter Pressure 0~10bar 10 Yokogawa
147 MHE-PG-001 Mill-1 Pressure Gauge Pressure 0~10bar 10 Yokogawa
148 MHE-PG-002 Mill-2 Pressure Gauge Pressure 0~10bar 10 Fantineli
149 MHE-TG-001 Mill-2 Temperature Gauge Temperature 0~160C 160 Fantineli
150 MHE-TG/002 Imbibition Tank Temperature Gauge Temperature 0~160C 160 Fantineli
151 MHE-PG-003 Mill-3 Pressure Gauge Pressure 0~10bar 10 Fantineli
152 MHE-TG/03 Fibrizer Motor B Temperature Gauge Temperature 0~200C 200 Fantineli
153 MHE-TG-04 Fibrizer Motor B Temperature Gauge Temperature 0~160C 160 Fantineli
154 MHE-TG-005 Fibrizer Motor B Temperature Gauge Temperature 0~160C 160 Fantineli
155 MHE-TG-006 Fibrizer Motor B Temperature Gauge Temperature 0~160C 160 Fantineli
156 MHE-TG-007 Fibrizer Motor A Temperature Gauge Temperature 0~160C 160 Fantineli
157 MHE-TG-008 Fibrizer Motor A Temperature Gauge Temperature 0~160C 160 Fantineli
158 MHE-PG-004 Lube oil line pressure Gage Pressure 0~10bar 10 Fantineli
159 PER-LT-02 FFE NO-01 Level Transmitter Level Control 0~100% 100 Fantineli
160 PER-LT-03 FFE NO-02 Level Transmitter Level Control 0~100% 100 Yokogawa
161 PER-LT-04 FFE NO-03 Level Transmitter Level Control 0~100% 100 Yokogawa
162 PER-LT-05 FFE NO-04 Level Transmitter Level Control 0~100% 100 Yokogawa
163 PER-LT-06 FFE NO-05 Level Transmitter Level Control 0~100% 100 Yokogawa
164 PER-LT-07 FFE NO-06 Level Transmitter Level Control 0~100% 100 Yokogawa
165 PER-LT-08 FFE NO-07 Level Transmitter Level Control 0~100% 100 Yokogawa
166 PER-LCV-01 FFE NO-01 Level Control Valve Level Control 0~100% 100 Yokogawa
167 PER-LCV-02 FFE NO-02 Level Control Valve Level Control 0~100% 100 Lapar
168 PER-LCV-03 FFE NO-03 Level Control Valve Level Control 0~100% 100 Lapar
169 PER-LCV-04 FFE NO-04 Level Control Valve Level Control 0~100% 100 Lapar
170 PER-LCV-05 FFE NO-05 Level Control Valve Level Control 0~100% 100 Lapar
171 PER-LCV-06 FFE NO-06 Level Control Valve Level Control 0~100% 100 Lapar
172 PER-LCV-07 FFE NO-07 Level Control Valve Level Control 0~100% 100 Lapar
173 PER-TT-02 FFE NO-01 Cone Temperature Level Control 0~400C 400 Lapar
174 PER-TT-05 FFE NO-01 Temperature Tx Temperature 0~400C 400 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

175 PER-TT-04 FFE NO-01 Temperature Tx Temperature 0~400C 400 Yokogawa

176 PER-PT-06 FFE NO-01 Pressure Tx Pressure 5~-1kg/cm Sq 4 Yokogawa
177 PER-PT-05 FFE NO-01 Pressure Tx Pressure 3~-1kg/cm Sq 4 Yokogawa
178 PER-TT-01 FFE NO-01 Temperature Tx Temrature 0~400C 400 Yokogawa
179 PER-FT-02 FFE NO-01 Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
180 PER-TT-06 FFE NO-02 Temperature Tx Temperature 0~400C 400 Yokogawa
181 PER-TT-07 FFE NO-02 Temperature Tx Temperature 0~400C 400 Yokogawa
182 PER-TT-08 FFE NO-02 Temperature Tx Temperature 0~400C 400 Yokogawa
183 PER-PT-10 FFE NO-02 Pressure Tx Pressure 5~-1kg/cm Sq 4 Yokogawa
184 PER-PT-09 FFE NO-02 Pressure Tx Pressure 3~-1kg/cm Sq 2 Yokogawa
185 PER-TT-09 FFE NO-02 Temperature Tx Temperature 0~400C 400 Yokogawa
186 PER-FT-05 FFE NO-02 Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
187 PER-TT-10 FFE NO-03 Temperature Tx Temperature 0~400C 400 Yokogawa
188 PER-TT-07 FFE NO-03 Temperature Tx Temperature 0~400C 400 Yokogawa
189 PER-TT-12 FFE NO-03 Temperature Tx Temperature 0~400C 400 Yokogawa
190 PER-PT-15 FFE NO-03 Pressure Tx Pressure 5~-1kg/cm Sq 4 Yokogawa
191 PER-PT-14 FFE NO-03 Pressure Tx Pressure 3~-1kg/cm Sq 2 Yokogawa
192 PER-TT-13 FFE NO-03 Temperature Tx Temperature 0~400C 400 Yokogawa
193 PER-FT-07 FFE NO-03 Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
194 PER-TT-14 FFE NO-04 Temperature Tx Temperature 0~400C 400 Yokogawa
195 PER-TT-15 FFE NO-04 Temperature Tx Temperature 0~400C 400 Yokogawa
196 PER-TT-16 FFE NO-04 Temperature Tx Temperature 0~400C 40 Yokogawa
197 PER-PT-18 FFE NO-04 Pressure Tx Pressure 5~-1kg/cm Sq 4 Yokogawa
198 PER-PT-25 FFE NO-04 Pressure Tx Pressure 3~-1kg/cm Sq 2 Yokogawa
199 PER-TT-17 FFE NO-04 Temperature Tx Temperature 0~400C 400 Yokogawa
200 PER-FT-09 FFE NO-04 Flow Meter Tx Flow 0~1600m3/hr 1600 Yokogawa
201 PER-TT-18 FFE NO-05 Cone Temperature Temperature 0~400C 400 Yokogawa
202 PER-TT-19 FFE NO-05 Shell Temperature Temperature 0~400C 400 Yokogawa
203 PER-TT-20 FFE NO-05 Calanderia Temperature Temperature 0~400C 400 Yokogawa
204 PER-PT-21 FFE NO-05 Calanderia Pressure Pressure 5~-1kg/cm Sq 4 Yokogawa
205 PER-pT-24 FFE NO-05 Separator Pressure Pressure 3~-1kg/cm Sq 2 Yokogawa
206 PER-TT-21 FFE NO-05 Separator Temperature Temperature 0~400C 400 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

207 PER-FT-11 FFE NO-05 Circulation Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
208 PER-TT-22 FFE NO-06 Cone Temperature Temperature 0~400C 400 Yokogawa
209 PER-TT-23 FFE NO-06 Shell Temperature Temperature 0~400C 400 Yokogawa
210 PER-TT-24 FFE NO-06 Calanderia Temperature Temperature 0~400C 400 Yokogawa
211 PER-PT-27 FFE NO-06 Calanderia Pressure Pressure 5~-1kg/cm Sq 4 Yokogawa
212 PER-PT-25 FFE NO-06 Separator Pressure Pressure 3~-1kg/cm Sq 2 Yokogawa
213 PER-TT-26 FFE NO-06 Separator Temperature Temperature 0~400C 400 Yokogawa
214 PER-FT-13 FFE NO-06 Circulation Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
215 PER-TT-26 FFE NO-07 Cone Temperature Temperature 0~400C 400 Yokogawa
216 PER-TT-27 FFE NO-07 Shell Temperature Temperature 0~400C 400 Yokogawa
217 PER-TT-28 FFE NO-07 Calanderia Temperature Temperature 0~400C 400 Yokogawa
218 PER-PT-31 FFE NO-07 Calanderia Pressure Pressure 5~-1kg/cm Sq 4 Yokogawa
219 PER-PT-30 FFE NO-07 Separator Pressure Pressure 3~-1kg/cm Sq 2 Yokogawa
220 PER-TT-29 FFE NO-07 Separator Temperature Temprature 0~400C 400 Yokogawa
221 PER-FT-16 FFE NO-07 Circulation Flow Meter Flow 0~1600m3/hr 1600 Yokogawa
222 PER-LCV-08 C.T Comport No-02 Level Control Valve Level Control 0~100% 100 Yokogawa
223 PER-LCV-09 C.T Comport No-03 Level Control Valve Level Control 0~100% 100 Lapar
224 PER-LCV-10 C.T Comport No-04 Level Control Valve Level Control 0~100% 100 Lapar
225 PER-LCV-11 C.T Comport No-05 Level Control Valve Level Control 0~100% 100 Lapar
226 PER-LT-10 C.T Comport No-01 level Transmitter Level 0~100% 100 Lapar
227 PER-LT-11 C.T Comport No-02 level Transmitter Level 0~100% 100 Yokogawa
228 PER-LT-12 C.T Comport No-03 level Transmitter Level 0~100% 100 Yokogawa
229 PER-LT-13 C.T Comport No-04 level Transmitter Level 0~100% 100 Yokogawa
230 PER-LT-14 C.T Comport No-05 level Transmitter Level 0~100% 100 Yokogawa
231 PER-LT-15 C.T Comport No-06 level Transmitter Level 0~100% 100 Yokogawa
Water Condensate
232 PER-LT-17 Level transmitter Level 0~100% 100 Yokogawa
Tank
233 PER-LT-01 Clear Juice Tank level Transmitter Level 0~100% 100 Yokogawa
234 PER-LT-09 Hot water Tank Level Transmitter Level 0~100% 100 Yokogawa
235 PER-FT-17 Syrup Tank Flow Transmitter Flow 0~200m3/hr 200 Yokogawa
Primary Hot Water
236 PER-LT-01 Level Transmitter Level 0~100% 100 Yokogawa
Tank

DPM(I) General Manager

 Instrumentation Master List

Secondary Hot Water

237 PER-LT-02 Level Transmitter Level 0~100% 100 Yokogawa
Tank
238 PER-PG-001 FFE-01 Calanderia pressure Gauge Pressure 0~5KG 5 Yokogawa
239 PER-TG-001 FFE-01 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
240 PER-PG-002 FFE-02 Pressure 0~5KG 5 Fantineli
241 PER-TG-002 FFE-02 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
242 PER-PG-003 FFE-03 Calanderia pressure Gauge Pressure 0~5KG 5 Fantineli
243 PER-TG-003 FFE-03 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
244 PER-PG-004 FFE-04 Calanderia pressure Gauge Pressure 0~5KG 5 Fantineli
245 PER-TG-004 FFE-04 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
246 PER-PG-005 FFE-05 Calanderia pressure Gauge Pressure 0~5KG 5 Fantineli
247 PER-TG-005 FFE-05 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
248 PER-PG-006 FFE-06 Calanderia pressure Gauge Pressure 0~5KG 5 Fantineli
249 PER-TG-006 FFE-06 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
250 PER-PG-007 FFE-07 Calanderia pressure Gauge Pressure 0~5KG 5 Fantineli
251 PER-TG-007 FFE-07 Calanderia Temperature Gauge Temperature 0~160C 160 Fantineli
252 PH-TG-001 Juice Pre Heater-1 Temperature Gauge Temperature 0~160C 160 Fantineli
253 PH-TG-002 Juice Pre Heater-2 Temperature Gauge Temperature 0~160C 160 Fantineli
254 PH-TG-003 Secondary Heater-1 Temperature Gauge Temperature 0~160C 160 Fantineli
255 PH-TG-004 Secondary Heater-2 Temperature Gauge Temperature 0~160C 160 Fantineli
256 PH-TG-005 Secondary Heater-3 Temperature Gauge Temperature 0~160C 160 Fantineli
257 PH-TG-006 Secondary Heater-4 Temperature Gauge Temperature 0~160C 160 Fantineli
258 PH-TG-007 Secondary Heater-5 Temperature Gauge Temperature 0~160C 160 Fantineli
259 PH-TG-008 Secondary Heater-6 Temperature Gauge Temperature 0~160C 160 Fantineli
260 PH-TG-009 Secondary Heater-7 Temperature Gauge Temperature 0~160C 160 Fantineli
261 PH-TG-010 Primary Heater-01 Temperature Gauge Temperature 0~160C 160 Fantineli
262 PH-TG-011 Primary Heater-02 Temperature Gauge Temperature 0~160C 160 Fantineli
263 PH-TG-012 Primary Heater-03 Temperature Gauge Temperature 0~160C 160 Fantineli
264 PH-TG-013 Primary Heater-04 Temperature Gauge Temperature 0~160C 160 Fantineli
265 PH-TG-014 Primary Heater-05 Temperature Gauge Temperature 0~160C 160 Fantineli
266 PH-PG-001 Hot Juice Out line Pressure Gauge Pressure 0~5kg 5 Fantineli
267 PH-TCV-001 Pre Heater -1 Temperature Control Valve Temp. Control 0~100% 100 Fantineli

DPM(I) General Manager

 Instrumentation Master List

268 PH-TCV-002 Pre Heater -2 Temperature Control Valve Temp. Control 0~100% 100 Lapar

269 PH-TCV-003 Secondary Heater-06 Temperature Control Valve Temp. Control 0~100% 100 Lapar

270 PH-TCV-004 Secondary Heater-07 Temperature Control Valve Temp. Control 0~100% 100 Lapar

271 PH-TT-02 Pre-Heater-01 Temperature Transmitter Temperature 0~400C 400 Lapar

272 PH-TT-01 Pre-Heater-02 Temperature Transmitter Temperature 0~400C 400 Yokogawa

273 PH-TT-03 Secondary Heater-01 Temperature Transmitter Temperature 0~400C 400 Yokogawa

274 PH-TT-04 Secondary Heater-02 Temperature Transmitter Temperature 0~400C 400 Yokogawa

275 PH-TT-05 Secondary Heater-03 Temperature Transmitter Temperature 0~400C 400 Yokogawa

276 PH-TT-06 Secondary Heater-04 Temperature Transmitter Temperature 0~400C 400 Yokogawa

277 PH-TT-07 Secondary Heater-05 Temperature Transmitter Temperature 0~400C 400 Yokogawa

278 PH-TT-08 Secondary Heater-06 Temperature Transmitter Temperature 0~400C 400 Yokogawa

279 PH-TT-09 Secondary Heater-07 Temperature Transmitter Temperature 0~400C 400 Yokogawa

280 PH-TT-10 Primary Heater-03 Temperature Transmitter Temperature 0~400C 400 Yokogawa
281 PH-TT-11 Primary Heater-04 Temperature Transmitter Temperature 0~400C 400 Yokogawa
282 PH-TT-12 Primary Heater-05 Temperature Transmitter Temperature 0~400C 400 Yokogawa
283 PH-PG-002 Pre Heater inlet Pressure Gauge Temperature 0~5KG 5 Yokogawa

284 PH-PG-003 Secondary Heater inlet Pressure Gauge Pressure 0~5KG 5 Fantineli

285 PH-F.T-001 Clear Juice Line Flow Transmitter Flow 0~600m3/hr 600 Fantineli
Clear Juice Heat. inlet
286 PH-PT-001 Pressure Transmitter Pressure 0~30kg 30 Yokogawa
Line
287 PTO-FT-001 Talo flock Liquor flow meter Flow 0~300m3/hr 300 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

288 PTO-TT-001 Talo flock Liquor temperature transmitter Temperature 0~200C 200 Yokogawa
289 PTO-TCV-001 Talo flock Temperature control valve Temp. Control 0~100% 100 Yokogawa
290 PTO-PHT-001 Talo flock P-H transmitter P.H 0~14ph 14 Lapar
291 PTO-LT-001 Talo flock Buffer liquor tank level transmitter Level 0~100% 100 Yokogawa
292 PTO-LT-002 Talo flock Clear liquor tank level transmitter Level 0~100% 100 Yokogawa
293 PTO-PCV-001 Talo flock 4Bar pressure control valve Pressure Control 0~100% 100 Yokogawa
294 PTO-TCV-001 Talo flock 4Bar temperature control valve Pressure Control 0~100% 100 Lapar
295 PTO-PT-001 Talo flock 4Bar pressure transmitter Pressure 0~10bar 10 Lapar
296 PTO-BT-001 Talo flock Re-melter bricks transmitter Bricks 0~95% 95 Yokogawa
297 PTO-BCV-001 Talo flock Re-melter control valve Bricks Control 0~100% 100 Prom tech
298 PTO-TG-001 Hot water Line Temperature Gauge Hot Water Temperature 0~160C 160 Lapar
299 PTO-PG-002 Liquor Line Pressure Gauge Liquor Line Pressure 0~5bar 5 Fantineli
300 PPN/FT/001 Refine Pan # 1 Water line flow meter Flow 0~150m3/hr 150 Fantineli
301 PPN/FT/002 Refine Pan # 2 Water line flow meter Flow 0~150m3/hr 150 Yokogawa
302 PPN/FT/003 Refine Pan # 3 Water line flow meter Flow 0~150m3/hr 150 Yokogawa
303 PPN/FT/004 Refine Pan # 4 Water line flow meter Flow 0~150m3/hr 150 Yokogawa
304 PPN/FT/005 Refine Pan Hot water flow meter Flow 0~150m3/hr 150 Yokogawa
305 PPN/LT/001 Refine Pan # 1 Level transmitter Level 0~100% 100 Yokogawa
306 PPN/LT/002 Refine Pan # 2 Level transmitter Level 0~100% 100 Yokogawa
307 PPN/LT/003 Refine Pan # 3 Level transmitter Level 0~100% 100 Yokogawa
308 PPN/LT/004 Refine Pan # 4 Level transmitter Level 0~100% 100 Yokogawa
309 PPN/LT/005 Refine Pan # 5 Level transmitter Level 0~100% 100 Yokogawa
310 PPN/TT/001 Refine Pan# 1 Temp. transmitter calanderia Temprature 0~200C 200 Yokogawa
311 PPN/TT/002 Refine Pan# 2 Temp. transmitter calanderia Temperature 0~200C 200 Yokogawa
312 PPN/TT/003 Refine Pan# 3 Temp. transmitter calanderia Temperature 0~200C 200 Yokogawa
313 PPN/TT/004 Refine Pan# 4 Temp. transmitter calanderia Temperature 0~200C 200 Yokogawa
314 PPN/TT/005 Refine Pan# 5 Temp. transmitter calanderia Temperature 0~200C 200 Yokogawa
315 PPN/TT/005 Refine Pan# 1 Temp. transmitter shell Temperature 0~200C 200 Yokogawa
316 PPN/TT/006 Refine Pan# 2 Temp. transmitter shell Temperature 0~200C 200 Yokogawa
317 PPN/TT/007 Refine Pan# 3 Temp. transmitter shell Temperature 0~200C 200 Yokogawa
318 PPN/TT/008 Refine Pan# 4 Temp. transmitter shell Temperature 0~200C 200 Lapar
319 PPN/TT/009 Refine Pan# 5 Temp. transmitter shell Temperature 0~200C 200 Lapar

DPM(I) General Manager

 Instrumentation Master List

320 PPN/LCV/001 Refine Pan# 1 Level control valve Level Control 0~100% 100 Lapar
321 PPN/LCV/002 Refine Pan# 2 Level control valve Level Control 0~100% 100 Lapar
322 PPN/LCV/003 Refine Pan# 3 Level control valve Level Control 0~100% 100 Lapar
323 PPN/LCV/004 Refine Pan# 4 Level control valve Level Control 0~100% 100 Lapar
324 PPN/LCV/005 Refine Pan# 5 Level control valve Level Control 0~100% 100 Lapar
325 PPN/TCV/001 Refine Pan# 1 Temperature control valve Temp. Control 0~100% 100 Lapar
326 PPN/TCV/002 Refine Pan# 2 Temperature control valve Temp. Control 0~100% 100 Lapar
327 PPN/TCV/003 Refine Pan# 3 Temperature control valve Temp. Control 0~100% 100 Lapar
328 PPN/TCV/004 Refine Pan# 4 Temperature control valve Temp. Control 0~100% 100 Yokogawa
PPN/TCV/005 Refine Pan# 5 Temperature control valve Temp. Control 0~100% 100 Yokogawa
330 PPN/LT/005 Pan station Syrup level transmitter Level 0~100% 100 Yokogawa
331 PPN/LT/006 Pan station Syrup level transmitter Level 0~100% 100 Yokogawa
332 PPN/VT/001 Refine Pan# 1 Vacuum transmitter Vaccum 30~-30in/hg 60 Yokogawa
333 PPN/VT/002 Refine Pan# 2 Vacuum transmitter Vaccum 30~-30in/hg 60 Yokogawa
334 PPN/VT/003 Refine Pan# 3 Vacuum transmitter Vaccum 30~-30in/hg 60 Yokogawa
335 PPN/VT/004 Refine Pan# 4 Vacuum transmitter Vaccum 30~-30in/hg 60 Yokogawa
PPN/VT/005 Refine Pan# 5 Vacuum transmitter Vaccum 30~-30in/hg 60 Yokogawa
331 PPN/LT/007 Pan station Level transmitter liquor tank Level 0~100% 100 Yokogawa
332 PPN/LT/008 Pan station Run off tank 1st level transmitter Level 0~100% 100 Yokogawa
333 PPN/LT/009 Process House Run off tank 2nd level transmitter Level 0~100% 100 Yokogawa
334 PPN/LT/010 Process House Run off tank 3rd level transmitter Level 0~100% 100 Yokogawa
335 PPN/LT/011 Process House A-heavy tank level transmitter Level 0~100% 100 Yokogawa
336 PPN/LT/012 Process House B-heavy tank level transmitter Level 0~100% 100 Yokogawa
337 PPN/LT/013 Process House C- light tank level transmitter Level 0~100% 100 Yokogawa
338 PPN/LT/014 Process House B-light tank level transmitter Level 0~100% 100 Yokogawa
339 PPN/LT/015 Process House Over head tank level transmitter Level 0~100% 100 Yokogawa
340 PPN/LT/016 Process House Centrifugal tank level transmitter Level 0~100% 100 Yokogawa
341 PPN/FT/006 Process House Waste water flow meter Flow 0~400m3/hr 400 Yokogawa
342 PPN-TG/001 Heater outlet B.H Pan Heater Temp Gauge Temperature 0~200C 200 Yokogawa
343 PPN-TG/002 Heater outlet A.H PAN Heater Temp Gauge Temperature 0~200C 200 Fantineli
344 PPN-TG/003 Heater outlet B.L PAN Heater Temp Gauge Temperature 0~200C 200 Fantineli

DPM(I) General Manager

 Instrumentation Master List

345 PPN-PG-001 Air Tank Compressor Pressure Gauge Pressure 0~10bar 10 Fantineli

346 PPN-PG-002 Instrument workshop Pressure Gauge Pressure 0~10bar 10 Fantineli

347 PPN-TG-001 PAN-1 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
348 PPN-PG-003 PAN-1 Calanderia Compound Gauge 02~-76mm /hg 78 Fantineli
349 PPN-TG-002 PAN-1 Shell Temp Gauge Temperature 0~120C 120 Fantineli
350 PPN-PG-004 PAN-1 Shell Compound Gauge 02~-76mm /hg 78 Fantineli
351 PPN-TG-003 PAN-2 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
352 PPN-PG-005 PAN-2 Calanderia Compound Gauge 02~-76mm /hg 78 Fantineli
353 PPN-TG-004 PAN-2 Shell Temp Gauge Temperature 0~120C 120 Fantineli
354 PPN-PG-006 PAN-2 Shell Compound Gauge 02~-76comp. 78 Fantineli
355 PPN-TG-005 PAN-3 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
356 PPN-PG-007 PAN-3 Calanderia Compound Gauge 02~-76mm /hg 78 Fantineli
357 PPN-TG-006 PAN-3 Shell Temp Gauge Temperature 0~120C 120 Fantineli
358 PPN-PG-008 PAN-3 Shell Compound Gauge 02~-76comp. 78 Fantineli
359 PPN-TG-007 PAN-4 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
360 PPN-PG-009 PAN-4 Calanderia Compound Gauge 02~-76mm /hg 78 Fantineli
361 PPN-PG-008 PAN-4 Shell Temp Gauge Temperature 0~120C 120 Fantineli
362 PPN-PG-010 PAN-4 Shell Compound Gauge 02~-76mm /hg 78 Fantineli
363 PPN-TG-009 Continuous Pan-1 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
364 PPN-PG-011 Continuous Pan-1 Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
365 PPN-PG-012 Continuous Pan-1 Calanderia Vacuum Gauge 0~-30in/hg 30 Fantineli
366 PPN-TG-010 Continuous Pan-1 Shell Temp Gauge Temperature 0~120C 120 Fantineli
367 PPN-TG-01 A-Grain Pan Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
368 PPN-PG-013 A-Grain Pan Calanderia Vacuum Gauge 0~-30in/hg 30 Fantineli
369 PPN-TG-012 A-Grain Pan Shell Temp Gauge Temperature 0~120C 120 Fantineli
370 PPN-PG-014 A-Grain Pan Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
371 PPN-TG013 Continuous Pan-2 Calanderia Temp Gauge Temperature 0~120C 120 Fantineli
372 PPN-PG-015 Continuous Pan-2 Calanderia Compound Gauge 02~-76comp. 78 Fantineli
373 PPN-TG-014 Continuous Pan-2 Shell Temp Gauge Temperature 0~120C 120 Fantineli
374 PPN-PG-016 Continuous Pan-2 Shell Vacuum Gauge 0~-30in/hg 30 Fantineli

DPM(I) General Manager

 Instrumentation Master List

375 PPN-TG-015 A/B Grain Pan Calanderia Temp Gauge Temperature 0~160C 160 Fantineli
376 PPN-PG-017 A/B Grain Pan Calanderia Vacuum Gauge 0~-30in/hg 30 Fantineli
377 PPN-TG-016 A/B Grain Pan Shell Temp Gauge Temperature 0~160C 160 Fantineli
378 PPN-PG-018 A/B Grain Pan Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
379 PPN-TG-017 B Grain Pan Calanderia Temp Gauge Temperature 0~160C 160 Fantineli
380 PPN-PG-019 B Grain Pan Calanderia Compound Gauge 02~-76in/hg 78 Fantineli
381 PPN-TG-018 B Grain Pan Shell Temp Gauge Temperature 0~160C 160 Fantineli
382 PPN-PG-020 B Grain Pan Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
383 PPN-TG-019 B/C Grain Pan Calanderia Temp Gauge Temperature 0~160C 160 Fantineli
384 PPN-PG-021 B/C Grain Pan Calanderia pressure Gauge Pressure 0~10bar 10 Fantineli
385 PPN-TG-020 B/C Grain Pan Shell Temp Gauge Temperature 0~160C 160 Fantineli
386 PPN-PG-022 B/C Grain Pan Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
387 PPN-TG-021 Continuous Pan-3 Calanderia Temp Gauge Temperature 0~160c 160 Fantineli
388 PPN-PG-023 Continuous Pan-3 Calanderia pressure Gauge Pressure 0~10bar 10 Fantineli
389 PPN-TG-022 Continuous Pan-3 Shell Temp Gauge Temperature 0~120C 120 Fantineli
390 PPN-PG-024 Continuous Pan-3 Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
391 PPN-TG-023 C-Grain Pan Calanderia Temp Gauge 0~160C 160 Fantineli
392 PPN-PG-025 C-Grain Pan Calanderia pressure Gauge Pressure 0~5bar 5 Fantineli
393 PPN-TG-024 C-Grain Pan Shell Temp Gauge 0~120C 120 Fantineli
394 PPN-PG-026 C-Grain Pan Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
395 PPN-TG-025 Continuous Pan-4 Calanderia Temp Gauge Temperature 0~160C 160 Fantineli
396 PPN-PG-027 Continuous Pan-4 Calanderia Compound Gauge 02~-76in/hg 78 Fantineli
397 PPN-TG-026 Continuous Pan-4 Shell Temp Gauge Temperature 0~160C 160 Fantineli
398 PPN-PG-028 Continuous Pan-4 Shell Vacuum Gauge 0~-30in/hg 30 Fantineli
399 PPN-TG-027 Continuous pan Temperature Gauge Temperature 0~160C 160 Fantineli

400 PPN-PG-029 Refine Hot Water Tank Pressure Gauge Pressure 0~5bar 5 Fantineli

401 PPN-TG-028 Pan -R1 Temperature Gauge Heater Temperature 0~120C 120 Fantineli
402 PPN-TG-029 Pan -R2 Temperature Gauge Heater Temperature 0~120C 120 Fantineli
403 PPN-TG-030 Pan -R3 Temperature Gauge Heater Temperature 0~120C 120 Fantineli
404 PPN-TG-031 C/L Pan Heater Temperature Gauge Heater Temperature 0~120C 120 Fantineli
405 PPN-TG-032 Inlet Refine Heater Temperature Gauge Heater Temperature 0~160C 160 Fantineli

DPM(I) General Manager

 Instrumentation Master List

406 PPN-BT-001 Refine Pan# 1- 2 Brix transmitter Bricks 0~95% 95 Fantineli

407 PPN-BT-002 Refine Pan# 3-4 Brix transmitter Bricks 0~95% 95 Prom tech
408 PPN-BT-003 Refine Pan#5 Brix transmitter Brix 0~95% Prom tech
409 PPN-BT-004 A grain pan Brix transmitter Brix 0~95% Prom tech
410 PPN-BT-005 A/B Grain Pan Brix transmitter Brix 0~95% Prom tech
411 PPN-BT-006 B Grain Pan Brix transmitter Brix 0~95% Prom tech
412 PPN-BT-007 B/C Grain Pan Brix transmitter Brix 0~95% Prom tech
413 PPN-BT-008 C Grain Pan Brix transmitter Brix 0~95% Prom tech
414 PPN-BT-009 A Coninuous Pan Brix transmitter Brix 0~95% Prom tech
415 PBG-WI-001 Bagging House Weight indicator Weight 0~50kg 50 Prom tech
416 PBG-WI-002 Bagging House Weight indicator Weight 0~50kg 50 I-P-S
417 PBG-WI-003 Bagging House Weight indicator Weight 0~50kg 50 I-P-S
418 PBG-WI-004 Bagging House Weight indicator Weight 0~50kg 50 I-P-S
419 PBG-WI-005 Bagging House Weight indicator Weight 0~50kg 50 I-P-S
420 PBG-CS-001 Bagging House Check scale Weight 0~50kg 50 Chronics
421 PBG-CS-002 Bagging House Check scale Weight 0~50kg 50 Avery Scale
422 PBG-CS-003 Sugar Go-down Check scale Weight 0~50kg 50 Avery Scale
423 PBG-CS-004 Compressor Room Check scale Weight 0~50kg 50 Avery Scale
Weigh bridge-1 (Gross
424 WBI-001 Weighbridge indicator Weight 0~120000kg 120000 Sartorius
side )
Weigh bridge-2 (Tare
425 WBI-002 Weighbridge indicator Weight 0~120000kg 120000 Sartorius
side )
426 BHP-PG-500 De-aerator tank Pressure Gauge Pressure 0~4bar 4 Fantineli
Lap Steam to De-
427 BHP-PG-600 Pressure Gauge Pressure 0~2bar 2 Fantineli
aerator tank
428 BHP-PG-009 B.F.W- A (Suction) Pressure Gauge Pressure 0~6bar 6 Fantineli
429 BHP-PG-010 B.F.W- A (Delivery) Pressure Gauge Pressure 0~160bar 160 Fantineli
430 BHP-PG-011 B.F.W- B (Suction) Pressure Gauge Pressure 0~6bar 6 Fantineli
431 BHP-PG-012 B.F.W- B (Delivery) Pressure Gauge Pressure 0~160bar 160 Fantineli
432 BHP-PG-502 Steam Drum Pressure Gauge Pressure 0~250bar 250 Fantineli
433 BHP-PG-602 Soot Blower line Pressure Gauge Pressure 0~40bar 40 Fantineli

DPM(I) General Manager

 Instrumentation Master List

Tri Sodium dosing

434 BHP-PG-022 Pressure Gauge Pressure 0~5bar 5 Fantineli
pump
435 BHP-CCV-400 Blow down line conductivity control valve 0~100% 100 Polna
436 BHP-PT-603 Air Heater Exhaust Pressure Transmitter Pressure 0~20bar 20 Fantineli
437 BHP-PT-1501 Flue Gases duct Pressure Transmitter Pressure 30~-30mbar 60 Yokogawa
438 BHP-PT-1502 ID Fan duct Pressure Transmitter Pressure 30~-30mbar 60 Yokogawa
439 BHP-PT-501 De-aerator tank Pressure Transmitter Pressure 0~2 bar 2 Yokogawa
Feed Water line to
440 BHP-TT-102 Temp. Transmitter Temperature 650~-50C 700 Yokogawa
drum

441 BHP-TT-501 Super Heater Header Temp. Transmitter Temperature 650~-50C 700 Yokogawa
442 BLP-TT.604 GASES O2 Analyzer 0~200C 200 Yokogawa
443 BHP-TT-604 Soot Blower drain Temp. Transmitter Temperature 650~-50C 700 Yokogawa
444 BHP-TT-1502 Duct ID Fan Temp. Transmitter Temperature 650~-50C 700 Yokogawa
445 BHP-FT-1100 PFDF Flow Transmitter Flow 0~142t/hr 142 Yokogawa
446 BHP-FT-1101 Air Duct Flow Transmitter Flow 0~53.6t/hr 53.6 Yokogawa
447 BHP-LT-1200 Flash Vessel Tank level TX Level 0~100% 100 Yokogawa
448 BLP-TT.604 GASES Temperature transmitter Temperature 0~400C 400 Yokogawa
449 MHE-TG-002 Imibibition Tank Temp. Gauge Temperature 0~160C 160 Yokogawa
450 PER-PG-045 FFE-1 Separator Compound Gauge 02~-76in/hg 78 Fantineli
451 PER-PG-048 FFE-2 Separator Pressure Gauge Pressure 0~5kg/cm2 5 Fantineli
452 PER-PG-043 FFE-3 Separator Compound Gauge Vaccum/Pressure 02~-76in/hg 78 Fantineli
453 PER-PG-049 FFE-4 Separator Compound Gauge Vaccum/Pressure 02~-76in/hg 78 Fantineli
454 PER-PG-044 FFE-5 Separator Compound Gauge Vaccum/Pressure 02~-76in/hg 78 Fantineli
455 PER-PG-021 FFE-6 Separator Vacuum Gauge Vaccum/Pressure 0~-30in/hg 30 Fantineli
456 PER-PG-046 FFE-7 Separator Vacuum Gauge Vaccum/Pressure 0~-30in/hg 30 Fantineli
457 PH-TG-040 Primary heater-3 Temp. Gauge Temperature 0~160C 160 Fantineli
458 PH-PT-050 Booster pump Pressure Tx Pressure 0~10bar 10 Fantineli
459 PTO-TG-004 Hot water Tank Temp. Gauge Temperature 0~160C 160 Fantineli
460 PTO-PT-002 Instrument Air line Pressure Tx 0~10bar 10 Fantineli

461 PPN-PG-002 Instrument workshop Pressure Gauge Pressure 0~10bkg/cm2 10 Fantineli

DPM(I) General Manager

 Instrumentation Master List

462 PPN-PG-003 Instrument Air tank-1 Pressure Gauge Pressure 0~10bar 10 Fantineli

463 PPN-PG-004 Instrument Air tank-2 Pressure Gauge Pressure 0~10bar 10 Fantineli

464 NJP-PG-001 4 BAR LINE Pressure Gauge Pressure 0~10 bar 10 Fantineli
465 NJP-PG-002 EXHAST LINE Pressure Gauge Pressure 0~10 bar 10 Fantineli
466 NJP-PG-003 1ST VAPER Pressure Gauge Pressure 0~10 bar 10 Fantineli
467 NJP-PG-004 2nd VAPER Pressure Gauge Pressure 0~10 bar 10 Fantineli
Steam pressure open
468 NJP-PG-005 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan 1
Steam pressure open
469 NJP-PG-006 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan2
Steam pressure open
470 NJP-PG-007 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan3
Steam pressure open
471 NJP-PG-008 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan4
Steam pressure open
472 NJP-PG-009 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan5
Steam pressure open
473 NJP-PG-010 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan6
474 NJP-PG-011 Scum remover 1 Pressure Gauge Pressure 0~10 bar 10 Fantineli
475 NJP-PG-012 Scum remover 2 Pressure Gauge Pressure 0~10 bar 10 Fantineli
476 NJP-PG-013 Scum remover 3 Pressure Gauge Pressure 0~10 bar 10 Fantineli
Air pressure cooling
477 NJP-PG-014 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan1
Air pressure cooling
478 NJP-PG-015 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan2
Air pressure cooling
479 NJP-PG-016 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan3
Air pressure cooling
480 NJP-PG-017 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan4

DPM(I) General Manager

 Instrumentation Master List

Air pressure cooling

481 NJP-PG-018 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan5
Air pressure cooling
482 NJP-PG-019 Pressure Gauge Pressure 0~10 bar 10 Fantineli
pan6
483 NJP-TG-001 EXHAST LINE Temperature Gauge Temperature 0~160C 160 Fantineli
484 NJP-TG-002 1ST VAPER Temperature Gauge Temperature 0~160C 160 Fantineli
485 NJP-TG-003 2nd VAPER Temperature Gauge Temperature 0~160C 160 Fantineli
486 NJP-TG-004 scum remover 1 Temperature Gauge Temperature 0~160C 160 Fantineli
487 NJP-TG-005 scum remover 2 Temperature Gauge Temperature 0~160C 160 Fantineli
488 NJP-TG-006 scum remover 3 Temperature Gauge Temperature 0~160C 160 Fantineli
open pan 5 steam
489 NJP-TG-007 Temperature Gauge Temperature 0~160C 160 Fantineli
temp
open pan 1 steam
490 NJP-TT-001 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
open pan 2 steam
491 NJP-TT-002 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
open pan 3 steam
492 NJP-TT-003 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
open pan 4 steam
493 NJP-TT-004 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
open pan 5 steam
494 NJP-TT-005 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
open pan 6 steam
495 NJP-TT-006 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temp
4 Bar steam
496 NJP-TT-007 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temperature
scum remover shell
497 NJP-TT-008 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temperature 1
scum remover shell
498 NJP-TT-009 Temperature Transmitter Temperature 0~200C 200 Yokogawa
temperature 2
scum remover shell
499 NJP-TT-010 Temperature Transmitter Temperature 0~200c 200 Yokogawa
temperature 3

DPM(I) General Manager

 Instrumentation Master List

500 NJP-LT-001 SYRUP JUICE TANK Level transmitter Level 0~100 100 Yokogawa
501 NJP-LT-002 Clear juice tank Level transmitter Level 0~100 100 Yokogawa
502 NJP-LT-003 Raw juice tank Level transmitter Level 0~100 100 Yokogawa
503 PPN-LCV-005 Refine PAN #5 Level Controle valve Level Control 0~100% 100 Air Powe

504 PPN-TCV-006 Refine PAN#5 Temperature Controle Valve Temperature Control 0~100% 100 Air Powe

505 PPN- LT100 Refine PAN#5 Level Transmitter Level 0~100% 100 Yokogawa
506 PPN-VG-101 Refine PAN#5 Vacumm Gauge Vaccum 0~-30in/hg 30 Fantineli
507 PPN-TG-005 Refine PAN#5 Temperature Gauge Temperature 0~120c 120 Fantineli
508 PPN-PG-009 Pressure Gauge Pressure 0~10bar 10 Fantineli
509 PPN-TG-003 Refine PAN#5 Temperature Gauge Temperature 0~120c 120 Fantineli
510 PPN/CV/007 CFW1 Control valve Control valve 0~100% 100 Lapar
511 PPN/CV/008 CFW2 Control valve Control valve 0~100% 100 Lapar
512 PPN/CV/009 CFW3 Control valve Control valve 0~100% 100 Lapar
513 PPN/CV/010 CFW4 Control valve Control valve 0~100% 100 Lapar
514 PPN/CV/011 BFW5 Control valve Control valve 0~100% 100 Lapar
515 PPN/CV/012 BFW6 Control valve Control valve 0~100% 100 Lapar
516 PPN/CV/013 Control valve Control valve 0~100% 100 Lapar
517 PPN/CV/014 Control valve Control valve 0~100% 100 Lapar
518 PPN/CV/001 CFW1 Control valve Control valve 0~100% 100 Lapar
519 PPN/CV/002 CFW2 Control valve Control valve 0~100% 100 Lapar
520 PPN/CV/003 CFW3 Control valve Control valve 0~100% 100 Lapar
521 PPN/CV/004 CFW4 Control valve Control valve 0~100% 100 Lapar
522 PPN/CV/005 BFW5 Control valve Control valve 0~100% 100 Lapar
523 PPN/CV/006 BFW6 Control valve Control valve 0~100% 100 Lapar
524 NJP-TT-001 Open Pan 1 Temprature Transmitter Temperature 0~200C 200 Yokogawa
525 NJP-TT-002 Open Pan 2 Temprature Transmitter Temperature 0~200C 200 Yokogawa
526 NJP-TT-003 Open Pan 3 Temprature Transmitter Temperature 0~200C 200 Yokogawa
527 NJP-TT-004 Open Pan 4 Temprature Transmitter Temperature 0~200C 200 Yokogawa
528 NJP-TT-005 Open Pan 5 Temprature Transmitter Temperature 0~200C 200 Yokogawa
529 NJP-TT-006 Open Pan 6 Temprature Transmitter Temperature 0~200C 200 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

4 Bar Steam
530 NJP-TT-007 Temprature Transmitter Temperature 0~200C 200 Yokogawa
Temprature
531 NJP-TT-008 Scum Remover Temprature Transmitter Temperature 0~200C 200 Yokogawa
532 NJP-TT-009 Scum Remover Temprature Transmitter Temperature 0~200C 200 Yokogawa
533 NJP-PG-001 4 bar line Pressure Gauge Pressure 0~10 bar 10 Fantineli
534 NJP-PG-002 Exhaust Line Pressure Gauge Pressure 0~10 bar 10 Fantineli
535 NJP-PG-003 First Vapour Pressure Gauge Pressure 0~10 bar 10 Fantineli
536 NJP-PG-004 Open Pan 1 Pressure Gauge Pressure 0~10 bar 10 Fantineli

537 NJP-PG-005 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

538 NJP-PG-006 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

539 NJP-PG-007 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

540 NJP-PG-008 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

541 NJP-PG-009 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

542 NJP-PG-010 Steam Press.open pan Pressure Gauge Pressure 0~10 bar 10 Fantineli

543 NJP-PG-011 Scum Remover 01 Pressure Gauge Pressure 0~10 bar 10 Fantineli
544 NJP-PG-012 Scum Remover 02 Pressure Gauge Pressure 0~10 bar 10 Fantineli
545 NJP-PG-013 Scum Remover 03 Pressure Gauge Pressure 0~10 bar 10 Fantineli
Air Pressure Cooling
546 NJP-PG-019 Pressure Gauge Pressure 0~10 bar 10 Fantineli
Pan 06
547 NJP-TG-001 Exhaust Line Temperature Gauge Temperature 0~160C 160 Fantineli
548 NJP-TG-002 First Vapour Temperature Gauge Temperature 0~160C 160 Fantineli
549 NJP-TG-003 2nd Vapour Temperature Gauge Temperature 0~160C 160 Fantineli
550 NJP-TG-004 Scum Remover 1 Temperature Gauge Temperature 0~160C 160 Fantineli
551 NJP-TG-005 Scum Remover 2 Temperature Gauge Temperature 0~160C 160 Fantineli
552 NJP-TG-006 Open pan Temperature Gauge Temperature 0~160C 160 Fantineli
553 NJP-TG-007 Open pan Temperature Gauge Temperature 0~160C 160 Fantineli

DPM(I) General Manager

 Instrumentation Master List

554 NJP-TT-009 Open Pan#1 Temprature Transmitter Temperature 0-200C 200 E&H
555 NJP-TT-010 Open Pan#2 Temprature Transmitter Temperature 0-200C 200 E&H
556 NJP-TT-011 Open Pan#3 Temprature Transmitter Temperature 0-200C 200 E&H
557 NJP-TT-012 Open Pan#4 Temprature Transmitter Temperature 0-200C 200 E&H
558 NJP-TT-013 Open Pan#5 Temprature Transmitter Temperature 0-200C 200 E&H
559 NJP-TT-014 Open Pan#6 Temprature Transmitter Temperature 0-200C 200 E&H
560 NJP-TT-015 Open Pan#7 Temprature Transmitter Temperature 0-200C 200 E&H
555 NJP-TT-016 Open Pan Temprature Transmitter(Portable) Temperature 0-200C 200 Yokogawa

DPM(I) General Manager

 Instrumentation Master List

Temperature
1 NJP-TG-001 Calibrator 0~650C 650 Druck
Calibrator
Pressure Source
2 AQS-2 Calibrator 0~3000PSI 3000 Yokogawa
(ASHCROFT)

3 CA-71 Mille Ampere Source Calibrator Multi Fun. Yokogawa

4 602D001 Dead Weight Tester Calibrator 0~10,000PSI 10 Ashcroft

5 DW-001 Weight Dead Weight 05Kg 5 SS
6 DW-002 Weight Dead Weight 10 Kg 10 SS
7 DW-003 Weight Dead Weight 20 Kg 20 SS

DPM(I) General Manager

 Instrumentation Master List

Calibration date Next due date

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022

DPM(I) General Manager

 Instrumentation Master List

02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022
02.09.2021 01.09.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022
03.10.2021 02.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022

06.10.2021 05.10.2022

DPM(I) General Manager

 Instrumentation Master List

06.10.2021 05.10.2022

06.10.2021 05.10.2022

06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022

06.10.2021 05.10.2022

06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022
06.10.2021 05.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

DPM(I) General Manager

 Instrumentation Master List

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

03.10.2021 02.10.2022

25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022
25.08.2021 02.10.2022

DPM(I) General Manager

 Instrumentation Master List

25.08.2021 02.10.2022
25.08.2021 02.10.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
28.08.2021 27.08.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022

DPM(I) General Manager

 Instrumentation Master List

17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022

DPM(I) General Manager

 Instrumentation Master List

17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022

17.10.2021 16.10.2022

17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022

17.10.2021 16.10.2022

DPM(I) General Manager

 Instrumentation Master List

17.10.2021 16.10.2022

17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
17.10.2021 16.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022

DPM(I) General Manager

 Instrumentation Master List

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022
13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022
13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

13.10.2021 12.10.2022

5.10.2021 4.10.2022

DPM(I) General Manager

 Instrumentation Master List

5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
5.10.2021 4.10.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022

DPM(I) General Manager

 Instrumentation Master List

1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022

DPM(I) General Manager

 Instrumentation Master List

4.10.2021 3.10.2022

4.10.2021 3.10.2022

4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
4.10.2021 3.10.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022

DPM(I) General Manager

 Instrumentation Master List

10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022

10.06.2021 09.06.2022

10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022

DPM(I) General Manager

 Instrumentation Master List

10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022
10.06.2021 09.06.2022

10.06.2021 09.06.2022

10.06.2021 09.06.2022

10.06.2021 09.06.2022

10.06.2021 09.06.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

21.10.2021 20.10.2022

DPM(I) General Manager

 Instrumentation Master List

21.10.2021 20.10.2022
21.10.2021 20.10.2022
21.10.2021 20.10.2022
1.10.2021 30.09.2022

1.10.2021 30.09.2022

1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
1.10.2021 30.09.2022
6.07.2021 5.07.2022
6.07.2021 5.07.2022
6.07.2021 5.07.2022
6.07.2021 5.07.2022
6.07.2021 5.07.2022
6.07.2021 5.07.2022

DPM(I) General Manager

 Instrumentation Master List

6.07.2021 5.07.2022

6.07.2021 5.07.2022
6.07.2021 5.07.2022
7.07.2021 6.07.2022
7.07.2021 6.07.2022
7.07.2021 6.07.2022
7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022

7.07.2021 6.07.2022
7.07.2021 6.07.2022
7.07.2021 6.07.2022

7.07.2021 6.07.2022

9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022

DPM(I) General Manager

 Instrumentation Master List

9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2021 9.07.2022
9.07.2020 9.07.2021

DPM(I) General Manager

 Instrumentation Master List

28.08.2019 27.08.2020

28.08.2019 27.08.2020

28.08.2019 27.08.2020

28.08.2019 27.08.2020
28.08.2019 27.08.2020
28.08.2019 27.08.2020
28.08.2019 27.08.2020

DPM(I) General Manager

 CALIBRATION CERTIFICATE
Instrument Name Tag Number Service Location/Area

Flow Meter PER-FT-05 Flow FFE NO-02

Calibration date 16.10.2022 Calibrator used Lab. Temperature

Next due 15.10.2023 Name# Master Meter 25 + 2 °C

Range 0~1600m3/hr Model# ZMC

Accuracy ±0.3% Accuracy 0.02%

OBSERVATION
Deviation %
Applied – Units
Obs# Before Cal. After Cal.
m3/hr
Before Cal. After Cal.

1 300.00 298.00 299.00 0.13 0.06

2 600.00 597.80 598.80 0.14 0.08

3 900.00 897.20 898.80 0.17 0.08

4 1,200.00 1,197.00 1,198.60 0.19 0.09

5 1,600.00 1,597.00 1,498.50 0.19 6.34

Calibrated by DPM(I)
