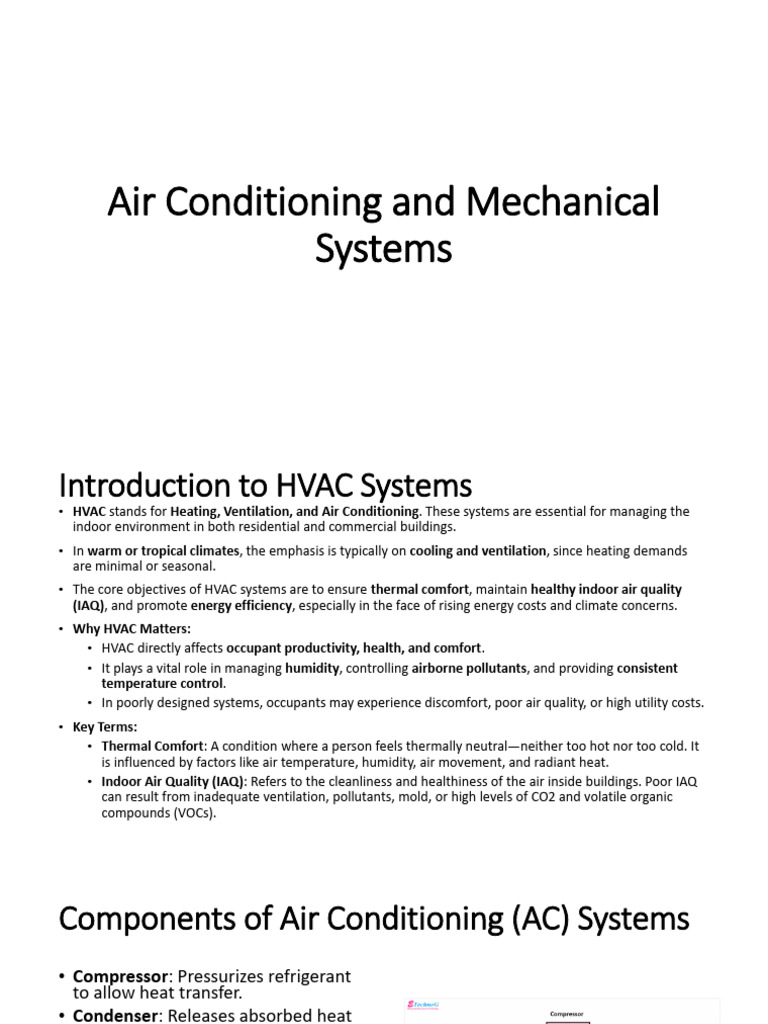

Air Conditioning and Mechanical

Systems
Introduction to HVAC Systems
• HVAC stands for Heating, Ventilation, and Air Conditioning. These systems are essential for managing the
indoor environment in both residential and commercial buildings.
• In warm or tropical climates, the emphasis is typically on cooling and ventilation, since heating demands
are minimal or seasonal.
• The core objectives of HVAC systems are to ensure thermal comfort, maintain healthy indoor air quality
(IAQ), and promote energy efficiency, especially in the face of rising energy costs and climate concerns.
• Why HVAC Matters:
• HVAC directly affects occupant productivity, health, and comfort.
• It plays a vital role in managing humidity, controlling airborne pollutants, and providing consistent
temperature control.
• In poorly designed systems, occupants may experience discomfort, poor air quality, or high utility costs.
• Key Terms:
• Thermal Comfort: A condition where a person feels thermally neutral—neither too hot nor too cold. It
is influenced by factors like air temperature, humidity, air movement, and radiant heat.
• Indoor Air Quality (IAQ): Refers to the cleanliness and healthiness of the air inside buildings. Poor IAQ
can result from inadequate ventilation, pollutants, mold, or high levels of CO2 and volatile organic
compounds (VOCs).
Components of Air Conditioning (AC) Systems
• Compressor: Pressurizes refrigerant
to allow heat transfer.
• Condenser: Releases absorbed heat
to the outside air.
• Evaporator: Absorbs heat from
indoor air and cools it.
• Expansion Valve: Controls
refrigerant flow into the evaporator.
• Air Handling Unit (AHU): Distributes
conditioned air throughout the
building.
• Ductwork or Piping: Channels air or
refrigerant to different zones.
Types of AC Systems
• Split Systems: One indoor and one
outdoor unit; common in homes.
• Multi-split Systems: Multiple indoor
units connected to one outdoor unit.
• Packaged Systems: All-in-one
systems typically placed on rooftops. Multi split
• VRF/VRV Systems: Variable
Refrigerant Flow/Volume; highly
efficient, scalable for large buildings.
• Window AC: Compact unit for
single-room cooling.
• Centralized Chiller Systems: Used in
large buildings; chilled water
circulated to air handlers.
Vrv/vrf system
Thermal Zoning and Control
• Zoning: The practice of dividing a building into independently controlled areas (zones) based on differences
in function, orientation, occupancy schedules, or internal heat gains. Zoning allows each area to maintain its
own thermal conditions, leading to improved energy efficiency and occupant comfort.
• Purpose of Zoning: It prevents overcooling or undercooling spaces that don't require the same conditions,
reduces energy wastage, and allows tailored comfort settings for different users or uses. In large buildings,
improper zoning can lead to energy inefficiencies and uneven temperatures.
• Zoning Control Methods:
• Thermostats: Each zone may have a dedicated thermostat, allowing localized temperature control.
• Variable Air Volume (VAV) Systems: Automatically modulate airflow into zones based on demand.
• Building Management Systems (BMS): Centralized control systems that monitor and adjust HVAC
performance across multiple zones in real-time.
• Motorized Dampers: Control air distribution in ducted systems to manage airflow into specific zones.
• Benefits:
• Enhanced occupant comfort by meeting specific thermal needs.
• Energy savings through targeted climate control.
• Increased equipment lifespan due to reduced system strain.
• Flexibility in building use and scheduling.
Energy Efficiency and System Performance
• Energy Efficiency Ratio (EER): Measures the ratio of cooling capacity (in BTUs per hour) to the electrical
input (in watts) under specific test conditions. A higher EER indicates a more efficient air conditioner in
steady-state conditions, typically measured at 35°C (95°F) outdoor temperature.
• Seasonal Energy Efficiency Ratio (SEER): A seasonal measure of energy efficiency that averages system
performance over a range of outdoor temperatures during an entire cooling season. SEER is more
representative of real-world usage than EER. Modern systems often have SEER ratings of 13 or higher, with
high-efficiency units reaching SEER 20+.
• Coefficient of Performance (COP): A universal performance metric used in both heating and cooling systems.
It represents the ratio of useful heating or cooling provided to the electrical energy consumed. For cooling
systems, a COP above 3.0 is considered efficient, especially in warm climates where prolonged operation is
common.
• Inverter Technology: Inverter-driven compressors can vary their speed to match the required cooling load.
This results in less energy consumption compared to fixed-speed units that switch on and off frequently.
Inverter systems also provide faster cooling, quieter operation, and reduced wear and tear on components.
• Smart Thermostats: Programmable or learning-based thermostats that adapt to user behavior and
occupancy patterns. They can be remotely controlled and integrated into smart building management
systems. Features such as geofencing, voice control, and energy reporting enhance their ability to reduce
unnecessary cooling and improve user comfort.
Design Strategies for Efficiency:
• Use high-performance insulation: Insulation helps maintain indoor temperatures by reducing the rate of
heat transfer through walls, roofs, and floors. Materials such as polyurethane foam, mineral wool, and
insulated panels are effective in hot climates. Proper insulation reduces the workload on AC systems, thus
saving energy.
• Seal air leaks: Gaps and cracks around windows, doors, ductwork, and utility penetrations allow warm air
infiltration and conditioned air loss. Sealing these leaks using caulking, weather stripping, and airtight
construction methods can significantly improve a building's thermal envelope and lower cooling demands.
• Optimize glazing and shading: Windows can be a major source of unwanted heat gain. Using low-emissivity
(low-E) glazing, reflective films, or double-glazed units helps reduce solar heat transmission. External shading
devices like overhangs, louvers, trees, and pergolas reduce direct sun exposure, especially on east and west
facades.
• Use ceiling fans to reduce AC loads: Fans promote air circulation and create a wind-chill effect that increases
thermal comfort. This allows indoor temperatures to be set a few degrees higher without sacrificing comfort,
reducing reliance on mechanical cooling and energy usage.
 Passive + Mechanical Integration
• Integrating passive and mechanical cooling methods leverages the strengths of both approaches to optimize energy use,
improve thermal comfort, and ensure system resilience, particularly in warm climates. Passive strategies reduce the
reliance on energy-intensive air conditioning systems, while mechanical systems provide consistency during extreme
conditions.
• Passive Methods:
• Natural Ventilation: Cross-ventilation through operable windows.
• Thermal Mass: Materials like concrete store coolness.
• Night Flushing: Use night air to cool down buildings.
• Shading: Overhangs, louvers, and vegetation reduce solar heat gain.
• Hybrid Approaches:
• Sequential Use: Passive strategies (like shading and ventilation) are used to reduce baseline heat gains. AC is
deployed only when these strategies are insufficient, minimizing operational hours.
• Complementary Design: For example, buildings designed to maximize cross-ventilation can reduce the load on
mechanical systems, allowing for smaller AC units.
• Zonal Flexibility: Passive cooling may serve communal spaces, while AC is reserved for enclosed or sensitive zones
(e.g., server rooms or healthcare wards).
• Integrated Controls: Smart systems can switch between passive and mechanical modes based on temperature,
humidity, and occupancy—ensuring optimal performance with minimal energy waste.
Suitability in Low-Income and Rural Projects
• Challenges:
• High upfront and operational costs: The cost of purchasing and installing air conditioning systems is often beyond the reach of low-
income households. In addition, the operational costs related to energy consumption and system upkeep can be burdensome.
• Unreliable power supply: Many rural areas experience frequent blackouts or lack grid access altogether. This makes conventional AC
systems ineffective or unusable without alternative power sources.
• Limited access to maintenance services: Technical expertise, spare parts, and repair services may not be available locally. This leads
to long downtimes when systems fail and discourages investment in sophisticated mechanical systems.
• Adapted Solutions:
• Evaporative Coolers: These devices work by passing hot air over water-saturated pads, cooling it through evaporation. They are
energy-efficient, easy to maintain, and effective in arid regions where humidity is low.
• Ceiling Fans and Ventilators: Fans improve air circulation and thermal comfort, reducing reliance on AC. Ventilators—both natural
(wind-driven) and mechanical—help remove indoor heat and bring in fresh air.
• Solar-Powered AC Units: By harnessing solar energy, these systems reduce dependence on the electrical grid. They are particularly
beneficial in regions with high solar irradiance and can be paired with battery storage for continuous operation.
• Low-Cost Insulation: Traditional materials like thatch, mud bricks, and adobe offer natural thermal insulation. Supplementary
materials like radiant barriers and reflective coatings on roofs can significantly reduce indoor heat gain.
• Smart Passive Design: Strategies include orienting buildings to minimize solar exposure, using overhangs and vegetation for shading,
designing with cross-ventilation in mind, and incorporating high ceilings and thermal chimneys to promote natural airflow.
