University of Asia Pacific

Department of Electrical & Electronic Engineering


Mid Semester Examination, Fall - 2020
Program: B. Sc. Engineering (3rd Year/ 2nd Semester)

Course Title: Control System I Course No. EEE 317 Credit Hours: 3.00
Time: 1.00 Hour Full Marks: 60
[There are Four questions. Answer three questions including Q-1 and Q-2.]

1. 𝑰𝟐 [20]

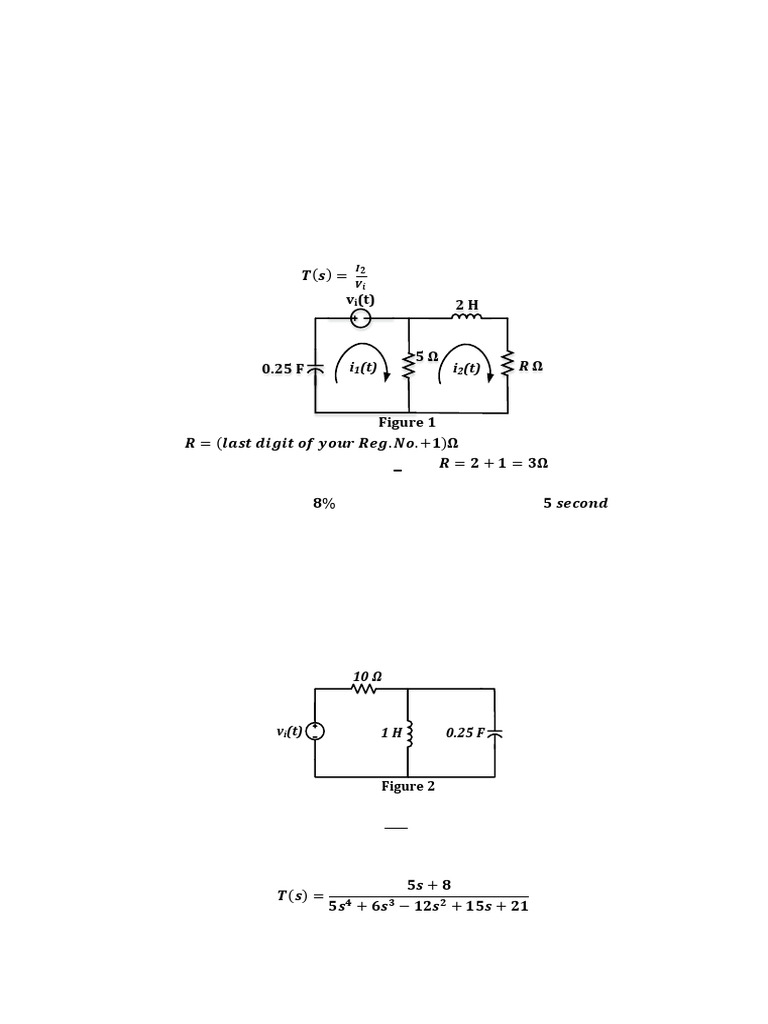

Find the transfer function 𝑻(𝒔) = of the circuit given in figure 1,
𝑽𝒊
vi(t) 2H

5
0.25 F i1(t) i2(t) R

Figure 1
Where 𝑹 = (𝒍𝒂𝒔𝒕 𝒅𝒊𝒈𝒊𝒕 𝒐𝒇 𝒚𝒐𝒖𝒓 𝑹𝒆𝒈. 𝑵𝒐. +𝟏)𝛀,
(for example if your Reg. No. is 16108002, then 𝑹 = 𝟐 + 𝟏 = 𝟑𝛀).

2. For a 2nd order system with 𝟖% overshoot and a settling time of 𝟓 𝒔𝒆𝒄𝒐𝒏𝒅, find the [20]
i) Damping ratio,
ii) Natural frequency,
iii) Peak time,
iv) The poles of the system
v) Transfer function on the system.

3. Find state space representation of the circuit shown in figure 2, given that the output [20]
is the voltage across the inductor.
10

vi(t) 1H 0.25 F

Figure 2

OR
4. For the transfer function given below, find the state space representation and draw its [20]
equivalent block diagram.
𝟓𝒔 + 𝟖
𝑻(𝒔) = 𝟒
𝟓𝒔 + 𝟔𝒔𝟑 − 𝟏𝟐𝒔𝟐 + 𝟏𝟓𝒔 + 𝟐𝟏
