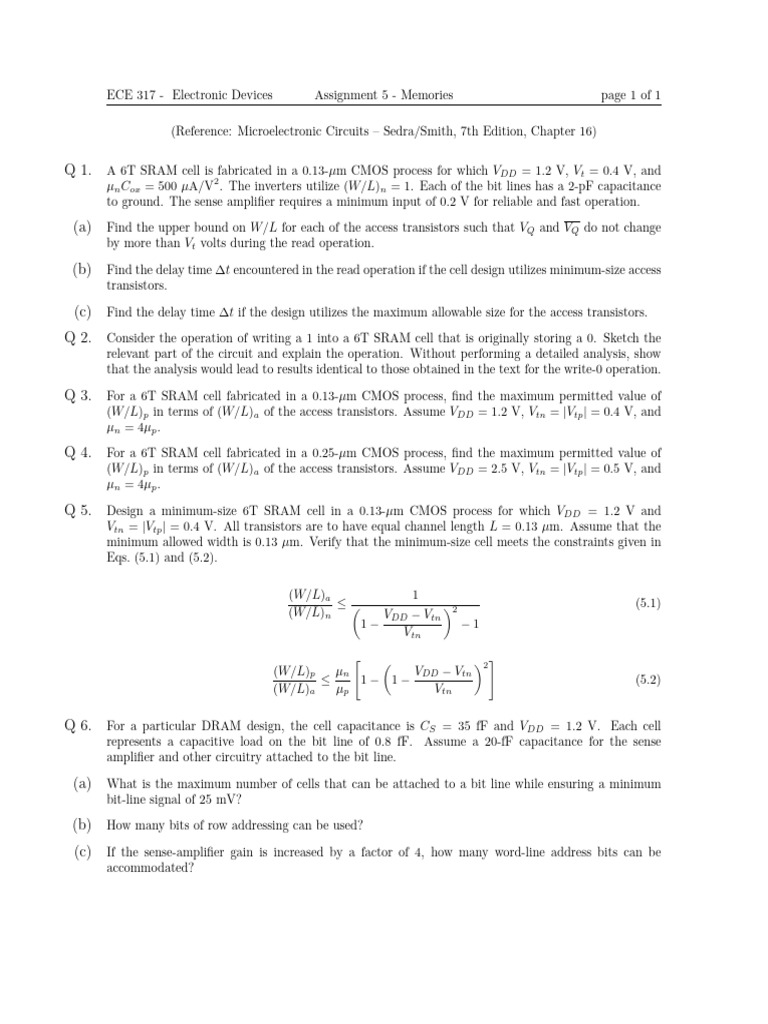

ECE 317 - Electronic Devices Assignment 5 - Memories page 1 of 1

(Reference: Microelectronic Circuits – Sedra/Smith, 7th Edition, Chapter 16)

Q 1. A 6T SRAM cell is fabricated in a 0.13-µm CMOS process for which VDD = 1.2 V, Vt = 0.4 V, and
µn Cox = 500 µA/V2 . The inverters utilize (W/L)n = 1. Each of the bit lines has a 2-pF capacitance
to ground. The sense amplifier requires a minimum input of 0.2 V for reliable and fast operation.

(a) Find the upper bound on W/L for each of the access transistors such that VQ and VQ do not change
by more than Vt volts during the read operation.

(b) Find the delay time ∆t encountered in the read operation if the cell design utilizes minimum-size access
transistors.

(c) Find the delay time ∆t if the design utilizes the maximum allowable size for the access transistors.
Q 2. Consider the operation of writing a 1 into a 6T SRAM cell that is originally storing a 0. Sketch the
relevant part of the circuit and explain the operation. Without performing a detailed analysis, show
that the analysis would lead to results identical to those obtained in the text for the write-0 operation.

Q 3. For a 6T SRAM cell fabricated in a 0.13-µm CMOS process, find the maximum permitted value of
(W/L)p in terms of (W/L)a of the access transistors. Assume VDD = 1.2 V, Vtn = |Vtp | = 0.4 V, and
µn = 4µp .

Q 4. For a 6T SRAM cell fabricated in a 0.25-µm CMOS process, find the maximum permitted value of
(W/L)p in terms of (W/L)a of the access transistors. Assume VDD = 2.5 V, Vtn = |Vtp | = 0.5 V, and
µn = 4µp .

Q 5. Design a minimum-size 6T SRAM cell in a 0.13-µm CMOS process for which VDD = 1.2 V and
Vtn = |Vtp | = 0.4 V. All transistors are to have equal channel length L = 0.13 µm. Assume that the
minimum allowed width is 0.13 µm. Verify that the minimum-size cell meets the constraints given in
Eqs. (5.1) and (5.2).

(W/L)a 1
≤ 2 (5.1)
(W/L)n VDD − Vtn
1− −1
Vtn
"  2 #
(W/L)p µn VDD − Vtn
≤ 1− 1− (5.2)
(W/L)a µp Vtn

Q 6. For a particular DRAM design, the cell capacitance is CS = 35 fF and VDD = 1.2 V. Each cell
represents a capacitive load on the bit line of 0.8 fF. Assume a 20-fF capacitance for the sense
amplifier and other circuitry attached to the bit line.

(a) What is the maximum number of cells that can be attached to a bit line while ensuring a minimum
bit-line signal of 25 mV?

(b) How many bits of row addressing can be used?


(c) If the sense-amplifier gain is increased by a factor of 4, how many word-line address bits can be
accommodated?
