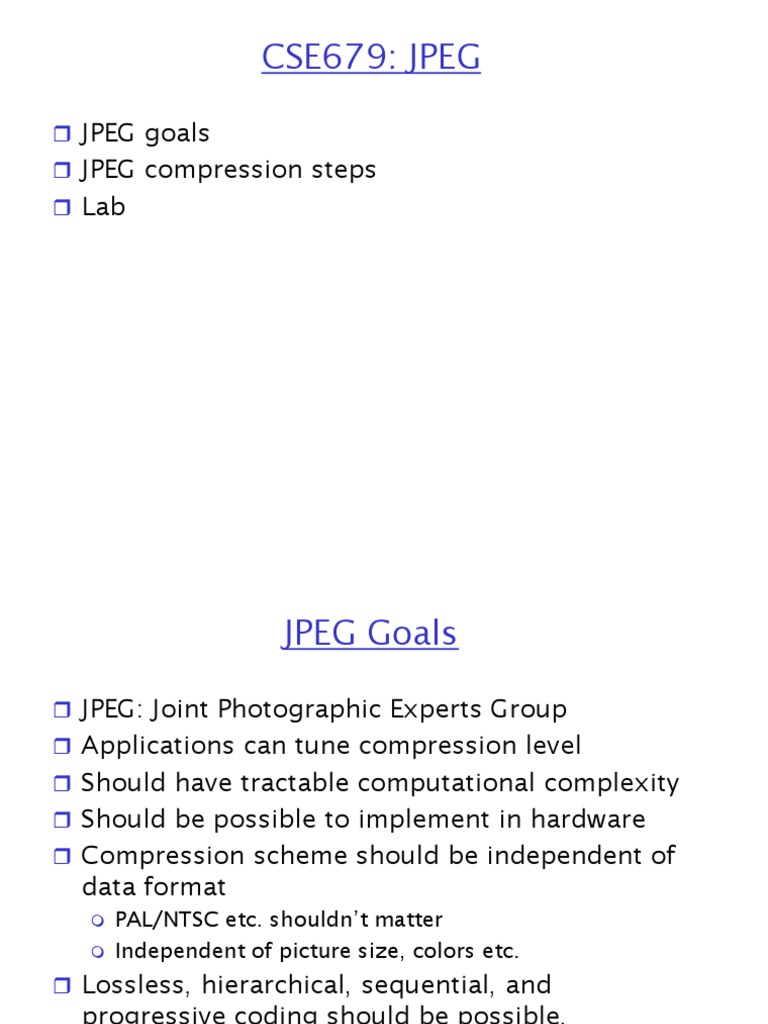

CSE679: JPEG

 JPEG goals
 JPEG compression steps
 Lab
 JPEG Goals

 JPEG: Joint Photographic Experts Group

 Applications can tune compression level
 Should have tractable computational complexity
 Should be possible to implement in hardware
 Compression scheme should be independent of
data format
 PAL/NTSC etc. shouldn’t matter
 Independent of picture size, colors etc.
 Lossless, hierarchical, sequential, and
progressive coding should be possible.
 JPEG Compression Steps
 Picture preparation
 Pixel
 Block, MCU (Minimum Coded Unit)

 Picture processing
 FDCT

 Quantization
 Entropy encoding
 Differential encoding (belongs to Source encoding)
 Run-length encoding
 Huffman encoding
 Picture Preparation

 JPEG specifies a very general image model.

 A source image consists of at least one and at
most 255 components.
 Components may be assigned to the three colors RGB,
YIQ or YUV signals.
 Convert each component into 8 × 8 data blocks
 Each pixel is represented by p (8, or 12) bits.
 If p = 8, each pixel is an integer in the range of 0 to
255.
 Processing – Forward DCT

 Shift: The pixel values are shifted into the range

[-128, 127].
 DCT expression

7 j
Some Observations of Forward DCT

 All 64 values in the input matrix, P[x, y]

contribute to each entry in the transform matrix,
F[x, y] to generate 64 new samples
 F[0,0] is the mean of all 64 values in the matrix,
known as the DC coefficient, others are called
as the AC coefficients.
 DCT Computation Features
DCT Computation Features
 Quantization

 FQ[x, y] = Integer Round (F(x, y)/Q(x, y))

 Different coefficients are treated separately
based on quantization table.
An Example of Quantization
An Example of Quantization Table
 Entropy Encoding
 Vectoring
o 2-D matrix should represent the values in the form
of a single-dimension vector.
o Scan in zig-zag order
 Differential Encoding

 The DC coefficient varies only slowly from one

block to the next.
 12, 13, 11, 11, 10, ……
 Only the difference in the preceding block is
encoded.
 12, 1, -2, 0, –1
 Run-length Encoding

 The AC coefficients are encoded in the form of a

string of pairs of values (skip, value)
 (0,6) (0,7) (0,3) (0,3) (0,3) (0,2) (0,2) (0,2) (0,2) (0,0)
 Huffman Encoding

 Use variable length codes

 Most frequently used symbols coded with fewest bits
 The intermediate symbol sequence
 DC coefficient: (sss, value)
• sss: the number of bits needed
• value: the encode value
 AC coefficient: (skip, sss) (value) with run-length encoding
• skip: the number of consecutive 0s
• sss: the number of bits needed to encode the value
• value: the encode value
 Huffman code
 DC coefficients: 12 = (4, 12) = (1011100)

 AC coefficient: (0, 6) = (0, 3) (6) = (100110)

 Summary
 DC coefficient
 Input: 12, 13, 11, 11, 10, ……
 Differential encode: 12, 1, -1,-1,-2…
 The intermediate symbol sequence: (sss, value)
 Huffman code:
• P160 (b) ⇒ sss
• P160 (a) ⇒ value
• Example: 12 = (4, 12) = (1011100)
 AC coefficient
 Input: 6, 7, 3, 0, 0, 3, 3, 2, 0, 0, 0
 Run-length encoding: (0,6) (0,7) (0,3) (2,3) (0,3) (0,2) (0,0)
 The intermediate symbol sequence: (skip, sss) (value)
 Huffman code:
• P163-164 ⇒ (skip, sss)
• P160(a) ⇒ value
• Example: (0, 6) = (0, 3) (6) = (100110)
 Lab Project
 Objective: be familiar with JPEG
 Description
 Input: an original 8 × 8 block ⇒ original data (the value of
each pixel is in the range of [0, 255]) (given by the
Instructor)
 Steps:
• Shifted to the range of [-128, 127]
• FDCT (round: 1.6 → 2, -1.6 → -2, 1.5 → 2, 1.1 → 1)
(π = 3.141592654)
• Quantized with the given quantization table (see the given
example) (round) (round: 1.6 → 2, -1.6 → -2, 1.5 → 2, 1.1 → 1)
• Zig-zag coded
• Converted to the intermediate symbol sequence with run-length
encoding on AC coefficients
• Encoded to bit sequence with Huffman encoding (based on the
given default Huffman codewords tables) ⇒ compressed data
• The compression ratio
= original data size (i.e., 64 × 8)/compressed data size
 Output: print out all the results of the above steps into
different files (The names and formats of output files should
follow the files put on the web.)
 Lab Project
 Team: 2 or 3 students
 What should be turned in (via email to TA, subject: 679
project)?
 Put all codes into one file (source_jpeg.c (.cpp) with clear
comments (softcopy)
• Make sure TA can understand, compile, and run your codes on
UNIX machines. All the codes should be in C or C++.
 A report including a summary (2 ≤ page # ≤ 5) and the
source code file, and result files (hardcopy or softcopy either
in PDF)
 How will TA grade?
 Correctness: TA will use his own data to test your codes.
 Clearness: TA will check whether your code and report are
understandable.
 Fairness:
• Students in the same teams get the same scores.
• No copy! All students involved in copy will get ZERO.
 Example - Original Block

140 144 147 140 139 155 179 175

144 152 140 147 140 148 167 179

152 155 136 167 163 162 152 172

168 145 156 160 152 155 136 160

162 148 156 148 140 136 147 162

147 167 140 155 155 140 136 162

136 156 123 167 162 144 140 147

148 155 136 155 152 147 147 136

 Example - Shifted Block
12 16 19 12 11 27 51 47

16 24 12 19 12 20 39 51

24 27 8 39 35 34 24 44

40 17 28 32 24 27 8 32

34 20 28 20 12 8 19 34

19 39 12 27 27 12 8 34

8 28 -5 39 34 16 12 19

20 27 8 27 24 19 19 8
 Example -After FDCT

186 -18 15 -9 23 -9 -14 -19

20 -34 27 -9 -11 11 14 7

-11 -23 -2 6 -18 3 -20 -1

-8 -5 15 -15 -8 -3 -3 8

-3 10 8 1 -11 18 18 15
4 -2 -18 8 8 -3 1 -7
9 1 -3 4 -1 -7 -1 -2

0 -8 -2 2 1 4 -6 0
 Example - Quantization Table

3 5 7 9 11 13 15 17

5 7 9 11 13 15 17 19

7 9 11 13 15 17 19 21

9 11 13 15 17 19 21 23

11 13 15 17 19 21 23 25

13 15 17 19 21 23 25 27

15 17 19 21 23 25 27 29

17 19 21 23 25 27 29 31
 Example - After Quantization

62 -4 2 -1 2 -1 -1 -1
4 -5 3 -1 -1 1 1 0

-2 -3 0 0 -1 0 -1 0

-1 0 1 -1 0 0 0 0

0 1 1 0 -1 1 1 1

0 0 -1 0 0 0 0 0

1 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0
 Example – Other Steps
Zig-zag sequence
62,-4,4,-2,-5,2,-1,3,-3,-1,0,0,0,-1,2,-1,-1,0,1,1,0,1,0,1,-
1,-1,1,-1,-1,1,0,0,0,-1,0,0,0,0,0,-1,0,-
1,0,0,0,1,0,0,0,0,0,0,1,0,1,0,0,0,0,0,0,0,0,0
Intermediate symbol sequence
(6)(62), (0,3)(-4), (0,3)(4), (0,2)(-2), (0,3)(-5), (0,2)(2),
(0,1)(-1), (0,2)(3), (0,2)(-3), (0,1)(-1), (3,1)(-1),
(0,2)(2),(0,1)(-1), (0,1)(-1), (1,1)(1), (0,1)(1), (1,1)(1),
(1,1)(1), (0,1)(-1), (0,1)(-1), (0,1)(1), (0,1)(-1), (0,1)(-1),
(0,1)(1),(3,1)(-1), (5,1)(-1), (1,1)(-1), (3,1)(1), (6,1)(1),
(1,1)(1), (0,0)
Encoded bit sequence (total 154 bits)
(1110)(111110) (100)(001) (100)(100) (01)(01)
(100)(010) (01)(10) (00)(0) (01)(11) (01)(00) (00)(0)
(111010)(0) (01)(10) (00)(0) (00)(0) (1100)(1) (00)(1)
(1100)(1) (1100)(1) (00)(0) (00)(0) (00)(1) (00)(0) (00)(0)
(00)(1) (111010)(0) (1111010)(0) (1100)(0) (111010)(1)
(1111011)(1) (1100)(1) (1010)
 Conclusion

 JPEG goals
 JPEG compression steps
 Picture Preparation
• Component, block, and pixel
 Picture Processing
• Forward DCT
 Quantization
• Different coefficients are treated separately.
 Entropy coding
 Lab
