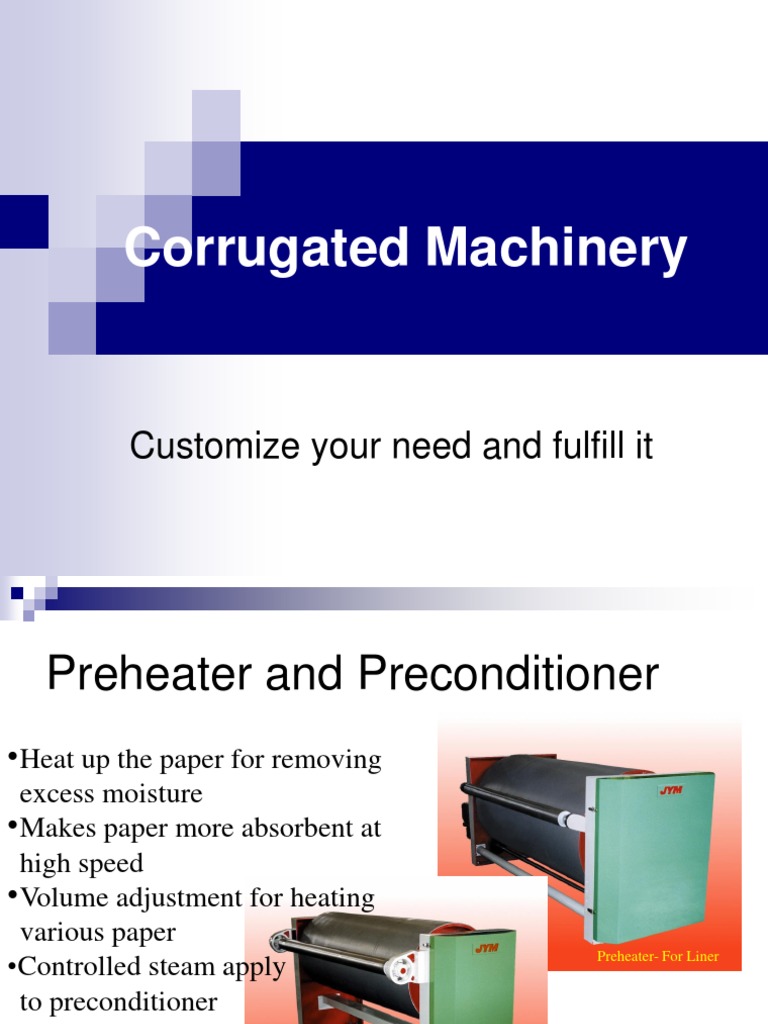

Corrugated Machinery

Customize your need and fulfill it


Preheater and Preconditioner
•Heat up the paper for removing
•excess moisture
•Makes paper more absorbent at
•high speed
•Volume adjustment for heating
•various paper
•Controlled steam apply
Preheater- For Liner

•to preconditioner
•enable medium paper
•are more flexible
Preconditioner- For Medium
Mill Roll Stand
 Fully hydraulic arm swing,
paper clamp for easy
movement
 Arm clamp is designed to
hold paper roll which can
weight up to tons
 Design to rotate at high
speed for maximum
production
 Disk brake/magnetic
powder brake for control
paper tension
Additional

Auto Splicer (Optional) Bridge Conveyor


 Quick paper splicing machine  Head above bridge, support high
minimizing production down time speed transfer while give plenty
 Splicer detects paper roll is near of room for operator to move
to it’s end and splice the paper around
from the other roll while cut of the  Include take up bridge for moving
current roll at the same time. up the newly finish single face
without damage them
 Can store single face web when
production is slow or stop
Glue Station

Glue apply

 Apply glue to the tip of


Excess Glue Remove
the single face web for
placing on to the liner
paper.
Suction Brake
Vacuum Suction apply

 Locates on the end of


the bridge conveyor.
 Use vacuum to suck
the liner layer of the
single face web
 Control the tension of
the single face web
