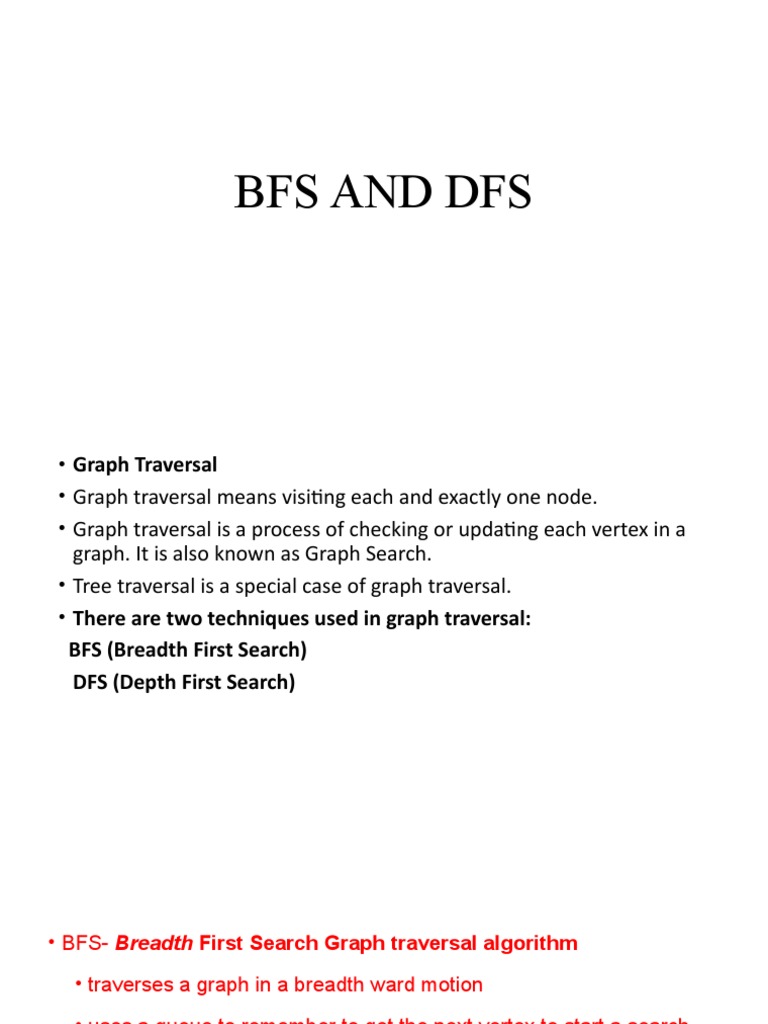

BFS AND DFS

• Graph Traversal
• Graph traversal means visiting each and exactly one node.
• Graph traversal is a process of checking or updating each vertex in a
graph. It is also known as Graph Search.
• Tree traversal is a special case of graph traversal.
• There are two techniques used in graph traversal:
BFS (Breadth First Search)
DFS (Depth First Search)
• BFS- Breadth First Search Graph traversal algorithm
• traverses a graph in a breadth ward motion
• uses a queue to remember to get the next vertex to start a search,
when a dead end occurs in any iteration.

• DFS (Depth First Search)

• Start from a vertex, visit all the reachable vertices in a depth first
manner
• Uses Stack for non-recursive implementation
BFS
• Rule 1 − Visit the adjacent unvisited vertex. Mark it as visited. Display
it. Insert it in a queue.
• Rule 2 − If no adjacent vertex is found, remove the first vertex from
the queue.
• Rule 3 − Repeat Rule 1 and Rule 2 until the queue is empty.
BFS
• Step 1 - Define a Queue of size total number of vertices in the graph.
• Step 2 - Select any vertex as starting point for traversal. Visit that vertex
and insert it into the Queue.
• Step 3 - Visit all the non-visited adjacent vertices of the vertex which is at
front of the Queue and insert them into the Queue.
• Step 4 - When there is no new vertex to be visited from the vertex which
is at front of the Queue then delete that vertex.
• Step 5 - Repeat steps 3 and 4 until queue becomes empty.
• Step 6 - When queue becomes empty, then produce final spanning tree
by removing unused edges from the graph
Enqueue the unvisited neighbor nodes: 1, 3, 8 Enqueue the unvisited neighbor nodes: 7
Next, visit the first node in the queue: 1 Next, visit the first node in the queue: 3
 Enqueue the unvisited neighbor
nodes: none (Note: 4 is enqueued again,
Enqueue the unvisited neighbor nodes: 2, 4 but won't be visited twice, so I leave it out)
Next, visit the first node in the queue: 8 Next, visit the first node in the queue: 7
Enqueue the unvisited neighbor
nodes: none (Note: 2 is enqueued again, but won't
Enqueue the unvisited neighbor nodes: 5
be visited twice, so I leave it out) Next, visit the first node in the queue: 4
Next, visit the first node in the queue: 2
 Enqueue the unvisited neighbor nodes: none
Next, visit the first node in the queue: 5

Enqueue the unvisited neighbor nodes: 6
Next, visit the first node in the queue: 6
 2

nextNode = 0 0
nextNode = 1 8
nextNode = 3 1
nextNode = 8 3
nextNode = 7 4
nextNode = 2
nextNode = 4
nextNode = 5
nextNode = 6
public void BFS()
{
// BFS uses Queue data structure

Queue q = new LinkedList(); // I use Queue class in Java's

library

for (i = 0; i < visited.length; i++)

visited[i] = false; // Clear visited[]

q.add(0); // Start the "to visit" at node 0

/* ===========================================
Loop as long as there are "active" node
while( ! q.isEmpty() )
{
int nextNode; // Next node to visit
int i;

nextNode = q.remove();

if ( ! visited[nextNode] )
{
visited[nextNode] = true; // Mark node as visited
System.out.println("nextNode = " + nextNode );

for ( i = 0; i < NNodes; i++ )

if ( adjMatrix[nextNode][i] > 0 && ! visited[i] )
q.add(i);
} } }
public static void main(String[] args)
{
// 0 1 2 3 4 5 6 7 8
// ===================================================
int[][] conn = { { 0, 1, 0, 1, 0, 0, 0, 0, 1 }, // 0
{ 1, 0, 0, 0, 0, 0, 0, 1, 0 }, // 1
{ 0, 0, 0, 1, 0, 1, 0, 1, 0 }, // 2
{ 1, 0, 1, 0, 1, 0, 0, 0, 0 }, // 3
{ 0, 0, 0, 1, 0, 0, 0, 0, 1 }, // 4
{ 0, 0, 1, 0, 0, 0, 1, 0, 0 }, // 5
{ 0, 0, 0, 0, 0, 1, 0, 0, 0 }, // 6
{ 0, 1, 1, 0, 0, 0, 0, 0, 0 }, // 7
{ 1, 0, 0, 0, 1, 0, 0, 0, 0 } };// 8
Graph G = new Graph(conn);
G.BFS(); }
DFS traversal Algorithm
• Step 1 - Define a Stack of size is total number of vertices in the graph.
• Step 2 - Select any vertex as starting point for traversal. Visit that
vertex and push it on to the Stack.
• Step 3 - Visit any one of the non-visited adjacent vertices of a vertex
which is at the top of stack and push it on to the stack.
• Step 4 - Repeat step 3 until there is no new vertex to be visited from
the vertex which is at the top of the stack.
• Step 5 - When there is no new vertex to visit then use back tracking
and pop one vertex from the stack.
• Step 6 - Repeat steps 3, 4 and 5 until stack becomes Empty.
• Step 7 - When stack becomes Empty, then produce final spanning tree
by removing unused edges from the graph
 Push the unvisited neighbor nodes: 8, 3, 1 (I used the reverse
order to visit smaller node id first)
Next, visit the top node in the stack: 1

Push the unvisited neighbor nodes: 7
Next, visit the top node in the stack: 7
 Push the unvisited neighbor nodes: 2
Next, visit the top node in the stack: 2

Push the unvisited neighbor nodes: 5, 3 (Note: 3 is pushed

again, and the previous value will be cancelled later -- as we
will see)
Next, visit the top node in the stack: 3
 Push the unvisited neighbor nodes: 4
Next, visit the top node in the stack: 4

Push the unvisited neighbor nodes: 8 (Note: 8 is
pushed again, and the previous value will be cancelled
later -- as we will see)
Next, visit the top node in the stack: 8
 Push the unvisited neighbor nodes: none
Next, visit the top node in the stack: 5

Push the unvisited neighbor nodes: 6
Next, visit the top node in the stack: 6
Push the unvisited neighbor nodes: none
Next, visit the top node in the stack: 3
3 is visited: skip

Next, visit the top node in the stack: 8
8 is visited: skip
nextNode = 0
nextNode = 1
nextNode = 7
nextNode = 2
nextNode = 3
nextNode = 4
nextNode = 8
nextNode = 5

nextNode = 6
public void DFS()
{
// DFS uses a Stack data structure
Stack s = new Stack(); // I use Stack class in Java's library
for (i = 0; i < visited.length; i++)
visited[i] = false; // Clear visited[]
s.push(0); // Start the "to visit" at node 0

/* ===========================================
Loop as long as there are "active" node
=========================================== */
while( ! s.isEmpty() )
{
int nextNode; // Next node to visit
int i;
nextNode = s.pop();
if ( ! visited[nextNode] )
{
visited[nextNode] = true; // Mark node as visited
System.out.println("nextNode = " + nextNode );

for ( i = NNodes-1; i >= 0; i-- )

if ( adjMatrix[nextNode][i] > 0 && ! visited[i] )
s.push(i);
}
}
}
