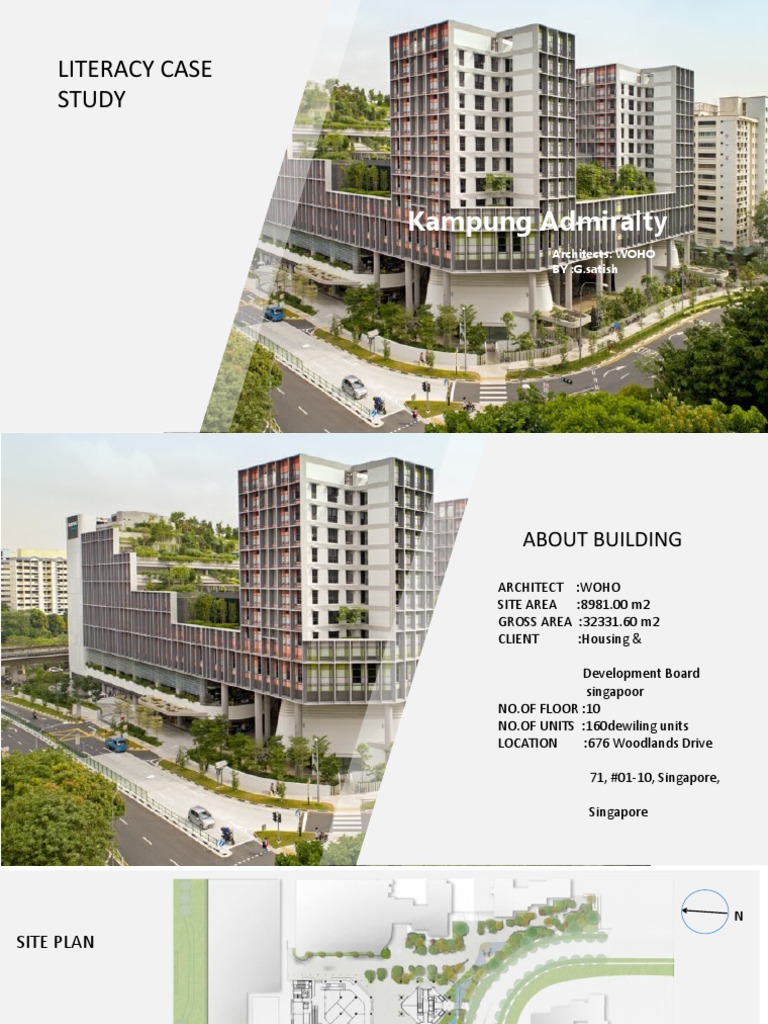

LITERACY CASE

STUDY

Kampung Admiralty
Architects: WOHO
BY :G.satish
 ABOUT BUILDING

ARCHITECT :WOHO
SITE AREA :8981.00 m2
GROSS AREA :32331.60 m2
CLIENT :Housing &

Development Board
singapoor
NO.OF FLOOR :10
NO.OF UNITS :160dewiling units
LOCATION :676 Woodlands Drive

71, #01-10, Singapore,

Singapore
 N
SITE PLAN

z
ROOF
PLAN N
ABOUT BUILDING
Kampung Admiralty (Kampung meaning “Village” in Malay) is the first development in
Singapore to fully integrate housing for the elderly and hence Singapore's flagship
"vertical village" which has transformed a compact 2.2 acres site into a dynamic
community heart.

CONCEPT OF BUILDING
Kampung Admiralty is Singapore ’s first integrated public development that
brings together a mix of public facilities and services under one roof
CHALLENGE
To accommodate the need for public housing in Singapore, an empty lot was transformed
into what is now Kampung Admiralty. The focus of the project is to encourage the elderly
residents to engage in an active lifestyle among younger generations, but it is also part of a
greater effort to increase environmental sustainability.

SOLUTION
Ramboll is responsible for design of the greenery and landscape, which includes a tropical
rainforest, as well as water management systems. The landscape is designed as layers of
green and blue infrastructure woven into the building to connect residents and the greater
Admiralty neighborhood to the historical “Kampung” village spirit within today’s highly
densified urban context. Prior to development, the site remained as an empty unutilized field
between residential tower
FLOOR PLAN1
1.community plaza
2.Stage
3.eco pond
4.Biotope
5.throughtfare
6.Drop off
7.Lift lobby
8.pharmancy
9.Eating house
10.shop
11.loading unloading bay
12.Undeerground bicycle
storage
13.Admirty place
14.MTR
15.Playground
APARTMENT
FLOOR PLAN
1.36 SQM.UNIT
2.45 SQM.UNIT
3.LIFT LOBBY
4.STAIRCASE SHELTER
5.BENCH
6.BIN PIONT
7. BUDDY BENCH
8.LIVING ROOM
9. KITCHEN
10.BEDROOM
11.BATHROOM
BUILDING LOACTION
SITE
SITE PLAN
PLAN
BLOCK 676B
{5TH FLOOR PLAN}
BLOCK 676B
{7TH FLOOR PLAN}
BLOCK 676B
{8-11TH FLOOR PLAN}
GENERAL SPECIFICATIONS FOR KAMPUNG ADMIRALTY
Foundation Piled foundations
Structure
Reinforced concrete structural framework with reinforced concrete slabs
Roof Reinforced concrete roof slab
Walls
All external and internal walls are constructed with reinforced concrete/ precast panels/ precast lightweight concrete
partitions/ drywall partition system
Windows
Aluminium framed windows with tinted glass
Doors
Entrance : laminated solid timber door and metal gate
Bedroom : sliding laminated semi-solid timber door
Bathroom/WC : sliding laminated semi-solid timber door
Finishes
Ceilings : skim coated or plastered and painted
Kitchen/ Bathroom/ WC wall : ceramic tiles
Other wall : skim coated or plastered and painted
Living/ Dining/ Bedroom fl oor : resilient (vinyl) strip fl ooring with timber skirting Kitchen
floor : glazed porcelain tiles
Bathroom/WC fl oor : ceramic tiles
Services
Gas services and concealed water supply pipes
Concealed electrical wiring to lihting and power points (including water heater and air-conditioning points)
Television points
Telephone points

Abundant greenery
