1

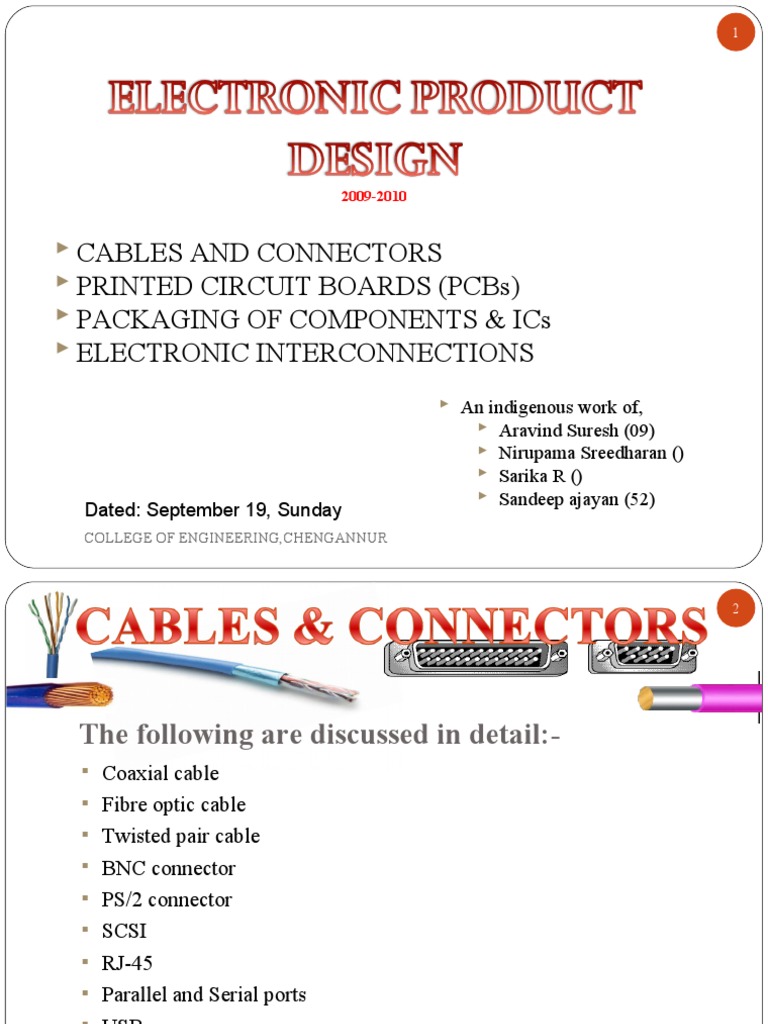

2009-2010

 CABLES AND CONNECTORS

 PRINTED CIRCUIT BOARDS (PCBs)
 PACKAGING OF COMPONENTS & ICs
 ELECTRONIC INTERCONNECTIONS

 An indigenous work of,

 Aravind Suresh (09)
 Nirupama Sreedharan ()
 Sarika R ()
 Sandeep ajayan (52)
Dated: September 19, Sunday
COLLEGE OF ENGINEERING,CHENGANNUR
 2

The following are discussed in detail:-

 Coaxial cable
 Fibre optic cable
 Twisted pair cable
 BNC connector
 PS/2 connector
 SCSI
 RJ-45
 Parallel and Serial ports
 USB
 Firewire

COLLEGE OF ENGINEERING,CHENGANNUR
 3

Consist of an inner conductor surrounded

by a flexible, tubular insulating layer,
surrounded by a tubular conducting
shield.
 Designed to carry radio frequency current
 The wire braid (shield) reduce EM interference
 Outer conductor (shield) grounded to avoid radio frequency radiation
 Characteristic impedance usually 50Ohm or 75 Ohm
 For high power radio transmission upto 1GHz a solid Cu outer conductor is used
 Connectors- BNC, RF, UHF etc. are used
 Thicknet and Thinnet are two variants:-
 Thicknet (Thick coaxial cable, an ethernet std. often called yellow cable)
 Thicknet runs at 10Mbps for max. segment length 500mtrs
 Thicknet used for 10Base5 ethernet networks
 Thinnet (Thin coaxial cable) runs at 10 Mbps for 128mtrs
 Thinnet used for 10Base2 ethernet networks
 RG-59 is a flexible coaxial cable
 Impedance matching is of utmost importance. Ghosting in analog TV transmission
can occur due to impedance mismatch
COLLEGE OF ENGINEERING,CHENGANNUR
 4

Optical fiber typically consists of a

transparent core surrounded by a
transparent cladding material with a lower
index of refraction. Light is kept in the core
by total internal reflection
 Multiple optic fibres are contained in a cable
 Elementary fibres are individually coated with plastic layers within a protective tube
 An additional jacket of application specific material (PVC, PA etc.) may be used
 Silica (glass), plastic and special materials like Aramid forms waveguide core
 Transmission speed in Gbps and used for backbone network for internet, large LAN etc
 Source- Laser, LED; Modulators- Electro optic, PIN diode; Detectors- PIN diode,
Avalanche photodiode, Wavelength Division Mutiplexers- AWG, optical add-drop etc.
are used with optic fibres in communication systems.
 Single mode and Multi mode are two types of fibres used:-
 Single mode has core diameter as low as 9 um and stable LASER sources are used
 Multi mode with multiple angles of incidence at the core – cladding interface for
which transmission is possible. Core diameter> 50um and even LEDs can be used
 Connectors like FC, LC, ST are used
 Different types of cables and jackets are used with color coding indication of the type

COLLEGE OF ENGINEERING,CHENGANNUR
 5

Forward and return conductors are twisted

together for canceling out external
Eletcromagnetic Interference(EMI) or
cross talk between neighbouring pairs.
 They may be Unshielded Twister Pair(UTP) or Shielded Twisted Pair(STP)
 STP with shielding from external EMI and UDP with no shielding. Both are Cu cables
 Available as stranded or solid core cables
 The TIA/EIA 568 Commercial Building Wiring Standards and their uses:-
Category Speed Uses
1 1 Mbps For voice, not data (UTP only)
2 4 Mbps Token ring networks (UTP only)
3 10 Mbps Ethernet
4 16 Mbps Token ring networks
5 100 Mbps Ethernet and Fast Ethernet
6 155 Mbps Fast Ethernet
7 1000 Mbps Gigabit Ethernet
COLLEGE OF ENGINEERING,CHENGANNUR
 6

British Naval Connector or Bayonet Neill-

Concelman. Named after its bayonet
mount locking mechanism and its
inventors, Paul Neill and Carl Concelman.

 A type of RF connector used for coaxial cables that connects radio, TV and other
radio-frequency electronic equipments
 Connector is crimped on the cable using a bayonet mount
 BNC connectors exist in 50 and 75 ohm versions, matched for use with cables of the
same characteristic impedance
 The 50 and 75 ohm connectors are typically specified for use at frequencies up to 4
and 2 GHz respectively
 75 ohm BNC Connectors are primarily used for video and DS3 Telco central office
applications and 50 ohm are used for data and RF
 At frequencies below 10 MHz the impedance mismatch between a 50 ohm connector
or cable and a 75 ohm one has negligible effects
 SR-50 and SR-75, TNC (Threaded Neill–Concelman), Twin BNC or twinax, Triaxial,
N and C connectors are some variants.
COLLEGE OF ENGINEERING,CHENGANNUR
 7

A computer mini-socket and plug used

to connect a keyboard and a mouse to a
computer.

 Consists of a 6-pin circular connector

 Purple colour used for Keyboard and Green for Mouse
 Hot swapping is not preferrable. Also PS/2 connectors only insert in one direction and
must be rotated correctly before attempting connection.
 The pin configurations are as under:-

Pin 1 +DATA Data

Pin 2 Not connected Not connected*
Pin 3 GND Ground
Pin 4 Vcc +5 V DC at 275 mA
Pin 5 +CLK Clock
Pin 6 Not connected Not connected**
COLLEGE OF ENGINEERING,CHENGANNUR
 8

(Centronics 68M) Small Computer System Interface is a set

of standards for physically connecting and
transferring data between computers and
(Centronics 50F) peripheral devices.
 The SCSI standards define commands, protocols, and electrical and optical interfaces
 SCSI is most commonly used for hard disks and tape drives, but it can connect a wide
range of other devices, including scanners and CD drives
 Allows up to 15 devices to be daisy-chained using one SCSI controller
 The last device in a SCSI daisy-chain must have a SCSI terminator
 Three types of external SCSI connectors:-
 25-pin (SCSI-1) 4 Mbps, DB-25 (8-bit bus)
 50-pin (SCSI-2) 4 Mbps, supports multiple chained devices, Centronics 50 (8bit bus)
 68-pin (SCSI-3) 40 Mbps, “Ultra Wide SCSI”, Centronics 68 (16-bit bus)
 The first, still very common, SCSI interface is the parallel SCSI (now also called SPI),
which uses a parallel electrical bus design
 Serial attached SCSI uses a modified Serial ATA data and power cable
 USB Attached SCSI allows SCSI devices to use the Universal serial bus.
 SCSI uses a protocol method(SCSI command protocol) to transfer data between devices
on the bus. It is a circular process which starts and ends up in the same layer
COLLEGE OF ENGINEERING,CHENGANNUR
 1 White-Green 9
2 Green
3 White-Orange It is one of the many registered jacks. RJ45
4 Blue was originally a Telephone-only standard.
5 White-Blue As a registered jack, telephone RJ45
6 Orange specifies the physical male and female
7 White-Brown connectors as well as the pin assignments of
8 Brown the wires in a telephone cable.

 Connector holds up to eight wires, and is used with twisted-pair wire

 Connectors are attached to the wires using a crimper
 Commonly used on certain types of ethernet and token ring networks
 EIA/TIA 568B (AT&T) and EIA/TIA 568A Color Schemes are shown above
 The cable types shown above can be used for cross-over cabling, i.e connect two PCs
without use of hub.
 Cross-over cabling should be at least 3 feet long to prevent signal interference
 RJ 11, RJ 14, RJ 25, RJ 48 are some variants of this standard connector
 Telephone RJ45 connectors are a variant of 8P2C, meaning only the middle 2 positions
have conductors in them, while pins 7 and 8 are shorting a programming resistor
 Computer RJ45 is 8P8C, with all eight conductors present
COLLEGE OF ENGINEERING,CHENGANNUR
 10

(DB-25 Male) (DB-9 Male) Serial communication is the process of

sending data one bit at a time, sequentially,
over a communication channel or computer
(DB-25 Female) bus. Whereas several bits are sent as a whole,
on a link with several parallel channels.
 Two types of serial connectors or ports for PCs are :
 DB-9 (9-pin) - Usually COM1
 DB-25 (25-pin) - Usually COM2
 Traditional recommended serial standard is-232 (RS-232)., with cable limit 50 feet
 Parallel ports are computer sockets that connect printers or any other parallel device,
such as removable disks and tapes backup devices, to a computer
 These ports are built into the computer motherboard.
 Parallel ports now enhanced using IEEE 1284 standard, providing bi-directional
transfers and increased speeds, and it defines a cable type that allows data transfers up
to 32 feet on a parallel cable. It uses a DB-25 connector on the computer end, and a
Centronics 36-pin connector at the printer
 Parallel peripheral buses include: ISA, ATA, SCSI, PCI etc.
 Serial standards include: serial ATA, RS-422, RS-423, RS-485, I²C, SPI etc.

COLLEGE OF ENGINEERING,CHENGANNUR
 11

Universal Serial Bus (USB) is a specification

to establish communication between devices
and a host controller (usually personal
computers), developed and invented by Ajay
Bhatt while working for Intel.
 USB is intended to replace many varieties of serial and parallel ports
 Allows up to 127 devices to be daisy-chained using one USB port
 Offers a bandwidth of 1.5MB/sec
 Devices are hot swappable
 Uses a type A socket (4-pins)
 Superspeed USB 3.0 provides full duplex communication
 USB is the paramount connection standard preferred for network adapters, peripheral
devices (mouse, keyboard, printer etc.), external hard disks and flash drives
 USB 1.1 maximum cable length is 3 metres (9.8 ft) and
USB 2.0 maximum cable length is 5 metres (16 ft)
 Maximum permitted hubs connected in series is five

COLLEGE OF ENGINEERING,CHENGANNUR
 12

The IEEE 1394 interface is a serial bus

interface standard for high-speed
communications and isochronous real-time
data transfer. The interface is also known by
the brand names of FireWire (Apple), [Link]
(Sony), and Lynx (Texas Instruments).
 Frequently used by personal computers, as well as in digital audio, digital video,
automotive, and aeronautics applications
 FireWire is also available in wireless, fiber optic, and coaxial versions using the
isochronous protocols
 It allows up to 63 devices to be daisy-chained
 It supports hot swapping
 Guarantees bandwidth for multimedia, supporting data transfers up to 400 MB/sec
 Sometimes used for direct (system-to-system) connections for high-speed data transfer
 FireWire devices are organized at the bus in a tree topology. Each device has a unique
self-id. One of the nodes is elected root node and always has the highest id. The self-ids
are assigned during the self-id process, which happens after each bus resets
 FireWire 400 (IEEE 1394-1995), FireWire 800 (IEEE 1394b-2002), FireWire S1600 and
S3200, FireWire S800T (IEEE 1394c-2006) are some firewire standards

COLLEGE OF ENGINEERING,CHENGANNUR
 13

The following are discussed in detail:-

 The PCB technology
 PCB design process steps
 PCB manufacturing
 Fabrication
 PCB assembly

COLLEGE OF ENGINEERING,CHENGANNUR
 14

A printed circuit board, or PCB, is used to

mechanically support and electrically
connect electronic components using
conductive pathways, tracks or signal
traces etched from copper sheets laminated
onto a non-conductive substrate

 A PCB contains a fiber glass epoxy board with thin copper layers attached to it
 A photographic process is used to etch off the copper where it is not needed, to connect
ICs
 Prior to etching, all holes are drilled in the PCB and it is electroplated so that the feed
through holes connect to the different copper layers
 Electronic parts are soldered to copper mounting pads left after etching, and thin copper
traces are used to connect the parts
 The designers now uses a PCB layout CAD tool to design the pads and interconnect lines
 The layout tool produces the artwork for the photographic mask that is used to chemically
etch the PCB
 PCBs may be single side, double side or multi layer
 Small simple boards have two copper layers
 Boards like PC motherboards are very complex and have 8-12 stacked layers of copper
and is therefore expensive
COLLEGE OF ENGINEERING,CHENGANNUR
 15
 Create new Design Data Base (.ddb) file and add new Schematic diagrams(s) (.Sch)
 Draw schematic diagram of circuit
 Enter components from selected part libraries
 Create new components in component library
 Draw schematic symbol
 Enter part description
 Select or create PCB footprint for part.
 Connect electric components/parts with wire symbols
 Run Electric Rule Check (ERC)
 Prepare PCB-file:
 Create new .PCB file and set Layer Stack to desired configuration.
 Draw the board (Mechanical layer)
 Draw Keepout layer
 Export Schematic file(s) to PCB file
 Resolve footprint issues
 Set PCB Design Rules
 Place components on “board”
 Autoroute board
 Resolve DRC Violations (Modify design rules, route some traces manually or move
components.) and Return to step 8
 Generate Gerber and Drill files.
COLLEGE OF ENGINEERING,CHENGANNUR
 16

Conducting layers are typically made of thin

copper foil. Insulating layers dielectric are
Copper connections typically laminated together with epoxy resin
Protective covering prepreg. The board is typically coated with a
Insulated substrate solder mask that is green (red, blue) in color

 Dielectrics are polytetrafluoroethylene (Teflon), FR-4, FR-1, CEM-1 or CEM-3

 Well known prepreg materials used in the PCB industry are FR-2 (Phenolic cotton paper),
G-10 (Woven glass and epoxy), CEM-1 (Cotton paper and epoxy)
 Manufacturing glass reinforced epoxy resin copper-clad boards
 Boards are produced in "clean-rooms” by hot-pressing manufacturing process. It includes:-
 Place copper sheet on the lower plate
 Place few layers of glass cloth impregnated with epoxy on top
 [IF two-sided PCB's]: Place copper sheet on above
 Press between steel plates in a steam-heated hydraulic press (~7,000,000 Pa)
 Water cooled to 25º C & trim to clean out extruded epoxy
 Punch/Drill holes for alignment
 Make circuit on PCB (lithography)
 Drill through holes (for component leads)
 Similar process is for multi-layer PCBs (figure)
COLLEGE OF ENGINEERING,CHENGANNUR
 17

 Patterning (etching):-
 Bonding a layer of copper over the entire substrate, sometimes on both sides
 Removing unwanted copper after applying a temporary mask
 Silk Screen Printing- uses etch-resistant inks to protect the copper foil
 Photographic Methods:-
 Uses a photomask is usually prepared with a photoplotter from data produced by a
technician using CAM and is used when fine linewidths are required
 Etching- (Chemical) done with ferric chloride, ammonium persulfate, or sometimes HCL
 Lamination:-
 For multi-layer PCBs have trace layers inside the PCB
 These are formed by bonding together separately etched thin boards
 Drilling:-
 Holes through a PCB are drilled with tiny drill bits made of solid tungsten carbide
 Automated drilling machines with placement controlled by a drill tape or drill file
 Exposed conductor plating and coating:-
 PCBs are plated with solder, tin, or gold over nickel as a resist for etching away the
unneeded underlying copper
 The places to which components will be mounted are typically plated, because
untreated bare copper oxidizes quickly, and therefore is not readily solderable
 Exposed copper was coated with solder (tin-lead) by hot air solder levelling (HASL)
COLLEGE OF ENGINEERING,CHENGANNUR
 18
 Solder resist:-
 It prevents solder from bridging between conductors and creating short circuits
 Areas that should not be soldered may be covered with a polymer solder resist (solder
mask- typically 20-30 microns thick) coating
 Screen printing:-
 Used to print Line art and text onto the outer surfaces of a PCB
 Screen print is also known as the silk screen, or, in one sided PCBs, the red print
 Testing:-
 Unpopulated boards may be subjected to a bare-board test where each circuit
connection (as defined in a netlist) is verified as correct on the finished board
 For high-volume production, a Bed of nails tester, a fixture or a Rigid needle adapter is
used to make contact with copper lands or holes on one or both sides of the board to
facilitate testing
 A computer will instruct the electrical test unit to apply a small voltage to each contact
point on the bed-of-nails as required, and verify that such voltage appears at other
appropriate contact points
 Printed circuit assembly- electronic components must be attached to form a functional unit
 Protection and packaging:-
 PCBs intended for extreme environments often have a conformal coating that prevents
corrosion and leakage currents or shorting due to condensation
 PCBs are static sensitive, and therefore placed in antistatic bags during transport
COLLEGE OF ENGINEERING,CHENGANNUR
 19

In through-hole construction, component

leads are inserted in holes. In surface-mount
construction, the components are placed on
pads or lands on the outer surfaces of the
PCB
 Assembly can be manual or by machine as shown above
 The assembly process includes:-
 Insert leaded component into holes on PCB
 Solder- component leads are electrically and mechanically
fixed to the board with a molten metal solder
 Protective coating
 Component input- Leaded components and those with no wire leads
are assembled in separate manner (shown alongside)
 Surface mount chip assembly:-
 Silk-screening to apply solder paste on the board
 Automated assembly of components (>30,000 components/hr)
 IR or Wave soldering
 Cover PCB with solder resist except Lands
 Flux application: Foam fluxing, Spray fluxing, Ultrasonic Spray
fluxing are used
COLLEGE OF ENGINEERING,CHENGANNUR
 Dip soldering 20

air-jet

SOLDER
WAVE Hot air jet knife

 Figures shown above:-

 There are a variety of soldering
techniques used to attach
components to a PCB
 Automatic removal of solder
bridges by Hot air-jet knives
 Figure shown aongside:-
 The basic types of circuit boards

COLLEGE OF ENGINEERING,CHENGANNUR
 21

The following are discussed in detail:-

 The fundamental and very basic electronic components and their packages.
It includes those of:-
 Passive solid state devices resistors, capacitors, inductors, diodes
 Active solid state devices transistors (BJTs, FETs, MOSFETs etc.)
 A chip carrier, also known as a chip container or chip package, is a
container for a transistor or an integrated circuit. The carrier usually
provides metal leads, or "pins", which are sturdy enough to electrically and
mechanically connect the fragile chip to a circuit board. This connection
may be made by soldering or by mechanical force applied by springs or a
ZIF socket. Most circuit boards today mount the chips on the surface of the
board, although previously it was common to place the pins in through-
holes punched into the board. As smaller packages are cheaper and
ecologically safer, most modern chip carriers are too small for practical
installation by humans. Modern microprocessors may have over 1000 pins,
so the IC packaging technology to manufacture and install the carrier must
be very reliable.
COLLEGE OF ENGINEERING,CHENGANNUR
 22

Practical resistors are made of various

compounds and films, as well as
resistance wire (wire made of a high-
resistivity alloy, such as nickel/chrome).

Carbon Composite Resistor

Slug  leads  mold  bake  seal
- cheap, poor tolerance, rugged

Wire-wound resistor
wind wire  leads  mold  seal
- high power, low resistance, high frequency apps

Film resistor
Film is cut by laser  high precision
- low frequency applications
COLLEGE OF ENGINEERING,CHENGANNUR
 23

The type of internal dielectric, the structure

of the plates and the device packaging all
strongly affect the characteristics of the
capacitor, and its applications.
Disk-ceramic capacitor
Generally small, cheap and useful for high frequency
applications, although their capacitance varies strongly
with voltage and they age poorly
Tubular ceramic & Tabbed tubular paper capacitors
Paper was used
extensively in older
devices and offers
relatively high
voltage performance.
Electrolytic capacitors
They use an aluminum or tantalum plate with an oxide dielectric layer. The second electrode is
a liquid electrolyte, connected to the circuit by another foil plate. Electrolytic capacitors offer
very high capacitance but suffer from poor tolerances, high instability, gradual loss of
capacitance especially when subjected to heat, and high leakage current
COLLEGE OF ENGINEERING,CHENGANNUR
 24

Typically is a conducting wire shaped as a

coil, the loops help create strong magnetic
field inside the coil due to Ampere's Law.
Due to the time-varying magnetic field inside
the coil, a voltage is induced, according to
Faraday's law, which by Lenz's Law opposes
the change in current that created it.
 Usually constructed as a coil of conducting material, typically copper wire, wrapped
around a core either of air or of ferromagnetic or ferrimagnetic material
 Core materials with a higher permeability than air increase the magnetic field and
confine it closely to the inductor, thereby increasing the inductance
 Low frequency inductors are constructed like transformers, with cores of electrical steel
laminated to prevent eddy currents
 'Soft' ferrites are widely used for cores above audio frequencies, since they don't cause
the large energy losses at high frequencies that ordinary iron alloys do
 Most are constructed as enamel coated wire wrapped around a ferrite bobbin with wire
exposed on the outside, while some enclose the wire completely in ferrite and are called
"shielded“. Some inductors have an adjustable core
 High frequencies are sometimes made by stringing a ferrite cylinder or bead on a wire
 Al interconnects typically laid out in a spiral coil pattern on PCB also form inductors
COLLEGE OF ENGINEERING,CHENGANNUR
 25

Diodes are made of a crystal of SC like Si

that has impurities added to it to create a
region on one side that has electrons as
carriers, called n-region and a region on the
other side that contains positive charge
carriers (holes), called p- region.
 Different types of junction diodes either emphasize a different physical aspect of a
diode often by geometric scaling, doping level, choosing the right electrodes, are just
an application of a diode in a special circuit, or are really different devices like the
Gunn and laser diode and the MOSFET
 Normal (p-n) diodes are usually made of doped silicon or, more rarely, germanium
 Before invent of modern Si-diodes, earlier cuprous oxide and later selenium was used
 The vast majority of all diodes are the p-n diodes found in CMOS integrated circuits
 Some varieties of diodes include:-
 Cat’s whisker - thin or sharpened metal wire (anode) pressed against a SC crystal
(cathode), typically galena or a piece of coal
 As a dopant, gold (or platinum) acts as recombination centers, which help a fast
recombination of minority carriers. They operate at heigher signal frequencies, at
the expense of a higher forward voltage drop
 Zener, Varactor, Point contact, PIN and Schottky (a metal to SC contact) diodes
COLLEGE OF ENGINEERING,CHENGANNUR
 26

The first BJTs were made from germanium.

Silicon types currently predominate but
certain advanced microwave and high
performance versions now employ the
compound semiconductor gallium arsenide
and the semiconductor alloy SiGe.
 The two main categories are through-hole (or
leaded), and surface-mount, also known as surface
mount device (SMD)
 Packages are made of glass, metal, ceramic, or plastic
 Package often dictates the power rating and frequency
characteristics
 Power transistors have larger packages that can be
clamped to heat sinks for enhanced cooling
 Power transistors have the collector or drain physically
connected to the metal can/metal plate
 SM u-wave transistors are as small as grains of sand
 Recent FET development, the high electron mobility
transistor (HEMT), has a heterostructure i.e, ( AlGaAs)
-(GaAs) junction. They work at 12 GHz in satellites.
COLLEGE OF ENGINEERING,CHENGANNUR
 27

There are more than about 100 different

type of packages. The two main categories
are: through-hole (or leaded), and surface-
mount, also known as surface mount
devices (SMD).
 IC Packages include inexpensive plastic packages (<200 pins)
packages with pins>1000 (e.g: Xilinx FF1704, 1704-ball flip-chip
BGA)
 Packing materials include, plastic, ceramic, laminates (fiberglass,
epoxy resin), metal etc.
 Chip-to-Package Bonding
 Traditionally, chip is surrounded by pad frame
 Metal pads on 100 – 200 mm pitch
 Gold bond wires attach pads to package
 Lead frame distributes signals in package
 Metal heat spreader helps with cooling
 Advanced Packages
 Bond wires contribute parasitic inductance
 Fancy packages have many signal, power layers (tiny PCBs)
 Flip-chip places connections across surface of die rather than
around periphery
COLLEGE OF ENGINEERING,CHENGANNUR
 28
Thermal considerations & heat dissipation in IC packages
 Chips have enormous power densities due to small area
 Cooling is a serious challenge
 Thermal resistances combine like resistors (series & parallel)
 T = jaP
 T : temperature rise on chip
 ja: thermal resistance of chip junction to ambient
 P: power dissipation on chip
 Package spreads heat to larger surface area. Heat flows from
junction to mounting base which is in close contact with case,
which by covection or radiation release heat
 Thermal evaluation includes:-  Heat sinks may increase surface area further
 Power dissipation limit
 Fans increase airflow rate over surface area
 Continous dissipation
 Junction temperature is analysed  Liquid cooling used in extreme cases
for following waveforms:-  Power Distribution Network functions
 Periodic waveform  Carry current from pads to transistors on chip
 Single-shot waveform
 Composite waveform  Maintain stable voltage with low noise
 A burst pulse  Provide average and peak power demands
 Non-rectangular pulse  Provide current return paths for signals
 Avoid electromigration & self-heating wearout
 Itanium 2 die dissipates 130 W over 4 cm2
COLLEGE OF ENGINEERING,CHENGANNUR
 29

 Various package functions are as follows:-

 Electrical connection of signals and power from chip to board
 Little delay or distortion
 Mechanical connection of chip to board
 Removes heat produced on chip
 Protects chip from mechanical damage
 Compatible with thermal expansion
 Inexpensive to manufacture and test
 Two main IC package categories are:-
 PTH (pin-through-hole)
 Pins are inserted into through-holes in the circuit board and soldered in place
from the opposite side of the board
 Sockets available
 Manual pick and place possible
 SMT (surface-mount-technology)
 SMT packages have their leads that are soldered directly to corresponding
exposed metal lands on the surface of the circuit board
 SMT offers several advantages and is generally preferred in modern electronics

COLLEGE OF ENGINEERING,CHENGANNUR
 30

 The SMT process-

 It offers:-
 Elimination of holes
 Ease of manufacturing (high-speed P&P)
 Components on both sides of the PCB
 Smaller dimensions
 Improved package parasitic components
 Increased circuit-board wiring density

COLLEGE OF ENGINEERING,CHENGANNUR
 31

 IC packing materials:-
 Plastic-
 Die-bonding and wire-bonding the chip to a metal lead frame
 Encapsulation in injection-molded plastic
 Inexpensive but high thermal resistance
 Hygroscopic (Absorb moisture)
 Stored moisture can vaporize during rapid heating and lead to hydrostatic
pressure during reflow process (a part of IC manufacturing)
 Results in delamination within the package, and package cracking. Early
device failure
 Ceramic
 Consists of several layers of conductors separated by layers of ceramic
(Al2O3 “Alumina”)
 Chip placed in a cavity and bonded to the conductors (with no lead-frame)
 Metal lid soldered on to the package
 Sealed against the environment
 Ground layers and direct bypass capacitors possible within a ceramic package
 High permittivity of alumina (εr=10), leads to higher propagation delay
 Expensive

COLLEGE OF ENGINEERING,CHENGANNUR
 32
 Popular IC packages:-
 The pins are all parallel, point downward, and extend past the
Plastic Dual-In- bottom plane of the package at least enough to be through-hole
Line(PDIP) mounted to a PCB
Figure: PDIP14
 Available from SO8..SO28, with Gull-wing leads
Small Outline  Dimensions: 8.6mm x 3.9mm x 1.75mm
IC (SOIC)  Pin-to-pin: 1.27mm (50mil) IC
Figure: SO14
 Available up to TSSOP64 for low-profile applications
Thin Shrink  Dimensions: 5.0mm x 4.4mm x 1.2mm
Small Outline  Pin-to-pin: 0.65mm (25mil)
(TSSOP)
 Available pin count >1700 with advanced Chip-scale package
Ball Grid (CSP) package for high-density & low-profile applications
Arrays (BGA).  Dimensions: 8.0mm x 5.5mm x 1.4mm. Pin-to-pin: 0.8mm
Figure: BGA54  Low lead inductance

Thin Quad Flat  An SMP with body thickness 1.0 mm , 2.0 mm lead footprint
Package (TQFP)  Lead counts range from 32 to 176 with pitch-0.4mm to 1mm
Figure: TQFP32  Body sizes from: 5 mm x 5 mm to 20  x 20 mm
COLLEGE OF ENGINEERING,CHENGANNUR
 33

 Metal lines (within one or several layers) routed for sending signals between devices,
distributing clocks, power and ground
 Metal via plugs for connecting two metal layers on different planes
 Inter Metal Dielectric (IMD) separating the metal lines
 Pads for input/output of signals
 Ohmic contact to silicon
 There are six layers of Cu metallization:-
 Lower layers are finer and are used for “local” interconnection between cells
 Middle layers are wider and are used for global interconnection between blocks
 Upper layers are wider and are used for clocks, ground and power distribution
 Oxide is the Inter Metal Dielectric (etched)
 Al used to be the pre-dominant metal for VLSI because it meets all the requirements
for interconnects or has a way around any problem.
 Cu is now the metal for IC interconnects

COLLEGE OF ENGINEERING,CHENGANNUR
 34

 Desirable interconnect wiring properties include:-

 Electrical
 Low resistance
 Low ohmic contact resistance to Si
 Physical
 Adhesion to all surfaces
 Good step coverage
 Stable and reliable (corrosion and
electromigration resistant)
 Process Compatibility
 Can easily be anisotropically etched
 Survive subsequent processing steps

COLLEGE OF ENGINEERING,CHENGANNUR
 35

COLLEGE OF ENGINEERING,CHENGANNUR
