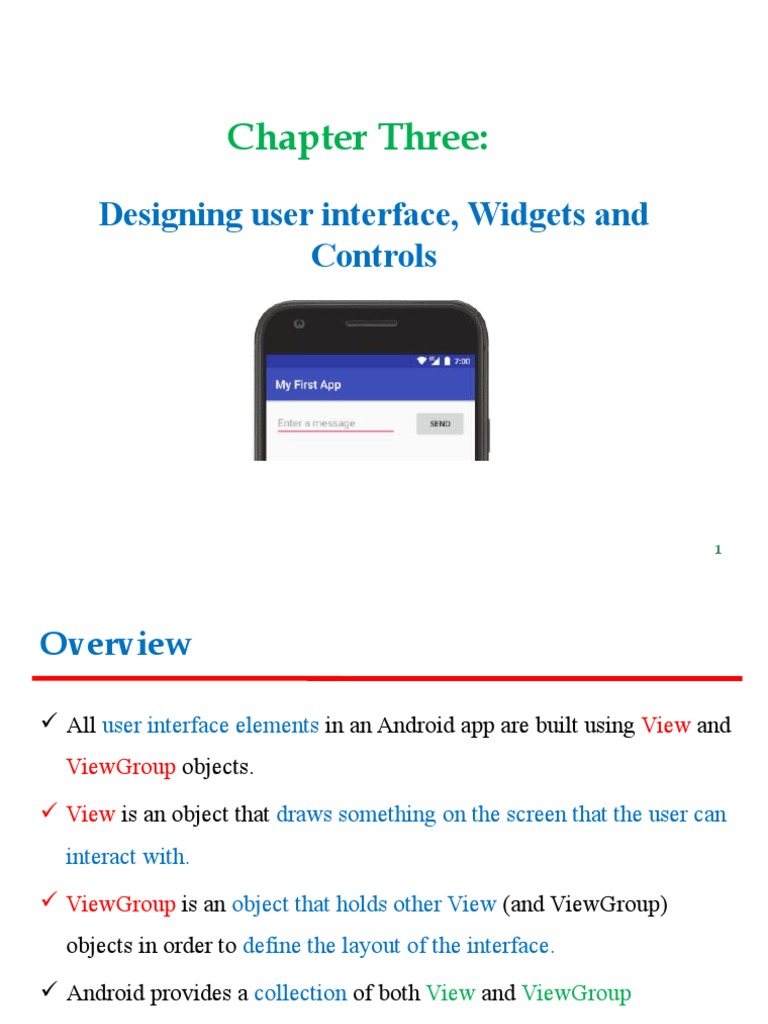

Chapter Three:

Designing user interface, Widgets and

Controls

1
Overview

 All user interface elements in an Android app are built using View and
ViewGroup objects.
 View is an object that draws something on the screen that the user can
interact with.
 ViewGroup is an object that holds other View (and ViewGroup)
objects in order to define the layout of the interface.
 Android provides a collection of both View and ViewGroup
subclasses that offer you common input controls (such as buttons and
text fields) and various layout models (such as a linear or relative
layout) 2
User interface, Widgets and Controls
User interfaces
 user interface for an Android app is built using a hierarchy of layouts
(ViewGroup objects) and widgets (View objects).
 Layouts are invisible containers that control how its child views are positioned
on the screen.
 Widgets are UI components such as buttons and text boxes.

3
Con’t

 Android provides an XML vocabulary for ViewGroup and View

classes, so most of your UI is defined in XML files.
 However, Android Studio's Layout Editor, which makes it easy
to build a layout by drag-and-dropping views.
 To get started, set up your workspace as follows:

 In Android Studio's Project window, open

 app > res > layout > activity_main.xml.

4
Con’t

 The Root view is a ConstraintLayout, containing just one

TextView object.
 ConstraintLayout is a layout that defines the position for each
view based on constraints to sibling views and parent layout.
 In this way, you can create both simple and complex layouts with
a flat view hieararchy.
 That is, it avoids the need for nested layouts (a layout inside a
layout, as shown in figure 1), which can increase the time
required to draw the UI.
5
Con’t
• <ViewGroup>
– A container for other View elements.
– Used to specify the layout of the child elements
– Different kinds of ViewGroup objects include LinearLayout,
RelativeLayout, and FrameLayout.
– Some ViewGroups are implementations of the AdapterView
class, which determines its children only from an Adapter.
• Attributes:
– android:id [unique resource name for the element ]
– android:layout_height ["match_parent" or "wrap_content“ ]
– android:layout_width ["match_parent" or "wrap_content“ ]

6
Con’t

• <View>
– An individual UI component, generally referred to as a "widget".
– Different kinds of View objects include TextView, Button, and
CheckBox.

• Attributes:
– android:id [unique resource name for the element ]
– android:layout_height ["match_parent" or "wrap_content“ ]
– android:layout_width ["match_parent" or "wrap_content“

7
Value
Android: id

Android: layout_height and Android: layout_width

8
Android Layouts

9
• LinearLayout
– means you can align views one by one (vertically/ horizontally).
• RelativeLayout
– means based on relation of views from its parents and other views.
• ConstraintLayout
– is similar to a RelativeLayout in that it uses relations to position and size
widgets, but has additional flexibility and is easier to use in the Layout
Editor.
• WebView: to load html, static or dynamic pages.
• FrameLayout
– to load child one above another, like cards inside a frame, we can place
one above another or anywhere inside the frame.
• AbsoluteLayout
– means you have to give exact position where the view should be.
10
 Linear Layout
 Linear Layout is a view group that aligns all children in a single
direction, vertically or horizontally.
 You can specify the layout direction with the android:orientation
attribute.
 LinearLayout respects margins between children and
the gravity (right, center, or left alignment) of each child.

11
Con’t

 Linear Layout supports assigning a weight to individual children with the

android:layout_weight attribute.
 This attribute assigns an "importance" value to a view in terms of how
much space it should occupy on the screen.
 A larger weight value allows it to expand to fill any remaining space in the
parent view.
 Default weight is zero.
 For example: if there are three text fields and two of them declare a weight
of 1, while the other is given no weight, the third text field without weight
will not grow and will only occupy the area required by its content.
12
Con’t
 The following snippet shows how to include a linear layout in
your layout XML file:

13
Xml Attributes of Linear layout
• android:baselineAligned
– When set to false, prevents the layout from aligning its children's
baselines.
• android:baselineAlignedChildIndex
– When a linear layout is part of another layout that is baseline aligned,
– it can specify which of its children to baseline align to (that is, which child
TextView).
• android:divider
– Drawable to use as a vertical divider between buttons.
• android:gravity
– Specifies how an object should position its content, on both the X and Y
14
Con’t

• android:measureWithLargestChild
– When set to true, all children with a weight will be considered
having the minimum size of the largest child.

• android:orientation
– Should the layout be a column or a row? Use "horizontal" for a
row, "vertical" for a column.

• android:weightSum
– Defines the maximum weight sum
15
Summary

• android:layout_gravity
– Gravity specifies how a component should be placed in its
group of cells.

• android:layout_weight
– Indicates how much of the extra space in the LinearLayout is
allocated to the view associated with these LayoutParams.

• android:divider
– Drawable to use as a vertical divider between buttons.
16
UI Elements [Widgets]

• Button
– A push-button that can be pressed, or clicked, by the user to perform an action.

• Text field [Edit Text, AutoCompleteTextView ]

– An editable text field.
– You can use the AutoCompleteTextView widget to create a text entry widget
that provides auto-complete suggestions

• Check box
– An on/off switch that can be toggled by the user.
– You should use checkboxes when presenting users with a group of selectable
options that are not mutually exclusive.
17
Con’t
• Radio button [ RadioGroup, RadioButton ]
– Similar to checkboxes, except that only one option can be
selected in the group.
• Toggle button
– An on/off button with a light indicator.
• Spinner
– A drop-down list that allows users to select one value from a set.
• Pickers [ DatePicker, TimePicker ]
– A dialog for users to select a single value for a set by using
up/down buttons or via a swipe gesture.
– Use a <DatePickercode> widget to enter the values for the date
(month, day, year) or a TimePicker widget to enter the values for
a time (hour, minute, AM/PM). 18
Buttons

 Consists of text or an icon (or both text and an icon) that

communicates what action occurs when the user touches it.
 Depending on whether you want a button with text, an icon, or
both, you can create the button in your layout in three ways:

19
Con’t
 With text, using the Button class:

 With an Icon, using the ImageButton class:

20
Con’t
• With text and an Icon, using the Button class with the
android:drawableLeft attribute:

• Borderless button
– resemble basic buttons except that they have no borders or
background but still change appearance during different
states, such as when clicked.
– To create a borderless button, apply the
borderlessButtonStyle style to the button.
21
Con’t
• Using onClickListener

– To declare the event handler programmatically, create an

View.OnClickListener object and assign it to the button by
calling setOnClickListener(View.OnClickListener).
– For example:

22
23
Button Styles
• style="@style/Widget.AppCompat.Button"
style="@style/Widget.AppCompat.Button.Colored"
style="@style/Widget.AppCompat.Button.Borderless"
style="@style/Widget.AppCompat.Button.Borderless.Colore
d"

24
EditText

• EditText
– A user interface element for entering and modifying text.

– When you define an edit text widget, you must specify the
TextView_inputType attribute.
– For example, for plain text input set inputType to "text":

25
Specify the Keyboard Type

• You should always declare the input method for your text fields by adding
the android:inputType attribute to the <EditText> element.
• For example,

– if you'd like an input method for entering a phone number, use the
"phone" value:

26
Con’t
• Or if the text field is for a password, use the "textPassword" value

• For example, if you want to accept a secret number, like a unique pin or serial
number, you can set inputType to "numericPassword".
– results in an edit text that accepts numbers only, shows a numeric keyboard

27
 Enable Spelling Suggestions and other
Behaviors
 The android:inputType attribute allows you to specify various behaviors for
the input method.
 for a text message, you should enable auto spelling correction with
the "textAutoCorrect“ value.
 You can combine different behaviors and input method styles with
android:inputType attribute.
 For example, capitalizes the first word of a sentence and also auto-corrects
misspellings:

28
Specify the Input Method Action

 input methods provide a user action button in the bottom corner

 By default, the system uses this button for either a Next or Done action
unless your text field allows multi-line text (such as
with android:inputType="textMultiLine”
 However, you can specify additional actions that might be more appropriate
for your text field, such as Send or Go.
 To specify the keyboard action button, use the android:imeOptions attribute
with an action value such as "actionSend" or "actionSearch".
 For example:

29
 You can then listen for presses on the action button by defining a
TextView.OnEditorActionListener for the EditText element.
 In your listener, respond to the appropriate IME action ID defined in the
EditorInfo class, such as IME_ACTION_SEND.

30
Example
• EditText editText = (EditText) findViewById(R.id.search);
editText.setOnEditorActionListener(new
OnEditorActionListener() {
    @Override
    public boolean onEditorAction(TextView v, int actionId,
KeyEvent event) {
        boolean handled = false;
        if (actionId == EditorInfo.IME_ACTION_SEND) {
            sendMessage();
            handled = true;
    }
        return handled;
  }
}); 31
32
Summary

• Fill_parent

– Occupies complete width/height of android screen

• Wrap_content

– Adjust or compress width/height automatically

• Textview

– Used to display text message

• Edittext

– Used to display textbox

• Button

– Used to display button

33
ImageView
• Typically, images are displayed using the built-in imageView.

• An ImageView is simply a view you embed within an XML layout that is

used to display an image (or any drawable) on the screen.
• The scaleType attribute which defines how the images will be scaled to fit in
your layout. In the example, using scaleType "center"

34
Check Box

• CheckBox
– is a type of two state button either checked or unchecked.

– There can be a lot of usage of checkboxes. For example, it can be used to

know the Hobby of the user, Activate/Deactivate the specific action etc.
– An on/off switch that can be toggled by the user.

35
Con’t
<CheckBox
android:id="@+id/simpleCheckBox"
android:layout_width="wrap_content"
android:layout_height="wrap_content" android:text="Simple
CheckBox"/>
• Important Note: You can check the current state of a check box
programmatically by using isChecked() method.

36
Example
<CheckBox
android:id="@+id/simpleCheckBox"
android:layout_width="wrap_content"
android:layout_height="wrap_content" android:text="Simple
CheckBox" android:checked="true"/>
<!--set the current state of the check box-->

37
Con’t

Setting Current State Of CheckBox In Java Class:

/*Add in Oncreate() funtion after setContentView()*/
// initiate a check box
CheckBox simpleCheckBox = (CheckBox)
findViewById(R.id.simpleCheckBox);

// set the current state of a check box

simpleCheckBox.setChecked(true);

38
Attributes of Check box
• Id
• Checked
• Gravity
– used to control the alignment of the text in CheckBox like
left, right, center, top, bottom, center_vertical,
center_horizontal etc.

39
Con’t
• Text
– used to set the text in a check box.
– We can set the text in xml as well as in the java class.

Setting text in CheckBox In Java class:

40
Con’t

• Padding
– is used to set the padding from left, right, top or bottom.
• paddingRight :
– set the padding from the right side of the check box.
• paddingLeft :
– set the padding from the left side of the check box.
• paddingTop :
– set the padding from the top side of the check box.
• paddingBottom :
– set the padding from the bottom side of the check box.
• Padding :
– set the padding from the all side’s of the check box. 41
Con’t
<CheckBox
android:id="@+id/simpleCheckBox"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Padding Attribute Of Check Box" android:textColor="#44f"
android:textSize="20sp" android:textStyle="bold|italic"
android:checked="false" android:padding="30dp"/>
<!--30dp padding from all side’s-->

42
Lab Exercise

43
Toggle Button

 is used to display checked and unchecked state of a

button.
 basically an off/on button with a light indicator which
indicate the current state of toggle button.
 Example :
 on/off in sound, Bluetooth, wifi, hotspot etc.
 It is a subclass of compoundButton.

44
Switch
 is a two-state toggle switch widget that can select between
two options.
 It is used to display checked and unchecked state of a button
providing slider control to user.
 Switch is a subclass of CompoundButton.
 It is basically an off/on button which indicate the current state
of Switch.
 It is commonly used in selecting on/off in Sound, Bluetooth,
WiFi etc.
 As compared to ToggleButton Switch provides user slider
control. The user can simply tap on a switch to change its
current state.
45
Radio Button

 Similar to checkboxes, except that only one option can be selected

in the group.

 Allows the user to select one option from a set

 To create each radio button option, create a RadioButton

in your layout
 Group the RadioButton inside a RadioGroup, the system
ensures that only one radio button can be selected at a
time
46
Spinner

 Spinners provide a quick way to select one value from a set.

 Used to display the multiple options to the user in which only one
item can be selected by the user.
 Associated with Adapter view
 In the default state, a spinner shows its currently selected value.
 Touching the spinner displays a dropdown menu with all other
available values, from which the user can select a new one

47
Picker
 Android provides controls for the user to pick a time or pick a date
as ready-to-use dialogs.
 Each picker provides controls for selecting each part of the time
(hour, minute, AM/PM) or date (month, day, year).
 Using these pickers helps ensure that your users can pick a time or
date that is valid, formatted correctly, and adjusted to the user's
locale.
 We recommend that you use DialogFragment to host each time or
date picker.
48
• The DialogFragment manages the dialog lifecycle for you and
allows you to display the pickers in different layout
configurations, such as in a basic dialog on handsets or as an
embedded part of the layout on large screens.

49
ToolTips
 A tooltip is a small descriptive message that appears near a view
when users long press the view or hover their mouse over it.
 This is useful when your app uses an icon to represent an action
or piece of information to save space in the layout.

50
Android Progress Bar

 A user interface element that indicates the progress of an operation.

 Progress bar supports two modes to represent progress:

determinate, and indeterminate.
 For a visual overview of the difference between determinate and
indeterminate progress modes, see Progress & activity.
 Display progress bars to a user in a non-interruptive way.
 Show the progress bar in your app's user interface or in a
notification instead of within a dialog.

51
