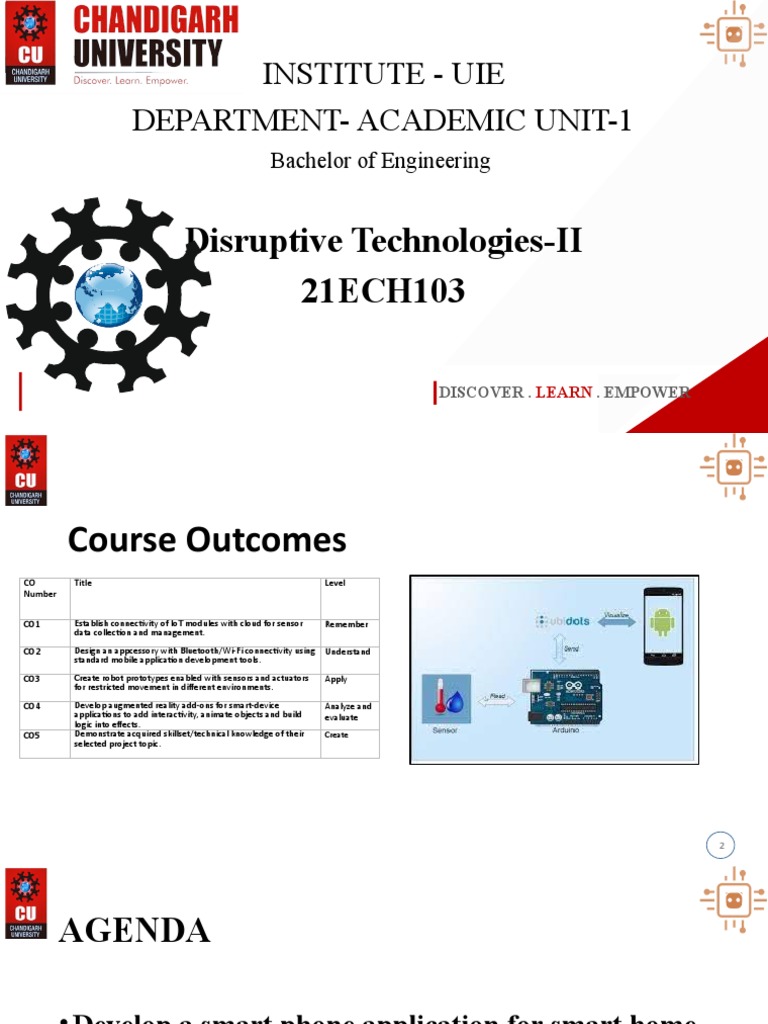

INSTITUTE - UIE

DEPARTMENT- ACADEMIC UNIT-1

Bachelor of Engineering

Disruptive Technologies-II
21ECH103

DISCOVER . LEARN . EMPOWER

 Course Outcomes
CO Title Level
Number

CO1 Establish connectivity of IoT modules with cloud for sensor Remember
data collection and management.
CO2 Design an appcessory with Bluetooth/Wi-Fi connectivity using Understand
standard mobile application development tools.
CO3 Create robot prototypes enabled with sensors and actuators Apply
for restricted movement in different environments.

CO4 Develop augmented reality add-ons for smart-device Analyze and

applications to add interactivity, animate objects and build evaluate
logic into effects.
CO5 Demonstrate acquired skillset/technical knowledge of their Create
selected project topic.

2
AGENDA

• Develop a smart phone application for smart home

voice-assistant.
#include <UbidotsESPMQTT.h>

 MQTT library for connecting to Ubidots using MQTT protocol and an ESP32 board.
 MQTT(Message Queuing Telemetry Transport) is a standard messaging protocol for the Internet of Things(IOT). It is ideal
for connecting remote devices with a small code footprint and minimal network bandwidth.

#define RELAY 25

 Connent relay at pin no 25

 #define TOKEN "…………………." // Your Ubidots TOKEN

 A Token is a unique key that authorizes your device to interact with Ubidots API. A Device Token is a unique key that is
linked to a single device within Ubidots data base, with either one or both of the following permissions: Send data:
Publish to, or make POST requests to send data to the device.
#define WIFISSID "……." // Your SSID

 A service set identifier (SSID) is a sequence of characters that uniquely names a wireless local area network. An SSID is
sometimes referred to as a "network name." This name allows stations to connect to the desired network when multiple
independent networks operate in the same physical area.
 SSIDs are a sequence of alphanumeric characters (letters or numbers), are case sensitive and can have a maximum length
of 32 characters.

#define WIFIPASS "……….." // Your Wifi Pass

 It is a user defined password.

Ubidots client(TOKEN);

 Initialize the instance.

• void callback(char* topic, byte* payload, unsigned int length)
Serial.print("Message arrived [");
Serial.print(topic);
Serial.print("] ");
for (int i = 0; i < length; i++) {
Serial.print((char)payload[i]);
• Payload is a pointer of type byte. transcode a byte array into a message payload without changing the meaning of the message.
• Prints data to the serial port as human-readable ASCII text.

Serial.println();
  Serial.print("Command: ");
  bool command = *payload - 48; // A bool holds one of two values, true or false. (Each bool variable occupies one byte of memory.)
  Serial.println(command);
  digitalWrite(RELAY, !command); // Writing command status to relay pin
void setup() {
  Serial.begin(9600);
  Serial.println("Init... T4_Smart_Home");
  pinMode(RELAY, OUTPUT);

  Serial.print("Connecting to SSID: ");
  Serial.print(WIFISSID);
  Serial.print(", Password: ");
  Serial.println(WIFIPASS);
  client.wifiConnection(WIFISSID, WIFIPASS);
  Serial.println("Done");

  Serial.println(" Initializing Ubidots Connection...");
  client.ubidotsSetBroker("industrial.api.ubidots.com");  // Sets the broker properly for the business ac
count
  client.setDebug(true);                        // Pass a true or false bool value to activate debug mess
ages
  client.begin(callback);
  client.ubidotsSubscribe("smart-home-voice-assistant","bulb"); //Insert the Device and Variable's Labels
  Serial.println("Done");

  Serial.println("DONE");
}
void setup() { //  Use it to initialize variables, pin modes, start using libraries, etc.
The setup() function will only run once, after each powerup or reset of the Arduino board.
  Serial.begin(9600); // This tells the Arduino to get ready to exchange messages with
the Serial Monitor at a data rate of 9600 bits per second.
  Serial.println("Init... T4_Smart_Home");
  pinMode(RELAY, OUTPUT); //Configures the specified pin to behave either as an input or an output.
  Serial.print("Connecting to SSID: ");
  Serial.print(WIFISSID);
  Serial.print(", Password: ");
  Serial.println(WIFIPASS);
  client.wifiConnection(WIFISSID, WIFIPASS);
  Serial.println("Done");
  Serial.println(" Initializing Ubidots Connection...");

  client.ubidotsSetBroker("industrial.api.ubidots.com");  // Sets the broker properly for the business account

  client.setDebug(true);                         // Pass a true or false bool value to activate debug messages

  client.begin(callback);

  client.ubidotsSubscribe("smart-home-voice-assistant","bulb"); //Insert the Device and Variable's Labels

// To monitor more than one variable

  Serial.println("Done");

  Serial.println("DONE");

}
void loop() {



  // Establising connection with Ubidots

  if (!client.connected()) {

    client.reconnect();

    client.ubidotsSubscribe("smart-home-voice

-assistant","bulb"); //Insert the Device and Variable's Labels

  }

  client.loop();

  delay(1000);

}
 Viva Voice Questions
• What is signal conditioning?
• What is the difference between LM 34 and LM 35 sensors?
• Touch screen of mobile phones uses which type of sensors?

13
 Summary
• 1. MIT App Inventor: MIT App Inventor is an intuitive, visual
programming environment that allows everyone even children to
build fully functional apps for smartphones and tablets.
• 2. Ubidots: Ubidots is a cloud based Internet of Things(IoT) data
analytics and visualization platform.

14
References
• https://www.geeksforgeeks.org/how-to-connect-mit-app-inventor-to-
ubidots-and-make-a-basic-smart-home-automation-app/
• https://ubidots.com/community/t/solved-how-to-post-and-get-data-t
o-any-variable-in-device-of-ubidots-cloud-using-mit-app-inventor/289
8
• http://iot.appinventor.mit.edu/

15
