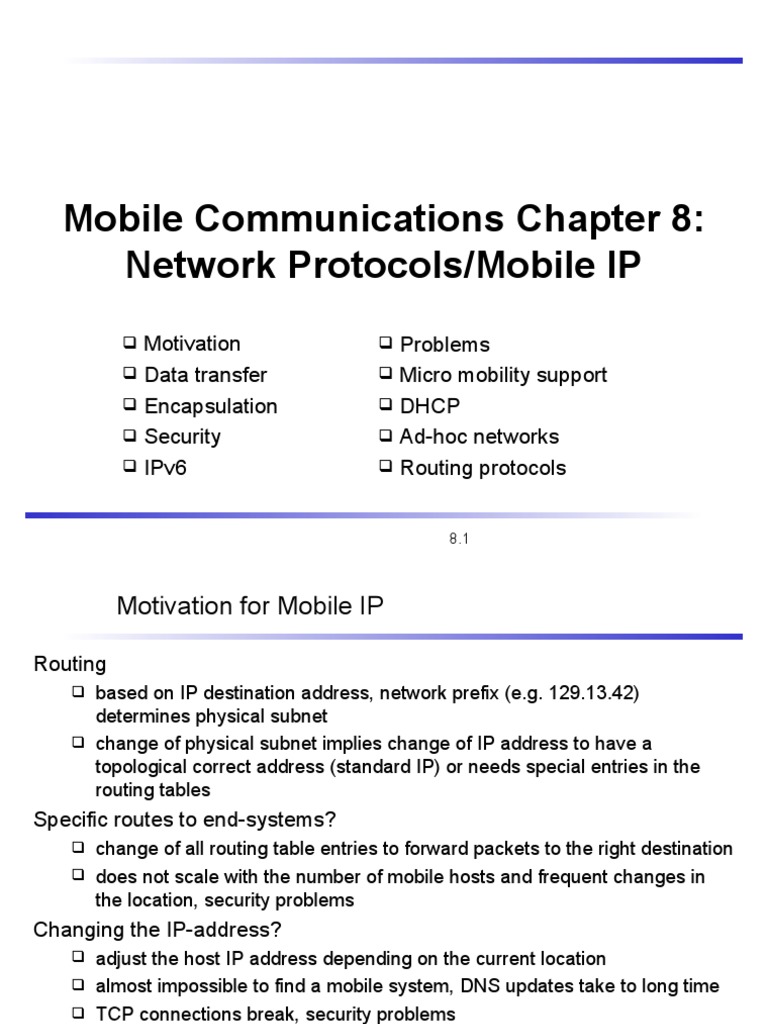

Mobile Communications Chapter 8:

Network Protocols/Mobile IP
 Motivation  Problems
 Data transfer  Micro mobility support
 Encapsulation  DHCP
 Security  Ad-hoc networks
 IPv6  Routing protocols

8.1
 Motivation for Mobile IP

Routing
 based on IP destination address, network prefix (e.g. 129.13.42)
determines physical subnet
 change of physical subnet implies change of IP address to have a
topological correct address (standard IP) or needs special entries in the
routing tables
Specific routes to end-systems?
 change of all routing table entries to forward packets to the right destination
 does not scale with the number of mobile hosts and frequent changes in
the location, security problems
Changing the IP-address?
 adjust the host IP address depending on the current location
 almost impossible to find a mobile system, DNS updates take to long time
 TCP connections break, security problems

8.2
 Requirements to Mobile IP (RFC 3344, was: 3220, was: 2002)

Transparency
 mobile end-systems keep their IP address
 continuation of communication after interruption of link possible
 point of connection to the fixed network can be changed

Compatibility
 support of the same layer 2 protocols as IP
 no changes to current end-systems and routers required
 mobile end-systems can communicate with fixed systems

Security
 authentication of all registration messages
Efficiency and scalability
 only little additional messages to the mobile system required (connection
typically via a low bandwidth radio link)
 world-wide support of a large number of mobile systems in the whole
Internet

8.3
 Terminology
Mobile Node (MN)
 system (node) that can change the point of connection
to the network without changing its IP address
Home Agent (HA)
 system in the home network of the MN, typically a router
 registers the location of the MN, tunnels IP datagrams to the COA
Foreign Agent (FA)
 system in the current foreign network of the MN, typically a router
 forwards the tunneled datagrams to the MN, typically also the
default router for the MN
Care-of Address (COA)
 address of the current tunnel end-point for the MN (at FA or MN)
 actual location of the MN from an IP point of view
 can be chosen, e.g., via DHCP
Correspondent Node (CN)
 communication partner

8.4
 Example network

HA
MN

router

home network mobile end-system

Internet
(physical home network
for the MN)
FA foreign
network
router
(current physical network
for the MN)
CN

end-system router

8.5
 Data transfer to the mobile system

HA
2
MN

home network receiver

3
Internet

FA foreign
network

1. Sender sends to the IP address of MN,

HA intercepts packet (proxy ARP)
1 2. HA tunnels packet to COA, here FA,
CN
by encapsulation
3. FA forwards the packet
sender to the MN

8.6
 Data transfer from the mobile system

HA
1 MN

home network sender

Internet

FA foreign
network

1. Sender sends to the IP address

of the receiver as usual,
CN
FA works as default router

receiver

8.7
Overview

COA

router
home router MN
FA
network HA

foreign
Internet network

CN router

3.
home router router
2. MN
network HA FA
4.
foreign
Internet network

1.
CN router

8.8
 Network integration

Agent Advertisement
 HA and FA periodically send advertisement messages into their
physical subnets
 MN listens to these messages and detects, if it is in the home or a
foreign network (standard case for home network)
 MN reads a COA from the FA advertisement messages
Registration (always limited lifetime!)
 MN signals COA to the HA via the FA, HA acknowledges via FA to MN
 these actions have to be secured by authentication
Advertisement
 HA advertises the IP address of the MN (as for fixed systems), i.e.
standard routing information
 routers adjust their entries, these are stable for a longer time (HA
responsible for a MN over a longer period of time)
 packets to the MN are sent to the HA,
 independent of changes in COA/FA

8.9
 Agent advertisement

0 7 8 15 16 23 24 31
type code checksum
#addresses addr. size lifetime
router address 1
preference level 1
router address 2
preference level 2
...
type = 16
length = 6 + 4 * #COAs type = 16 length sequence number
R: registration required registration lifetime R B H F M G r T reserved
B: busy, no more registrations COA 1
H: home agent COA 2
F: foreign agent ...
M: minimal encapsulation
G: GRE encapsulation
r: =0, ignored (former Van Jacobson compression)
T: FA supports reverse tunneling
reserved: =0, ignored

8.10
 Registration

MN re FA HA MN re HA
gist gist
requ ration requ ration
es t e st
regi
s
requ tration
est
tion
stra
regi
y
n repl
i s t ratio
reg
repl
y t
n
i st ratio
reg
y
repl

8.11
 Mobile IP registration request

0 7 8 15 16 23 24 31
type = 1 S B DMG r T x lifetime
home address
home agent
COA
identification

extensions . . .

S: simultaneous bindings
B: broadcast datagrams
D: decapsulation by MN
M mininal encapsulation
G: GRE encapsulation
r: =0, ignored
T: reverse tunneling requested
x: =0, ignored

8.12
 Mobile IP registration reply

0 7 8 15 16 31
type = 3 code lifetime
home address
home agent
identification
Example codes: extensions . . .
registration successful
0 registration accepted
1 registration accepted, but simultaneous mobility bindings unsupported
registration denied by FA
65 administratively prohibited
66 insufficient resources
67 mobile node failed authentication
68 home agent failed authentication
69 requested Lifetime too long
registration denied by HA
129 administratively prohibited
131 mobile node failed authentication
133 registration Identification mismatch
135 too many simultaneous mobility bindings

8.13
Encapsulation

original IP header original data

new IP header new data

outer header inner header original data

8.14
 Encapsulation I

Encapsulation of one packet into another as payload

 e.g. IPv6 in IPv4 (6Bone), Multicast in Unicast (Mbone)
 here: e.g. IP-in-IP-encapsulation, minimal encapsulation or GRE (Generic Record
Encapsulation)
IP-in-IP-encapsulation (mandatory, RFC 2003)
 tunnel between HA and COA

ver. IHL DS (TOS) length

IP identification flags fragment offset
TTL IP-in-IP IP checksum
IP address of HA
Care-of address COA
ver. IHL DS (TOS) length
IP identification flags fragment offset
TTL lay. 4 prot. IP checksum
IP address of CN
IP address of MN
TCP/UDP/ ... payload

8.15
 Encapsulation II

Minimal encapsulation (optional)

 avoids repetition of identical fields
 e.g. TTL, IHL, version, DS (RFC 2474, old: TOS)
 only applicable for unfragmented packets, no space left for fragment
identification

ver. IHL DS (TOS) length

IP identification flags fragment offset
TTL min. encap. IP checksum
IP address of HA
care-of address COA
lay. 4 protoc. S reserved IP checksum
IP address of MN
original sender IP address (if S=1)
TCP/UDP/ ... payload

8.16
 Generic Routing Encapsulation

original
original data
header

GRE original
outer header original data
header header

RFC 1701 new header new data

ver. IHL DS (TOS) length

IP identification flags fragment offset
TTL GRE IP checksum
IP address of HA RFC 2784
Care-of address COA
C R K S s rec. rsv. ver. protocol C reserved0 ver. protocol
checksum (optional) offset (optional) checksum (optional) reserved1 (=0)
key (optional)
sequence number (optional)
routing (optional)
ver. IHL DS (TOS) length
IP identification flags fragment offset
TTL lay. 4 prot. IP checksum
IP address of CN
IP address of MN

TCP/UDP/ ... payload

8.17
 Optimization of packet forwarding

Triangular Routing
 sender sends all packets via HA to MN
 higher latency and network load

“Solutions”
 sender learns the current location of MN
 direct tunneling to this location
 HA informs a sender about the location of MN
 big security problems!

Change of FA
 packets on-the-fly during the change can be lost
 new FA informs old FA to avoid packet loss, old FA now forwards
remaining packets to new FA
 this information also enables the old FA to release resources for the MN

8.18
 Change of foreign agent

CN HA FAold FAnew MN

Data Data Data

Update
ACK

Data Data
MN changes
location
Update Registration
ACK
Data
Data Data
Warning
Request
Update
ACK
Data
Data
t

8.19
 Reverse tunneling (RFC 3024, was: 2344)

HA
2
MN

home network sender

1
Internet

FA foreign
network

1. MN sends to FA
3 2. FA tunnels packets to HA
CN by encapsulation
3. HA forwards the packet to the
receiver (standard case)
receiver

8.20
 Mobile IP with reverse tunneling

Router accept often only “topological correct“ addresses (firewall!)

 a packet from the MN encapsulated by the FA is now topological correct
 furthermore multicast and TTL problems solved (TTL in the home network
correct, but MN is to far away from the receiver)
Reverse tunneling does not solve
 problems with firewalls, the reverse tunnel can be abused to circumvent
security mechanisms (tunnel hijacking)
 optimization of data paths, i.e. packets will be forwarded through the tunnel
via the HA to a sender (double triangular routing)
The standard is backwards compatible
 the extensions can be implemented easily and cooperate with current
implementations without these extensions
 Agent Advertisements can carry requests for reverse tunneling

8.21
 Mobile IP and IPv6

Mobile IP was developed for IPv4, but IPv6 simplifies the protocols
 security is integrated and not an add-on, authentication of registration is
included
 COA can be assigned via auto-configuration (DHCPv6 is one candidate),
every node has address autoconfiguration
 no need for a separate FA, all routers perform router advertisement which
can be used instead of the special agent advertisement; addresses are
always co-located
 MN can signal a sender directly the COA, sending via HA not needed in
this case (automatic path optimization)
 „soft“ hand-over, i.e. without packet loss, between two subnets is
supported
 MN sends the new COA to its old router
 the old router encapsulates all incoming packets for the MN and forwards them
to the new COA
 authentication is always granted

8.22
 Problems with mobile IP

Security
 authentication with FA problematic, for the FA typically belongs to another
organization
 no protocol for key management and key distribution has been
standardized in the Internet
 patent and export restrictions

Firewalls
 typically mobile IP cannot be used together with firewalls, special set-ups
are needed (such as reverse tunneling)
QoS
 many new reservations in case of RSVP
 tunneling makes it hard to give a flow of packets a special treatment
needed for the QoS
Security, firewalls, QoS etc. are topics of current research and
discussions!

8.23
 Security in Mobile IP

Security requirements (Security Architecture for the Internet Protocol,

RFC 1825)
 Integrity
any changes to data between sender and receiver can be detected by the
receiver
 Authentication
sender address is really the address of the sender and all data received is
really data sent by this sender
 Confidentiality
only sender and receiver can read the data
 Non-Repudiation
sender cannot deny sending of data
 Traffic Analysis
creation of traffic and user profiles should not be possible
 Replay Protection
receivers can detect replay of messages

8.24
 IP security architecture I

 Two or more partners have to negotiate security mechanisms to setup

a security association
 typically, all partners choose the same parameters and mechanisms
 Two headers have been defined for securing IP packets:
 Authentication-Header
 guarantees integrity and authenticity of IP packets
 if asymmetric encryption schemes are used, non-repudiation can also be
guaranteed

 IP-Header
IP header
Encapsulation Authentification-Header
authentication
Security Payload header UDP/TCP-Paket
UDP/TCP data
 protects confidentiality between communication partners

not encrypted encrypted

IP header ESP header encrypted data

8.25
 IP security architecture II

 Mobile Security Association for registrations

 parameters for the mobile host (MH), home agent (HA), and foreign
agent (FA)
 Extensions of the IP security architecture
 extended authentication of registration
MH-FA authentication FA-HA authentication
MH-HA authentication
registration request
registration request
MH FA registration reply HA
registration reply

 prevention of replays of registrations

 time stamps: 32 bit time stamps + 32 bit random number
 nonces: 32 bit random number (MH) + 32 bit random number (HA)

8.26
 Key distribution

Home agent distributes session keys

FA MH

response:
EHA-FA {session key}
HA EHA-MH {session key}

 foreign agent has a security association with the home agent

 mobile host registers a new binding at the home agent
 home agent answers with a new session key for foreign agent and
mobile node

8.27
 IP Micro-mobility support

Micro-mobility support:
 Efficient local handover inside a foreign domain
without involving a home agent
 Reduces control traffic on backbone
 Especially needed in case of route optimization

Example approaches:
 Cellular IP
 HAWAII
 Hierarchical Mobile IP (HMIP)

Important criteria:
Security Efficiency, Scalability, Transparency, Manageability

8.28
 Cellular IP

Operation:
 „CIP Nodes“ maintain routing Internet
entries (soft state) for MNs
 Multiple entries possible Mobile IP
 Routing entries updated based
CIP Gateway
on packets sent by MN data/control
CIP Gateway: packets
 Mobile IP tunnel endpoint from MN 1
 Initial registration processing

Security provisions:
BS BS BS
 all CIP Nodes share packets from
„network key“ MN2 to MN 1
 MN key: MD5(net key, IP addr)
MN1 MN2
 MN gets key upon registration

8.29
 Cellular IP: Security

Advantages:
 Initial registration involves authentication of MNs
and is processed centrally by CIP Gateway
 All control messages by MNs are authenticated
 Replay-protection (using timestamps)

Potential problems:
 MNs can directly influence routing entries
 Network key known to many entities
(increases risk of compromise)
 No re-keying mechanisms for network key
 No choice of algorithm (always MD5, prefix+suffix mode)
 Proprietary mechanisms (not, e.g., IPSec AH)

8.30
 Cellular IP: Other issues

Advantages:
 Simple and elegant architecture
 Mostly self-configuring (little management needed)
 Integration with firewalls / private address support possible

Potential problems:
 Not transparent to MNs (additional control messages)
 Public-key encryption of MN keys may be a problem
for resource-constrained MNs
 Multiple-path forwarding may cause inefficient use of available bandwidth

8.31
 HAWAII (Handoff Aware Wireless Access Internet Infrastructure)

Operation:
 MN obtains co-located COA
1
and registers with HA Internet
2
 Handover: MN keeps COA, HA
new BS answers Reg. Request
3 Backbone
and updates routers
4 Router
 MN views BS as foreign agent

Crossover
Security provisions: Router
 MN-FA authentication mandatory 2
 Challenge/Response Extensions 4 Mobile IP
mandatory
BS BS BS DHCP
Server
Mobile IP
3
MN MN DHCP
1

8.32
 HAWAII: Security

Advantages:
 Mutual authentication and C/R extensions mandatory
 Only infrastructure components can influence routing entries

Potential problems:
 Co-located COA raises DHCP security issues
(DHCP has no strong authentication)
 Decentralized security-critical functionality
(Mobile IP registration processing during handover)
in base stations
 Authentication of HAWAII protocol messages unspecified
(potential attackers: stationary nodes in foreign network)
 MN authentication requires PKI or AAA infrastructure

8.33
 HAWAII: Other issues

Advantages:
 Mostly transparent to MNs
(MN sends/receives standard Mobile IP messages)
 Explicit support for dynamically assigned home addresses

Potential problems:
 Mixture of co-located COA and FA concepts may not be
supported by some MN implementations
 No private address support possible
because of co-located COA

8.34
 Hierarchical Mobile IPv6 (HMIPv6)

Operation:
 Network contains mobility anchor point (MAP)
 mapping of regional COA (RCOA) to link COA Internet
(LCOA) HA
 Upon handover, MN informs
MAP only RCOA
 gets new LCOA, keeps RCOA MAP
 HA is only contacted if MAP
changes
binding AR AR
update
Security provisions:
LCOAnew LCOAold
 no HMIP-specific
security provisions MN MN
 binding updates should be
authenticated

8.35
 Hierarchical Mobile IP: Security

Advantages:
 Local COAs can be hidden,
which provides some location privacy
 Direct routing between CNs sharing the same link is possible (but might be
dangerous)

Potential problems:
 Decentralized security-critical functionality
(handover processing) in mobility anchor points
 MNs can (must!) directly influence routing entries via binding updates
(authentication necessary)

8.36
 Hierarchical Mobile IP: Other issues

Advantages:
 Handover requires minimum number
of overall changes to routing tables
 Integration with firewalls / private address support possible

Potential problems:
 Not transparent to MNs
 Handover efficiency in wireless mobile scenarios:
 Complex MN operations
 All routing reconfiguration messages
sent over wireless link

8.37
 DHCP: Dynamic Host Configuration Protocol

Application
 simplification of installation and maintenance of networked computers
 supplies systems with all necessary information, such as IP address, DNS
server address, domain name, subnet mask, default router etc.
 enables automatic integration of systems into an Intranet or the Internet,
can be used to acquire a COA for Mobile IP
Client/Server-Model
 the client sends via a MAC broadcast a request to the DHCP server (might
be via a DHCP relay)

DHCPDISCOVER

DHCPDISCOVER
server client

client relay

8.38
 DHCP - protocol mechanisms

server client server

(not selected) initialization (selected)
DHCPDISCOVER DHCPDISCOVER
determine the determine the
configuration configuration
DHCPOFFER DHCPOFFER
collection of replies
time

selection of configuration
DHCPREQUEST DHCPREQUEST
(reject) (options) confirmation of
configuration
DHCPACK
initialization completed

release
DHCPRELEASE delete context

8.39
 DHCP characteristics

Server
 several servers can be configured for DHCP, coordination not yet
standardized (i.e., manual configuration)
Renewal of configurations
 IP addresses have to be requested periodically, simplified protocol
Options
 available for routers, subnet mask, NTP (network time protocol) timeserver,
SLP (service location protocol) directory,
DNS (domain name system)

Big security problems!

 no authentication of DHCP information specified

8.40
 Mobile ad hoc networks

Standard Mobile IP needs an infrastructure

 Home Agent/Foreign Agent in the fixed network
 DNS, routing etc. are not designed for mobility

Sometimes there is no infrastructure!

 remote areas, ad-hoc meetings, disaster areas
 cost can also be an argument against an infrastructure!

Main topic: routing

 no default router available
 every node should be able to forward

A B C

8.41
 Solution: Wireless ad-hoc networks

Network without infrastructure

 Use components of participants for networking

Examples
 Single-hop: All partners max. one hop apart
 Bluetooth piconet, PDAs in a room,
gaming devices…

 Multi-hop: Cover larger distances,

circumvent obstacles
 Bluetooth scatternet, TETRA police network,
car-to-car networks…

Internet: MANET (Mobile Ad-hoc Networking) group

8.42
 Manet: Mobile Ad-hoc Networking

Mobile
Router

Manet

Mobile
Devices

Mobile IP,
DHCP

Fixed
Network

Router End system

8.43
 Problem No. 1: Routing

Highly dynamic network topology

 Device mobility plus varying channel quality
 Separation and merging of networks possible
 Asymmetric connections possible
N7 N6
N6
N7
N1 N1
N2 N3
N3 N2

N4 N4
N5 N5

time = t1 time = t2

good link
weak link

8.44
 Traditional routing algorithms

Distance Vector
 periodic exchange of messages with all physical neighbors that contain
information about who can be reached at what distance
 selection of the shortest path if several paths available

Link State
 periodic notification of all routers about the current state of all physical links
 router get a complete picture of the network

Example
 ARPA packet radio network (1973), DV-Routing
 every 7.5s exchange of routing tables including link quality
 updating of tables also by reception of packets
 routing problems solved with limited flooding

8.45
 Routing in ad-hoc networks

THE big topic in many research projects

 Far more than 50 different proposals exist
 The most simplest one: Flooding!

Reasons
 Classical approaches from fixed networks fail
 Very slow convergence, large overhead
 High dynamicity, low bandwidth, low computing power

Metrics for routing

 Minimal
 Number of nodes, loss rate, delay, congestion, interference …
 Maximal
 Stability of the logical network, battery run-time, time of connectivity …

8.46
 Problems of traditional routing algorithms

Dynamic of the topology

 frequent changes of connections, connection quality, participants

Limited performance of mobile systems

 periodic updates of routing tables need energy without contributing to the
transmission of user data, sleep modes difficult to realize
 limited bandwidth of the system is reduced even more due to the exchange
of routing information
 links can be asymmetric, i.e., they can have a direction dependent
transmission quality

8.47
 DSDV (Destination Sequenced Distance Vector)

Early work
 on demand version: AODV

Expansion of distance vector routing

Sequence numbers for all routing updates

 assures in-order execution of all updates
 avoids loops and inconsistencies

Decrease of update frequency

 store time between first and best announcement of a path
 inhibit update if it seems to be unstable (based on the stored time values)

8.48
 Dynamic source routing I

Split routing into discovering a path and maintaining a path

Discover a path
 only if a path for sending packets to a certain destination is needed and no
path is currently available

Maintaining a path
 only while the path is in use one has to make sure that it can be used
continuously

No periodic updates needed!

8.49
 Dynamic source routing II

Path discovery
 broadcast a packet with destination address and unique ID
 if a station receives a broadcast packet
 if the station is the receiver (i.e., has the correct destination address) then return
the packet to the sender (path was collected in the packet)
 if the packet has already been received earlier (identified via ID) then discard
the packet
 otherwise, append own address and broadcast packet
 sender receives packet with the current path (address list)

Optimizations
 limit broadcasting if maximum diameter of the network is known
 caching of address lists (i.e. paths) with help of passing packets
 stations can use the cached information for path discovery (own paths or paths
for other hosts)

8.50
 DSR: Route Discovery

Sending from C to O P R

C
G Q

B I
E
K M O
A
H

D L
F J N

8.51
 DSR: Route Discovery

Broadcast P R
[O,C,4711]
C
[O,C,4711] G Q

B I
E
K M O
A
H

D L
F J N

8.52
 DSR: Route Discovery

P R
[O,C/G,4711]
C
G [O,C/G,4711] Q
[O,C/B,4711]

B I
E
K M O
A
[O,C/E,4711] H

D L
F J N

8.53
 DSR: Route Discovery

P R

C
G Q

[O,C/G/I,4711]
B I
E
K M O
A
H
[O,C/E/H,4711]
[O,C/B/A,4711] D L
F J N
[O,C/B/D,4711]
(alternatively: [O,C/E/D,4711])

8.54
 DSR: Route Discovery

P R

C
G Q

[O,C/G/I/K,4711]
B I
E
K M O
A
H

D L
F J N
[O,C/E/H/J,4711]
[O,C/B/D/F,4711]

8.55
 DSR: Route Discovery

P R

C
G Q

[O,C/G/I/K/M,4711]
B I
E
K M O
A
H

D L
F J N

[O,C/E/H/J/L,4711]
(alternatively: [O,C/G/I/K/L,4711])

8.56
 DSR: Route Discovery

P R

C
G Q

B I
E
K M O
A
H

D L
F J N

[O,C/E/H/J/L/N,4711]

8.57
 DSR: Route Discovery

P R

C
G Q

Path: M, K, I, G
B I
E
K M O
A
H

D L
F J N

8.58
 Dynamic Source Routing III

Maintaining paths
 after sending a packet
 wait for a layer 2 acknowledgement (if applicable)
 listen into the medium to detect if other stations forward the packet (if possible)
 request an explicit acknowledgement
 if a station encounters problems it can inform the sender of a packet or
look-up a new path locally

8.59
 Interference-based routing

Routing based on assumptions about interference between signals

N1
N2

R1
S1 N3

N4

N5 N6 R2
S2

N8 N9
N7
neighbors
(i.e. within radio range)

8.60
 Examples for interference based routing

Least Interference Routing (LIR)

 calculate the cost of a path based on the number of stations that can
receive a transmission
Max-Min Residual Capacity Routing (MMRCR)
 calculate the cost of a path based on a probability function of successful
transmissions and interference
Least Resistance Routing (LRR)
 calculate the cost of a path based on interference, jamming and other
transmissions

LIR is very simple to implement, only information from direct neighbors is

necessary

8.61
 A plethora of ad hoc routing protocols

Flat
 proactive
 FSLS – Fuzzy Sighted Link State
 FSR – Fisheye State Routing
 OLSR – Optimised Link State Routing Protocol
 TBRPF – Topology Broadcast Based on Reverse Path Forwarding

 reactive
 AODV – Ad hoc On demand Distance Vector
 DSR – Dynamic Source Routing
Hierarchical
 CGSR – Clusterhead-Gateway Switch Routing
 HSR – Hierarchical State Routing
 LANMAR – Landmark Ad Hoc Routing
 ZRP – Zone Routing Protocol
Geographic position assisted
 DREAM – Distance Routing Effect Algorithm for Mobility
 GeoCast – Geographic Addressing and Routing
 GPSR – Greedy Perimeter Stateless Routing
 LAR – Location-Aided Routing

8.62
 Further difficulties and research areas

Auto-Configuration
 Assignment of addresses, function, profile, program, …
Service discovery
 Discovery of services and service providers
Multicast
 Transmission to a selected group of receivers
Quality-of-Service
 Maintenance of a certain transmission quality
Power control
 Minimizing interference, energy conservation mechanisms
Security
 Data integrity, protection from attacks (e.g. Denial of Service)
Scalability
 10 nodes? 100 nodes? 1000 nodes? 10000 nodes?
Integration with fixed networks

8.63
Clustering of ad-hoc networks

Internet
Cluster head
Base station

Cluster

Super cluster

8.64
 The next step: Wireless Sensor Networks (WSN)

Commonalities with MANETs

 Self-organization, multi-hop
 Typically wireless, should be energy efficient

Differences to MANETs
 Applications: MANET more powerful, more general Example:
 WSN more specific www.scatterweb.net
 Devices: MANET more powerful, higher data rates, more resources
 WSN rather limited, embedded, interacting with environment
 Scale: MANET rather small (some dozen devices)
 WSN can be large (thousands)
 Basic paradigms: MANET individual node important, ID centric
 WSN network important, individual node may be dispensable, data
centric
 Mobility patterns, Quality-of Service, Energy, Cost per node …

8.65
 A typical WSN

Integration of Sensor Nodes (SN) and Gateways (GW)

SN SN
GW Bluetooth

SN GW
SN SN
SN SN

SN SN
SN
GW
GW SN
WL SN
Eth

P RS A N
G
ern
et

8.66
 Example: ScatterWeb Sensor Nodes

Embedded Sensor Board

 Sensors
 Luminosity, noise detection, gas,
vibration, PIR movement detection, pressure…
 Microphone/speaker, camera, display,
IR sender/receiver, precise timing
 Communication using 868 MHz radio transceiver
 Range up to 2 km LOS, 500 m indoor
Embedded Sensor Board
 Software
 Simple programming (C interface)
 Optional: operating systems TinyOS, Contiki …
 Optional: TCP/IP, web server …
 Routing, management, flashing …

Modular Sensor Node

Further information:
www.scatterweb.net

8.67
 Example: ScatterWeb Gateways

USB
 Simple Integration PC world
 Enables over-the-air programming
either point-to-point or broadcast
including reliable multi-hop
Ethernet
 RJ45 Adapter for 10/100 Mbit/s
 Power-over-Ethernet (802.3af)
 Standard Internet protocols (IP, TCP, HTTP, HTTPS, ARP, DHCP)
 Integrated Web server providing applets for sensor net control
 Secure access of ScatterWeb from any browser on the net
All-in-one
 WLAN, Ethernet, Bluetooth,
GPS, GSM/GPRS, USB, serial…

8.68
 Sensor Networks: Challenges and Research Areas

Long-lived, autonomous networks

 Use environmental energy sources
 Embed and forget
 Self-healing

Self-configuring networks
 Routing
 Data aggregation
 Localization

Managing wireless sensor networks

 Tools for access and programming
 Update distribution

Scalability, Quality of Service…

8.69
 Routing in WSNs is different

No IP addressing, but simple, locally valid IDs

Example: directed diffusion
 Interest Messages
 Interest in sensor data: Attribute/Value pair
 Gradient: remember direction of interested node
 Data Messages
 Send back data using gradients
 Hop count guarantees shortest path

Sink

8.70
 Energy-aware routing

Only sensors with sufficient energy forward data for other nodes
Example: Routing via nodes with enough solar power is considered “for
free”

8.71
 Solar-aware routing

Solar-powered node
 Send status updates to neighbors
 Either proactive or when sniffing ongoing traffic
 Have neighbor nodes reroute the traffic

8.72
Example: Software for controlling a sensor network

8.73
 Today’s WSNs

First generation of WSNs is available

 Diverse sensor nodes, several gateways
 Even with special sensors: cameras, body temperature…
 Basic software
 Routing, energy conservation, management

Several prototypes for different applications

 Environmental monitoring, industrial automation, wildlife monitoring …

Many see new possibilities for monitoring, surveillance, protection

 Sensor networks as a cheap and flexible new means
for surveillance
 Monitoring and protection of goods
 Chemicals, food, vehicles, machines, containers, …
 Large application area besides military
 Law enforcement, disaster recovery, industry,
private homes, …

8.74
