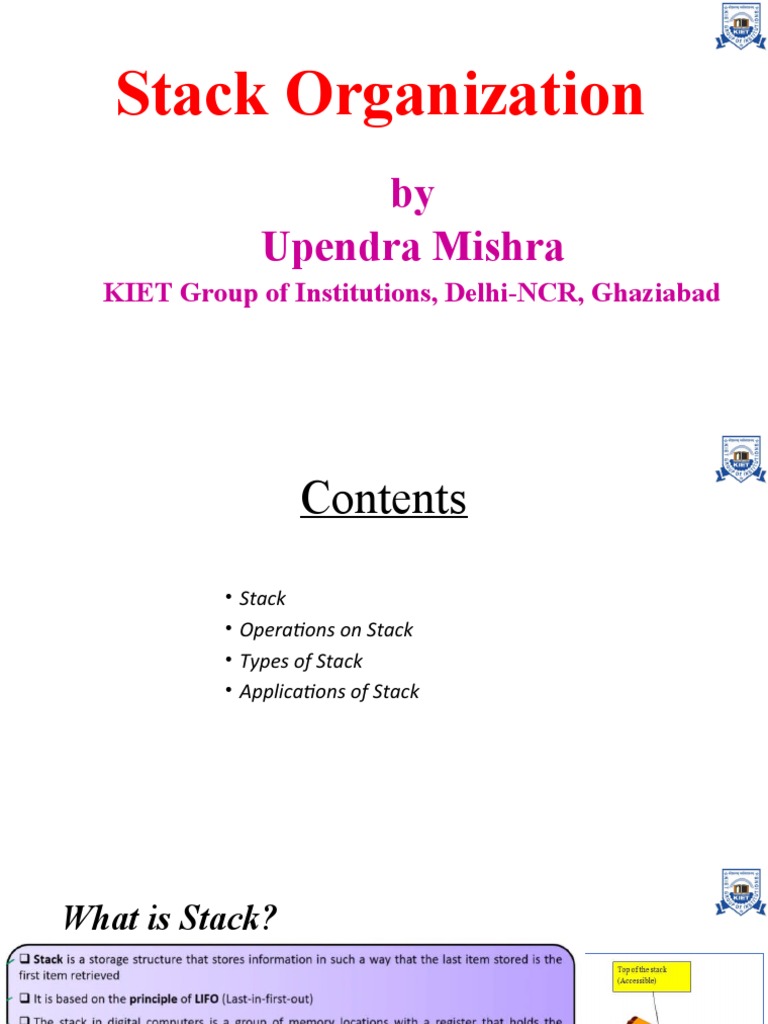

Stack Organization

by
Upendra Mishra
KIET Group of Institutions, Delhi-NCR, Ghaziabad
 Contents
• Stack
• Operations on Stack
• Types of Stack
• Applications of Stack
What is Stack?
How to work with Stack?
• Operations on Stack
• Push: to insert an element into the stack
• Pop: To remove the top element from the stack

• A register is used to store the address of the topmost element of the stack
which is known as Stack pointer (SP).

• The stack pointer register SP contains a binary number whose value is equal to
the address of the word that is currently on top of the stack.
 Register Stack:
• A stack can be placed in a portion of a large
memory or it can be organized as a collection
of a finite number of memory words or
registers.
• Example: A register stack of 64 words or
registers
Initially:
FULL=0
EMPTY=1
SP=0
Register Stack (contd..)
 FULL=0 (Stack is not full) • FULL is a one-bit flag register for showing the
 FULL=1 (Stack is full) status of stack whether it is Full (containing all
64 elements) or not.

 EMPTY =0 (Stack is Not empty) • EMPTY is also a one-bit flag register for showing
the status of stack whether it is Empty
 EMPTY = 1 (Stack is Empty) (containing no element) or not

• DR is the data register that holds the binary data

to be written in to or read out of the stack.
 Register Stack (contd..)
PUSH Operation:
• SP ←SP + 1 (Increment stack pointer)
• M [SP] ← DR (Write item on top of the
stack)
• if (SP==0) then (Full ← 1) (Check if stack
is full)
• Empty ← 0 (Marked the stack not
empty)
• PUSH Operation: The push operation is
implemented with the shown sequence
of micro-operation.
• The stack pointer is incremented so that
it points to the address of the next-
higher word.
• A memory write operation inserts the
word from DR into the top of the stack.
Note that SP holds the address of the top
 Add element A to the Stack
• Initially:
FULL=0
EMPTY=1
SP=0
Push an element:
SP= SP+1 = 0+1 =1
M[SP] DR ( M[1]=A)
If (SP==0) then (Full 1 )
EMPTY=0
111111
+ 1
1000000
 Add an element B to the Stack
• Given
FULL=0
EMPTY=0
SP=1

Push an element:
SP= SP+1 = 1+1 =2
M[SP] DR
( M[2]=B)
If (SP==0) No
EMPTY=0
 Add an element C to the Stack
• Given
FULL=0
EMPTY=0
SP=2
Push an element:
SP= SP+1 = 2+1 =3
M[SP] DR ( M[3]=C)
If (SP==0) No
EMPTY=0
 Removing an element from the stack
• POP operation:
• DR← M [SP] (Read item from the top of stack)
• SP ← SP-1 Decrement stack Pointer
• If ( SP==0) then (Empty ← 1) Check if stack
is empty
• FULL ← 0 (Mark the stack not full)
• The top item is read from the
stack into DR.
• The stack pointer is then
decremented.
• If its value reaches zero, the
stack is empty, so Empty is set to
1.
 Removing the top element from the stack
Given
Full = 0
Empty= 0
SP=3

Pop an item
DR← M [SP]  DR= M[3]= C
SP= SP-1  SP=3-1= 2
If (SP==0) then (Empty 1)
FULL=0
000000
- 1
111111
 Important Point
• The first item stored in the stack is at address 1.

• The second last (or prior to last) item stored in the stack is at
address 63.

• The last item is stored at address 0.

Stack Pointer Movement
Memory Stack:
 Memory Stack:
• Push Operation:
• A new item is inserted with the push operation
as follows.

• SP← SP-1 (Decrement stack Pointer)

• M [SP] ← DR (Write item on top of the
stack)
Memory Stack:
• A new item is deleted with a pop operation
as follows.

• DR← M [SP] (Read item from the top of

stack)

• SP←SP + 1 (increment stack Pointer)

Applications of Stack
• Subroutines Call
• Zero-address Instruction Implementation
• Infix notation to Post-fix notation
• Evaluation of Arithmetic Expressions
Precedence and Associativity
Instruction
• Instruction: An Instruction is a command given to the computer to
perform a specific function.
• Instruction format:
• i) Operation Code(Opcode):Specifies Operation to be performed.
• ii) Specifies which addressing mode is used.
• iii) Specify a memory address or register address.

Operation Mode Field Address Field

Code(Opcode)
• Evaluate the arithmetic statement
• X= (A+B)*(C+D)
• Assume that A,B,C,& D are Memory addresses.
Problem
Problem2
Thank
You
