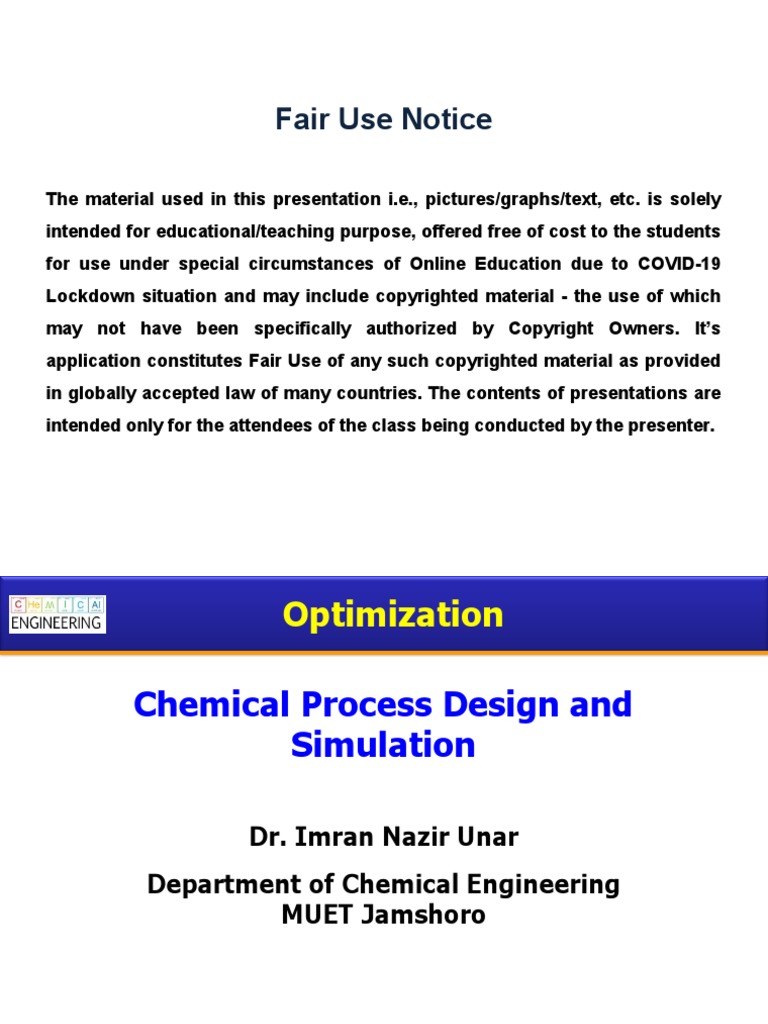

Fair Use Notice

The material used in this presentation i.e., pictures/graphs/text, etc. is solely

intended for educational/teaching purpose, offered free of cost to the students
for use under special circumstances of Online Education due to COVID-19
Lockdown situation and may include copyrighted material - the use of which
may not have been specifically authorized by Copyright Owners. It’s
application constitutes Fair Use of any such copyrighted material as provided
in globally accepted law of many countries. The contents of presentations are
intended only for the attendees of the class being conducted by the presenter.
 Optimization

Chemical Process Design and

Simulation

Dr. Imran Nazir Unar

Department of Chemical Engineering
MUET Jamshoro

Lecture No. 6 – Mathematical Optimization

 Lecture 6 – Objective

On completion of this part, you should:

 Understand the different types of optimization

problems and their formulation
 Optimization Basics
• What is Optimization?
– The purpose of optimization is to maximize (or minimize) the value of a function (called objective function) subject to a number of restrictions (called constraints).

• Examples

1. Maximize reactor conversion

Subject to reactor modeling equations
kinetic equations
limitations on T, P and x
 Optimization Basics
• Examples (Continued)

2. Minimize cost of plant

Subject to mass & energy balance equations
equipment modeling equations
environmental, technical and logical constraints
 Optimization Basics
• Examples (Continued)

3. Maximize your grade in this course

Subject to extracurricular activities
full-time-job requirements
constant demand by other courses and/or your advisor/boss
 Optimization Basics
• Formulation of Optimization Problems

min (or max) f(x1,x2 ,……,xN)

subject to g 1(x1,x 2,……,xN)≤0

g 2(x1,x 2,……,xN)≤0

g m(x1 ,x2 ,……,xN )≤0

h 1(x1,x 2,……,xN)=0
h 2(x1,x 2,……,xN)=0

h E(x1,x 2,……,xN)=0

Feasibility
Any vector (or point) which
satisfies all the constraints
Inequality of the optimization program
Constraints is called a feasible vector
(or a feasible point)
The set of all feasible points
is called feasibility region
or feasibility domain
Equality
Constraints
Any optimal solution
must lie within the
feasibility region!
 Optimization Basics
• Classification of Optimization Problems
– Linear Programs (LP’s)
• A mathematical program is linear if

f(x1,x2,……,xN) and gi(x1,x2,……,xN)≤0 are linear in each of their arguments:

f(x1,x2,……,xN) = c1x1 + c2x2 + …. cNxN

gi(x1,x2,……,xN) = ai1x1 + ai2x2 + …. aiNxN

where c i and aij are known constants.

Linear Programs (LP’s) can be solved to yield a

global optimum. Solver routines can guarantee a
truly optimal solution.
 Optimization Basics
• Classification of Optimization Problems
– Non-Linear Programs (NLP’s)
• A mathematical program is non-linear if any of the arguments are non-linear. For example:

min 3x + 6y2
s.t. 5x + xy ≥ 0

– Integer Programming
• Optimization programs in which ALL the variables must assume integer values. The most commonly used integer variables are the zero/one binary integer variables.

• Integer variables are often used as decision variables, e.g. to choose between two reactor types.

Non-Linear Programs (NLP’s) can

be solved to yield a local optimum.
Solver routines can not always
guarantee a globally optimal
solution.
 Optimization Basics
• Classification of Optimization Problems
– Mixed Integer Linear Programs (MILP’s)
• Linear programs in which SOME of the variables are real and other variables are integers

• Can be solved as individual LP’s by fixing the integer variables, thus a global optimum can be identified.

– Mixed Integer Non-Linear Programs (MINLP’s)

• Non-linear programs in which SOME of the variables are real and other variables are integers

• Can be solved as individual NLP’s by fixing the integer variables, but depending on the nature of the NLP’s it may not be possible to find a global optimum.
 Optimization Basics
• Formulation of Optimization Problems
– Step 1
• Determine the quantity to be optimized and express it as a mathematical function (this is your objective function)
• Doing so also serves to define variables to be optimized (input variables or optimization variables)

– Step 2
• Identify all stipulated requirements, restrictions, and limitations, and express them mathematically. These requirements constitute the constraints

– Step 3
• Express any hidden conditions. Such conditions are not stipulated explicitly in the problem, but are apparent from the physical situation, e.g. non-negativity constraints
 Optimization Example
• Hydrogen Sulfide Scrubbing
– Two variable grades of MEA.

– First grade consists of 80 weight% MEA and 20% weight water. Its cost is 80 cent/kg.

– Second grade consists of 68 weight% MEA and 32 weight% water. Its cost is 60 cent/kg.

– It is desired to mix the two grades so as to obtain an MEA solution that contains no more than 25 weight% water.
– What is the optimal mixing ratio of the two grades which will minimize the cost of MEA solution (per kg)?
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)

– Objective function min z = 80x1 + 60x2

– Constraints
• Water content limitation 0.20x1 + 0.32x2 ≤ 0.25
• Overall material balance x1 + x2 =1
• Non-negativity x1 ≥ 0
x2 ≥ 0

Grade 1
x1 kg
0.80 MEA, 0.20 water Variables (Basis 1 kg solution)
1 kg MEA solution
80 cents/kg
MIXER 
water content 25 wt. %
x1 Amount of grade 1 (kg)
Grade 2 x2 Amount of grade 2 (kg)
x2 kg
0.68 MEA, 0.32 water z Cost of 1 kg solution (cents)
60 cents/kg
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– Feasibility region
• The set of points (x1, x2) satisfying all the constraints, including the non-negativity conditions.
• Constraint on water content 0.20x1 + 0.32x2 ≤ 0.25

x2

x1
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– Feasibility region
• Non-negativity constraints x1  0 , x2  0

x2
x2

x1
x1
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– Feasibility region
• Mass balance constraint x1 + x2 = 1

x2
x2
x2

0.2
0 x1
+ 0.3
2 x2
= 0.2
5

x1 x1
x1
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– Feasibility region

x2

Feasibility region
0.2
0x
1+
0.3
is this heavy line
2x
2=
0.2
5

Any optimal solution x1

must lie within the
feasibility region!
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– By plotting objective function curves for arbitrary values of z (here 70 and 75) we can evaluate the results:

x2
x1
+x
Optimal Point
2=
1 Intersection between
0.2
0x
1+ z = 75 x1 + x2 = 1
0.3
2x
2=
0.2 and
5

0.20x1 + 0.32x2 = 0.25

z = 70
x1
In addition
70 < zmin < 75
 Optimization Example
• Hydrogen Sulfide Scrubbing (Cont’d)
– Solving the two equations simultaneously yields the optimum amounts of the two MEA solutions along with the minimum
cost of the mixture

x1
x2
+x
2=
1
0.2
0x
1+
z* = 71.6
0.3
2x
2=
0.2
Optimal
5
point
x2* = 0.42
x1
x1* = 0.58
 More Optimization Examples
• Lab Experiment
– Determine the kinetics of a certain reaction by mixing two species, A and B. The cost of raw materials A and B are 2 and 3 $/kg, respectively.

– Let x1 and x2 be the weights of A and B (kg) to be employed in the experiment

– The operating cost of the experiment is given by:

OC = 4(x1)2 + 5(x2)2

– The total cost of raw materials for the experiment should be exactly $6. Minimize the operating cost!
 More Optimization Examples
• Coal Conversion Plant
– What are the optimal production rates of gaseous and liquid fuels that maximize the net profit of the plant?

2x1 kg coal/s for power Gaseous Fuel

generation of gasification x1 kg gas. fuel/s
plant (value of power breaks Coal Net profit $3/kg
even with the gasification of gaseous fuel
cost of coal air
(maximum
used in power capacity x1 ≤ 4
generation) 4 kg
x1 kg coal/s
coal/s) Byproducts
Coal pre-
treatment (negligible value)
coal in
3x1 + 2x2 (maximum Coal
Liquid Fuel
kg coal/s capacity x2 kg liquid fuel/s
18 kg coal/s) 2x2 kg coal/s liquefaction Net profit $5/kg
(maximum
of liquid fuel
capacity
12 kg
coal/s) 2x2 ≤ 12
Byproducts
3x1 + 2x2 ≤ 18 (negligible value)
 More Optimization Examples
• Coal Conversion Plant (Cont’d)
– Objective function max z = 3x1 + 5x2
– Constraints
• Pretreatment capacity 3x1 + 2x2 ≤ 18
• Gasification capacity x1 ≤ 4
• Liquefaction capacity 2x2 ≤ 12
• Non-negativity x1 ≥ 0
x2 ≥ 0

x2

10
x1 = 4
3x1 + 2x2 = 18
8

6 2x2 = 12

0 x1
0 2 4 6 8
 More Optimization Examples
• Coal Conversion Plant (Cont’d)
– Graphical solution

Maximum profit Z = 36 for x1 = 2 and x2 = 6

x2 x2

10 10
x1 = 4
3x1 + 2x2 = 18
8 8
Z = 36 = 3x1 + 5x2
6 2x2 = 12 6
Z = 20 = 3x1 + 5x2
4 4

Z = 10 = 3x1 + 5x2
2 2

0 x1 0 x1
0 2 4 6 8 0 2 4 6 8
 More Optimization Examples
• Methanol Delivery
– Supply methanol for three Methyl acetate plants located in towns A, B, and C

– Daily methanol requirements for each plant:

MeAc Plant location Tons/day
A 6
B 1
C 10

– Methanol production plants

MeOH plant 1 2 3 4
Capacity 7 5 3 2
 More Optimization Examples
• Methanol Delivery (Cont’d)
– Shipping cost (100 $/ton)

– Schedule the methanol delivery system to minimize the transportation cost

MeOH Plant MeAc Plant A MeAc Plant B MeAc Plant C

1 2 1 5

2 3 0 8

3 11 6 15

4 7 1 9
 More Optimization Examples

• Methanol Delivery (Cont’d)

– We define the transportation loads (tons/day) going
from each MeOH plant to each MeAc plant as follows:

MeOH Plant MeAc Plant A MeAc Plant B MeAc Plant C

1 X1A X1B X1C
2 X2A X2B X2C

3 X3A X3B X3C

4 X4A X4B X4C

– Total transportation cost (Z)

Z = 2X1A + X1B + 5X1C + 3X2A + 0X2B + 8X2C +
11X3A
+ 6X3B + 15X3C + 7X4A + X4B + 9X4C
 More Optimization Examples
• Methanol Delivery (Cont’d)
– Objective function min Z = 2X1A + X1B + 5X1C + 3X2A + 0X2B
+ 8X2C + 11X3A
+ 6X3B + 15X3C
+ 7X4A + X4B + 9X4C
– Constraints
• Availability/supply X1A + X1B + X1C = 7
X2A + X2B + X2C = 5
X3A + X3B + X3C = 3
X4A + X4B + X4C = 2

• Requirements/demand X1A + X2A + X3A + X4A = 6

X1B + X2B + X3B + X4B = 1
X1C + X2C + X3C + X4C = 10
 More Optimization Examples
• Methanol Delivery (Cont’d)
– Constraints
• Non-negativity X1A ≥ 0
X1B ≥ 0
X1C ≥ 0
X2A ≥ 0
X2B ≥ 0
X2C ≥ 0
X3A ≥ 0
X3B ≥ 0
X3C ≥ 0
X4A ≥ 0
X4B ≥ 0
X4C ≥ 0
 Mixed Integer Programs
• Use of 0-1 Binary Integer Variables
– Commonly used to represent binary choices
– Dichotomy modeling

 0 if the event does NOT occur

x
1 if the event does occur
 Mixed Integer Programs
• The Assignment Problem
– Assignment of n people to do m jobs
– Each job must be done by exactly one person
– Each person can at most do one job
– The cost of person j doing job i is C ij

– The problem is to assign the people to the jobs so as to minimize the total cost of completing all the jobs.

– We can assign integer variables to describe whether a certain person does a certain job or not
 Mixed Integer Programs
• The Assignment Problem (Cont’d)
– The event of person j doing job i is designated Xij

– The objective function can be written as:

– Since exactly one person will do job i, and each person at most can do one job, we get:

m n
min   C ij X ij
i 1 j  1

n m

X
j 1
ij  1 , i  1,...., m X
i 1
ij 1 , j  1,...., n
 Mixed Integer Programs
• Plant Layout – An Assignment Problem
– Four new reactors R1, R2, R3 and R4 are to be installed in a chemical plant
– Four vacant spaces 1, 2, 3 and 4 are available
– Cost of assigning reactor i to space j (in $1000) is

– Assign reactors to spaces to minimize the total cost

Reactor Space 1 Space 2 Space 3 Space 4

R1 15 11 13 15

R2 13 12 12 17

R3 14 15 10 14

R4 17 13 11 16
 Mixed Integer Programs
• Plant Layout (Cont’d)
– Let Xij denote the existence (or absence) of reactor i in space j, i.e. if Xij =1 then reactor i exists in space j

– Objective functionmin Z = 15X11 + 11X12 + 13X13 + 15X14 + 13X21 + 12X22 + 12X23 + 17X24 +14X31 + 15X32 + 10X33 + 14X34
+ 17X41 + 13X42 + 11X43 + 16X44
 Mixed Integer Programs
• Plant Layout (Cont’d)
– Constraints
• Each space must be assigned to one and only one reactor

X11 + X12 + X13 + X14 = 1

X21 + X22 + X23 + X24 = 1
X31 + X32 + X33 + X34 = 1
X41 + X42 + X43 + X44 = 1

• Each reactor must be assigned to one and only one space

X11 + X21 + X31 + X41 = 1

X12 + X22 + X32 + X42 = 1
X13 + X23 + X33 + X43 = 1
X14 + X24 + X34 + X44 = 1
 Mixed Integer Programs
• Plant Layout (Cont’d)
– Optimal assignment policy

Reactor R1 in space 2
Reactor R2 in space 1
Reactor R3 in space 4
Reactor R4 in space 3

– Minimum cost

Cost = 11 + 13 + 14 + 11 = $49,000
Mixed Integer Programs

Thank You
