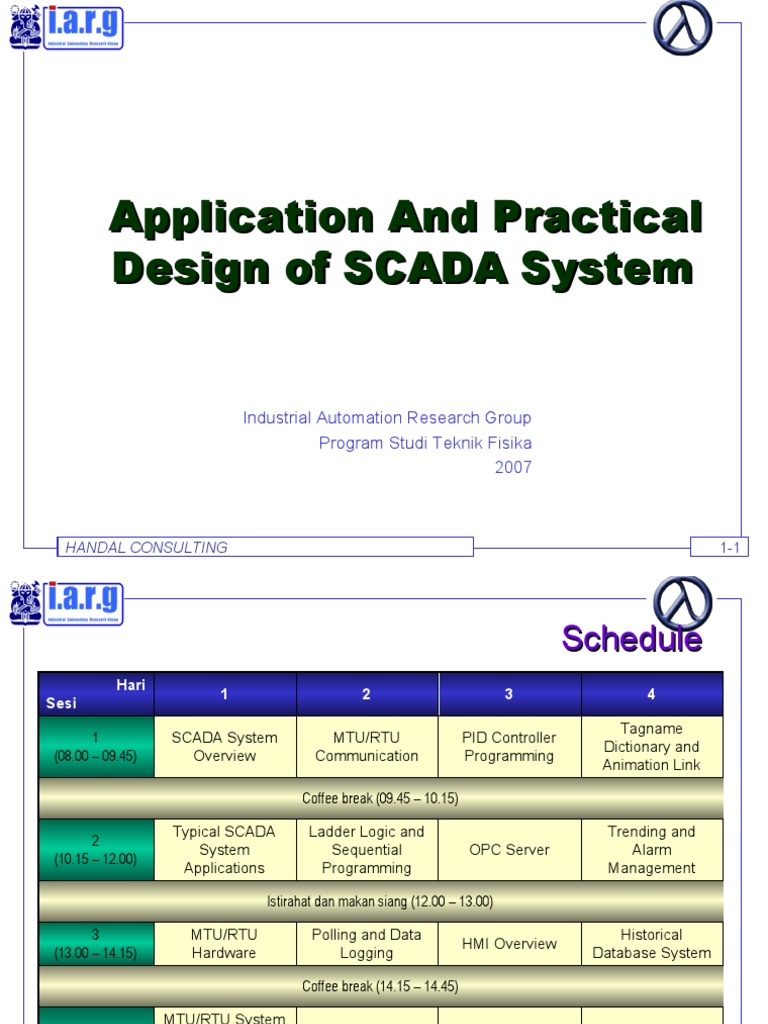

Application And Practical

Design of SCADA System

Industrial Automation Research Group

Program Studi Teknik Fisika
2007

HANDAL CONSULTING 1-1

 Schedule
Hari
1 2 3 4
Sesi
Tagname
1 SCADA System MTU/RTU PID Controller
Dictionary and
(08.00 – 09.45) Overview Communication Programming
Animation Link

Coffee break (09.45 – 10.15)

Typical SCADA Ladder Logic and Trending and

2
System Sequential OPC Server Alarm
(10.15 – 12.00)
Applications Programming Management

Istirahat dan makan siang (12.00 – 13.00)

3 MTU/RTU Polling and Data Historical

HMI Overview
(13.00 – 14.15) Hardware Logging Database System

Coffee break (14.15 – 14.45)

MTU/RTU System
4 Software and System HMI Graphic Link to Office
(14.45 – 16.00) Configuration Redudancy Development Applications
Setup

HANDAL CONSULTING 1-2

 Overview of SCADA
Systems

Industrial Automation Research Group

Program Studi Teknik Fisika
2007

HANDAL CONSULTING 1-3

 SCADA Terminology
 SCADA is an acronym for Supervisory Control and
Data Acquisition
 Data Acquisition :
Gathers information from widely distributed
processes
 Supervisory Control :
Calculate and give limited control instructions to
distant process facilities

HANDAL CONSULTING 1-4

 Terms & Terminology
 Field Instrumentation
 Data Acquisition
 Control Loop
 Supervisory Control
 Remote Terminal Unit (RTU)
 Master Terminal Unit (MTU)
 SCADA Server
 Communications Equipment

HANDAL CONSULTING 1-5

 Historical Background (1)

 1960s:
• Radio Telemetry : weather monitoring using unmanned
balloon/rocket
• Hardwired Remote Monitoring : oil & gas and processing
industries
 1970s :
• Two-way radio telemetry
• Mini-computer
• Distributed Process Control System (DCS)
• Programmable Logic Controller (PLC)

HANDAL CONSULTING 1-6

 Historical Background (2)
 1980s :
• Low cost microcomputer (PC)
• Satellite Communications
• Cellular Telephone
 1990s :
• Local Area Network (LAN)
• High Speed Communication Devices
• Internet

HANDAL CONSULTING 1-7

 Data Acquisition
Device Status

PROCESS
valve status (open/close)
switch position (on/off)
pump (start/stop)

FIELD- INTERFACE
Variables
pressures
flow rates
temperatures
tank levels

Alarms
Low Tank Level Alarm
High Tank Level Alarm
Fire Alarm

HANDAL CONSULTING 1-8

 Data Acquisition on an ESP System

Load
Current (A)

ESP Compensator
Pressure (Mpa)
Line
Frequency (A)
Intake
Pressure

Intake
Vibration (Hz) Temperature (oC)

Current
Leakage (A)
Motor Winding
Temperature (oC)

HANDAL CONSULTING 1-9

 Types of Field Devices
 Conventional  Fieldbus based
• 4-20 mA analog signal • Microprocessor and
• Discrete status (0/1) embedded system
• technology
Point-to-point configuration
• • Digital signal
Dedicated wiring for each
devices • Point-to-point or point-to-
multipoint
• Simplified wiring, drawings,
and control engineering
Conventional 4-20 mA Fieldbus • Embedded control algorithm
I/O
Modules
Bridge • example :
 Foundation Fieldbus
Transmitter
 Profibus Transmitter
 HART transmitter

HANDAL CONSULTING 1-10

 Control Loop

P&ID
ON-OFF
Sequential
Fuzzy Logic
Neural Network
Set Point
Process
Manipulated Variable
 Temperature
Variable  Pressure
 Flow rate CONTROLLER  Level
 Heat in  Flow rate

Actuator Sensor

input output

PROCESS
HANDAL CONSULTING 1-11
 Example : Flow Control Loop
 Objective :
• maintain flow rate at a desired value (set point)
 Control elements :
• Sensor : Flow Transmitter
• Controller : PLC (PID)
• Actuator : Control Valve

HANDAL CONSULTING 1-12

 Supervisory Control
 Set point management for several control loops
 Optimization to achieve “the best operating point”
 Use advanced control algorithm
• cascade controller
• ratio controller Supervisory Control

• override control Set Point 1 Set Point 2 Set Point 3

• etc
CONTROLLER

CONTROLLER
Actuator Sensor

Actuator CONTROLLER
Sensor
PROCESS
LOOP #1 Actuator Sensor
PROCESS
LOOP #2
PROCESS
LOOP #3
HANDAL CONSULTING 1-13
 Goals to Achieve
 Technical :
• Safety
• Increased productivity
• Equipment protection and maintenance
• Operational optimization
• Energy saving
• Immediate access to inventories, receipts, deliveries, etc.
 Economical :
• Plant-wide optimization
• Optimization of personnel utilization

HANDAL CONSULTING 1-14

 Applicable Processes
 Widely distributed processes; spreading over large
areas
 Require frequent, regular, or immediate intervention
 High cost of routine visits to monitor facility operation
 Examples :
• Oil and gas production facilities
• Pipelines for gas, oil, chemical, or water
• Electric power transmission system
• Railroad traffic
• Feed water purification plant
• Building automation

HANDAL CONSULTING 1-15

 SCADA System Architecture

RTU
01 transducers/
transmitters

Enterprise Network Modem

RTU
02 transducers/
transmitters

Modem
Plant Level Network
Engineer (Supervisory)
Station Modem
RTU
03
Modem

Modem transducers/
Manager transmitters
Station
MASTER TERMINAL Radio
Radio
UNIT (MTU) Field Device Network
RTU
Database 04
Server

Modem transducers/
transmitters

Radio

HANDAL CONSULTING 1-16


 One MTU can exchange
data with one or more RTUs
 Data exchange within MTU
and RTUs follows a pre-
defined set of rules called
communication protocol
 Data is encoded as binary
signal (series of ones and
zeros)
 This binary signal is
modulated before it
propagates through
communication medium
HANDAL CONSULTING
Data Communications
 Two-way communications
(half or full duplex)
 serial transmission
(asynchronous/synchronous)
 Leased or non-leased line
 Guided or wireless medium :
• radio link (UHF, VHF,
microwave, satellite)
• cable link (telephone,
twisted pair, coaxial, power
line carrier)
• fiber optic
• etc
1-17
 Remote Terminal Unit (RTU)
 Placed at remote plant location
 Integrated with instrumentation and
control systems (PLC or DCS)
 Functions :
• Gathers information from the field
• Send the information to MTU
• Process the supervisory control
instruction from MTU

HANDAL CONSULTING 1-18

 Communications

Windows 3.1
Windows-95
Windows NT Business Management
Client Applications

Windows NT
Operator Console
RT/History Data
Server

Windows NT Windows NT Plant Highway

Operator Console RT/History Data
Server

Plant Highway

Process Management
Controller

Fieldbus

PD Meters Analytical
Common Head -Simple -Analog I/O Handheld
Fis her

Measurement
Coriolis Configuration and
-Pressure -Complex -Discrete I/O PDA
Valves -TC/RTD Maintenance
-Temp
Positioners
-Flow
-Level Field Management

HANDAL CONSULTING 1-19

 Actuator/Sensor Level Device Network
 Analog signals of the conventional
sensors and actuators are
Field Level
transmitted via two-wire cable  Intelligent field devices are
 One dedicated two-wire cable is configured in multidrop/bus
required for each sensor/actuator topology
 Analog-to-digital and digital-to-  Single or multi-master mode
analog converters are required to
is supported
enable interfacing
and communications  The numbers of field devices
with other in a field level network is
intelligent devices limited
(programmable
controllers,
 Interoperability issue
smart transmitter,
fieldbus devices)

HANDAL CONSULTING 1-20

 Plant Network
 RTU to Sub-MTU to MTU
connection
 Medium
• guided : cable, telephone,
ISDN, optical fiber, etc.
• wireless : broadcast radio,
microwave, satellite
 Protocol
• DH, DH+, DH-485,
ControlNet
• Modbus, ModbusPlus,
ModbusTCP
• Hostlink
• DNP

HANDAL CONSULTING 1-21

 Corporate/Enterprise Network
 Ethernet
 TCP/IP
 Corporate Applications
• Real time asset management
• Business support
• Marketing & sales
• Procurement
• Manufacturing
• Distribution
• Data warehouse

HANDAL CONSULTING 1-22

 Master Terminal Unit (MTU)
 Customized configuration for each applications
 Connected to Local Area Network (LAN)
 Equipped with auxiliary devices (data storage, console,
pointing devices, etc)
 Functions :
• Collect process information from RTUs and share the
information on the LAN
• Online operator interface (MMI)
• Send supervisory control instruction to RTUs
• Alarm management
• Report generation
• System security
• Central data processing

HANDAL CONSULTING 1-23

 Man Machine Interface (MMI)
 Provides human access to field automation system
• Operational
• Maintenance & troubleshooting
• Development
 Function :
• Communicates with field I/O from Programmable Logic
Controllers (PLCs), Remote Terminal Units (RTUs), and
other devices.
• Gives up-to-date plant information to the operator using
graphical user interface
• Translates operator instruction into the machine
• Engineering development station
• Operator station

HANDAL CONSULTING 1-24

 Man Machine Interface
 Plant information :  Presentation Method :
• Process Variables • Graphics Trending
• Device status • Charts
• Alarms • Reports
• Control Loops • Animation
• etc • etc
 Equipment :
• Keyboard
• Mouse or other pointing
devices
• Touchscreen or CRT
• etc.

HANDAL CONSULTING 1-25

 User Applications
 Development tools is provided by SCADA system supplier
(scripting tools)
 Examples :
• Meter gross/net computation
• Pipeline terminal display
• Pipeline inventory
• Transient modeling systems
• Dynamic leak detection
• Pipeline simulator
• Compressor optimization
• Automatic well testing
• Well revenue calculation
• etc.

HANDAL CONSULTING 1-26

 System Database
 Store historical process information
for engineering, production,
Business maintenance, and business
Applications
Statistical purposes
Process
Control  Features :
• Engineering units conversion
Process • Analog value filtering
Visualization
• Value limit checking
Realtime
 Standardized Data Structure
Database
• Analog point structure
• Status point structure
Engineering • Accumulator point structure
Workstation
• Container points
• User defined structure
 Each point in the database has a
Batch number of associated parameters,
Process
Asset
Management
Management all of which can be referenced
relative to a single tag name

HANDAL CONSULTING 1-27

 Industrial Automation Server

OPC

HANDAL CONSULTING 1-28

 OLE for Process Control (OPC)
 Object Linking and Embedding (OLE) for Process Control
 A standard for process automation (SCADA) communications
 A standard software mechanism for sharing data between
process automation (SCADA) of different manufacturers
 OPC is based on Microsoft OLE (Object Linking and
Embedding) and DCOM (Distributed Component Object Model)
 OPC advantage :
• Simple to implement
• Flexible to accommodate multiple vendor needs
• Provide a high level of functionality
• Allow for efficient operation

HANDAL CONSULTING 1-29

 Plant-Office Data Integration
 Networking has been successfully
implemented from field device
level up to management level.

Office
Business
 Data can easily be interchanged Applications
Statistical
Process
between applications in the same Control

computer or different computers Asset

Management
over a network.
Realtime Dynamic Data Exchange
 SCADA system can give an OLE for Process Control
Database
immediate response needed from
field device to management

Plant
system. Engineering
Workstation
 Real-time plant information can be
transferred to office application.
Batch
 Corporate information system Process
Visualization
Process
Management

must be designed to meet its

business process.

HANDAL CONSULTING 1-30

 Dynamic Data Exchange (DDE)
 An application protocol that allows data exchange on real-time
basis on Windows/WindowsNT platforms
 NetDDE = Dynamic Data Exchange over network

I/O Devices

Driver

Tag Database
DDE Link

Windows DDE Windows DDE Other

Application Application Applications
HANDAL CONSULTING 1-31
 Sample of System linked to Excel

DDE
Conversation Excel Based
Operating Panel

MMI Software

HANDAL CONSULTING 1-32

 Web-based Process Monitoring
 Internet browser as an acceptable MMI standard will minimizes
operator/user training by providing a familiar operating
environment
 Many visualization techniques are available (JavaScript, Java,
Shockwave/Flash, etc)
 Extra development effort is not needed since SCADA supplier
software usually provide integrated web-based and application
specific MMI development
 Allows the users (e.g. : supervisor/manager) to monitors
process operation, documents and reports either in the Intranet
or Internet
 Secured network design is a must to avoid cyber risk such as
hacking attempts and virus

HANDAL CONSULTING 1-33

 Web Based Monitoring Example

HANDAL CONSULTING 1-34

 Summary
 SCADA is a two-way system : remote monitoring &
controlling
 Applicable to widely distributed processes
 Two way communication system is required
 Basic Elements of SCADA :
• Master Terminal Unit (MTU)
• Remote Terminal Unit (RTU)
• Communications Equipment

HANDAL CONSULTING 1-35
