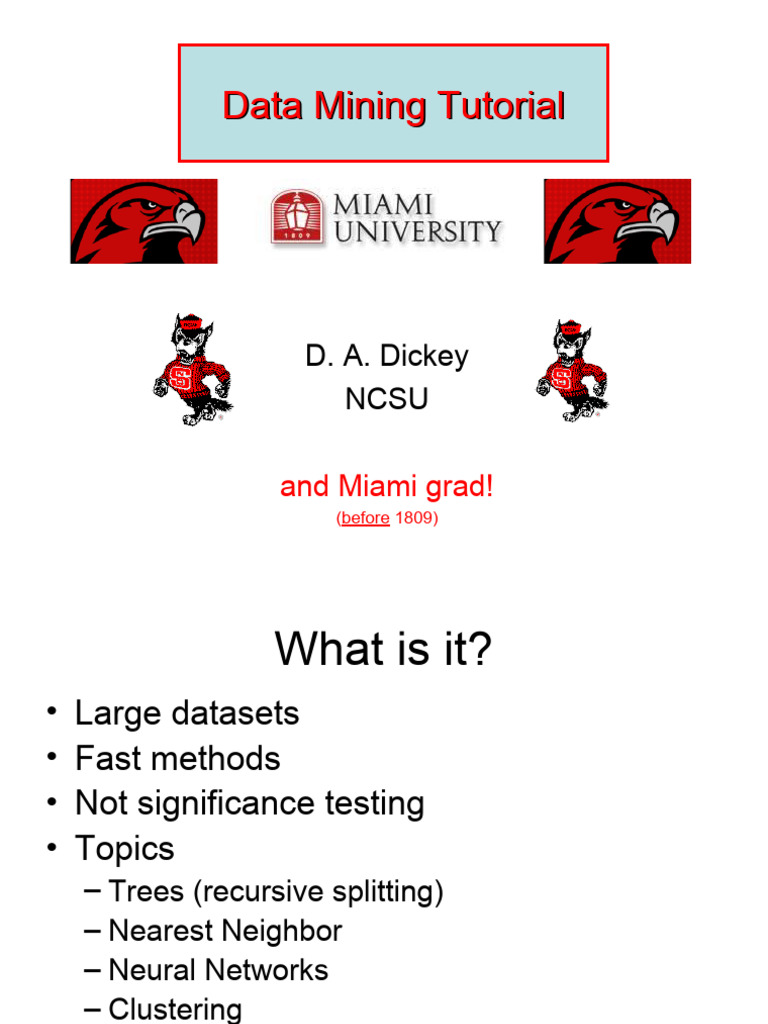

Data Mining Tutorial

D. A. Dickey
NCSU

and Miami grad!

(before 1809)
 What is it?
• Large datasets
• Fast methods
• Not significance testing
• Topics
– Trees (recursive splitting)
– Nearest Neighbor
– Neural Networks
– Clustering
– Association Analysis
 Trees
• A “divisive” method (splits)
• Start with “root node” – all in one group
• Get splitting rules
• Response often binary
• Result is a “tree”
• Example: Loan Defaults
• Example: Framingham Heart Study
 Recursive Splitting

Pr{default} =0.007 Pr{default} =0.012

Pr{default} =0.006

X1=Debt
To
Income Pr{default} =0.0001
Ratio
Pr{default} =0.003

No default X2 = Age
Default
 Some Actual Data
• Framingham Heart
Study Import

• First Stage Coronary

Heart Disease
– P{CHD} = Function of:
• Age - no drug yet! 
• Cholesterol
• Systolic BP
 Example of a “tree”
All 1615 patients

Split # 1: Age

Systolic BP
“terminal node”
 How to make splits?
• Which variable to use?
• Where to split?
– Cholesterol > ____
– Systolic BP > _____
• Goal: Pure “leaves” or “terminal nodes”
• Ideal split: Everyone with BP>x has
problems, nobody with BP<x has
problems
 Where to Split?
• First review Chi-square tests
• Contingency tables

Heart Disease Heart Disease

No Yes No Yes

Low 95 5 100 75 25
BP

55 45 100 75 25
High
BP

DEPENDENT INDEPENDENT
  2
Test Statistic
• Expect 100(150/200)=75 in upper left if
independent (etc. e.g. 100(50/200)=25)
( observed  exp ected ) 2
 2  allcells
Heart Disease
No Yes
exp ected

Low 95 5 100 2(400/75)+

BP
(75) (25) 2(400/25) =
High 55 45 100 42.67
BP
(75) (25)
Compare to
150 50 200 Tables –
WHERE IS HIGH BP CUTOFF??? Significant!
 Measuring “Worth” of a Split
• P-value is probability of Chi-square as
great as that observed if independence is
true. (Pr {2>42.67} is 6.4E-11)
• P-values all too small.
• Logworth = -log10(p-value) = 10.19
• Best Chi-square  max logworth.
Logworth for Age Splits

Age 47 maximizes logworth

 How to make splits?
• Which variable to use?
• Where to split?
– Cholesterol > ____
– Systolic BP > _____
• Idea – Pick BP cutoff to minimize p-value
for 2
• What does “signifiance” mean now?
 Multiple testing
• 50 different BPs in data, 49 ways to split
• Sunday football highlights always look
good!
• If he shoots enough baskets, even 95%
free throw shooter will miss.
• Jury trial analogy
• Tried 49 splits, each has 5% chance of
declaring significance even if there’s no
relationship.
 Multiple testing
=
Pr{ falsely reject hypothesis 2}

=
Pr{ falsely reject hypothesis 1}

Pr{ falsely reject one or the other} < 2

Desired: 0.05 probabilty or less
Solution: use = 0.05/2
Or – compare 2(p-value) to 0.05
 Multiple testing
• 50 different BPs in data, m=49 ways to split
• Multiply p-value by 49
• Bonferroni – original idea
• Kass – apply to data mining (trees)
• Stop splitting if minimum p-value is large.
• For m splits, logworth becomes
-log10(m*p-value)
 Other Split Evaluations
• Gini Diversity Index
– { A A A A B A B B C B}
– Pick 2, Pr{different} = 1-Pr{AA}-Pr{BB}-Pr{CC}
• 1-[10+6+0]/45=29/45=0.64
– {AABCBAABCC}
• 1-[6+3+3]/45 = 33/45 = 0.73  MORE DIVERSE, LESS
PURE
• Shannon Entropy
– Larger  more diverse (less pure)
– -i pi log2(pi)
{0.5, 0.4, 0.1}  1.36
{0.4, 0.2, 0.3}  1.51 (more diverse)
 Goals
• Split if diversity in parent “node” >
summed diversities in child nodes
• Observations should be
– Homogeneous (not diverse) within leaves
– Different between leaves
– Leaves should be diverse
• Framingham tree used Gini for splits
 Cross validation
• Traditional stats – small dataset, need all
observations to estimate parameters of
interest.
• Data mining – loads of data, can afford
“holdout sample”
• Variation: n-fold cross validation
– Randomly divide data into n sets
– Estimate on n-1, validate on 1
– Repeat n times, using each set as holdout.
 Pruning
• Grow bushy tree on the “fit data”
• Classify holdout data
• Likely farthest out branches do not
improve, possibly hurt fit on holdout data
• Prune non-helpful branches.
• What is “helpful”? What is good
discriminator criterion?
 Goals
• Want diversity in parent “node” > summed
diversities in child nodes
• Goal is to reduce diversity within leaves
• Goal is to maximize differences between
leaves
• Use same evaluation criteria as for splits
• Costs (profits) may enter the picture for
splitting or evaluation.
 Accounting for Costs
• Pardon me (sir, ma’am) can you spare
some change?
• Say “sir” to male +$2.00
• Say “ma’am” to female +$5.00
• Say “sir” to female -$1.00 (balm for
slapped face)
• Say “ma’am” to male -$10.00 (nose splint)
 Including Probabilities
Leaf has Pr(M)=.7, Pr(F)=.3. You say:
M F
True
Gender
0.7 (2) 0.7 (-10)
M

0.3 (-1) 0.3 (5)

F

Expected profit is 2(0.7)-1(0.3) = $1.10 if I say “sir”

Expected profit is -7+1.5 = -$5.50 (a loss) if I say “Ma’am”
Weight leaf profits by leaf size (# obsns.) and sum
Prune (and split) to maximize profits.
 Additional Ideas
• Forests – Draw samples with replacement
(bootstrap) and grow multiple trees.
• Random Forests – Randomly sample the
“features” (predictors) and build multiple
trees.
• Classify new point in each tree then
average the probabilities, or take a
plurality vote from the trees
• “Bagging” – Bootstrap aggregation
• “Boosting” – Similar, iteratively reweights points
that were misclassified to produce sequence of
more accurate trees.

* Lift Chart
- Go from leaf of most
to least response.
- Lift is cumulative
proportion responding.
 Regression Trees
• Continuous response (not just class)
• Predicted response constant in regions

Predict 80

Predict 50

X2
Predict
130 Predict
20

Predict 100

X1
• Predict Pi in cell i.
• Yij jth response in cell i.
• Split to minimize i j (Yij-Pi)2

Predict 80

Predict 50

Predict
130 Predict
20

Predict 100
• Predict Pi in cell i.
• Yij jth response in cell i.
• Split to minimize i j (Yij-Pi)2
 Logistic Regression
• “Trees” seem to be main tool.
• Logistic – another classifier
• Older – “tried & true” method
• Predict probability of response from input
variables (“Features”)
• Linear regression gives infinite range of
predictions
• 0 < probability < 1 so not linear regression.
• Logistic idea: Map p in (0,1) to L in whole
real line
• Use L = ln(p/(1-p))
• Model L as linear in temperature
• Predicted L = a + b(temperature)
• Given temperature X, compute a+bX then p
= eL/(1+eL)
• p(i) = ea+bXi/(1+ea+bXi)
• Write p(i) if response, 1-p(i) if not
• Multiply all n of these together, find a,b to
maximize
 Example: Ignition
• Flame exposure time = X
• Ignited Y=1, did not ignite Y=0
– Y=0, X= 3, 5, 9 10 , 13, 16
– Y=1, X = 11, 12 14, 15, 17, 25, 30
• Q=(1-p)(1-p)(1-p)(1-p)pp(1-p)pp(1-p)ppp
• P’s all different p=f(exposure)
• Find a,b to maximize Q(a,b)
 Generate Q for array of (a,b) values

DATA LIKELIHOOD;
ARRAY Y(14) Y1-Y14; ARRAY X(14) X1-X14;
DO I=1 TO 14; INPUT X(I) y(I) @@; END;
DO A = -3 TO -2 BY .025;
DO B = 0.2 TO 0.3 BY .0025;
Q=1;
DO i=1 TO 14;
L=A+B*X(i); P=EXP(L)/(1+EXP(L));
IF Y(i)=1 THEN Q=Q*P; ELSE Q=Q*(1-P);
END; IF Q<0.0006 THEN Q=0.0006; OUTPUT; END;END;
CARDS;
3 0 5 0 7 1 9 0 10 0 11 1 12 1 13 0 14 1 15 1 16 0 17 1
25 1 30 1
;
 Likelihood function (Q)

-2.6

0.23
 IGNITION DATA
The LOGISTIC Procedure
Analysis of Maximum Likelihood Estimates

Standard Wald
Parameter DF Estimate Error Chi-Square Pr > ChiSq
Intercept 1 -2.5879 1.8469 1.9633 0.1612
TIME 1 0.2346 0.1502 2.4388 0.1184

Association of Predicted Probabilities and Observed Responses

Percent Concordant 79.2 Somers' D 0.583

Percent Discordant 20.8 Gamma 0.583
Percent Tied 0.0 Tau-a 0.308
Pairs 48 c 0.792
 4 right,
1 wrong
5 right,
4 wrong
 Example: Framingham
• X=age
• Y=1 if heart trouble, 0 otherwise
 Framingham
The LOGISTIC Procedure

Analysis of Maximum Likelihood Estimates

Standard Wald
Parameter DF Estimate Error Chi-Square Pr>ChiSq

Intercept 1 -5.4639 0.5563 96.4711 <.0001

age 1 0.0630 0.0110 32.6152 <.0001
 Example:
Shuttle Missions

• O-rings failed in Challenger disaster

• Low temperature
• Prior flights “erosion” and “blowby” in O-rings
• Feature: Temperature at liftoff
• Target: problem (1) - erosion or blowby vs. no
problem (0)
 Neural Networks
• Very flexible functions
• “Hidden Layers”
• “Multilayer Perceptron”

output
inputs

Logistic function of
Logistic functions
Of data
 Arrows represent linear
combinations of “basis
functions,” e.g. logistics
b1

Example:

Y = a + b1 p1 + b2 p2 + b3 p3

Y = 4 + p1+ 2 p2 - 4 p3
• Should always use holdout sample
• Perturb coefficients to optimize fit (fit data)
– Nonlinear search algorithms
• Eliminate unnecessary arrows using
holdout data.
• Other basis sets
– Radial Basis Functions
– Just normal densities (bell shaped) with
adjustable means and variances.
 Terms
• Train: estimate coefficients
• Bias: intercept a in Neural Nets
• Weights: coefficients b
• Radial Basis Function: Normal density
• Score: Predict (usually Y from new Xs)
• Activation Function: transformation to target
• Supervised Learning: Training data has
response.
 Hidden Layer
L1 = -1.87 - .27*Age – 0.20*SBP22
H11=exp(L1)/(1+exp(L1))

L2 = -20.76 -21.38*H11
Pr{first_chd} = exp(L2)/(1+exp(L2))
“Activation Function”
 Demo (optional)
• Compare several methods using SAS
Enterprise Miner
– Decision Tree
– Nearest Neighbor
– Neural Network
 Unsupervised Learning
• We have the “features” (predictors)
• We do NOT have the response even on a
training data set (UNsupervised)
• Clustering
– Agglomerative
• Start with each point separated
– Divisive
• Start with all points in one cluster then spilt
 EM  PROC FASTCLUS
• Step 1 – find “seeds” as separated as
possible
• Step 2 – cluster points to nearest seed
– Drift: As points are added, change seed
(centroid) to average of each coordinate
– Alternatively: Make full pass then recompute
seed and iterate.
Clusters as Created
As Clustered
 Cubic Clustering Criterion
(to decide # of Clusters)
• Divide random scatter of (X,Y) points into
4 quadrants
• Pooled within cluster variation much less
than overall variation
• Large variance reduction
• Big R-square despite no real clusters
• CCC compares random scatter R-square
to what you got to decide #clusters
• 3 clusters for “macaroni” data.
 Association Analysis
• Market basket analysis
– What they’re doing when they scan your “VIP”
card at the grocery
– People who buy diapers tend to also buy
_________ (beer?)
– Just a matter of accounting but with new
terminology (of course  )
– Examples from SAS Appl. DM Techniques, by
Sue Walsh:
 Termnilogy
• Baskets: ABC ACD BCD ADE BCE
• Rule Support Confidence
• X=>Y Pr{X and Y} Pr{Y|X}
• A=>D 2/5 2/3
• C=>A 2/5 2/4
• B&C=>D 1/5 1/3
 Don’t be Fooled!
• Lift = Confidence /Expected Confidence if Independent

Checking-> No Yes
Saving V (1500) (8500) (10000)
No 500 3500 4000

Yes 1000 5000 6000

SVG=>CHKG Expect 8500/10000 = 85% if independent

Observed Confidence is 5000/6000 = 83%
Lift = 83/85 < 1.
Savings account holders actually LESS likely than others to
have checking account !!!
 Summary
• Data mining – a set of fast stat methods for
large data sets
• Some new ideas, many old or extensions of old
• Some methods:
– Decision Trees
– Nearest Neighbor
– Neural Nets
– Clustering
– Association
