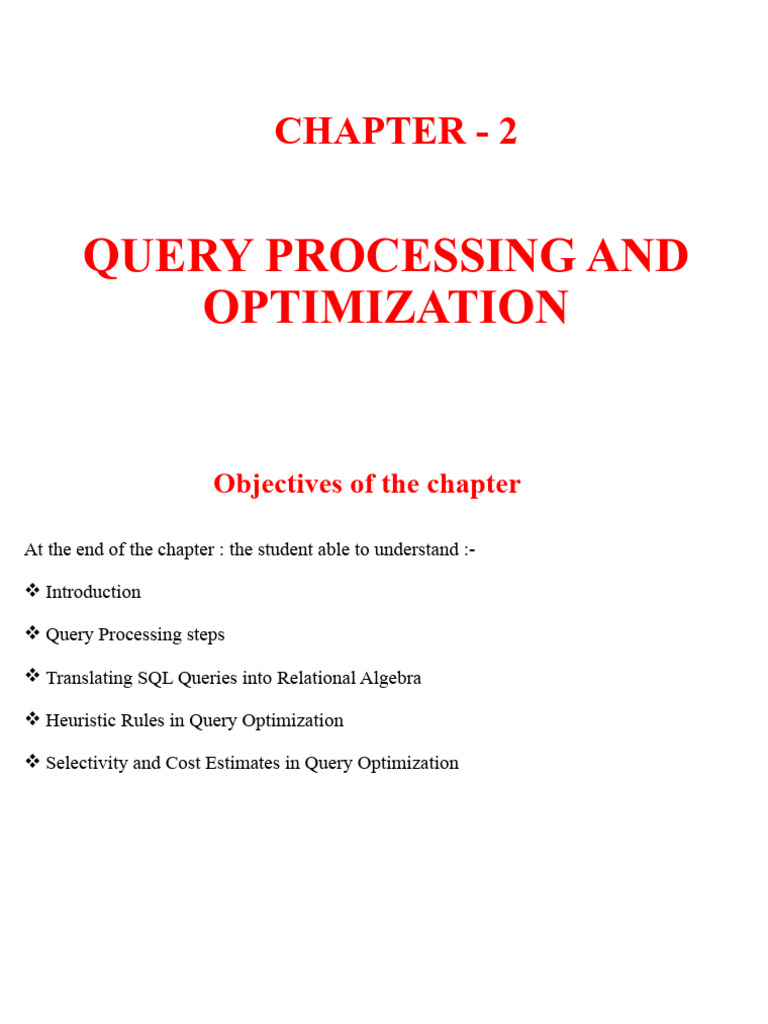

CHAPTER - 2

QUERY PROCESSING AND

OPTIMIZATION
 Objectives of the chapter

At the end of the chapter : the student able to understand :-

 Introduction

 Query Processing steps

 Translating SQL Queries into Relational Algebra

 Heuristic Rules in Query Optimization

 Selectivity and Cost Estimates in Query Optimization

Introduction of Query Processing
 Overview of Query Processing
 A query can either be a request for data results from your database or for
action on the data, or for both.

 A query can give you an answer to a simple question, combine data from
different tables, add, change, or delete data from a database.

 A database query is the vehicle for instructing a DBMS to update or

retrieve specific data to/from the physically stored medium.

 Query processing refers to the range of activities involved in

extracting data from a database.
 Cont’d
 The query processing activities includes transform a query written in a high-
level language, typically SQL into expressions that can be used at the physical
level of the file system, a variety of query-optimizing transformations, into
correct and efficient execution strategy expressed in a low-level language
(implementing the relational algebra), and to execute the strategy to retrieve the
required data.

 Examples of such operations for a relational DBMS can be relational algebra

operations such as project, join, select, Cartesian product, etc.

 Query Processing takes various steps for fetching the data from the database.
Query Processing Steps
 Query Processing Steps

 There are three phases that a query passes through during the DBMS’
processing of that query:

 Decomposition (Parsing and translation)

 Optimization

 Evaluation
 1. Query Decomposition
 Query decomposition is the first phase of query processing.

 The aims of query decomposition are to transform a high-level query into a

relational algebra query and to check whether the query is syntactically and
semantically correct.

 A query expressed in a high-level query language such as SQL must first be

scanned, parsed, and validated.
 Cont’d
 Scanner - Identifies the language tokens—such as SQL keywords, attribute
names, and relation names—that appear in the text of the query.

 Parser - Checks the query syntax to determine whether it is formulated

according to the syntax rules (rules of grammar) of the query language.

 Validator - Validate by checking that all attribute and relation names are valid
and semantically meaningful names in the schema of the particular database
being queried.
 Cont’d
 Parser extract the tokens from the raw string of characters and translate
them into the corresponding internal data elements (i.e. Relational
algebra operations and operands) and structures.

 An internal representation (Translator) of the query is then created, usually

as a tree data structure called a query tree or a graph data structure called a
query graph.
 2. Query Optimization Process
 Optimization Definition from Dictionary:- is finding an alternative with the most cost
effective or highest achievable performance under the given constraints.

 In second stage, the query processor applies rules to the internal data structures of the query
to transform these structures into equivalent, but more efficient representations.

 Selecting the proper rules to apply, when to apply them and how they are applied is the
function of the query optimization engine.

 A query typically has many possible execution strategies, and the process of choosing a

suitable one for processing a query is known as query optimization.

 3. Query Evaluation
 The final step in processing a query is the evaluation phase.

 The best evaluation plan candidates generated by the optimization engine is selected
and then executed.

 Code generator generates the code to execute that plan either in compiled or
interpreted mode.

 The runtime database processor has the task of running (executing) the query code,
whether in compiled or interpreted mode, to produce the query result.
Figure 1:- for Steps in Query Processing
Figure 2:- for Steps in Query Processing
Translating SQL Queries into Relational Algebra

(RA)
 Translating SQL Queries into Relational
Algebra
 An SQL query is first translated into an equivalent extended relational algebra
expression—represented as a query tree data structure—that is then optimized.

 SQL queries are decomposed into query blocks, (Query block - basic units that can
be translated into the algebraic operators and optimized.

 Operations for a relational DBMS can be relational algebra operations such as

project, join, select, Cartesian product, etc.

 Nested(inner) queries within a query are identified as separate query block

 Generating Execution Plan –Example 1

 SQL QUERY:- 1, SELECT title, price FROM book WHERE price >50

 This can be translated into either of the following RELATIONAL ALGEBRA

expressions:

1. σprice>50(Πtitle,price(book))

2. Πtitle,price (σprice>50 (book))

 Generating Execution Plan –Example 1

 This can also be represented as either of the following query trees:

 Generating Execution Plan –Example 2

 SQL QUERY:- 2, SELECT Fname, Lname FROM Employee WHERE age>25 AND
sex=female

 This can be translated into either of the following RELATIONAL ALGEBRA

expressions:

1. σage>25 AND σsex=female(ΠFname,Lname

( Employee))

2. ΠFname,Lname (σage>25 AND σsex=female (Employee))

 Generating Execution Plan –Example 2

 This can also be represented as either of the following query trees:

σage>25 AND σsex=female ΠFname,Lname

ΠFname,Lname σage>25 AND σsex=female

Employee Employee
 Generating Execution Plan –Example 3

 SQL QUERY:- 3, SELECT balance FROM account WHERE balance < 2500

 This can be translated into either of the following RELATIONAL ALGEBRA

expressions:

1. σbalance< 2500(Πbalance(account))

2. Πbalance(σbalance<2500(account))
 Generating Execution Plan –Example 3
 This can also be represented as either of the following query trees:
 Generating Execution Plan –Example 4

SQL QUERY:- 4, SELECT Lname, Fname

FROM EMPLOYEE
WHERE Salary> (SELECT MAX(Salary)
FROM EMPLOYEE
WHERE Dno=5 );

This query retrieves the names of employees (from any department in the
company) who earn a salary that is greater than the highest salary in department 5.

The query includes a nested subquery and hence would be decomposed into
two blocks.
 Generating Execution Plan –Example 4

 The inner block is:

(SELECT MAX(Salary) FROM EMPLOYEE WHERE Dno=5 )

 This retrieves the highest salary in department 5.

 The outer query block is:

SELECT Lname, Fname FROM EMPLOYEE WHERE Salary >c

 where c represents the result returned from the inner block.

 Generating Execution Plan –Example 4

The inner block could be translated into the following extended relational algebra
expression:

ΠMAX Salary(σDno=5(EMPLOYEE))

And the outer block into the expression:

ΠLname,Fname(σSalary>C(EMPLOYEE))

 The query optimizer would then choose an execution plan for each query block.

 Notice that in the above example, the inner block needs to be evaluated only once to
produce the maximum salary of employees in department 5, which is then used as the
Heuristics Approach to Query

Optimization
 Heuristics Approach to Query Optimization
 Heuristic rules are used to modify the internal representation of a query which is
usually in the form of a query tree or a query graph data structure to improve its
expected performance.

 The rules typically reorder the operation in query tree.

 The scanner and parser of an SQL query first generate a data structure that
corresponds to an initial query representation, which is then optimized according to
heuristic rules.

 This leads to an optimized query representation, which corresponds to the query

 Cont’d
 One of the main heuristic rules is to apply SELECT and PROJECT operations
before applying the JOIN or other binary operations.

 Because the size of the file resulting from a binary operation such as JOIN is
usually a multiplicative function of the sizes of the input files.

 The SELECT and PROJECT operations reduce the size of a file and hence should
be applied before a join or other binary operation.

 Heuristic is rule that works well in most cases but is not guaranteed to work well in
every possible cases.
 Notation for Query Trees

 Query tree - Tree data structure that corresponds to a relational algebra expression.

 Input relations of the query as leaf nodes of the tree

 Relational algebra operations as internal nodes.

 An execution of the query tree consists of executing an internal node operation

whenever its operands are available and then replacing that internal node by the
relation that results from executing the operation.
 The order of execution of operations starts at the leaf nodes, and ends at the root
node.
 The execution terminates when the root node operation is executed and produces
the result relation for the query.
 Steps in Converting A Query Tree During Heuristic Optimization

1. Initial (canonical) query tree for SQL query Q.

2. Moving SELECT operations down the query tree.

3. Applying the more restrictive SELECT operation first.

4. Replacing CARTESIAN PRODUCT and SELECT with JOIN operations.

5. Moving PROJECT operations down the query tree execute.

 Exercise
CONSIDER THE FOLLOWING TABLE
Employee (Fname,Mname,Lname,SSN,Bdate,Address,Salary,Gender,Dno)
Project (Pname,Pnumber,Plocation,Dnum)
Woks_on (ESSN,Pno,Hours)
 QUERY
SELECT Lname
FROM Employee ,Works_on, Project
WHERE PName=‘Aquaris’ AND PNumber=Pno AND
ESSN=SSN AND BDATE>’1977-12-21’ ;
Consider the following relations for the examples provided here after
 Exercise 1:

 List name of students, course taken by them and name of the

department giving the course for all whose cgpa>3.

 QUERY
SELECT Name, Cname, Dname
FROM Student ,Course, Department
WHERE Cid=Cno AND Did=Dno AND Cgpa>3 ;
 Exercise 1:
 Relational Algebraic Expression
 Exercise 1:

 Step 1 :Draw the Initial (canonical) form

Name,Cname,Dname

 Cid=Cno and Did=Dno and Cgpa>3

× Department

Student Course
 Exercise 1:
 Step 2: Moving SELECT operations down the query tree
 Exercise 1: and SELECT with JOIN operations
 Step 4: Replacing CARTESIAN PRODUCT

 NOTE:- We already jump step 3 due to the

reason we do not have more select
 Exercise 1:
 Step 5: Moving PROJECT operations down the query tree execute
Using Selectivity and Cost Estimates in

Query Optimization
 Using Selectivity and Cost Estimates in Query
Optimization
 Heuristic is rule that works well in most cases but is not guaranteed to work well in
every possible cases.

 A query optimizer does not depend solely on heuristic rules; it also estimates and
compares the costs of executing a query using different execution strategies and
algorithms, and it then chooses the strategy with the lowest cost estimate.

 In addition, the optimizer must limit the number of execution strategies to be

considered; otherwise, too much time will be spent making cost estimates for the
many possible execution strategies.
 Cost Components for Query Execution
 The cost of executing a query includes the following components:

1. Access cost to secondary storage: This is the cost of transferring (reading and
writing) data blocks between secondary disk storage and main memory buffers.
This is also known as disk I/O (input/output) cost.

2. Disk storage cost: This is the cost of storing on disk any intermediate files that are
generated by an execution strategy for the query.
 Cont’d
3. Computation cost: This is the cost of performing in-memory operations on the records within
the data buffers during query execution.

 Such operations include searching for and sorting records, merging records for a join
or a sort operation, and performing computations on field values.

 This is also known as CPU (central processing unit) cost.

4. Memory usage cost: This is the cost relating to the number of main memory buffers needed
during query execution.

5. Communication cost: This is the cost that is associated with sending or communicating the
query and its results from one place to another. It also includes the cost of transferring the table
and results to the various sites during the process of query evaluation.
 Individual Assignment
 Deadline 14/04/2015 E.C

 Algorithms for Executing query

 External sorting

 Sort strategy

 Merge strategy

 Algorithm for select operation

 Methods and Implementation of join operation

Th
an
ky
ou
!!
