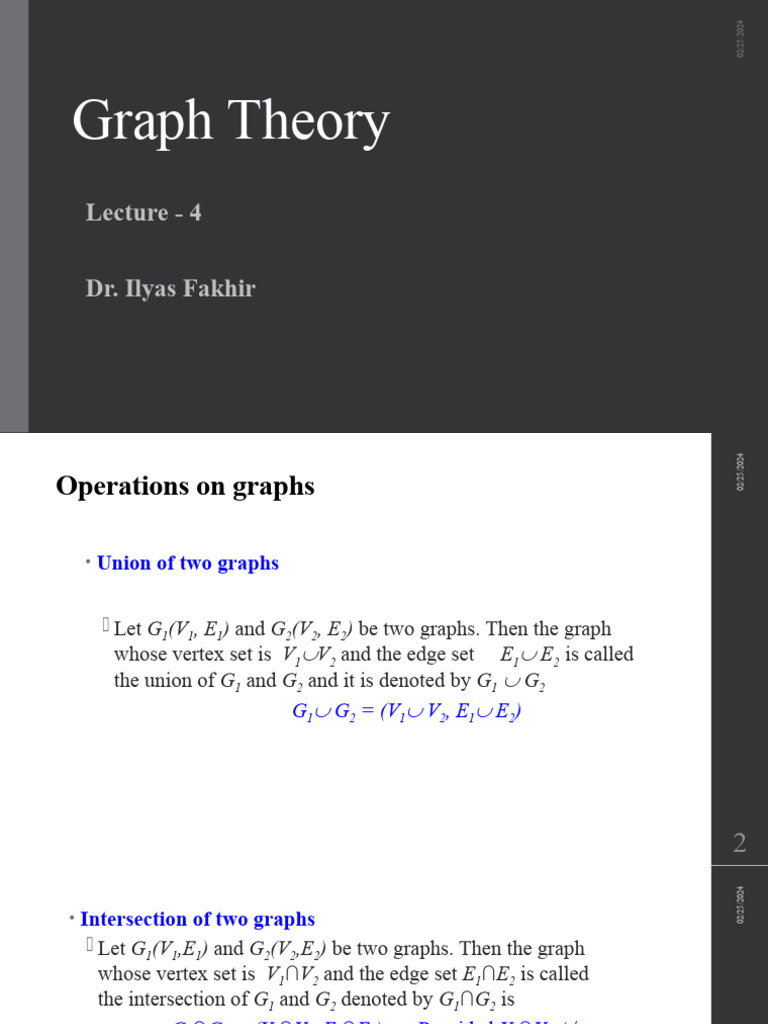

Graph Theory
Lecture - 4
Let G1(V1, E1) and G2(V2, E2) be two graphs. Then the graph
whose vertex set is V1V2 and the edge set E1 E2 is called
the union of G1 and G2 and it is denoted by G1 G2
G1 G2 = (V1 V2, E1 E2)
2
02/25/2024
• Intersection of two graphs
Let G1(V1,E1) and G2(V2,E2) be two graphs. Then the graph
whose vertex set is V1∩V2 and the edge set E1∩E2 is called
the intersection of G1 and G2 denoted by G1∩G2 is
G1∩G2 = (V1∩V2, E1∩E2), Provided V1∩V2 ≠ϕ
• Ring sum
Consider a graph whose vertex set is V1UV2 and the edge set
E1 E2, where is the symmetric difference of E1 and E2 then
G1 G2=(V1UV2, E1 E2) is called the ring sum of G1 and G2 .
Note: Symmetric difference means
E1E2 = (E1 – E2)U(E2 – E1)=(E1UE2) –(E1∩E2)
3
• The following consequences of the above definition of union, intersection
02/25/2024
and ring sum
G1U G2 = G2U G1
G1 G2 = G2 G1
If G1 and G2 have no edge in common (edge-disjoint), then G1∩ G2 is a
null graph and G1 G2 = G1U G2
If G1 and G2 have no vertex in common (vertex-disjoint), then G1∩ G2
does not exist
Sometimes, we also write G1 + G2 for G1U G2 .
Note that G1,G2 ⊆ G1U G2 and G1∩ G2 ⊆ G1,G2.
G – U := G[V \U, E], G – F := (V, E \F ), G + F := (V, E U F ).
If U = {u} or F = {e} then we simply write G – u, G – e and G + e for G
– U, G – F and G + F , respectively.
The complement of G, denoted by G or GC, is defined as the graph (V;
V1V2\ E). In particular, G + G is a complete graph, and G = (G + G) – E. 4
02/25/2024
V2 V2
V1 V1 V6
V3
V3
V5 V4
V4 G2
G1
V1 V2 V6
V2
V1 V6 V1 V2
V5 V4 V3
V5
V4 V3 V4 V3 G1G2
G1UG2 G1∩G2
5
02/25/2024
Complement of Graph
Operations on Graphs
02/25/2024
• The cartesian product G x H of graphs G and H is defined as follows:
label the vertices of H in some way;
in a copy of G, replace each vertex of G by a copy of H;
add an edge joining vertices in two adjacent copies of H if and only if they
have the same label.
In other words, if G has vertex set V(G) = {a1, a2, ... , ag } and H has vertex
set V(H) = {b1,b2 , … ,bh } , then G x H has vertex set V(G) x V(H), and the
edges set of G x H is defined as follows: (ai , bj ) is adjacent to (ak , bl) if
ai = ak and bj ∼ bl or (∼ represents adjacent)
bj = bl and ai ∼ ak
It is clear that G x H and H x G are isomorphic. Similarly (G x H) x J and
G x (H x J) are isomorphic.
7
Cartesian Product: Example
02/25/2024
Let’s create P3 × P2 as an example:
8
Cartesian Product: Example
02/25/2024
(a1 , b3)
(a1 , b2)
(a1 , b1) (a1 , b4)
(a2 , b3)
(a2 , b2)
(a2 , b1) (a2 , b4)
9
Operations on Graph
02/25/2024
• Decomposition
A graph G is said to be decomposed (or partitioned) into two
subgraphs H1 and H2 if H1H2 = G and H1∩H2= a null graph.
Where the null graph is one without any edges. In other words,
every edge of G occurs either in H1 or in H2, but not in both.
Some of the vertices, however, may occur in both H1 and H2 .
• Deletion
If v is a vertex in a graph G, then G-v denotes the subgraphs of G
obtained by deleting v and all edges incident on v from G, then G-v is
called vertex deleted subgraph of G.
10
02/25/2024
B B
B
e
C
A C A C
A
v D
v D
D
G G-e
G-v
11
02/25/2024
• Fusion
A pair of vertices Vi and Vj in a graph are said to be fused (or
merged) if these two vertices are replaced by a single new vertex v
in such a way that every edge that was incident on Vi or Vj (or both)
is incident on v.
D
A A
C
C v
B B
E
12
02/25/2024
Distance in Connected Graph
13
02/25/2024
Example
• If
G is a connected graph, the distance function D(x, y) has
the following properties for all vertices x, y and z:
(i) D(x, y) = 0 if and only if x = y;
(ii) D(x, y) = D(y, x);
(iii) D(x, y) + D(y, z) ≥ D(x, z).
14
Radius, Diameter and Eccentricity
02/25/2024
• Suppose G is a connected graph and x is a vertex of G. The eccentricity
ε(x) of x is the largest value of D(x,y), where y ranges through all the
vertices. i.e. ε(x) = max{D(x,y): y in V(G)}.
• The distance from a particular vertex to all other vertices in the graph is
taken and among those distances, the eccentricity is the highest of
distances.
• The diameter Dim = Dim(G) is the maximum value of ε(x) for all vertices
x of G. Thus, Dim(G) = max{ε(x): x in V(G)}.
• The radius R = R(G) is the smallest value of ε(x).
Therefore, R(G) = min{ε(x): x in V(G)}.
• The minimum among all the maximum distances between a vertex to all
other vertices is considered as the radius of the Graph G.
15
Example
02/25/2024
• Find ε(x) for every vertex x of the graph G of Figure given below.
What are the diameter and radius of this graph?
The vertices most distant from a are c and e, so ε(a) = D(a, c) = D(a,
e) = 3. Similarly ε(b) = D(b, c) = D(b, e) = 2, ε(c) = D(c, a) = D(c,
d) = 3, ε(d) = D(d, c) = 3, ε(e) = D(e, a) = 3, ε(f) = D(f, a) = D(f,
d) = 2. So Dim(G) = 3 and R(G) = 2.
16
Example
02/25/2024
• Find ε(x) for every vertex x of the graph G of Figure given below.
What are the diameter and radius of this graph?
The vertices most distant from a are c and e, so ε(a) = D(a, b) =
D(a, c) = D(a, c) = 1. Similarly ε(a) = D(a, e) = D(a, f) = 2, ε(a) =
D(a, g) = 3. Similarly, ε(b) = ε(c) = ε(e) = ε(f) = ε(g) = 3 & ε(d) =
2.
Dim(G) = 3.
R(G) = 2.
17
02/25/2024
Example
18
Cutpoints and Bridges
02/25/2024
• Among connected graphs, some are connected so slightly that removal
of a single vertex or edge will disconnect them. Such vertices and
edges are quite important.
• A vertex x is called a cutpoint in G if G – x contains more components
than G does; in particular if G is connected, then a cutpoint is a vertex
x such that G – x is disconnected.
• Similarly, a bridge (or cutedge) is an edge whose deletion increases
the number of components.
19
02/25/2024
Example
