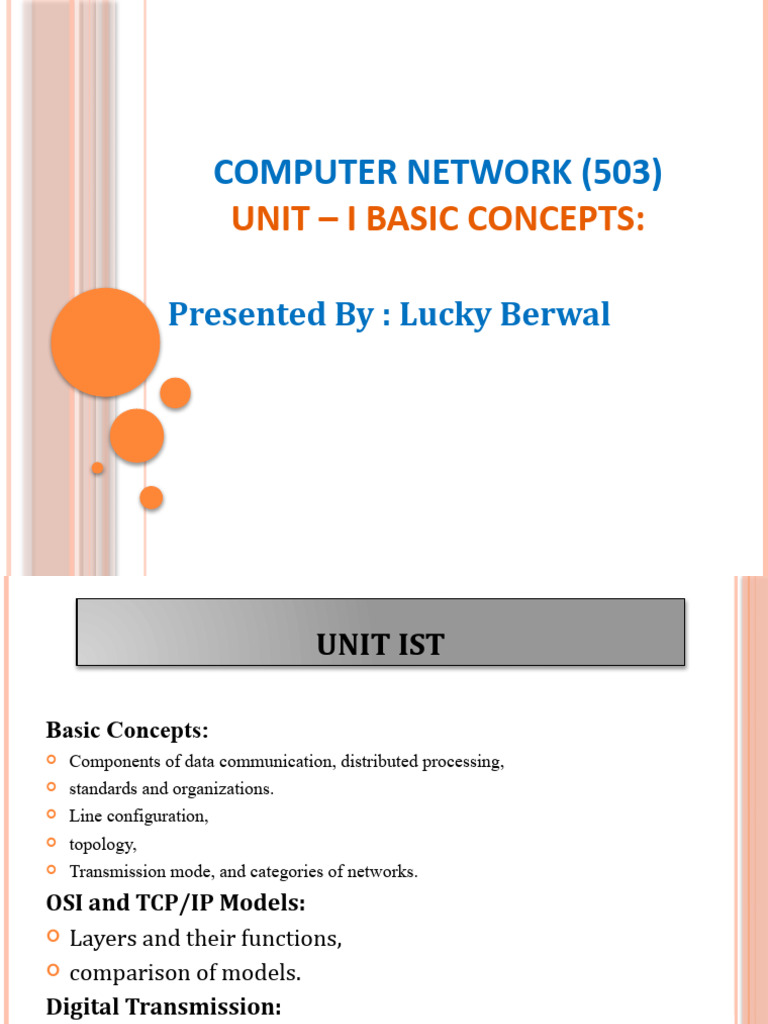

COMPUTER NETWORK (503)

UNIT – I BASIC CONCEPTS:

Presented By : Lucky Berwal

 UNIT IST

Basic Concepts:
 Components of data communication, distributed processing,
 standards and organizations.
 Line configuration,
 topology,
 Transmission mode, and categories of networks.
OSI and TCP/IP Models:
 Layers and their functions,

 comparison of models.

Digital Transmission:
 Interfaces and Modems:

 DTE-DCE Interface,

 Modems, Cable modems.

 INTRODUCTION TO COMPUTER NETWORK

A Network is a set of devices(nodes) connected by

media, A node can be a computer, printer or any other
devices capable of sending and/or receiving data
generated by other nodes on the network.

Definition of computer network:-

A COMPUTER NETWORK is a group of computer
systems and other computing hardware devices that
are linked together through communication channels
to facilitate communication and resources sharing
among a wide range of users. Networks are
commonly categorized based on their characteristics.
LAYERED ARCHITECTURE:-
Computer Network are generally organized as a series
of layers or levels, each one built upon the one below,
Every layer needs a mechanism for identify sender and
receiver.
Node: It can be any network device(router, printer,
camera).
Host: It represents computer stations(interface).
Hub: Network device used to increase the reach ability.
DEFINITION
 Computer Network, two or more computers that are
connected with one another for the purpose of
communicating data electronically. Besides physically
connecting computer and communication devices, a
network system serves the important function of
establishing a cohesive architecture that allows a
variety of equipment types to transfer information in
a near-seamless fashion.
DATA COMMUNICATION

 Data Communication is defined as exchange of data

between two devices via some form of transmission
media such as a cable, wire or it can be air or vacuum
also. For occurrence of data communication,
communicating devices must be a part of communication
system made up of a combination of hardware or
software devices and programs.
CRITERIA FOR A DATA COMMUNICATION
NETWORK
 Performance: Performance is the defined as the rate of
transferring error free data. It is measured by the Response
Time. Response Time is the elasped time between the end
of an inquiry and the beginning of a response.
 Consistency: Consistency is the predictability of response
time and accuracy of data.
 Reliability: Reliability is the measure of how often a
network is useable. MTBF (Mean Time between Failures)
is a measure of the average time a component is expected to
operate between failures. Normally provided by the
manufacturer. A network failure can be: hardware, data
carrying medium and Network Operating System.
CRITERIA FOR A DATA COMMUNICATION
NETWORK
 Recovery: Recovery is the Network's ability to return
to a prescribed level of operation after a network
failure. This level is where the amount of lost data is
nonexistent or at a minimum. Recovery is based on
having Back-up Files.
 Security: Security is the protection of Hardware,
Software and Data from unauthorized access.
Restricted physical access to computers, password
protection, limiting user privileges and data
encryption are common security methods. Anti-Virus
monitoring programs to defend against computer
viruses are a security measure.
COMPONENTS OF DATA COMMUNICATION
The different components of Data communication are shown in the following
figure.

1. Message:
The message is the information (data) to be communicated. Popular forms of
information include text, numbers, pictures, audio, and video.
2. Sender:
The sender is the device that sends the data message. It can be a
computer, workstation, telephone handset, video camera, and so on.
3. Receiver:
The receiver is the device that receives the message. It can be a
computer, workstation, telephone handset, television, and so on.
4. Transmission medium:
The transmission medium is the physical path by which a message
travels from sender to receiver. Some examples of transmission media
include twisted-pair wire, coaxial cable, fiber-optic cable, and radio
waves.
5. Protocol:
A protocol is a set of rules that govern data communications. It
represents an agreement between the communicating devices. Without
a protocol, two devices may be connected but not communicating, just
as a person speaking French cannot be understood by a person who
speaks only Japanese.
TRANSMISSION MODE/
TYPES OF DATA COMMUNICATION:
A given transmission on a communications channel between two
machines can occur in several different ways.
The transmission is characterized by:
 the direction of the exchanges
 the transmission mode: the number of bits sent
simultaneously
 synchronization between the transmitter and receiver.
Types of Transmission mode
1. Simplex
2. Half Duplex
3. Full Duplex
1.Simplex
A simplex connection is a connection in which the data flows in only one
direction, from the transmitter to the receiver. This type of connection
is useful if the data do not need to flow in both directions (for example,
from your computer to the printer or from the mouse to your
computer...).
2.Half Duplex
A half-duplex connection (sometimes called an alternating
connection or semi-duplex) is a connection in which the data flows in
one direction or the other, but not both at the same time. With this type
of connection, each end of the connection transmits in turn. This type of
connection makes it possible to have bidirectional communications
using the full capacity of the line.
3.Full Duplex
A full-duplex connection is a connection in which the data flow in both
directions simultaneously. Each end of the line can thus transmit and
receive at the same time, which means that the bandwidth is divided in
two for each direction of data transmission if the same transmission
medium is used for both directions of transmission.
TYPE OF COMPUTER NETWORK/ CATEGORIES OF
COMPUTER NETWORK
Data Communication and Computer Network Generally, networks
are distinguished based on their geographical span. A network
can be as small as distance between your mobile phone and its
Bluetooth headphone and as large as the internet itself, covering
the whole geographical world.
 Personal Area Network
 Local Area Network
 Metropolitan Area Network
 Wide Area Network
PERSONAL AREA NETWORK (PAN):
 A Personal Area Network (PAN) is smallest network which is very
personal to a user. This may include Bluetooth enabled devices or
infra-red enabled devices. PAN has connectivity range up to 10
meters. PAN may include wireless computer keyboard and mouse,
Bluetooth enabled headphones, wireless printers, and TV remotes.
2.LOCAL AREA NETWORK (LAN):
LANs are the most frequently discussed networks, one of the
most common, one of the most original and one of the
simplest types of networks. LANs connect groups of
computers and low-voltage devices together across short
distances (within a building or between a group of two or
three buildings in close proximity to each other) to share
information and resources.
3.METROPOLITAN AREA NETWORK(MAN):
These types of networks are larger than LANs but smaller
than WANs – and incorporate elements from both types of
networks. MANs span an entire geographic area (typically
a town or city, but sometimes a campus). Ownership and
maintenance is handled by either a single person or
company (a local council, a large company, etc.).
4.WIDE AREA NETWORK(WAN):
Slightly more complex than a LAN, a WAN connects computers
together across longer physical distances. This allows
computers and low-voltage devices to be remotely connected to
each other over one large network to communicate even when
they’re miles apart.
The Internet is the most basic example of a WAN, connecting all
computers together around the world. Because of a WAN’s vast
reach, it is typically owned and maintained by multiple
administrators or the public.
DATA PROCESSING

 Collection, manipulation, and processing collected

data for the required use is known as data processing.
It is a technique normally performed by a computer;
the process includes retrieving, transforming, or
classification of information.
METHODS OF DATA PROCESSING

Let us now discuss the different methods of data

processing.
 Single user programming

 Multiple programming

 Real-time processing

 On-line processing

 Time sharing processing

 Centralized processing

 Distributed processing
CENTRALIZED, DECENTRALIZED AND DISTRIBUTED
PROCESSING

 Centralized Processing: In centralized processing, one or more terminals are

connected to a single processor. Note that terminal is the combination of
mouse, keyboard, and screen. In-library there is one processor attached to
different terminals and library users can search any book from the terminal
(mouse, keyboard, and screen). In centralized processing all the terminals are
controlled by a single processor (CPU) and any command can be fulfilled by a
single processor and this type of network is called centralized network.
 Decentralized Processing: In decentralized processing, there are different
CPU connected on the network and each processor can do its job independent
of each other. For example, in a Net cafe, all computers can perform their own
tasks. This type of network is called decentralized network.
 Distributed processing: Another type of processing also exists named
distributed processing. In this type of processing different CPU are connected
to the network and are controlled by single CPU. For example in air reservation
system there exists different terminals and processing is done from many
locations and all the computers are controlled by the single main processor.
This type of network is called distributed network.
DISTRIBUTED PROCESSING
 Distributed processing is a setup in which multiple
individual central processing units (CPU) work on the same
programs, functions or systems to provide more capability
for a computer or other device.
 distributed processing refers to local-area networks (LANs)
designed so that a single program can run simultaneously
at various sites.
 Another form of distributed processing involves
distributed databases. This is databases in which the data is
stored across two or more computer systems. The
database system keeps track of where the data is so that the
distributed nature of the database is not apparent to users.
LINE CONFIGURATION
Line configuration refers to the way two or more communication devices
attached to a link .
Line configuration is also referred to as connection. A Link is the physical
communication pathway that transfers data from one device to another.
For communication to occur, two devices must be connected in
same way to the same link at the same time.
There are two possible line configurations.
1. Point-to-Point.
2. Multipoint.
1.POINT-TO-POINT:
A Point to Point Line Configuration Provide dedicated link between
two devices use actual length of wire or cable to connect the two
end including microwave & satellite link.
Point to point network topology is considered to be one of the
easiest and most conventional network topologies. It is also the
simplest to establish and understand. To visualize, one can
consider point to point network topology as two phones
connected end to end for a two way communication
2.MULTIPOINT CONFIGURATION:
Multipoint Configuration also known as Multidrop line configuration one or more
than two specific devices share a single link capacity of the channel is shared.

More than two devices share the Link that is the capacity of the channel is shared
now. With shared capacity, there can be two possibilities in a Multipoint Line
Configuration:
 Spatial Sharing: If several devices can share the link simultaneously, its called
Spatially shared line configuration.
 Temporal (Time) Sharing: All devices are given a time spam in which
they can utilize that single link. At that time other device will not send
their data on link.
 TOPOLOGIES
Network topologies refers to the way in which a
network is laid out physically. The topology of
network is the geometric representation of the
relationship for all the links and linking devices
(usually called nodes) to one another.

Type of topologies:
1) Bus Topology

2) Star Topology

3) Ring Topology

4) Mesh Topology
5) Tree Topology
6) Hybrid Topology
TYPE OF TOPOLOGIES
1. Bus Topology: Bus topology use the single
communication line called backbone which is shared
by all the nodes or computers to communicate. It is
used for smaller networks mainly and is one of the
most simplest and reliable ways to communicate.

Node

(Cable end)
1. BUS TOPOLOGY:
 Advantages:
 Suitable for smaller networks.
 Easy to implement.
 Even if one node breaks down, network does not get
hampered.
 Disadvantages:
 Cable fail then whole network will be fail.
 Within a given cable length, limited number of nodes can
be added.
 Data transfer rate gets slow down if more nodes are
added.
 Only one data packet can be transferred at a particular
moment.
2. STAR TOPOLOGY
In star topology, every node is connected to central hub or
switch. The switch is the server and the peripherals are
the clients. Data from the source is first delivered to the
hub and then transferred to the transferred to the other
nodes.

HU
B
2. STAR TOPOLOGY
Advantages:
 Easy to install and implement.

 Give better performance as message does not pass

through various nodes unlike bus topology.
 Faulty nodes can be easily removed without affecting
the other nodes in the loop.
Disadvantages:
 If the central hub fails then the whole network is
break.
 Data transfer rate depends on capacity of the central
hub.
 Cost of installation is high.
3.RING TOPOLOGY
 Ring topology is a networks topology in which the
nodes or the computers are connected in a closed loop.
It is called as circular topology. A signal is passed along
the ring in one direction, until it reaches its destination.

Server(sender)

Ring topology

NODE
3.RING TOPOLOGY
 Advantages:
 Ring topology is easy to install.

 Transmitting network is not affected by high traffic.

 A signal travels around the circle in a clockwise

direction.
 Disadvantages:

 If one node is break then the whole network gets

down.
 It becomes difficult to add/remove nodes.
 InTOPOLOGY
4.MESH mash topology all devices are cross-connected to communicate
each other. There are two type of mesh topology:
 Full mesh topology:- Each and every nodes or devices are
connected to other.
 Partial mesh topology:- In this topology some of the systems are
connected same function as mesh topology but some devices are
only connected to two or three devices
4.MESH TOPOLOGY

 Advantages:
 When one node fails, others continue to work without
disruption.
 We can send data from one node to many nodes

 Each connection can carry its own data load.

 Disadvantages:

 It is quite expensive since a bulk wiring is required.

 Installation and configuration can be a very difficult

task.
5.TREE TOPOLOGY
 Tree topology is the combination of bus and star topology.
 In this data flow from top to bottom i.e from the central hub to
secondary and then to the devices or from bottom to top i.e.
devices to secondary hub and then to the central hub.
5.TREE TOPOLOGY
 Advantages:
 It is most suitable for large networks where ring and
star topologies are not efficient.
 It divides the network in sub-parts, so it becomes
more manageable.
 Disadvantages:

 If the central hub gets fails the entire system fails.

 The cost is high because of cabling.

6.HYBRID TOPOLOGY
A network structure whose design contains more than
one topology is said to be hybrid topology. Hybrid
topology inherits merits and demerits of all the
incorporating topologies.
6.HYBRID TOPOLOGY
 Advantages:
 Hybrid network can be designed according to the
requirements of the organization.
 Special care can be given to nodes where traffic is
high as well as where chances of fault are high.
Disadvantages:
 One of the biggest drawback of hybrid topology is its
design. Its not easy to design this type of architecture
and its a tough job for designers.
 As hybrid architecture are usually larger in scale, they
require a lot of cables, cooling systems.
STANDARDS AND ORGANIZATIONS

 A standards and organization, sometimes referred to

as a standards body, is an organization with authority
to endorse official standards for given applications.
EXAMPLES OF STANDARDS ORGANIZATIONS
INCLUDE:

 ANSI (American National Standards Institute) is the primary

organization for fostering the development of technology
standards in the United States.
 The IEEE (Institute of Electrical and Electronics Engineers)
fosters the development of standards that often become
national and international standards.
 The BSI (British Standards Institution) is a service organization
that produces standards across a wide variety of industry
sectors.
 The IETF (Internet Engineering Task Force) is the body that
defines standard Internet operating protocols such as TCP/IP.
 OASIS (Organization for the Advancement of Structured
Information Standards) exists to promote product-
independent standards for information formats such as XML
and HTML.
INTERNETWORK

 An internetwork is defined as two or more computer

network LANs or WAN or computer network
segments are connected using devices, and they are
configured by a local addressing scheme. This process
is known as internetworking.
 An interconnection between public, private,
commercial, industrial, or government computer
networks can also be defined as internetworking.
 An internetworking uses the internet protocol.

 The reference model used for internetworking

is Open System Interconnection (OSI).
TYPES OF INTERNETWORK:
 Internet:
 Internet is a worldwide, publicly accessible computer
network of interconnected computer networks (internetwork)
that transmit data using the standard Internet Protocol (IP).
Largest Internetwork in the world is Internet.
 The terms World Wide Web (WWW) and Internet are not the
same. The Internet is a collection of interconnected computer
networks, linked by copper wires, fiber-optic cables, wireless
connections, etc.
 The World Wide Web is one of the services accessible via the
Internet, along with various others including email, file
sharing, remote administration, video streaming, online
gaming etc. World Wide Web (WWW) is a collection of
interconnected documents and other resources, linked
together by hyperlinks and URLs
TYPES OF INTERNETWORK:
 Extranet: An extranet is a communication network based on
the internet protocol such as Transmission Control
protocol and internet protocol. It is used for information
sharing. The access to the extranet is restricted to only those
users who have login credentials. An extranet is the lowest level
of internetworking. It can be categorized as MAN, WAN or
other computer networks. An extranet cannot have a
single LAN, at least it must have one connection to the external
network.
 Intranet: An intranet is a private network based on the internet
protocol such as Transmission Control protocol and internet
protocol. An intranet belongs to an organization which is only
accessible by the organization's employee or members. The
main aim of the intranet is to share the information and
resources among the organization employees. An intranet
provides the facility to work in groups and for teleconferences.
COMPUTER NETWORK MODEL

OSI and TCP/IP Models

HISTORY OF OSI MODEL

Here are essential landmarks from the history of OSI

model:
 In the late 1970s, the ISO conducted a program to
develop general standards and methods of networking.
 In 1973, an Experimental Packet Switched System in the
UK identified the requirement for defining the higher-
level protocols.
 In the year 1983, OSI model was initially intended to be
a detailed specification of actual interfaces.
 In 1984, the OSI architecture was formally adopted by
ISO as an international standard
OSI MODEL
 Open System Interconnect is an open standard for all
communication systems. OSI model is established by
International Standard Organization (ISO).
 An open system is a model that allow any two different
systems(devices) to communication regardless of their
underlying architecture.
 The purpose of the OSI model is to open communication
between different systems without requiring changes to the
logic of the underlying hardware and software.
 It is a model of understanding and designing a network
architecture which is flexible.
The 7 layers can be grouped into 3 subgroups
ORGANIZATION OF THE LAYERS

 Network Support Layers :Layers 1,2,3 - Physical, Data

link and Network are the network support layers. They deal
with the physical aspects of moving data from one device to
another such as electrical specifications, physical addressing,
transport timing and reliability.

 Transport Layer: Layer 4, transport layer, ensures end-to-

end reliable data transmission on a single link.

 User Support Layers: Layers 5,6,7 – Session, presentation

and application are the user support layers.
They allow interoperability among unrelated software systems.
OSI MODEL LAYERS AND THEIR FUNCTIONS
 Application Layer: This layer is responsible for providing interface to the
application user. This layer encompasses protocols which directly interact
with the user.
 Presentation Layer: This layer defines how data in the native format of
remote host should be presented in the native format of host.
 Session Layer: This layer maintains sessions between remote hosts. For
example, once user/password authentication is done, the remote host
maintains this session for a while and does not ask for authentication again in
that time span.
 Transport Layer: This layer is responsible for end-to-end delivery between
hosts.
 Network Layer: This layer is responsible for address assignment and uniquely
addressing hosts in a network.
 Data Link Layer: This layer is responsible for reading and writing data from
and onto the line. Link errors are detected at this layer.
 Physical Layer: This layer defines the hardware, cabling, wiring, power
output, pulse rate etc.

NOTE: For sender application layer is first and for receiver

physical layer is first.
 OSI MODEL LAYERS
Application layer
Message format, file transfer 7

Presentation Layer User

Encryption and decryption 6 Support
Host layers Layer
Session Layer
Authentication, Permission 5

Transport Layer Ensures end-to-

End-to-End connection, flow control 4 end reliable data
transmission
Network Layer
Path determination, routing 3
Network
Media Data link Layer Support
Error detection 2
layers Layers
(Hardwar Physical Layer
e Layers) Media, signal, binary transmission 1
 Sender Receiver

S/W
Layer S/W
Layer

H/W H/W
Layer Layer
STRUCTURE OF A DATA WHEN IT GOES TO ALL
LAYERS
OSI Model Layers and their
functions
 PHYSICAL LAYER:
 The physical layer coordinates the functions required to
transmit a bit stream over a physical medium.
THE OTHER RESPONSIBILITIES OF PHYSICAL
LAYER
 Physical characteristics of interfaces and media - The physical
layer defines the characteristics of the interface between the devices
and the transmission medium.
 Representation of bits - To transmit the stream of bits, it must be
encoded to signals. The physical layer defines the type of encoding.
 Data Rate or Transmission rate - The number of bits sent each
second – is also defined by the physical layer.
 Synchronization of bits - The sender and receiver must be
synchronized at the bit level. Their clocks must be synchronized.
 Line Configuration - In a point-to-point configuration, two devices
are connected together through a dedicated link. In a multipoint
configuration, a link is shared between several devices.
 Physical Topology - The physical topology defines how devices are
connected to make a network. Devices can be connected using a
mesh, bus, star or ring topology.
 Transmission Mode - The physical layer also defines the direction
of transmission between two devices: simplex, half-duplex or full-
duplex.
 DATA LINK LAYER
 It is responsible for transmitting
framesfrom one node to next node.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE

 Framing - Divides the stream of bits received into data

units called frames.
 Physical addressing – If frames are to be distributed to
different systems on the n/w , data link layer adds a header
to the frame to define the sender and receiver.
 Flow control- If the rate at which the data are absorbed by
the receiver is less than the rate produced in the
sender ,the Data link layer imposes a flow ctrl mechanism.
 Error control- Used for detecting and retransmitting
damaged or lost frames and to prevent duplication of
frames. This is achieved through a trailer added at the end
of the frame.
 Access control -Used to determine which device has control over
the link at any given time.
NETWORK LAYER

 This layer is responsible for the delivery of packets

from source to destination.
 It is mainly required, when it is necessary to send
information from one network to another.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE

 Hope to hope transmission

 Logical addressing - If a packet passes the n/w
boundary, we need another addressing system for
source and destination called logical address.
 Routing – The devices which connects various
networks called routers are responsible for
delivering packets to final destination.
 Fragmentation
 Congestion control
TRANSPORT LAYER

 It is responsible for Process to Process delivery.

It also ensures whether the message arrives in order or

not.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE

 Port addressing - The header in this must therefore

include a address called port address. This layer gets the
entire message to the correct process on that computer.
 Segmentation and reassembly - The message is divided
into segments and each segment is assigned a sequence
number. These numbers are arranged correctly on the
arrival side by this layer.
 Connection control - This can either be connectionless or
connection-oriented. The connectionless treats each
segment as a individual packet and delivers to the
destination. The connection-oriented makes connection on
the destination side before the delivery. After the delivery
the termination will be terminated.
 Flow and error control - Similar to data link layer, but
process to process take place.
SESSION LAYER

 This layer establishes, manages and terminates

connections between applications.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE

 Dialog control - This session allows two systems

to enter into a dialog either in half duplex or full
duplex.
 Synchronization-This allows to add checkpoints
into a stream of data.
PRESENTATION LAYER

 It is concerned with the syntax and semantics of

information exchanged between two systems.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE

 Translation – Different computers use different

encoding system, this layer is responsible for
interoperability between these different encoding
methods. It will change the message into some
common format.
 Encryption and decryption-It means that sender
transforms the original information to another
form and sends the resulting message over the
n/w. and vice versa.
 Compression and expansion-Compression
reduces the number of bits contained in the
information particularly in text, audio and video.
APPLICATION LAYER

 This layer enables the user to access the n/w. This

allows the user to log on to remote user.
THE OTHER RESPONSIBILITIES OF THIS LAYER
ARE
 FTAM(file transfer, access ,mgmt) - Allows user
to access files in a remote host.
 Mail services - Provides email forwarding and
storage.
 Directory services - Provides database sources to
access information about various sources and
objects.
Layer Name Protocol Function

Layer 7 Application SMTP, HTTP, FTP, To allow access to network resources.

POP3, SNMP
Layer 6 Presentation MPEG, ASCH, SSL, To translate, encrypt and compress
TLS data.
Layer 5 Session NetBIOS, SAP To establish, manage, and terminate
the session
Layer 4 Transport TCP, UDP The transport layer builds on the
network layer to provide data
transport from a process on a source
machine to a process on a destination
machine.
Layer 3 Network IPV5, IPV6, ICMP, To provide internetworking. To move
IPSEC, ARP, MPLS. packets from source to destination
Layer 2 Data link RAPA, PPP, Frame To organize bits into frames. To
Relay, ATM, Fiber provide hop-to-hop delivery
Cable, etc.
Layer 1 Physical RS232, To transmit bits over a medium. To
100BaseTX, ISDN, provide mechanical and electrical
11. specifications
TCP/IP MODEL
 Internet uses TCP/IP protocol suite, also known as
Internet suite.
 This defines Internet Model which contains four
layered architecture.
 OSI Model is general communication model but
Internet Model is what the internet uses for all its
communication.
 The internet is independent of its underlying network
architecture so is its Model.
THIS MODEL HAS THE FOLLOWING LAYERS:
OSI LAYERS VS TCP/IP LAYERS

/Internet/Internal
TCP/IP MODEL LAYERS AND FUNCTIONS
 Application Layer: This layer defines the protocol which
enables user to interact with the network. For example, FTP,
HTTP etc.
 Transport Layer: This layer defines how data should flow
between hosts. Major protocol at this layer is Transmission
Control Protocol (TCP). This layer ensures data delivered
between hosts is in-order and is responsible for end- to-end
delivery.
 Internet Layer: Internet Protocol (IP) works on this layer. This
layer facilitates host addressing and recognition. This layer
defines routing.
 Link Layer: This layer provides mechanism of sending and
receiving actual data. Unlike its OSI Model counterpart, this
layer is independent of underlying network architecture and
hardware.
HOW THE WEB WORKS
WHEN YOU TYPE A WEB ADDRESS INTO YOUR
BROWSER
 The browser goes to the DNS(Domain Name Servers) server,
and finds the real address of the server that the website lives
on (you find the address of the shop).
 The browser sends an HTTP request message to the server,
asking it to send a copy of the website to the client (you go to
the shop and order your goods). This message, and all other
data sent between the client and the server, is sent across
your internet connection using TCP/IP.
 If the server approves the client's request, which means "Of
course you can look at that website! Here it is", and then
starts sending the website's files to the browser as a series of
small chunks called data packets (the shop gives you your
goods, and you bring them back to your house).
 The browser assembles the small chunks into a complete
web page and displays it to you (the goods arrive at your
door — new shiny stuff, awesome!).
DNS(DOMAIN NAME SERVER)

 This is called an IP address, and it represents a

unique location on the web. However, it's not very
easy to remember, is it? That's why Domain Name
Servers were invented. These are special servers that
match up a web address you type into your browser
(like "mozilla.org") to the website's real (IP) address.
 Websites can be reached directly via their IP
addresses. You can find the IP address of a website by
typing its domain into a tool like
 COMPARISON OF MODELS
OSI(Open System Interconnection) TCP/IP(Transmission Control
Protocol / Internet Protocol)

In OSI model the transport layer 2. In TCP/IP model the transport layer
guarantees the delivery of packets. does not guarantees delivery of packets.
Still the TCP/IP model is more reliable.

OSI model has a separate Presentation 4. TCP/IP does not have a separate
layer and Session layer. Presentation layer or Session layer.

The OSI has seven layers TCP/IP has four layers.

In OSI, the model was developed first In the TCP/IP suite, the protocols were
and then the protocols in each layer developed first and then the model was
were developed developed.

OSI model gives guidelines on how TCP/IP protocols layout standards on

communication needs to be done which the Internet was developed. So,
TCP/IP is a more practical model.
DATA TRANSMISSION OF DIGITAL DATA
 The data transmission mode decides how data is
transmitted between two computers. The binary data in
the form of 1s and 0s can be sent in two different
modes:
Type of Data transmission
Data transmission

Parallel Serial

Synchronous Asynchronous
1. PARALLEL TRANSMISSION
 All the bits of data are transmitted simultaneously on separate
communication lines.
 In order to transmit n bits, n wires or lines are used. Thus each bit
has its own line.
 Parallel transmission is used for short distance communication.
Advantages: Faster form of transmission, i.e. able to send multiple
bits simultaneously.
Disadvantage: It is costly method of data transmission as it required
n lines to transmit n bits at the same time.
 In serial transmission the various bits of data are
TRANSMISSION
2. SERIAL

transmitted serially one after the other.

 It required only one communication line rather than n
lines to transmit data from sender to receiver.
Advantage: Use of single communication line reduces the
transmission line cost by the factor of n as compared to
parallel transmission.
Disadvantage: This method is slower as compared to parallel
transmission as bits are transmitted serially one after the other
I. Asynchronous Transmission: It sends only one
character at a time where a character is either a letter
of the alphabet or number or control character, it
sends one byte of data at a time.
 Asynchronous transmission between two devices is
made possible using start bit and stop bit.
 Start bit usually 0 is added to the beginning of each
byte(alerts the receiver to the arrival of new group of
bit).
 Stop bit usually 1 is added to the end of each(to let
the receiver know that byte is finished).
II. SYNCHRONOUS TRANSMISSION
 It does not use start and stop bit.
 They can contain multiple bytes.

 There is no gap between the various bytes in the data

steam.
 Since the various bytes are placed on the link without
any gap, it is the responsibility of receiver to separate
the bit stream into bytes.
MODEM
 A modem is a hardware device that allows the computer to
connect to the internet over the existing telephone line.
 A modem is not integrated with the motherboard rather
than it is installed on the PCI slot found on the
motherboard.
 It stands for Modulator/Demodulator. It converts the
digital data into an analog signal over the telephone lines.

Based on the differences in speed and transmission rate, a

modem can be classified in the following categories:
 Standard PC modem or Dial-up modem
 Cellular Modem
 Cable modem
Cellular Modem

 A device that adds 3G or 4G (LTE) cellular connectivity to laptops,

desktop computers and various tablets. Typically available as an
external USB module, for desktop computers, the modem may also be
available on a PCI or PCI Express (PCIe) card that plugs into an empty
slot on the motherboard. For older laptops, modems may be available
for ExpressCard or PC Card/CardBus slots.

Known By Many Names

A cellular modem via USB is a "USB modem." On a card, it can be an "air
card," "data card" or "broadband card." Generic terms are "broadband
adapter," "broadband modem," "cellular adapter," "3G or 4G modem."

Alternatives: Smartphones and Routers

While a cellular modem plugs directly into the computer, smartphones
and stand-alone broadband routers convert cellular signals into a Wi-Fi
hotspot to connect to nearby devices. See cellular hotspot and
mobile broadband router.
CABLE MODEMS
 A cable modem router is a device that not only acts as an
access point for cable Internet access, but also doubles as a
network router. The network router built into the cable modem
allows more than one computer to share Internet access by
directing traffic to two or more computers in a single location,
such as a home or office building.
 A cable modem is a hardware device that allows your computer
to communicate with an Internet service provider over a
landline connection. It converts an analog signal to a digital
signal for the purpose of granting access to broadband Internet.
 There are two basic types of cable modem routers: wired and
wireless. A wired model will require all computers that need
Internet access to be physically connected to the device via
Ethernet cabling. A wireless model can communicate to all
computers using radio waves, negating the need for cables.
DTE-DCE INTERFACE

DTE(Data Terminal Equipment):

 It is an end equipment that convert user information
into signals or reconvert the received signals.
 DTE is the device where communication lines end.

DCE (Data Circuit Terminal):

 It is the equipment that sits between DTE & data
transmission.
 DCE is usually a modem/ Routers.

 Provide path for communication.

DTE-DCE INTERFACE, MODEMS
