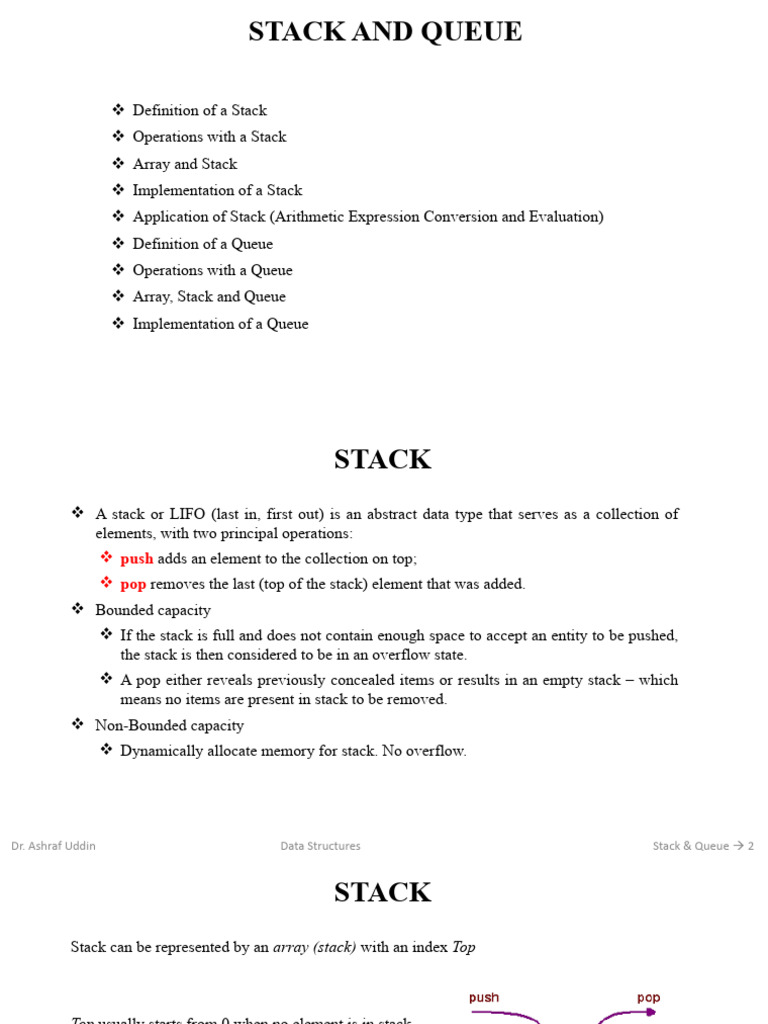

STACK AND QUEUE

 Definition of a Stack
 Operations with a Stack
 Array and Stack
 Implementation of a Stack
 Application of Stack (Arithmetic Expression Conversion and Evaluation)
 Definition of a Queue
 Operations with a Queue
 Array, Stack and Queue
 Implementation of a Queue
 STACK
 A stack or LIFO (last in, first out) is an abstract data type that serves as a collection of
elements, with two principal operations:
 push adds an element to the collection on top;
 pop removes the last (top of the stack) element that was added.
 Bounded capacity
 If the stack is full and does not contain enough space to accept an entity to be pushed,
the stack is then considered to be in an overflow state.
 A pop either reveals previously concealed items or results in an empty stack – which
means no items are present in stack to be removed.
 Non-Bounded capacity
 Dynamically allocate memory for stack. No overflow.

Dr. Ashraf Uddin Data Structures Stack & Queue  2

 STACK
Stack can be represented by an array (stack) with an index Top

Top usually starts from 0 when no element is in stack

[empty condition]

Top is increased by 1 if an element is pushed

Top is decreased by 1 if an element is popped

Don’t be confused between Top and value at top of the stack

Dr. Ashraf Uddin Data Structures Stack & Queue  3

 OPERATION ON STACK - PUSH
Algorithm:

Input: Array (stack), MaxSize, Top, item (to push)

Step 1: if stack is full exit with status ‘unsuccessful push’

else
store item at position Top
Step 2: increase Top by 1

Dr. Ashraf Uddin Data Structures Stack & Queue  4

 Push Operation

7 Considering MaxSize = 7
There are 3 elements inside Stack
6
So next element will be pushed at index 3
5

Top 4

Top 3 D
2 C

1 B

0 A
Dr. Ashraf Uddin Data Structures Stack & Queue  5
 OPERATION ON STACK - POP
Algorithm:

Input: Array (stack), MaxSize, Top

Step 1: if stack is empty exit with status ‘unsuccessful pop’

else
decrease Top by 1
Step 2: store value at Top to a variable item

Dr. Ashraf Uddin Data Structures Stack & Queue  6

 Pop Operation

7 Considering MaxSize = 7
There are 4 elements inside Stack
6
So element will be popped from index 3
5

Top 4

Top 3 D
2 C

1 B

0 A
Dr. Ashraf Uddin Data Structures Stack & Queue  7
bool IsEmpty( void ){
// returns True if stack has no element
return (Top == 0);
}

7 Considering MaxSize = 7
6

Top 0
Dr. Ashraf Uddin Data Structures Stack & Queue  8
bool IsFull( void ){
// returns True if stack full
return ( Top == MaxSize );
}

Top 7 Considering MaxSize = 7

6 G

5 F

4 E

3 D

2 C

1 B

0 A
Dr. Ashraf Uddin Data Structures Stack & Queue  9
bool TopElement( int &Element ){
// gives the top element in Element
if( IsEmpty() ) { cout << "Stack empty\n"; return false; }
Element = Stack[ Top - 1 ];
return true;
}

7 Considering MaxSize = 7
There are 4 elements inside Stack
6
So top element will be at index 3
5

Top 4

3 D
2 C

1 B

0 A
Dr. Ashraf Uddin Data Structures Stack & Queue  10
void Show( void ){
// prints the whole stack
if( IsEmpty() ) { cout << "Stack empty\n"; return; }
for( int i=Top-1; i>=0; i-- ) cout << Stack[i] << endl;
}

7 Considering MaxSize = 7
There are 4 elements inside Stack
6
So element will be shown from index 3 down
5 to index 0.

Top 4

3 D
2 C

1 B

0 A
Dr. Ashraf Uddin Data Structures Stack & Queue  11
 ARRAY AND STACK

Differences…
Insertion/deletion of an element
Accessing an element

Dr. Ashraf Uddin Data Structures Stack & Queue  12

 STACK APPLICATIONS
The runtime stack used by a process (running program) to keep track
of methods in progress
Search problems
Undo, redo, back, forward
Arithmetic Expressions

Dr. Ashraf Uddin Data Structures 13

 STACK APPLICATIONS
Arithmetic Expression

 Infix, Prefix and Postfix Notation

 Conversion of Expression
 Evaluation of Expression

Dr. Ashraf Uddin Data Structures Stack & Queue  14

 STACK APPLICATIONS
Infix, Prefix and Postfix Notation
 We are accustomed to write arithmetic expressions with the operation between the two
operands: a+b or c/d. If we write a+b*c, however, we have to apply precedence rules to avoid
the ambiguous evaluation (add first or multiply first?).
 There's no real reason to put the operation between the variables or values. They can just as
well precede or follow the operands. You should note the advantage of prefix and postfix: the
need for precedence rules and parentheses are eliminated.
 Postfix expressions are easily evaluated with the aid of a stack.

Infix Prefix Postfix

a+b +ab ab+
a+b*c +a*bc abc*+
(a + b) * (c - d) *+ab-cd ab+cd-*

Dr. Ashraf Uddin Data Structures Stack & Queue  15

 STACK APPLICATIONS
Infix to Postfix Conversion - Algorithm
1. Create an empty stack and an empty postfix output string/stream
2. Scan the infix input string/stream left to right
3. If the current input token is an operand, simply append it to the output string
4. If the current input token is an operator, pop off all operators that have equal or higher
precedence and append them to the output string; push the operator onto the stack. The order
of popping is the order in the output.
5. If the current input token is '(', push it onto the stack
6. If the current input token is ')', pop off all operators and append them to the output string until
a '(' is popped; discard the '('.
7. If the end of the input string is found, pop all operators and append them to the output string.

Dr. Ashraf Uddin Data Structures Stack & Queue  16

 STACK APPLICATIONS
Infix to Postfix Conversion Symbol Stack Postfix
a a
Infix: a + ( b + c ) * d – e * f
+ + a
( +( a
b +( ab
+ +(+ ab
c +(+ abc
) + abc+
* +* abc+
d +* abc+d
- - abc+d*+
e - abc+d*+e
* - * abc+d*+e
f - * abc+d*+ef
abc+d*+ef*-

Dr. Ashraf Uddin Data Structures Stack & Queue  17

 STACK APPLICATIONS
Infix to Postfix Conversion: Example

Infix: a + ( b + c ) * d – e * f

+ e f _
Postfix: a b c + d * *

Stack: + ( + * - *

Dr. Ashraf Uddin Data Structures Stack & Queue  18

 CONVERTING INFIX TO POSTFIX

Infix 2 * 6 / ( 4 - 1 ) + 5 * 3 )

Postfix 2 6 * 4 1 - / 5 3 * +

Stack ( +
*
/ (
* -

End of
OPERATOR
OPERAND
Expression

/
+  StackTop(
* <
- = )
( +
(
* )
/

Dr. Ashraf Uddin Data Structures Stack Application  19

 STACK APPLICATIONS
Evaluation of Postfix Expression - Algorithm
1) Create a stack to store operands (or values).

2) Scan the given expression and do following for every scanned element.

…..a) If the element is a operand, push it into the stack

…..b) If the element is a operator, pop operands for the operator from stack. Evaluate the operator
and push the result back to the stack

3) When the expression is ended, the number in the stack is the final answer

Dr. Ashraf Uddin Data Structures Stack & Queue  20

 STACK APPLICATIONS
Evaluation of Postfix Expression (Example)

Dr. Ashraf Uddin Data Structures Stack & Queue  21

 STACK APPLICATIONS
Evaluation of Postfix Expression (Example)
Expression: 6 5 2 3 + 8 * + 3 + *

Dr. Ashraf Uddin Data Structures Stack & Queue  22

EVALUATING POSTFIX
Postfix 2 6 * 4 1 - / 5 3 * + )
EXPRESSION
Stack 2
19
12 6
4 15
4
3
5 1
3

OPERATOR
OPERAND

Evaluate(
Evaluate(
Evaluate(
Expression
End of
4,
2,
5,
12,
4,
Expression
‘)‘
'+',
Result
'*',
'-',
'/',15
613=
3 )))19
===15
12
19
3
4

Dr. Ashraf Uddin Data Structures Stack Application  23

 STACK APPLICATIONS
Exercise
Infix: 8+(3+11)*4-3*10+7

Convert the infix operation into postfix expression and then evaluate the postfix
expression using stacks.

Dr. Ashraf Uddin Data Structures Stack & Queue  24

 QUEUE

 A queue is a waiting line – seen in daily life

 A line of people waiting for a bank teller

 A line of cars at a toll both

 Queue data structure is like a container with both end opening.

 An end called rear

 Another end is front

 This mechanism is called First-In-First-Out (FIFO).

 Some of the applications are :

 Device queue, printer queue, keystroke queue, etc.

Dr. Ashraf Uddin Data Structures Stack & Queue  25

 QUEUE IN COMPUTER LANGUAGE
front
 A queue is a sequence of data elements
1 4 3
 In the sequence
 Items can be added only at the rear rear
 Items can be removed only at the other end, front
 Basic operations
 Check IsEmpty
 Check IsFull
 EnQueue (add element to back i.e. at the rear)
 DeQueue (remove element from the front)
 FrontValue (retrieve value of element from front)
 ShowQueue (print all the values of stack from front to rear)

Dr. Ashraf Uddin Data Structures Stack & Queue  26

  Queue[4],MaxSize=4; frontfront front
front
front

0 1 2 3 4
QUEUE - OPERATION Queue 3 6 2 5
 Check IsEmpty  Initialize( )  front=rear=0
 Check IsFull  EnQueue( 3 )
rear rearrearrearrear
 EnQueue (add element to back  EnQueue( 6 )
i.e. at the rear)  EnQueue( 2 )
 DeQueue (remove element from  EnQueue( 5 )
the front)
 EnQueue( 9 )  Queue Full (rear==MaxSize)
 FrontValue (retrieve value of
element from front)  DeQueue( &v )  3
 ShowQueue (print all the values  DeQueue( &v )  6
of stack from front to rear)  DeQueue( &v )  2
 DeQueue( &v )  5
 DeQueue( &v )  Queue Empty (front==rear)

Dr. Ashraf Uddin Data Structures Stack & Queue  27

  Queue[4],MaxSize=4; frontfront front
front
front

0 1 2 3 4
CIRCULAR QUEUE -
OPERATION Queue 3
9 6 2 5
 Check IsEmpty  Initialize( )  front=rear=0
 Check IsFull  EnQueue( 3 ) rear rearrearrearrear
 EnQueue (add element to back  EnQueue( 6 )
i.e. at the rear)  EnQueue( 2 )
 DeQueue (remove element from
 DeQueue( &v )  3
the front)
 DeQueue( &v )  6
 FrontValue (retrieve value of
element from front)  EnQueue( 5 )  (rear==MaxSize)rear=0
 ShowQueue (print all the values  EnQueue( 9 )
of stack from front to rear)  DeQueue( &v )  2
 DeQueue( &v )  5 (front==MaxSize)  front=0
 DeQueue( &v )  9
 DeQueue( &v )  Queue Empty (front==rear)
Dr. Ashraf Uddin Data Structures Stack & Queue  28
 QUEUE

Write EnQueue and DeQueue functions for a Linear Queue

Dr. Ashraf Uddin Data Structures Stack & Queue  29

 ARRAY, STACK AND QUEUE

Differences….

Dr. Ashraf Uddin Data Structures Stack & Queue  30
