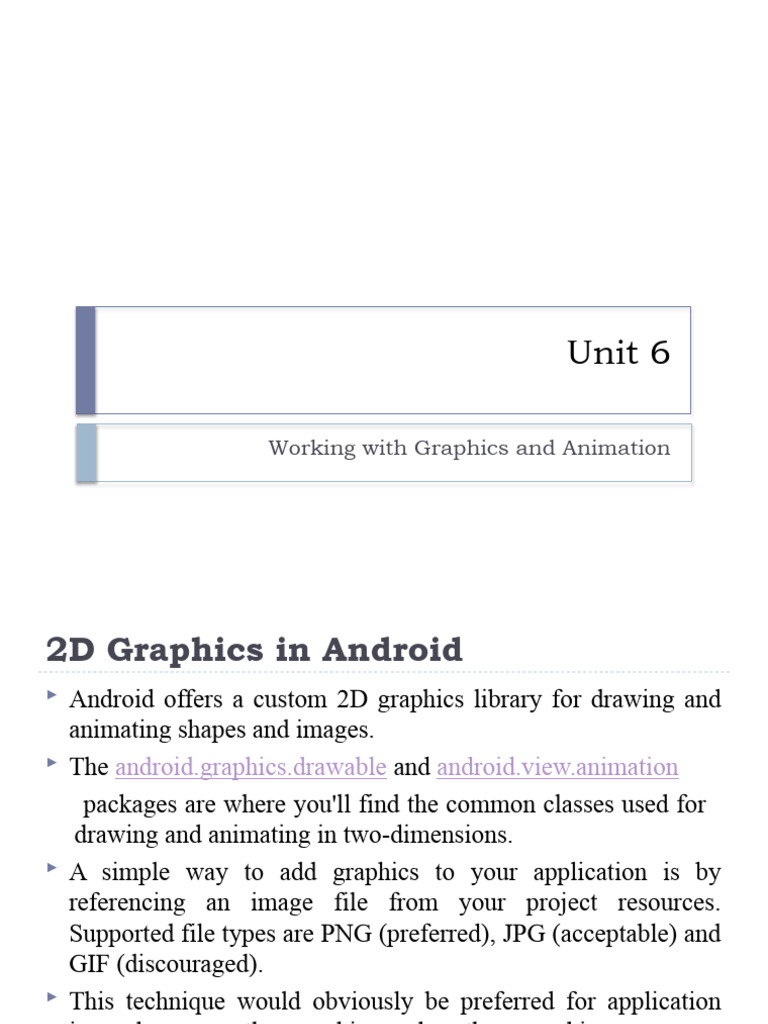

Unit 6

Working with Graphics and Animation

2D Graphics in Android
 Android offers a custom 2D graphics library for drawing and
animating shapes and images.
 The android.graphics.drawable and android.view.animation
packages are where you'll find the common classes used for
drawing and animating in two-dimensions.
 A simple way to add graphics to your application is by
referencing an image file from your project resources.
Supported file types are PNG (preferred), JPG (acceptable) and
GIF (discouraged).
 This technique would obviously be preferred for application
icons, logos, or other graphics such as those used in a game.
2D Graphics in Android
 To use an image resource, just add your file to
the res/drawable/ directory of your project. From there, you
can reference it from your code or your XML layout. Either
way, it is referred using a resource ID, which is the file name
without the file type extension (E.g., my_image.png is
referenced as my_image).
 Canvas API in Android is a drawing framework which helps us
to draw custom design like line, circle or even a
rectangle. Using these we can make any shape whichever we
want according to design.
 In Android Studio, click on
 View > Tool Windows > Resource Manager in the menus or
click on the Resource Manager tab to the left of the Project
window.
 Click the + below Resource Manager, and select Import
Drawables.
 Android graphics provides low level graphics tools such as
canvases, color, filters, points and rectangles which handle
drawing to the screen directly.
 For implementation of graphics in android visit the link below:
 https://www.javatpoint.com/android-simple-graphics-example
Applications of 2D Graphics
 It can be used to create and edit logos, and other graphical
elements.
 It can be used to create website layouts and design elements.
 It can be used to create illustrations, visual presentations, and
digital art.
 It can be used to edit and enhance photos, images, and
animation.
 It can be used to create and edit website designs, presentation
slides, and marketing materials.
Bitmap in android
 In Android, a Bitmap is a representation of an image that consists of pixels
with a specified width, height, and color format. A Bitmap from a View is a
Bitmap that is created from a View in your Android application.

 In effect, a bitmap is an array of binary data representing the values of

pixels in an image or display. A GIF is an example of a graphics image file
that has a bitmap. When the GIF is displayed on a computer monitor, the
computer reads the bitmap to determine which colours to use to “paint” the
screen.

 To display a raster image (bitmap) on the screen, you need an Image object
and a Graphics object. Pass the name of a file (or a pointer to a stream) to
an Image constructor. After you have created an Image object, pass the
address of that Image object to the DrawImage method of a Graphics
object.
Animations in Android
 Animation in android apps is the process of creating motion
and shape change.
 The basic ways of animation are as follows:
 Fade In Animation
 Fade Out Animation
 Cross Fading Animation
 Blink Animation
 Zoom In Animation
 Zoom Out Animation
 Rotate Animation
 Move Animation
 Slide Up Animation
 Slide Down Animation
 Bounce Animation
 Sequential Animation
 Together Animation
Frame Animation in android
 In Android Frame Animation, you will be swapping frames
repeatedly, so that it appears continuous to the human eye and
we feel that it is animated.
 Frame is referred to an image. So to implement frame by frame
animation in android, one needs to have set of images, which
describes a motion.
 For implementation of frame animation visit the following
link:
 https://www.edureka.co/blog/frame-animation-in-android/#:~:t
ext=In%20Android%20Frame%20Animation%2C%20you,ima
ges%2C%20which%20describes%20a%20motion
.
Tween Animation in android

 A tween animation can perform a series of simple

transformations (position, size, rotation, and transparency) on
the contents of a View object.
 So, if you have a TextView object, you can move, rotate, grow,
or shrink the text.
 If it has a background image, the background image will be
transformed along with the text.
 We have four kinds tween animations:
 Alpha, Rotate, Translate, Scale.
Tween Animation in android
 Tween animation could be set in both code and xml.
 By AnimationSet, we could mix these animations together.
 By AnimationUtils.loadAnimation, we could load these
animations defined in xml.
 By Animation.AnimationListener, we could add listener to
listen to changes of animations.
 For implementation of Tween animation visit the following
link:
 https://dongchuan.github.io/android/2015/06/21/Tween-Animat
ion.html#:~:text=We%20have%20four%20kinds%20tween,%2
C%20Rotate%2C%20Translate%2C%20Scale
.
View Animation in android
 You can use the view animation system to perform tweened animation
on Views.
 Tween animation calculates the animation with information such as the
start point, end point, size, rotation, and other common aspects of an
animation.
 A tween animation can perform a series of simple transformations
(position, size, rotation, and transparency) on the contents of a View
object.
 So, if you have a TextView object, you can move, rotate, grow, or shrink
the text. If it has a background image, the background image will be
transformed along with the text.
 The animation package provides all the classes used in a tween
animation.
 The drawback of this mechanism is that it can only be applied to Views.
Google Map API
References
 https://developers.google.com/maps/documentation/androi
d-sdk/start#create-project
 https://developers.google.com/maps/documentation/androi
d-sdk/map
