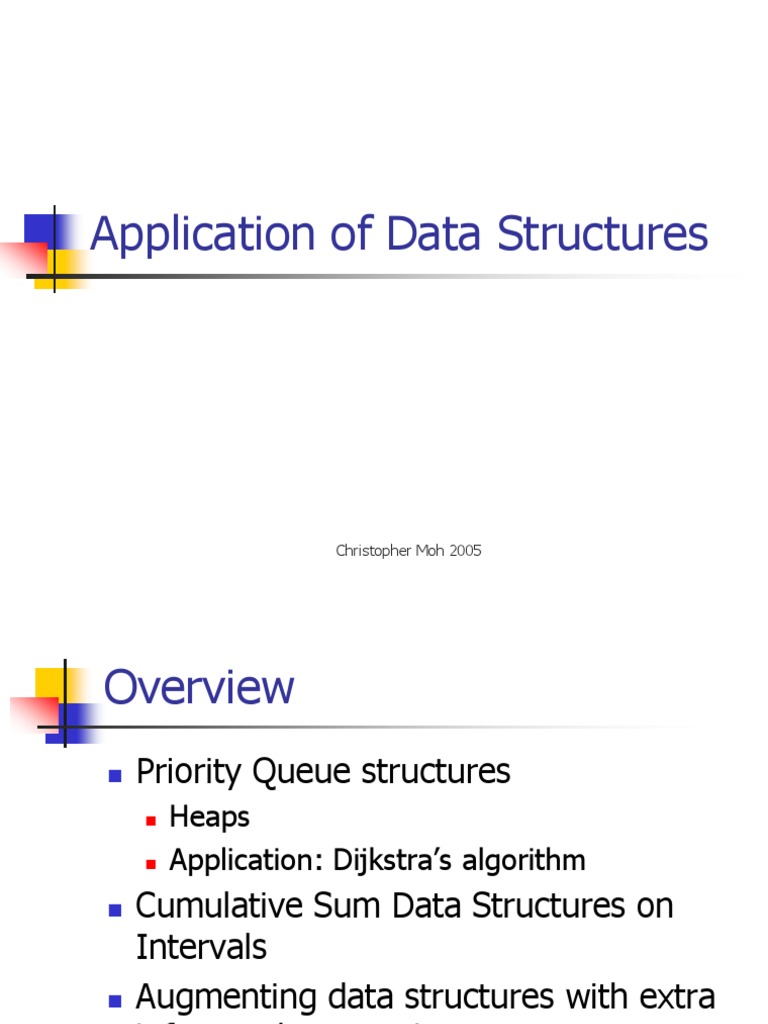

Application of Data Structures
Christopher Moh 2005
Overview
Priority Queue structures

Heaps Application: Dijkstras algorithm
Cumulative Sum Data Structures on Intervals Augmenting data structures with extra info to solve questions
Priority Queue (PQ) Structures
Stores elements in a list by comparing a key field

Often has other satellite data For example, when sorting pixels by their R value, we consider the R as the key field and GB as satellite data
Priority queues allow us to sort elements by their key field.

Common PQ operations
Create()
Find_Min()
Creates an empty priority queue

Returns the smallest element (by key field) Insert element x (with predefined key field) Delete position x from the queue Change key field of position x to k
Insert(x)
Delete(x)
Change(x, k)
Optional PQ operations
Union (a,b)
Combines two PQs a and b
Search (k)
Returns the position of the element in the heap with key value k
Considerations when implementing a PQ in competition
How complicated is it?
How fast does it need to be?
Is the code likely to be buggy?

Does a constant factor also come into the equation?
Do I need to store extra data to do a Search?
During the course of this presentation, we shall assume that there exists existing extra data which allows us to do a search in O(1) time. The handling of this data structure will be assumed and not covered.
Linear Array
Unsorted Array

Create, Insert, Change in O(1) time Find_min, Delete in O(n) time Create, Find_min in O(1) time Insert, Delete, Change in O(n + log n) = O(n) time
Sorted Array

Binary Heaps
Will be the most common structure that will be implemented in competition setting

Efficient for most applications Easy to implement
A heap is a structure where the value of a node is less than the value of all of its children A binary heap is a heap where the maximum number of children for each node is 2.
Array implementation
Consider a heap of size nheap in an array BHeap[1..nheap] (Define BHeap[nheap+1 .. (nheap*2)+1] to be INFINITY for practical reasons)
The children of BHeap[x] are BHeap[x*2] and BHeap[x*2+1] The parent of BHeap[x] are BHeap[x/2] This allows a near uniform Binary Heap where we can ensure that the number of levels in this heap is O(log n) Some properties wrt Key values: BHeap[x] >= BHeap[x/2], BHeap[x] <= BHeap[x*2], BHeap[x] <= BHeap[x*2+1], BHeap[x*2] ?? BHeap[x*2+1]
PQ Operations on a BHeap

We define BTree(x) to be the Binary Tree rooted at BHeap[x] We define Heapify(x) to be an operation that does the following:
Assume: BTree(x*2) and BTree(x*2+1) are binary heaps but BTree(x) is not necessarily a binary heap Produce: BTree(x) binary heap Details of Heapify in later slides but for now, we assume Heapify is O(log n)
For the rest of the presentation, we assume the variable n refers to nheap
Operations on a BHeap
1.
Create is trivial O(1) time Find_min: Insert (element with key value x)
1. 2. 3. 4.
Return BHeap[1] O(1) time
nheap++ BHeap[nheap] = x T = nheap While (T != 1 && Bheap[T] < BHeap[T/2]) O(log n) time as the number of levels is O(log n)
Swap (Bheap[T], BHeap[T/2] T=T/2
1. 2.
1. 2. 3.
ChangeDown (position x, new key value k)

Assume: k < existing BHeap[x] BHeap[x] = k T=x While (T != 1 && BHeap[T] < BHeap[T/2])
1. 2.
Swap (BHeap[T], BHeap[T/2]) T = T/2
Complexity: O(log n) This procedure is known as bubbling up the heap

ChangeUp (position x, new key value k)

1. 2.
Assume: k > existing BHeap[x] BHeap[x] = k Heapify(x) O(log n) as complexity of Heapify is O(log n)
1. 2. 3. 4. 5.
Delete (position x on the heap)

BHeap[x] = BHeap[nheap] nheap Heapify(x) T=x While (T != 1 && BHeap[T] < BHeap[T/2])
1. 2.
Swap (BHeap[T], BHeap[T/2]) T=T/2
Complexity is O(log n) Why must I do both Heapify and bubble up?

1. 2. 3.
Heapify (position x on the heap)

T = min(BHeap[x], BHeap[x*2], BHeap[x*2+1]) If (T == BHeap[x]) return; K = position where BHeap[K] = T Swap(BHeap[x], BHeap[K]) Heapify(K) O(log n) as the maximum number of levels in the heap is O(log n) and Heapify only goes through each level at most once
4.
5.
BHeap Operations: Summary

Create, Find_min in O(1) time Change (includes both ChangeUp and ChangeDown), Insert, and Delete are O(log n) time Union operations are how long?
Insertion: O(n log n) union Heapify: O(n) union

Corollary: Heapsort
We can convert an unsorted array to a heap using Heapify (why does this work?):
1.
For (i = n/2; i >= 1; i--)

1.
Heapify(i)
We can then return a sorted list (list initially empty):

1.
For (i = 1; i <= n; i++)

1. 2.
Append the value of find_min to the list Delete(1)
Complexity is O(n log n)

Binomial Trees
Define Binomial Tree B(k) as follows:

B(0) is a single node B(n), n != 0, is formed by merging two B(n-1) trees in the following way:
The root of the B(n) tree is the root of one of the B(n-1) trees, and the (new) leftmost child of this root is the root of the other B(n-1) tree.
Within the tree, the heap property holds i.e. that the key field of any node is greater than the key field of all its children.
Properties of Binomial Trees
The number of nodes in B(k) is exactly 2^k. The height of B(k) is exactly (k + 1) For any tree B(k)

The root of B(k) has exactly k children If we take the children of B(k) from left to right, they form the roots of a B(k-1), B(k2), , B(0) tree in that order
Binomial Heaps
Binomial Heaps are a forest of binomial trees with the following properties:

All the binomial trees are of different sizes The binomial trees are ordered (from left to right) by increasing size
If we consider the fact that the size of B(k) is 2^k, the binomial tree B(k) exists in a binomial heap of n nodes iff the bit representing 2^k is 1 in the binary representation of n
For example: 13 (decimal) = 1101 (binary), so the binomial heap with 13 nodes consists of the binomial trees B(0), B(2), and B(3).
Binomial Heap Implementation
Each node will store the following data:
Key field

Pointers (if non-existent, points to NIL) to
The binomial heap is represented by a head pointer that points to the root of the smallest binomial tree (which is the leftmost binomial tree)
Number of children in field degree Any other data that might be useful for the program
Parent Next Sibling (ordered left to right; a sibling must have the same parent); For roots of binomial trees, next sibling points to the root of the next binomial tree Leftmost child
Operations on Binomial Trees
Link (h1, h2)
1. 2. 3. 4.
Links two binomial trees with root h1 and h2 of the same order k to form a new binomial tree of order (k+1) We assume h1->key < h2->key which implies that h1 is the root of the new tree T = h1->leftchild h1->leftchild = h2 h2->parent = h1 H2->next_sibling= T O(1) time
Operations on binomial heaps
Create Create a new binomial heap with one node (key field set) Find_min
1. 2.
1. 2.
Set Parent, Leftchild, Next sibling to NIL O(1) time X = head, min = INFINITY While (X != nil)
3.
Return min O(log n) time as there are at most log n binomial trees (log n bits)
If (X->key < min) min = X->key X = X->next_sibling
More Operations
Merge (h1, h2, L)

Given binomial heaps with head pointers h1 and h2, create a list L of all the binomial trees of h1 U h2 arranged in ascending order of size For any order k, there may be zero, one, or two binomial trees of order k in this list.
More Operations
Merge (h1, h2, L)

Assume that NIL is a node of infinitely small order L = empty While (h1 != NIL || h2 != NIL)
1.
1. 2.
If (h1->degree < h2->degree)

1. 2.
Append the (binomial)tree with root h1 to L h1 = h1->next_sibling Apply above steps to h2 instead
2.
Else
1.
More Operations
Union (h1, h2)
The fundamental operation involving binomial heaps Takes two binomial heaps with head pointers h1 and h2 and creates a new binomial heap of the union of h1 and h2
More Operations
1.
2. 3.
Union (h1, h2)
Start with empty binomial heap Merge (h1, h2, L) Go by increasing k in the list L until L is empty
1.
2.
Union is O(log n)
If there is exactly one or exactly three (how can this happen?) binomial trees of order k in L, append one binomial tree of order k to the binomial heap and remove that tree from L If there are two trees of order k, remove both trees, use Link to form a tree of order (k+1) and pre-pend this tree to L
More Operations
Inserting a new node with key field set
ChangeDown (node at position x, new value)

Create a new binomial heap with that one node Union (existing heap with head h, new heap) O (log n) time
Decreasing the key value of a node Same idea as binary heap: Bubble up the binomial tree containing this node (exchange only key fields and satellite data! Whats the complexity if you physically change the node?) O (log n) time
More Operations
1.
Delete (node at position x)
2.
3.
4.
O(log n) complexity
Deleting position x from the heap ChangeDown(x, -INFINITY) Now x is at the root of its binomial tree Supposing that the binomial tree is of order k Recall that the children of the root of the binomial tree, from right to left, are binomial trees of order 0, 1, 2, 3, 4, , k-1 Form a new binomial heap with the children of the root of this binomial tree the roots in the new binomial heap Remove the original binomial tree from the original binomial heap Union (original heap, new heap)
More Operations
ChangeUp (node at position X, new value)

1. 2.
Delete (X) Insert (new value) O (log n) time
Summary Binomial Heaps

Create in O(1) time Union, Find_min, Delete, Insert, and Change operations take O(log n) time In general, because they are more complicated, in competition it is far more prudent (saves time coding and debugging) to use a binary heap instead
Unless there are MANY Union operations
Application of heaps: Dijkstra
1. 2.
3.
The following describes how Dijkstras algorithm can be coded with a binary heap Initializing phase: Let n be the number of nodes Create a heap of size n, all key fields initialized to INFINITY Change_val (s, 0) where s is the source node
Running of Dijkstras algorithm

1.
While (heap is not empty)

1.
2. 3.
X = node corresponding to find_min value Delete (position of X in heap = 1) For all nodes k that are adjacent to X
1.
If (cost[X] + distance[X][k] < cost[k])

1.
ChangeDown (position of k in heap, cost[X] + distance[X][k])
Analysis of running time
At most n nodes are deleted
Let m be the number of edges. Each edge is relaxed at most once.
O(n log n)
Total running time O([m+n] log n) This is faster than using a basic array list unless the graph is very dense, in which case m is about O(n^2) which leads to a running time of O(n^2 log n)
O(m log n)
Cumulative Sum on Intervals
Problem: We have a line that runs from x coordinate 1 to x coordinate N. At x coordinate X [X an integer between 0 and N], there is g(X) gold. Given an interval [a,b], how much gold is there between a and b? How efficiently can this be done if we dynamically change the amount of gold and the interval [a,b] keeps changing?
Cumulative Sum Array

Let us define C(0) = 0, and C(x) = C(x-1) + g(x) where g(x) is the amount of gold at position x C(x) then defines the total amount of gold from position 1 to position x The amount of gold in interval [a,b] is simply C(b) C(a-1)
For any change in a or b, we can perform the update in O(1) time
However, if we change g(x), we will have to change C(x), C(x+1), C(x+2), , C(N)
Any change in gold results in an update in O(N) time

Cumulative Sum Tree

We can use the binary representation of any number to come up with a cumulative sum tree For example, let say we take 13 (decimal) = 1101 (binary)
The cumulative sum of g(1) + g(2) + g(13) can be represented as the sum of:

g(1) + g(2) + + g(8) [ 8 elements ] g(9) + g(10) + + g(12) [ 4 elements ] g(13) [ 1 element ]
Notice that the number of elements in each case represents a bit that is 1 in the binary representation of the number
Cumulative Sum Tree
Another example: C(19)
19 (decimal) is 10011 (binary)

C(19) is the sum of the following: g(1) + g(2) + + g(16) [ 16 elements ] g(17) + g(18) [ 2 elements ] g(19) [ 1 element ]
Cumulative Sum Tree
Let us define C2(x) to be the sum of g(x) + g(x-1) + + g(p + 1) where p is a number with the same binary representation as x except the least significant bit of x (the rightmost bit of x that is 1) is 0 Examples of x and the corresponding p:

x = 6 [110], p = 4 [100] x = 13 [1101], p = 12 [1100] x = 16 [10000], p = 0 [00000]

Cumulative Sum Tree
If we want to find the cumulative sum C(x) = g(1) + g(2) + + g(x), we can trace through the values of C2 using the binary representation of x

This allows us to find C(x) in log x time
Examples: C(13) = C2(8) + C2(8+4) + C2(8+4+1) C(16) = C2(16) C(21) = C2(16) + C2(16+4) + C2(16+4+1) C(99) = C2(64) + C2(64+32) + C2(64+32+2) + C2(64+32+2+1)
Hence the amount of gold in interval [a,b] = C(b) C(a-1) can be found in log N time, which implies updates of a and b can be done in O(log N)
Cumulative Sum Tree
What happens when we change g(x)?
If g(x) is changed, we only need to update C2(y) where C2(y) covers g(x) We can go through all necessary C2(y) in the following way:
While (x <= N)
1. 2.
1.
This runs in O(log N) time Hence updates to g can also be done in O(log n) time, which is a great improvement over the O(N) needed for an array.
Update C2(x) Add the value of the least significant bit of x to x
Cumulative Sum Tree
Examples [binary representation in brackets]
We can implement a cumulative sum tree very simply: By simply using a linear array to store the values of C2. Can we extend a cumulative sum tree to 2 or more dimensions?
Change to g(5) [ 101 ] : Update C2(5), C2(6), C2(8), C2(16) and all C2(power of 2 > 16) Change to g(13) [ 1101 ]: Update C2(13), C2(14), C2(16), and all C2(power of 2 > 16) Change to g(35) [ 100011 ]: Update C2(35), C2(36), C2(40), C2(48), C2(64), and all C2(power of 2 > 64)
See IOI 2001 Day 1 Question 1
Sum of Intervals Tree

Another way to solve the question is to use a Sum of Intervals Binary Tree Each node in the tree is represented by (L, R) and the value of (L,R) is g(L) + g(L+1) + + g(R) The root of the tree has L = 1 and R = N Every leaf has L = R Every non-leaf has children (L, [L+R]/2) [left child] and ([L+R]/2+1, R) [right child] The number of nodes in the tree is O(2*N) [ why? ] In an implementation, every node should have pointers to its children and its parent
1. 2.
How to find C(x) = g(1) + g(2) + + g(x)?

We trace from the root downwards L = 1, R = N, C = 0 While (L != R)
M = (L + R) / 2 If (M < x)
1. 2. 3.
1.
2.
Else
1.
C += value of (L,R) Set L and R to the left child of the current node Set L and R to the right child of the current node
3.
C += value at (L,R) [ or (L,L) or (R,R) as L = R ] Time complexity: O(log n)

1. 2.
What happens when g(x) is changed?

Trace from (x,x) upwards to the root Let L = R = x While (L,R) is not the root
1. 2.
Update the value of (L,R) Set (L,R) to the parent of (L,R)
3.
Update the root
Complexity of O(log N) Hence all updates of interval [a,b] and g(x) can be done in O(log N) time
Augmenting Data Structures
It is often useful to change the data structure in some way, by adding additional data in each node or changing what each node represents. This allows us to use the same data structure to solve problems For example, we can use so-called interval trees to solve not just cumulative sum problems
We can use properties of elements in the interval (L,R) that are related to L and R.
Other data structures
Balanced (and unbalanced) binary trees

Red-Black trees 2-3-4 trees Splay trees
Suffix Trees Fibonacci Heaps

Application of Data Structures

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Application of Data Structures

Uploaded by

Copyright:

Available Formats

Application of Data Structures

Christopher Moh 2005

Priority Queue structures

Heaps Application: Dijkstras algorithm

Priority Queue (PQ) Structures

Stores elements in a list by comparing a key field

Priority queues allow us to sort elements by their key field.

Creates an empty priority queue

Combines two PQs a and b

Christopher Moh 2005

Considerations when implementing a PQ in competition

How complicated is it?

How fast does it need to be?

Is the code likely to be buggy?

Do I need to store extra data to do a Search?

Efficient for most applications Easy to implement

Christopher Moh 2005

Return BHeap[1] O(1) time

Christopher Moh 2005

ChangeDown (position x, new key value k)

Swap (BHeap[T], BHeap[T/2]) T = T/2

Complexity: O(log n) This procedure is known as bubbling up the heap

ChangeUp (position x, new key value k)

Christopher Moh 2005

Delete (position x on the heap)

Swap (BHeap[T], BHeap[T/2]) T=T/2

Complexity is O(log n) Why must I do both Heapify and bubble up?

Heapify (position x on the heap)

BHeap Operations: Summary

Insertion: O(n log n) union Heapify: O(n) union

For (i = n/2; i >= 1; i--)

We can then return a sorted list (list initially empty):

For (i = 1; i <= n; i++)

Append the value of find_min to the list Delete(1)

Complexity is O(n log n)

Define Binomial Tree B(k) as follows:

Properties of Binomial Trees

Binomial Heap Implementation

Each node will store the following data:

Pointers (if non-existent, points to NIL) to

Operations on Binomial Trees

Link (h1, h2)

Operations on binomial heaps

If (X->key < min) min = X->key X = X->next_sibling

Christopher Moh 2005

Merge (h1, h2, L)

Merge (h1, h2, L)

If (h1->degree < h2->degree)

Union (h1, h2)

Christopher Moh 2005

Union (h1, h2)

Christopher Moh 2005

Inserting a new node with key field set

ChangeDown (node at position x, new value)

Delete (node at position x)

Christopher Moh 2005

ChangeUp (node at position X, new value)

Delete (X) Insert (new value) O (log n) time

Christopher Moh 2005

Summary Binomial Heaps

Unless there are MANY Union operations

Christopher Moh 2005

Application of heaps: Dijkstra
