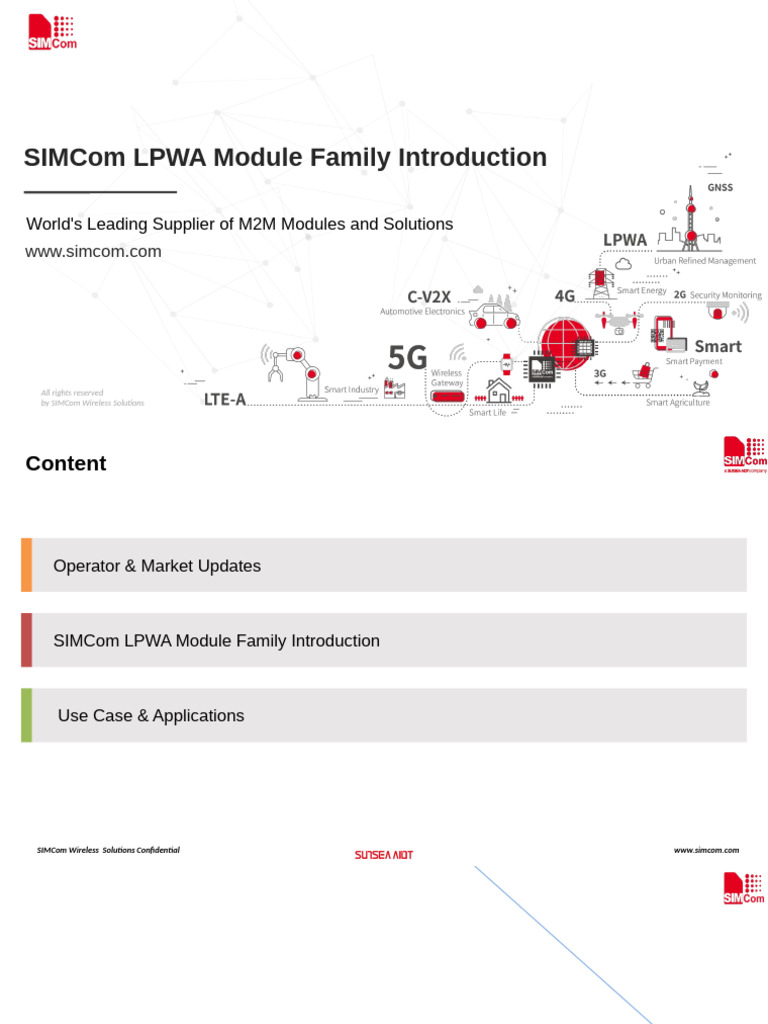

SIMCom LPWA Module Family Introduction

World's Leading Supplier of M2M Modules and Solutions

[Link]

All rights reserved

by SIMCom Wireless Solutions
SIMCom Wireless Solutions Confidential [Link]
Content

Operator & Market Updates

SIMCom LPWA Module Family Introduction

Use Case & Applications

SIMCom Wireless Solutions Confidential [Link]

Operator & Market Updates

SIMCom Wireless Solutions Confidential [Link]

Evolution of Cellular Technology 5G network deployment speed
up

Digital Voice Voice + Data Data

eMBB (Enhanced Mobile Broadband)

Cat.16 5-20Gbps
• High Bandwidth
• High Cost
• High Mobility

Cat.9

URLLC (Ultra-reliable Low Latency

Communications)
Cat.6
• Low Latency
• High reliable
Cat.4 • High Security
Cat.1
CAT M1/NB1

mMTC (massive Machine Type

End of 2G/3G era as 3GPP
Communications)
UTMS RAN6 closes
CAT M1/NB2
GSM • Massive Connections
NB-IoT evolving towards • Low Bandwidth
5G standard • Low Cost
• Low Power Consumption

2G

3G
5G

4G

2025+

SIMCom Wireless Solutions Confidential [Link]

Global Operator Network speed up 2G/3G network shutdown process
Europe is experiencing more sunsets in 3G than 2G. A total of 19 operators in 14 nations
plan to switch off 3G by 2025, whereas only eight operators in eight countries are planning
Europe a 2G switch off by same time. The sunset saga in the region started with Net1 being the
01 3G eclipse first operator to completely shut down its 3G networks in Denmark and Sweden in 2015,
followed by Vodafone Ziggo in 2020, then Telenor Norway and Swisscom in 2021. Though
Completed and Planned Sunsets 3G is newer, it is still retiring in the region because 2G has dished out a notable edge,
especially for M2M and IoT services in countries including Germany, Finland, and Belgium.

（ 2015-2025 ） The Americas is on a different path from Europe, focused towards turning 2G off: there has
not been a single 3G closure. The region, an early adopter of new technology generations,
30 has seen 13 operators across five countries launching their 5G networks, making it vital to
02 Americas
Goodbye 2G have the required spectrum to foster the services. Here we expect 15 operators in seven
countries to switch off their 2G network by the end of 2025. Putting the best foot forward, the
operators are re-using their existing spectrum from 2G to fill in the demand for 4G and 5G
networks
20

Service providers in the region are vying to retain their 3G networks and
shutting down 2G instead to employ the infrastructure for 4G, which has high
10 03 Asia
2G departure
adoption. By the end of 2025, we expect 29 operators to shut down 2G and
16 operators to close 3G with Taiwan currently the only market which has
witnessed both 2G and 3G sunsets, in 2017 and 2018 respectively.

0
Europe Americas Asia Africa Oceania In this region, 2G markets outnumber 3G twofold, basic feature phone still
comprise 42 per cent of all devices and end-users are incentivized to remain on
04 Africa
Preserving 2G them given lower costs. In turn, this drives lower digital uptake, explaining why a
negligible number of sunsets have been announced. Of course, as demand rises,
2G 3G and 3G
we would expect operators would have to plan for them in future.

*As on March 2021

The region has been quick enough to migrate to newer generation networks as 5G services
are available in four countries, whereas others are testing the network for commercial
deployments. Today, 2G networks account for only 5 per cent of total connections, having
05 Oceania
Precedence for 2G
very small amount of traffic across the region. As a result of this trend, Australia, the biggest
market in the region, completed its 2G network sunset in 2018. Though operators have not
announced their network sunset plans, we expect the region to see more 2G than 3G
closures, based on representative shares.

SIMCom Wireless Solutions Confidential [Link]

Massive IoT enabled by long battery duration with reliable connectivity

Smart Meter

Massive IoT
Market

Trackers

Environment
IoT Gateway Smart smoke
Monitoring

SIMCom Wireless Solutions Confidential [Link]

Continued roadmap evolution to meet tomorrow’s massive IoT needs

Release 8 Release 10 Release 11 Release 12 Release 13

2017 2018 2020 2021

Cat.1 Cat.6 Cat.9 Cat.13 Cat.M
LTE 5G Phase1 5G Phase2 5G Advanced

Rel-13 Rel-14 Rel-15 Rel-16 Rel-17

Cat.2 Cat.7 Cat.10 Cat.14 NB-IoT

• Higher data rate • Higher UE velocity • Improved transmission efficiency • Higher data rate （ 14 DL
• 15db coverage •
• Positioning （ ECID and OTDOA) Lower UE power class 14dbm • Improved UE power consumption HARQ, maximum DL TBS
• Large connection •
• Multicast （ SC-PTM) Improve Latency • Scheduling enhancement of 1736bits
• Low power •
• Mobility enhancements Improved power consumption • Coexistence with NR
consumption
Cat.3 • Low cost Cat.8
• VoLTE enhancements •
Cat.11
Improved spectral efficiency
Cat.15

Cat.4 Cat.12 Cat.0

• 20db coverage • Peak rate > 100kb/s • Latency reduction • • DL 16QAM (248kbps ）
Coexistence with 5G NR
• Large connection • Multi-carrier enhancement • Reduced terminal power • Connection to 5G core • Diverse-service efficiency
• Low power • Positioning (ECID and OTDOA) consumption • Latency & Mobility enhancement • Lower mobility latency
consumption • Power consumption reduction • Mixed mode multi-carrier • SON
• Low cost • Mobility enhancement • New PRACH format
Cat.5

SIMCom Wireless Solutions Confidential [Link]

Comparison between NB-IoT and LTE-M technology

Bandwidth
Coverage Battery Life Capacity Peak Throughput Mobility Voice
Spectrum

LTE-M 1.4MHz 160dB 0.8/1 Mbps Connected & Idle

10+ Year 1M+ /Cell Supported
(+15dB) (300/375 kbps) Mode mobility

227/250 kbps Idle mode Not

NB-IoT 200KHz 164dB 10+ Year 200K /Cell
(21/63 kbps) mobility Supported
(+20dB)

SIMCom Wireless Solutions Confidential [Link]

LPWA network ecosystem is expanding gradually
Mobile IoT Coverage Map Total Launches Globally

159

Source: GSMA 53 Source ： GSMA 106

2021.07

Deutsche Telekom LTE-M & NB-IoT roaming available in 20

countries Including the USA (2021)
Source: GSMA

SIMCom Wireless Solutions Confidential [Link]

NB-IoT Network Deployment
Country Operator Bands Country Operator Bands Country Operator Bands

Argentina Claro 4,28 China China Unicom 3,8 Germany Telefonica 8,20

Argentina Movistar 4,28 China (HK) 3 8 Germany T-Mobile 8,20

Australia Telstra 28 China (HK) CMCC 3 Germany Vodafone 20

Australia Vodafone 5,8,28 China(HK) SmarTone 8 Germany Deutsche Telekom 8,20

Australia Optus / China (TW) APTG 8 Greece Vodafone 20

Austria A1 20 China(TW) Chunghwa 8 Greece T-Mobile (Cosmote) 20

Austria T-Mobile 8 China(TW) FarEasTone 28 Hungary T-Mobile 20

Bangladesh Grameenphone 3,8 (TBC) China(TW) Taiwan Mobile 28 Hungary Vodafone 20

Belarus A1 / Colombia Claro 5 India Reliance Jio 3,5

Belarus Velcom 8 Colombia Movistar 5 Indonesia Telkomsel 8

Belgium BASE(Telenet ） 3,20 Croatia A1 20 Indonesia XL Axiata 8

Belgium Proximus 20 Croatia T-Mobile(DT) 8,20 Ireland Vodafone 20

Belgium Orange 3,20 Czech Vodafone 8,20 Italy Vodafone 20

Brazil Claro 3,28 Denmark Telia 8,20 Italy TIM 20

Brazil Vivo 3,28 Denmark Telenor 20 Japan SoftBank 1,8

Brazil Telecom Italia/TIM 28 Denmark TDC 20 Kazakhstan KCELL /

Canada Rogers 4,5,12 Estonia Telia 20 Latavia Bite 20

Chile Claro 28 Estonia Elisa 20 Latavia LMT 20

Chile Movistar 28 Finland Telia 20 Latvia Tele2 20

Chile Entel 28 Finland DNA 3,20 Malaysia Maxis 3

China CMCC 8 Finland Elisa 3,20 Malta Vodafone /

China China Telecom 5 France SFR 20 Mexico ALTAN 20

SIMCom Wireless Solutions Confidential [Link]

NB-IoT Network Deployment
Country Operator Bands Country Operator Bands Country Operator Bands

Mexico AT&T 5 Slovakia T-Mobile 20 USA T-Mobile 2,4,12,66,71,85

Mexico Telcel 5 South Africa Vodafone/Vodacom 8 USA Verizon 13

Netherlands T-Mobile (DT) 20 South Korea KT 3

Netherlands Vodafone 20 South Korea LGU+ 5

New Zealand Vodafone 28 Spain Telefonica 20

Norway Telenor 8,20 Spain Vodafone 8,20

Norway Telia 20 Spain Orange 20

Peru Claro 28 Sri Lanka Dialog Axiata 3,8

Peru Movistar 28 Sri Lanka Mobitel 3,8

Poland T-Mobile (DT) 20 Sweden Telia 20

Portugal Altice 20 Switzerland Swisscom 20

Portugal Vodafone 8,20 Thailand AIS 8

Portugal NOS 3,20 Thailand True 8

Romania Vodafone 20 Turkey Turkcell 20

Russia MegaFon 3,8,20 Turkey Vodafone 8,20

Russia MTS 3 UAE DU 20

Saudi Arabia Zain 3 UAE Etisalat 20

Saudi Arabia Mobily 20 Ukraine Kyvistar 3

Saudi Arabia STC 12 Ukraine Vodafone 3

Singapore M1 8 UK Vodafone 20

Singapore StarHub 3,8 Uruguay Antel 3,28

Singapore Singtel 8 USA AT&T 2,4,12

SIMCom Wireless Solutions Confidential [Link]

LTE-M Network Deployment
Country Operator Bands Country Operator Bands Country Operator Bands

Argentina Claro 28 Germany Telefonica 20 South Korea KT 3

Argentina Movistar 4,28 Japan KDDI 18,26 South Korea LGU+ 5

Argentina Personal 4,28 Japan NTT DoCoMo 1,19 South Korea SKT 3,20

Australia Telstra 28 Japan SoftBank 1,3,8 Spain Orange 3,20

Belgium Orange 20 Latvia LMT 20 Spain Telefonica 20

Brazil Claro 3,28 Mexico ALTAN 28 Sri Lanka Dialog Axiata 8

Brazil Vivo 3,28 Mexico America Movil 4 Sweden Telenor 20

Canada Bell 12 Mexica AT&T 4 Sweden Telia 20

Canada Rogers 4,5,12 Mexica Telcel 4 Switzerland Swisscom 20

Canada Telus 2,4,5,12 Netherlands T-Mobile (DT) 8 Thailand AIS 3,8

Chile Claro 28 Netherlands KPN 20 Turkey Turkcell 3,20

Colombia Claro 5 Netherlands Vodafone 20 UAE Etisalat 5

Colombia Movistar 4 New Zealand Spark 3,28 UK O2 Telefonica 20

Colombia Telefonica 2 New Zealand Vodafone 28 Uruguay Antel 3,28

Denmark Telenor 20 Norway Telenor 20 USA US Cellular 2,4,5,12

Estonia Elisa / Peru Claro 28 USA AT&T 2,4,12

Finland DNA 3,20 Peru Entel 28 USA Verizon 4,13

France Bouygues Telecom 20 Peru Movistar 4 USA Sprint 25

France Orange 20 Romania Orange 3

Germany Deutsche Telecom 8,20 Singapore Singtel 3,8

SIMCom Wireless Solutions Confidential [Link]

SIMCom LPWA Module Family
Introduction

SIMCom Wireless Solutions Confidential [Link]

LPWA Module Family Roadmap

SIM7070X
• 24.0*24.0mm NEW! SIM7070G-HP-S
• CAT-M/NB2/EGPRS • 24.0*24.0mm
• Embedded GNSS • CAT-M/NB2/EGPRS
CAT-M/NB/ • 3GPP Rel -14 SIM7090G • Embedded GNSS
SIM7000X • -G/-E(LTE 450MHz support ） • CAT-M/NB2 SIM7075G
EGPR/ • IOT NTN
• 24.0*24.0mm • Embedded GNSS  LAG, 102PIN
GNSS
• CAT-M/NB1/EGRPS SIM7080G • Super small size  23.6*19.9*2.2mm
• Embedded GNSS • 17.6*15.7mm 14.8*12.8 mm  CAT-M/NB-IoT/2G
• 3GPP Rel-13 • CAT-M/NB2 • 3GPP Rel-14  SA Version
• -C/-A/-E/-JC/-G • Embedded GNSS • Global Version
• 3GPP Rel-14
 Global Version

Y7080E
NB+GNSS  LCC+LGA 77PIN
 17.6* 15.7* 2.3mm
 NB-IoT +GNSS

R7072/R7070
NB+2G
• 24.0x24.0mm
• NB-IoT +2G

SIM7022
Y7028 •17.6x15.7mm Y7080E-L NEW! SIM7022-S
 17.6* 15.7* 2.3mm • NB-IoT only  17.6* 15.7* 2.3mm
•17.6x15.7mm
NB  NB-IoT • Global version • NB-IoT only
 NB-IoT Only • IOT NTN
only

2021 2022 2023

SIMCom Wireless Solutions Confidential [Link]

SIM7000 Module Family Overview

Specification In Production

SIM7000C SIM7000E SIM7000A

CAT-M/NB/EGPRS CAT-M/NB/EGPRS CAT-M/NB

CAT-M/NB1/EGPRS GNSS GNSS GNSS
GNSS China EMEA North America
LCC 24* 24* 2.6mm LCC 24* 24* 2.6mm LCC 24* 24* 2.6mm

SIM7000G SIM7000JC
SIM7000X Series
Mini PCIe
available

CAT-M/NB/EGPRS CAT-M/NB
GNSS GNSS
Global Japan
LCC 24* 24* 2.6mm LCC 24* 24* 2.6mm

SIMCom Wireless Solutions Confidential [Link]

SIM7000 Module Family Overview

Model P/N SIM7000E SIM7000A SIM7000JC SIM7000G

Package LCC 17.6*15.7*2.6mm

CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/
B17/
CAT-M:B3/B8/B20/B28 CAT-M:B2/B4/B12/B13 CAT-M:B1/B3/B5/B8/B18/B19/B26
B18/B19/B20/B26/B28/B39;
Bands CAT-NB:B3/B8/B20/B28 CAT-NB:B2/B4/B12/B13 CAT-NB:B1/B3/B5/B8/B18/B19/B26
CAT-NB ： B1/B2/B3/B5/B8/B12/B13/B17/
EGPRS: 900/1800Mhz
B18/B19/B20/B26/B28;
EGPRS: 850/900/1800/1900Mhz

CAT-M: UL375kbps, DL300kbps CAT-M: UL375kbps, DL300kbps CAT-M: UL375kbps, DL300kbps CAT-M: UL375kbps, DL300kbps
Data rates NB-IoT: UL66kbps, DL 34kbps NB-IoT: UL66kbps, DL 34kbps NB-IoT: UL66kbps, DL 34kbps NB-IoT: UL66kbps, DL 34kbps
EGPRS: UL236.8Kbps,DL236.8Kbps EGRPS: UL236.8Kbps, DL236.8Kbps EGPRS: UL236.8Kbps, DL236.8Kbps EGPRS: UL236.8Kbps, DL236.8Kbps

Voice Supported Supported Supported Supported

EAT Supported Supported Supported Supported

Embedded
Supported Supported Supported Supported
SIM

Interfaces USB2.0/UART/SIM/I2C/GPIO/ADC/PCM USB2.0/UART/SIM/I2C/GPIO/ADC/PCM USB2.0/UART/SIM/I2C/GPIO/ADC/PCM USB2.0/UART/SIM/I2C/GPIO/ADC/PCM

TCP/UDP/LWM2M/COAP/MQTT/FTP/ TCP/UDP/LWM2M/COAP/MQTT/FTP/ TCP/UDP/LWM2M/COAP/MQTT/FTP/ TCP/UDP/LWM2M/COAP/MQTT/FTP/

Protocols
HTTP/TLS/DTLS/NTP HTTP/TLS/DTLS/NTP HTTP/TLS/DTLS/NTP HTTP/TLS/DTLS/NTP

CE/RCM/IMDA/GCF/KC*/ CCC/CE/RCM/FCC/IC/GCF/
FCC/IC/PTCRB/GCF/ JATE/TELEC/
Certifications
Deutsche Telekom/VDF*/TELSTRA/ AT&T/Verizon/ DoCoMo/KDDI/SoftBank*/
ANATEL/
SPARK/KT*/LGU*/ Deutsche Telekom/
RoHS/REACH RoHS/REACH/
RoHS/REACH/ RoHS/REACH/

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7070/7080/7090 Module Family Overview

Specification In Production

SIM7070G

SIM7080G SIM7090G
CAT-M/NB2/EGPRS Triple Mode
GNSS
CAT-M/NB2/EGPRS LCC 24* 24* 2.3mm
GNSS

SIM7070E CAT-M/NB2 Dual Mode

CAT-M/NB2 Dual Mode
GNSS
GNSS
LGA 14.8* 12.8* 1.9mm
LCC+LGA 17.6* 15.7* 2.3mm SIM7070X Series
Mini PCIe
available

CAT-M/NB2/EGRPS Triple Mode

LTE 450MHz Support
GNSS
LCC 24* 24* 2.3mm

SIMCom Wireless Solutions Confidential [Link]

SIM7070 Module Family Overview
Model P/N SIM7070G Series

LCC 68PIN
Package
24* 24* 2.3 mm

Network
Cat M/NB2/EGPRS
Multi Mode

Product Variants -MN( Cat M/NB2) /-M (Cat M only/-HP ( Tx Power @Class 3 )

CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
Bands CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
SIM7070 Series EGPRS ： 850/900/1800/1900MHz

Cat-M: UL1119Kbps DL589Kbps

Date Rates NB-IoT: UL158.5Kbps DL127Kbps
EGPRS: Compatible with MCS 12

Power
SIM7070G Series : Approx 3.2u@PSM mode
Consumption

Power Supply -G/-MN/-M: 3.0~4.6V

Range -HP: 3.0-4.5V

GNSS Supported (GPS, GLONASS, BeiDou, Galileo, QZSS)

24.0x24.0x2.3mm Voice
VoLTE over Cat M
CSFB over GSM

Compatible Design SIM7000/SIM800F/SIM900 Series

EAT Supported

Embedded SIM Supported

Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0

Protocols TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/LWM2M/COAP/MQTT

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7070/SIM7080/SIM7090 Series Module Block Diagram

RF Configuration
- Covering all Global regions’ main frequency bands
to meet customer’s different requirements Chipset Platform Key features
- SIM7070G triple mode Cat-M1/Cat-NB2/EGPRS
SIM7070E for supporting 450MHz LTE network - Multi-Mode LTE Cat. M 1 ,LTE
- SIM7080G dual mode Cat-M1/Cat –NB2 RF Cat.NB2 ，
- SIM7090G dual mode Cat-M1/Cat-NB2 Section and EGPRS triple mode
- Integrated GNSS
- Integrated Cortex A7 support ThreadX
Baseband and AliOS
- Integrated RAM and Flash

PMU
Power Management
- Complete power management
and clock tree solution
- Efficient power management

SIMCom Wireless Solutions Confidential [Link]

SIM7070 Module Family Overview
Model P/N SIM7070G SIM7070G-MN SIM7070G-M SIM7070G-HP

Package LCC 68PIN 24* 24* 2.3 mm

Tx Power Power Class 5, 21dbm Power Class 5, 21dbm Power Class 5, 21dbm Additional PA （ Power Class 3, 23dbm ）

FLASH Integrated Integrated Integrated Integrated

CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/
CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/ CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/
B18/B19/B20/B25/B26/B27/B28/B66/B85
B18/B19/B20/B25/B26/B27/B28/B66/B85 CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/B66/B85
Bands CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/
CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B18/B19/B20/B25/B26/B27/B28/B66/B85 CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/
B19/B20/B25/B26/B28/B66/B71/B85
B19/B20/B25/B26/B28/B66/B71/B85 B19/B20/B25/B26/B28/B66/B71/B85
EGPRS ： 850/900/1800/1900MHz

Cat-M: UL1119Kbps DL589Kbps

Cat-M: UL1119Kbps DL589Kbps Cat-M: UL1119Kbps DL589Kbps
Data rates NB-IoT: UL158.5Kbps DL127Kbps Cat-M: UL1119Kbps DL589Kbps
NB-IoT: UL158.5Kbps DL127Kbps NB-IoT: UL158.5Kbps DL127Kbps
EGPRS: Compatible with MCS 12

Voice Yes Yes Yes Yes

GNSS Yes Yes Yes Yes

EAT Yes Yes Yes Yes

Embedded
Supported Supported Supported Supported
SIM

Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0 UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0 UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0 UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0

TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/ TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/ TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/ TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/

Protocols
PING/LWM2M/COAP/MQTT PING/LWM2M/COAP/MQTT PING/LWM2M/COAP/MQTT PING/LWM2M/COAP/MQTT

FCC/IC/CE/RCM/NCC/CCC/NAL/SRRC/ FCC/IC/CE/RCM/NCC/CCC/NAL/SRRC/ FCC/IC/CE/RCM/NCC/CCC/NAL/SRRC/

ANATEL*/PTCRB/GCF/ ANATEL*/PTCRB/GCF/ ANATEL*/PTCRB/GCF/
KC*/GCF*/
AT&T/Verizon*/TMO-US/US Cellular/ AT&T/Verizon*/TMO-US/US Cellular/ AT&T/Verizon*/TMO-US/US Cellular/
Certifications Telestra*/
VDF*/Deutsche Telekom/Orange*/TIM*/ VDF*/Deutsche Telekom/Orange*/TIM*/ VDF*/Deutsche Telekom/Orange*/TIM*/
RoHS*/REACH*
Telefonica*/ Telefonica*/ Telefonica*/
RoHS/REACH RoHS/REACH RoHS/REACH

（ * ） on going
SIMCom Wireless Solutions Confidential [Link]
SIM7070E Module Overview
Model P/N SIM7070E Series

LCC 68PIN
Package
24* 24* 2.3 mm

Network
Cat M/NB2/EGPRS
Multi Mode
SIM7070E
Product Variants -MN (Cat M/NB2)

CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/
B19/B20/B25/B26/B27/B28/B31/B66/B72/B85/B87/B88
Bands CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B25/B26/B28/B31/B66/B85/B87/B88
EGPRS ： 850/900/1800/1900MHz

Cat-M: UL1119Kbps DL589Kbps

Data rates NB-IoT: UL158.5Kbps DL127Kbps
EGPRS: Compatible with MCS 12
24.0x24.0x2.3mm
Power
3.2u@PSM mode
Consumption

Power Supply
3.2~4.2V
Range
Main Feature ：
• LCC Form Factor ,24.0x24.0x2.3mm GNSS Supported ((GPS, GLONASS, BeiDou, Galileo, QZSS)
• CAT-M/NB2/EGPRS triple mode Voice VoLTE over Cat M
• Embedded GNSS receiver
• Compatible with SIM7070G design Compatible Design SIM7000/SIM7070G Series
• Frequency Bands
EAT Supported
• Global version
• LTE 450MHz network Support Embedded SIM Supported
• CAT M – B31 and B72
• NB2- B31 Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0
• Power Class 2 in B31 /B72
Protocols TCP/UDP/HTTP/TLS/DTLS/PING/LWM2M/COAP/MQTT
• LTE 410MHz network Support
• CAT M – B87 and B88 Certifications CE/FCC*/ANATEL*/RoHS/REACH
• NB2- B87/B88

SIMCom Wireless Solutions Confidential [Link]

SIM7080 Module Family Overview
Model P/N SIM7080G Series

LCC+LGA 77PIN
Package
17.6* 15.7* 2.3mm

Network
Cat M/NB2
Multi Mode

Product Variants -M (Cat M only)

CAT-M:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/
SIM7080 Series B25/B26/B27/B28/B66/B85
Bands
CAT-NB ： B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/
B26/B28/B66/B71/B85

Cat-M: UL1119Kbps DL589Kbps

Date rates NB-IoT: UL158.5Kbps DL127Kbps
EGPRS: Compatible with MCS 12

Power
3.2u@PSM mode
Consumption

Power Supply
2.7~4.8V
Range

GNSS Supported (GPS, GLONASS, BeiDou, Galileo, QZSS)

17.6x15.7x2.3mm
Voice VoLTE for Cat M

Compatible Design SIM7020/SIM800C Series

EAT Supported

Embedded SIM Supported

Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0

Protocols TCP/UDP/HTTP/TLS/DTLS/PING/LWM2M/COAP/MQTT

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7090 Module Overview
Model P/N SIM7090G

LCC+LGA 77PIN
Package
14.8* 12.8* 1.8mm

Network
Cat M/NB2
Multi Mode

CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/
SIM7090G Bands
B26/B27/B28/B66/B85
CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/
12.8 mm B66/B71/B85

Cat-M: UL1119Kbps DL589Kbps

Data rates
Cat-NB2: UL158.5Kbps DL127Kbps

Power
14.8mm 3.2u@PSM mode
Consumption

Power Supply
2.7~4.8V
Range

GNSS Supported (GPS, GLONASS, BeiDou, Galileo, QZSS)

14.8x12.8x1.8mm Voice VoLTE over Cat M

EAT Supported

Embedded SIM Not Supported

Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0

Protocols TCP/UDP/HTTP/TLS/DTLS/PING/LWM2M/COAP/MQTT

FCC/IC/CE/RCM/JATE/TELEC/GCF/PTCRB/
Certifications AT&T/VERIZON*/TMO/US Cellular/DT/
RoHS/REACH

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7075 Module Overview
Model P/N SIM7090G

LCC+LGA 102 PIN

Package
19.9x23.6x2.2mm

Network
Cat M/NB2
Multi Mode

SIM7075G Bands
CAT-M:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
CAT-NB2:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
19.9 mm
Cat-M: UL1119Kbps DL589Kbps
Data rates
Cat-NB2: UL158.5Kbps DL127Kbps

Power
23.6mm 3uA@PSM mode
Consumption

Power Supply
3.3V ～ 4.3V. Default :3.8V
Range

GNSS Supported (GPS, GLONASS, BeiDou, Galileo, QZSS)

19.9x23.6x2.2mm Voice VoLTE over Cat M

EAT Supported

Embedded SIM Supported

Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0

Protocols TCP/UDP/HTTP/TLS/DTLS/PING/LWM2M/COAP/MQTT

Certifications FCC/ANATEL

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7022 Module Overview

Specification In Production

SIM7022

NB-IoT Only

NB-IoT only
Global
LCC 17.6*15.7mm

SIMCom Wireless Solutions Confidential [Link]

SIM7022 Module Specification

Model P/N SIM7022

Platform Qualcomm 212

LCC 42PIN
Package
17.6* 15.7* 2.3 mm
SIM7022
Network Mode NB-IoT only

NB:B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/
Bands
B26/B28/B66/B70/B85

Data rates UL 159 Kbps/DL 127 Kbps (Rel.14 NB2)

Power
0.8uA @PSM mode
Consumption

Power Supply
2.2~4.2V
17.6x15.7x2.3mm Range

GNSS Not supported

Compatible Design SIM7020X/SIM800C series

EAT Supported

Embedded SIM Supported

Main Feature:
Interfaces UART/SIM/ANT/NETLIGHT/RI/Reset/ADC/WAKEUP
• Super Low power consumption
• Wide operating voltage 2.2~4.3V HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/
• High integration Protocols
COAP/MQTT/MQTTS
• P2P Compatible with SIM7020X/SIM800C
CE/FCC/RCM/GCF*/
Certifications Telefonica*/Deutsche Telekom*
RoHS/REACH

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

SIM7022 Module Highlight

Power
consumption
mA 1 Lower power consumption

9uA

2
@ PSM mode
Less BOM cost

3.2uA

0.8uA

3 Wider operating voltage

MDM9206 MDM9205 QCX212

SIMCom Wireless Solutions Confidential [Link]

R7072/R7070 module Overview

Specification In Production

R7070/R7072

NB-IoT + 2G

NB-IoT/GSM dual mode

NB B1/3/5/8/20/28
LCC 24* 24* 2.5mm

SIMCom Wireless Solutions Confidential [Link]

R7072/R7070 module Overview

Item R7070 R7072

Platform LCC 68PIN 24* 24* 2.5 mm LCC 68PIN 24* 24* 2.5 mm

Cat-NB B3/B5/B8/B20/B28 Cat-NB B3/B5/B8/B20/B28

Bands
GSM 900/1800MHz GSM 900/1800MHz

NB: 21.25Kbps(DL),15.625Kbps(UL) NB: 21.25Kbps(DL),15.625Kbps(UL)

Data rates
GPRS ： 171.2Kbps(DL),171.2Kbps(UL) GPRS ： 171.2Kbps(DL),171.2Kbps(UL)

Embedded
Supported Supported
SIM

Interfaces UART/GPIO/SIM/ANT UART/GPIO/SIM/ANT

TCP/UDP/HTTP/HTTPS TCP/UDP/HTTP/HTTPS
Protocols TLS/DTLS/PING/LWM2M/COAP/MQTT TLS/DTLS/PING/LWM2M/COAP/MQTT
FOTA FOTA

TCP/UDP/HTTP/HTTPS TCP/UDP/HTTP/HTTPS
Protocols TLS/DTLS/PING/LWM2M/COAP/MQTT TLS/DTLS/PING/LWM2M/COAP/MQTT
FOTA FOTA

SRRC/NAL*/CCC*/RoHS/REACH
Certifications CE/RoHS/REACH
CE

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

R7072/R7070 module Overview
Feature Implementation

R7072/R7070 Power supply Powersupply voltage 3.4V ～ 4.2V. Default :3.8V

Power saving Current inPSM mode: 4.5uA

Cat-NB B3/B5/B8/B20/B28
Radio frequency bands
GSM 900/1800MHz
GSM/GPRSpower class: --EGSM900:4 (2W)-- DCS1800:1
Transmitting power
(1W)LTE power level: 3 (0.25W)

Data Transmission GPRS: 85.6Kbps(UL)85.6Kbps(DL)NB-IOT ： NB1/NB2 ：

Throughput 127Kbps (DL)NB1/NB2 ： 158.5Kbps (UL)
24x24x2.5 mm
Anten Main antenna.

SIM interface Support 1.8Vor 3V card

analogaudio feature Support MIC and RECinterface.

Support for serial data bus SPI, only used during DAM
SPI interface
application secondary development.
Onechannel full-function UART1by defaultcan be used for AT
[Link] 2400,4800, 9600, 14400, 19200, 28800,
38400, 57600bps, default rate is 9600 bps, you can use AT
UART interface command to set rate. R7072 not support auto rate. Support
RTS/CTS hardware [Link] 2-wire UART2 and
UART3 only used as UART in DAM application when secondary
development.

Firmware Firmware upgrade over DEBUGE UARTinterface

Physical characteristics Size:24*24*2.5mmWeight:2.7±0.2g

Normal operation temperature: -20℃~ +70℃Extended operation

Temperature range
temperature ： -40℃~ +85℃Storage temperature -40°C to +90°C

（ * ） on going
SIMCom Wireless Solutions Confidential [Link]
Y7080 Module Family Overview

Specification In Production

Y7080E

NB-IoT+GNSS
NB-IoT
NB B3/5/8/20/28
LCC+LGA 17.6×15.7×2.4 mm
GPS: Support
GPS/GLONASS/Galileo*

Y7080E(-L)

NB-IoT Only

NB-IoT
NB B3/5/8/20/28
LCC+LGA 17.6×15.7×2.4 mm

SIMCom Wireless Solutions Confidential [Link]

Y7080E Module Specification

Model P/N Y7080E

Package LCC+LGA 17.6×15.7×2.4 mm

FLASH internal
Y7080E
Bands NB B3/5/8/20/28

Data rates CAT NB2: 136 Kbps (DL) ,150 Kbps (UL)

GNSS GPS/GLONASS/Galileo*

EAT Supported

Power Supply
3.0V ～ 4.2V
Range

Power
~1 uA @ PSM
Consumption

Operating
-40~85℃
17.6x15.7x2.3mm Temperature

Embedded SIM Supported

Interfaces UART/GPIO/SIM/ADC/I2C/SPI/ANT/LDO

TCP/UDP/HTTP/DNS/NTP/PING/TLS*/DTLS*
Main Feature: LWM2M*/COAP/MQTT
• Super Low power consumption Protocols OneNET
• ~1uA@PSM DFOTA
• High integration, Low cost price
• GPS: Support GPS/GLONASS/Galileo* CE-RED*/UKCA*/Reach*/Rohs*/GCF*
Certifications /Vodafone*/Telefonica*/Orange*UKCA*
• P2P Compatible with SIM7080

（ * ） on going

SIMCom Wireless Solutions Confidential [Link]

Y7080E Series Module Block Diagram

SIMCom Wireless Solutions Confidential [Link]

 IOT NTN
NTN (non-terrestrial network, non-terrestrial network) is a direct communication technology between
terminal and satellite based on new air port technology developed by 3GPP in R17 stage.

SIMCom Wireless Solutions Confidential [Link]

SIMCom Wireless Solutions Confidential [Link]
SIMCom Wireless Solutions Confidential [Link]
SIM7070G-HP-S Promotion plan- Emergency communication/Tracking

Model P/N SIM7070G-S Series

LCC 68PIN
Package
24* 24* 2.3 mm

Network
Cat M/NB2/EGPRS
Multi Mode

Product Variants -MN( Cat M/NB2) /-M (Cat M only/-HP ( Tx Power @Class 3 )

CAT-M ： B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/
B85
Bands
CAT-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
EGPRS ： 850/900/1800/1900MHz

NTN Supported

Cat-M: UL1119Kbps DL589Kbps

Date Rates NB-IoT: UL158.5Kbps DL127Kbps
EGPRS: Compatible with MCS 12

Power
SIM7070G Series : Approx 3.2u@PSM mode
Consumption
24.0x24.0x2.3mm
Power Supply -G/-MN/-M: 3.0~4.6V
Range -HP: 3.0-4.5V
GNSS Supported (GPS, GLONASS, BeiDou, Galileo, QZSS)
VoLTE over Cat M
Voice
CSFB over GSM

Compatible Design SIM7000/SIM800F/SIM900 Series

EAT Supported
Embedded SIM Supported
Interfaces UART/PCM/I2S/SPI/I2C/GPIO/ADC/USB2.0
Protocols TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/LWM2M/COAP/MQTT
SIMCom Wireless Solutions Confidential [Link]
SIM7022S Promotion plan- Tracking

Model P/N SIM7022S

LCC 42PIN
Package
17.6* 15.7* 2.3 mm

Network NB-IoT only

Multi Mode 3GPP Rel.14

NB:B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/
Bands
B26/B28/B66/B70/B85

17.6x15.7x2.3mm
NTN Supported

Date rates UL 159 Kbps/DL 127 Kbps (Rel.14 NB2)

Power
0.8uA @PSM mode
Consumption

Power Supply
2.2~4.2V
Range

Compatible Design SIM7020X/SIM800C Series

EAT Supported

Embedded SIM Supported

Interfaces UART/SIM/ANT/NETLIGHT/RI/Reset/ADC/WAKEUP

TCP/UDP/HTTP(s)/TLS/SSL/DTLS*/DNS/NTP*/PING*/PPP*/LwM2M/COAP/
Protocols
MQTT(s)/FOTA

SIMCom Wireless Solutions Confidential [Link]

SIM7022S(QCX212S)+SIM9650(QCM6490) Promotion plan- Smart helmet/Robot

SIMCom Wireless Solutions Confidential [Link]

NTN Application
1. For customers, taking advantage of the strong coverage capability of NTN network, we can theoretically build a full-time public emergency
communication network based on mobile phone direct connection, provide ubiquitous communication network services, create global ubiquitous
connections in remote areas, oceans, civil aviation, and provide full scene services such as SMS, voice, Internet of things, public emergency
communications, wide area Internet of things, etc.

2. Facing the industry, through the deep integration of the two major industry chains of cellular communications and satellite communications, the
form of IoT terminals connected to satellites will develop in the direction of low cost, miniaturization, low power consumption and other ease of use,
so that smartphones can be directly connected to satellites, resulting in economies of scale and driving down the price of satellite connections.

3. For operators, it provides a low-cost and wide coverage scheme, which does not need to build and maintain cellular base stations in remote areas
with sparse users, sea surface and other areas, which can significantly reduce the number of base stations and centralized deployment, thereby
reducing the network construction and operation and maintenance costs of operators.

Intelligent container Tracking of valuable animals

Emergency communication

(military) drones, etc. Ship tracking / communication Bird tracking

SIMCom Wireless Solutions Confidential [Link]
Compatibility Design
4G
24x24mm NB-IoT
eMTC

17.6x15.7mm

SIM7080
SIM7000

Pin to Pin compatible

Pin to Pin compatible

SIM7070 SIM7020

NB-IoT
eMTC
SIM7060
SIM868

SIM800F
SIM800C

2G
2G
SIMCom Wireless Solutions Confidential [Link]
Technical Information & Evaluation Board Kit

SIMCom provide the following ：

• EVK
Hardware • Antenna/Adapter

• OpenCPU SDK
Software • AT Command List Documents/Sample Code

• Hardware Design
Support • Reference Design &User Guide
• PCB Layout Suggestion

• Debug Tools
Tool • Window/Linux Driver
• Mass Production Tool

SIMCom Wireless Solutions Confidential [Link]

Use Case& Applications

SIMCom Wireless Solutions Confidential [Link]

Massive application scenario enabled by LPWA Technology

LTE-M Cat-NB1/NB2
LTE
IoT
Market

Push-to-Talk Wearable Asset trackers Smart Parking Sensors Utility meters Smart City

Health monitors Security systems Vendor machines

Security systems Security systems Agriculture monitors

• Middle and Low data rate • Low data rate

• Mobility • Wide coverage
• Voice • Ultra low power consume

Optimizing for the broadest range of IoT applications with VoLTE &mobility support Providing extreme optimizations for low-throughput ,delay-tolerant IoT use cases

SIMCom Wireless Solutions Confidential [Link]

Typical IoT application architecture for LPWA Modules

LCD DSI

MQTT IoT service

MCU
MQTT

LPWA eNB
Sensors I2C UART Module
IoT server

HTTPS
HTTPS

Flash QSPI

Key Functions

• Update data to Server

• Receive the message from Cloud
• Data transmission by TLS security technology
• Update firmware by FOTA
• AT Command support (3GPP TS 27.007,27.005 and
SIMCOM enhanced AT command )

SIMCom Wireless Solutions Confidential [Link]

Smart Metering

Block Diagram

UART
Screen NB-IoT
Module

ADC MCU RTC

Sensor

Key application requirement :

• Low power consumption required

• Above 5-years Battery cycle
• Wide operating voltage
• Complex working environment
• Low cost

SIMCom Wireless Solutions Confidential [Link]

Smart Smoke detector

Block Diagram

UART
Gas I2C NB-IoT
Sensor Module

MCU

Key application requirement :

• Low power consumption required

• Stable and strong cellular connectivity
• Wide operating voltage
• Local / Remote alarming

SIMCom Wireless Solutions Confidential [Link]

Smart Lock

Block Diagram

Server

LDO

Motor PWM NB-IOT

switch MCU
BLE

switch

Key application requirement :

• Low power consumption required

• Use mobile phone to open the door instead
• Not necessary to install IoT Gateway
• Security

SIMCom Wireless Solutions Confidential [Link]

Smart Parking
Block Diagram

UART NB-IoT
Module
I2C
GDS
Sensor MCU

Server
1

Key application requirement : Update data to Server

2 Management
NB-IoT
• Low power consumption required
• 10-years Battery cycle eNB 3
• Strong and Good Cellular module performance
Parking
Guide Screen
Show available lots

Mobile Apps
SIMCom Wireless Solutions Confidential [Link]
GPS Tracker
Block Diagram

SPI
LCD
I2C screen
Sensor
I2C
Battery
MCU
GPIO Control IC
Button GNSS
UART
LPWA
Module

Key application requirement :

• Low power consumption required

• Fewer PCB space
• Different wireless technologies combine into
one module

SIMCom Wireless Solutions Confidential [Link]

Thank you
[Link]

Address ： SIMCom Headquarters Building, Building 3, No. 289 Linhong Road,

Changning District, Shanghai [Link] , 200335
Tel.: +86 21 31575100
Email: simcom@[Link]
Website: [Link]

SIMCom Wireless Solutions

- All rights reserved
SIMCom Wireless Solutions Confidential [Link]
