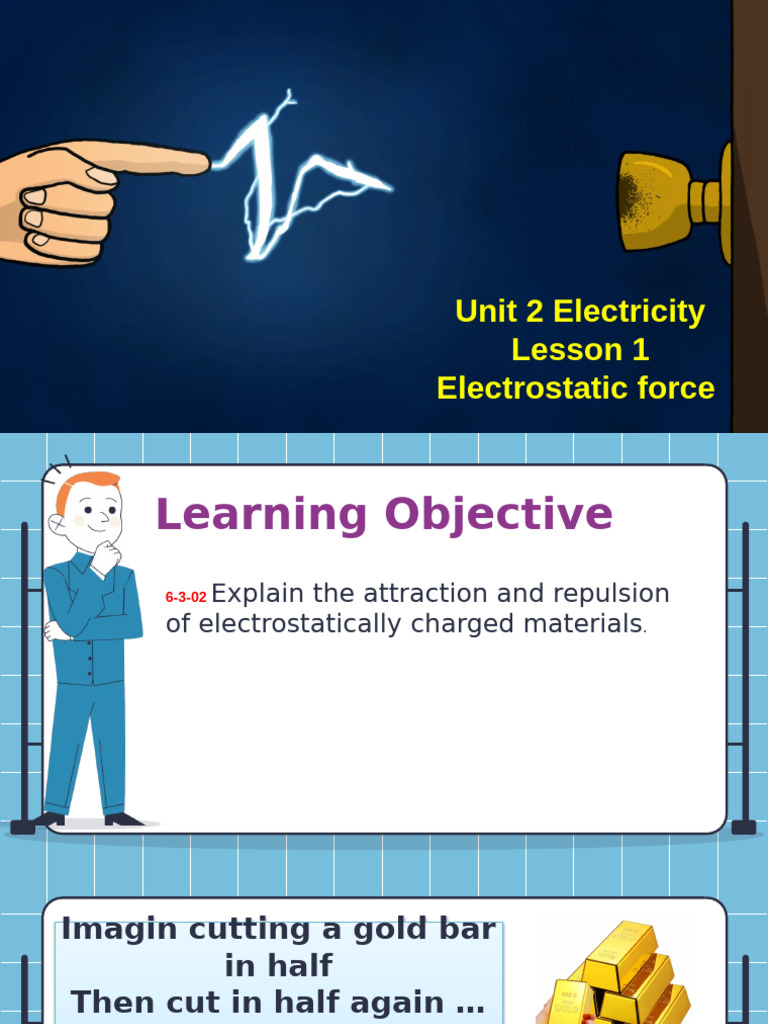

Unit 2 Electricity

Lesson 1
Electrostatic force
Learning Objective
Explain the attraction and repulsion
6-3-02

of electrostatically charged materials.

Imagin cutting a gold bar
in half
Then cut in half again …
and again …..
and again …….

How small could you cut

up the gold and still be a
gold.
What is the atom?
The smallest unit of matter.
The atom
The atom contains:
2. The nucleus
contains both
1. The nucleus
protons with
in the middle
positive charge
of the atom
( P+) and neutrons
and more
with no charge (n)
dense
zero charge

3. The electrons with

negative charge ( e-)
revolving around the
nucleus
Particles In An Atom
Neutron

Proton Electron

Nucleus
of atom
The Atom
The main atomic parts are:

1. The Protons (P+)

2. The neutrons with no charge (n) zero charge

3. The electrons with negative charge ( e-)

Properties of atomic Particles
Charge and number
of the particles

+ N -

Proton Neutro Electro

n n
Properties of atomic Particles
●The atom is electrically neutral??
→ Bec, the number of Negative (-ve)
electrons that rotate around the nucleus
is equal to the number of Positive (+ve)
protons in the nucleus.
What is
the
electrostat
ic force?
https://www.youtube.com/watch?v=t
qdkJ2-7I8c
electrostatic force
Most objects are neutral, meaning
they have the same number of positive and negative
charges. When two objects touch or nearly touch,
charged particles can move from one object to the other
electrostatic force

When we rub the balloon with the

Charged balloon with negative
woolen sweeter the electrons will
electrons
jump to the balloon and the balloon
will be charged
electrostatic force

If you put the balloon near to

another neutral object the
electrons will attract the
positive charge on the
neutral object .
Why ?
electrostatic force

The dislike charges attract

The like charges Repel

electrostatic force
It is a non-contact force that moves objects
as objects can attract or repel other objects
depending on their charge.
electrostatic force
Today’s
Item 1Goals
Item 2
Identify the static electricity
Learn how the lightening formed
Static electricity

• A static charge
happens when 2
surfaces touch
each other and
electrons move
from one object to
the other due to
friction.
Where do charges come from?
When a balloon rubs a piece of wool...
electrons are pulled from the
– +
wool to the balloon.
– +
–
+ The balloon has more electrons than
–
– usual.
– +
woo + The balloon: – charged,
l
The wool: +charged
Examples
These are all examples of static
electricity.
1. How many of you have walked across the carpet and felt a little shock
when you touched a doorknob?
2. Have you ever gone down a slide and had your hair look like this?
3. Have you ever seen lightning during a storm?
How the lightening formed?
Watch video

● https://www.youtube.com/watch?v=ZR0O1wodx
yE
Today’s
Item 1Goals
Item 2
Sources of the electric current

Types of Electric Current

Watch video

1. https://www.youtube.com/watch?v=vXW42TRI
q1Y
How is the electric
current

generated?
It is caused by a flow of tiny particles
called electrons through a material.
Electric Current
It is a flow of electric charges
(Electrons) along a conducting
material (wire).
Electric Current
It is a flow of electric charges
(Electrons) along a conducting
material (wire).
Electric Current
It is a flow of electric charges
(Electrons) along a conducting
material (wire).
Electric Current
It is a flow of electric charges
(Electrons) along a conducting
material (wire).
Electric Current
It is a flow of electric charges
(Electrons) along a conducting
material (wire).
What are the sources of electricity?

1.Main electricity.(Alternating current AC )

2.Electric cells.(Direct current DC)

what’s the difference?

Main Electricity
• Generated by power stations.
• Delivered to homes and factories
through wires.
• Finally connected to main sockets.
• Supplies a lot of electrical energy.
Electric Cells

• Used in many portable electrical

devices.
• Supplies small amount of energy.
Types of the
electric current

VV
Direct Electric Alternating Electric
Current (D.C) Current (A.C)
Sources of the
electric current
Direct Electric Alternating Electric
Current (D.C) Current (A.C)
Produced by battery Produced by Electric
Electrochemical Cells Generators
Types of the
electric current
Direction
Direct Electric Alternating Electric
Current (D.C) Current (A.C)
electrons move in just one electrons move in different
direction around the circuit. directions around the circuit.
Types of the
electric current
Uses
Direct Electric Alternating Electric
Current (D.C) Current (A.C)
Classifying Appliances
How do you use a Venn diagram?

Non-electrical
Appliances
Battery-Powered Mains-Powered
Appliances Appliances

Battery- or
Mains-
Powered

Play
Can you click on the correct place the appliance should go in the
Venn diagram?
