Final doc

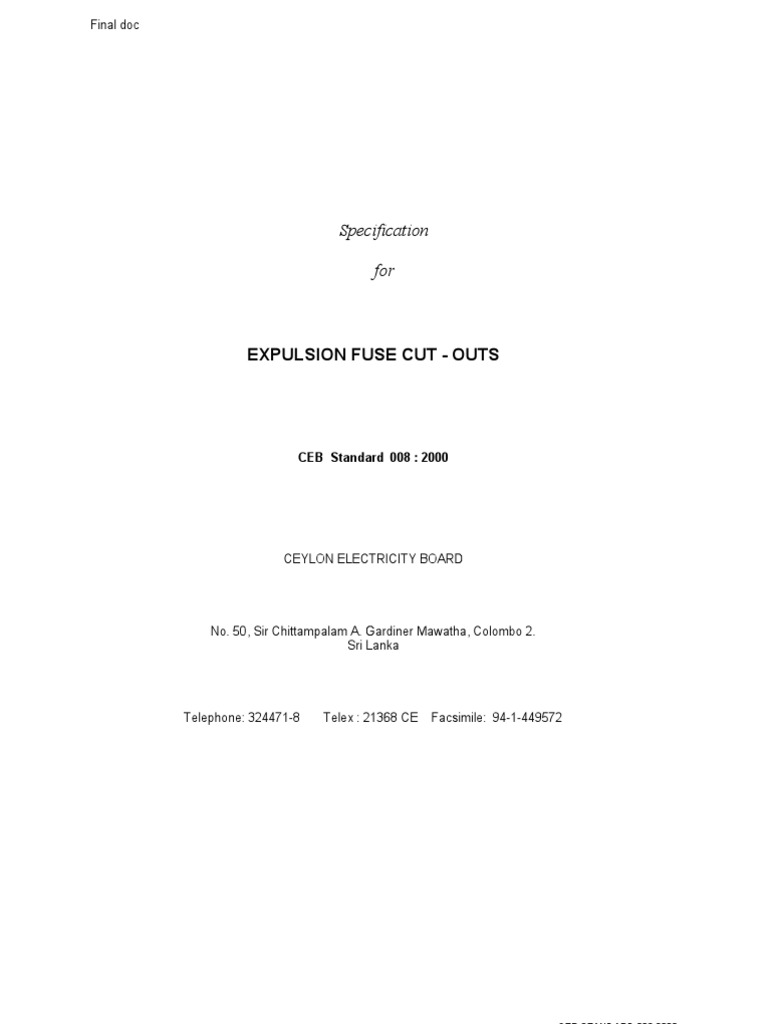

Specification for

EXPULSION FUSE CUT - OUTS

CEB Standard 008 : 2000

CEYLON ELECTRICITY BOARD

No. 50, Sir Chittampalam A. Gardiner Mawatha, Colombo 2. Sri Lanka

Telephone: 324471-8

Telex : 21368 CE

Facsimile: 94-1-449572

CEB STANDARD 008:2000

CONTENTS PAGE 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Scope System Parameters Service Conditions Applicable Standards Minimum Technical Requirements Basic Features Quality Assurance Additional Requirements Information to be supplied with the Offer Sample Inspection & Testing Technical Literature & Drawings Annex 8 8 6 7 8 8 2 2 2 2 3 4 6

SPECIFICATION FOR EXPULSION FUSE CUT - OUTS

1.0 SCOPE 1

CEB STANDARD 008:2000

This specification covers the general requirements of the design, manufacture, testing, supply and delivery of 12 kV and 36 kV Expulsion Fuse Cutouts (Drop-out Fuses) complete with fuse carriers and mounting brackets. 2.0 SYSTEM PARAMETERS (a) (b) (c) (d) (e) Nominal Voltage System highest Voltage System frequency Number of phases Method of earthing 12kV 50 Hz. 03 Effectively earthed 13.1kA rms. 11kV 36kV 50 Hz 03 Non effectively earthed 13.1kA rms 33kV

(f) 3.0

System faults level

SERVICE CONDITIONS (a) (b) (c) (d) (e) Annual average ambient temperature Maximum ambient temperature Maximum relative humidity Environmental conditions Operational altitude 30C 40C 90% Humid tropical climate polluted atmosphere. with heavily

From M.S.L. to 1500 m above M.S.L.

4.0

APPLICABLE STANDARDS The equipment and the components supplied shall be in accordance with the latest editions of the Standards specified below and amendments thereof. However the CEB Specification shall supersede these Standards in the event there is a discrepancy (a) (b) (c) IEC 282 -Part 2 (1995) IEC 71 -1 & 71 - 2 (1976) IEC 273 (1990) H.V. Fuses - Expulsion and similar fuses Insulation co-ordination. Characteristic of indoor & outdoor post lnsulators for systems with nominal voltages greater than 1000V. Common clauses for high-voltage switchgear & controlgear standards High-voltage test techniques Hot dip galvanized coatings on iron and steel articles.

(d) (e) (f)

IEC 694 (1980) IEC 60-2 (1994) BSEN1461 (1999)

5.0

MINIMUM TECHNICAL REQUIREMENTS (a) Rated Voltage 2 kV 12 36

CEB STANDARD 008:2000

(b) (c) (d)

Rated frequency Rated continuous current

Hz

50 100

50 100

Insulation level :Dry Impulse withstand (1.2kV/50 s) voltage (positive & negative polarity) (peak) i) ii) Across the isolating distance of the fuse base kV To earth and between poles kV 85 75 195 170

Wet 1 min. Power frequency withstand voltage (rms.) i) ii) Across the isolating distance of the fuse base kV To earth and between poles kV mm mm 32 28 240 84 15 80 70 720 252 15

(e) (f) (g) (h)

Total creepage distance Protected creepage distance Minimum mounting angle Interrupting rating i) ii) iii) Symmetrical interrupting rating (minimum) rms Asymmetrical interrupting rating (minimum) rms X/R Ratio

kA kA

8.0 9.6 4.0

6.8 10.0 12.0

* NOTE :

The minimum values of wet power frequency 50 Hz withstand voltages for 01 minute (one) duration should be as stipulated in Table 4 of IEC 282-2 (1995)

6.0

BASIC FEATURES 6.1 General

The Expulsion Fuse Cutouts shall be of Class A as per IEC 282-2 (1995). It shall be suitable for use in out door circuits under tropical conditions stipulated in Clause 3.0 above. 6.2 i) Design The Expulsion fuse shall be of single solid core post insulator design and have immediate drop-out action following the blowing of the fuse. 3

CEB STANDARD 008:2000

ii) iii) iv) v) 6.3 i)

It shall be suitable for mounting at an angle of 15 (minimum) to the vertical, on a single Cross Arm. The fuses shall be of expulsion type utilising reusable fuse carrier with replaceable fuse links. The continuous current rating of the Expulsion fuse cutouts shall be as stipulated in Clause 5.0 Technical Requirements. The expulsion fuse cutouts shall be suitable for use with Portable Load Interrupting Tool and shall have facilities for attaching Portable Load Interrupting Tool. Manufacture The whole unit shall be complete with mounting bracket, bolts, nuts and washers and suitable for fixing on to the channel iron cross-arm as stipulated in Clause 6.6 - Mounting Brackets. It shall be compact, light weight and robust enough to withstand shock due to frequent operation. The insulator support shall be of high impact resistant insulating porcelain. All castings such as upper and lower moving and fixed contacts, clamp type terminals, toggle mechanism shall be of phosphor bronze, silicon bronze or Silver-plated brass. The upper contacts shall be protected from any airborne contaminants. Stationary and Movable Contacts The Stationary and Movable Contact surfaces shall be silver plated to minimise the contact resistance. The upper stationary contact assembly shall be provided with a safety latch to prevent the fuse carrier from dropping due to vibration. A back up spring made out of stainless steel or phosphor bronze shall be provided to ensure constant pressure between the upper stationary contact and the upper movable contact of the fuse carrier.

ii) iii) iv) v) 6.4 i) ii) iii)

iv)

The lower stationary contact support and the fuse carrier shall be machined at the swiveling or axle point to enable the fuse carrier with the fuse link to be correctly guided into the latching position by an operating rod. The hinge at the stationary contact shall be so designed to prevent the dropping off of the fuse carrier in the drop-out position, due to shock and vibration. A suitable guiding arrangement shall be provided in the upper contact to ensure easy engagement of the fuse carrier. The Asymmetrical current ratings shall be engraved/punched on the upper metal part (contact) Terminals

v) vi) vii) 6.5

CEB STANDARD 008:2000

i)

The upper terminals shall be of Bi-metallic type, suitable to accommodate Copper/Aluminium Conductors of Sizes from 7mm to 14mm dia. The lower terminals shall be made of Brass/Bronze & Tin plated and suitable to accommodate Copper Conductors of sizes from 5mm to 8mm dia. The upper terminal shall be positioned to receive the conductor from either side or upward direction while the lower terminal shall be able to receive the conductor from either side or downward direction. The maximum temperature rise for contacts (movable and stationary) shall not be more than 40 deg.C. and for terminals the temperature rise shall not be more than 30 deg.C. Mounting Bracket The mounting bracket as indicated in the Drawing No. DS&S/08/2000 suitable for fixing the expulsion fuse cutouts on a single 100x50x6 mm channel iron cross arm without the use of any additional attachments shall be supplied.

ii)

iii) 6.6

6.7

Insulator The Single Solid core post insulator shall be of wet processed porcelain. The creepage distance shall not be less than 720 mm for 36kV and 240 mm for 12kV. The protected creepage distance shall not be less than 252 mm for 36kV and 84 mm for 12kV .

6.8

Fuse Carrier i) The fuse carrier shall be of fibreglass epoxy, or suitable insulating tubing for outdoor use with suitable inner layer for generating arc quenching gas and the outer layer of the insulating tubing shall be protected against deterioration due to Ultra-violet Radiation of the Sun. The fuse carrier shall be suitable for use with removable button head type fuse links and interrupting the fault current stipulated in Clause 5.0 above.

ii)

iii) iv)

The lower part of the fuse carrier shall be of a suitable spring loaded stainless steel flipper arranged toggle mechanism to ensure wiping action during arc interruption and fast clearance drop-out sequence. The installation and removal of the fuse carrier shall be facilitated by inserting the operating rod into a lifting eye at the hinge end (lower) of the fuse carrier when it is in the dropped out position. An operating lever eye shall be provided at the top of the carrier to facilitate a downward pull by the operating rod to release the latch incorporated in the stationary upper contact. The design of the fuse carrier shall be such that the Insulating tubing could be replaced in the event the same is damaged or burned.

v)

vi) 6.9

Galvanizing All iron and steel parts such as mounting and support brackets, bolts and nuts, washers etc. shall be galvanized after processes such as sawing, shearing, drilling, punching, filling, bending and machining are completed. Galvanizing shall be the hot-dip process to comply with the standard BS EN 1461: 1999. 5

CEB STANDARD 008:2000

7.0

QUALITY ASSURANCE The Manufacturer shall posses ISO 9001 Quality Assurance Certification for the manufacture of Expulsion Fuse Cutouts for the plant where the Manufacture of Expulsion Fuse Cutout is done. The Bidder shall furnish a copy of the ISO Certificate certified as true copy of the original by the Manufacturer, along with the offer.

8.0

ADDITIONAL REQUIREMENTS 8.1 Rating Plate Markings

The ratings and data of the Expulsion Cutout Fuse shall be provided in the rating plate, which shall be weather and corrosion proof. The main rating plate near the supporting bracket of the insulator base shall carry the following information: (a) Number and year of the Standard adopted (b) Rated voltage/Rated maximum current (c) Class designation/Manufacturer's name or trademark, (d) Asymmetrical current rating / Symmetrical current rating / X/R Ratio. (e) Year of manufacture The following information shall be marked on the fuse carrier. (a) (b) (c) (d) Manufacturer's name or trademark Rated Voltage / Rated frequency Rated maximum current Rated breaking capacity (Asymmetrical/Symmetrical current rating &X/R Ratio.

8.2

Spares

The supplier shall provide as spares, 02 (Two) numbers spare fibre tubes cut to size together with fixing components/materials (excluding the upper contact and bottom toggle mechanism) for each unit of expulsion fuse cutout supplied, enabling the purchaser to use the spare tube of the fuse carrier in the event the fibre tube of the fuse carrier is burnt. The manufactures identification shall be clearly marked on the spare tube. 8.3 Packing

The pre assembled expulsion fuse unit (Expulsion Fuse Base, Fuse Carrier and Mounting Bracket) shall be packed in a suitable hardboard box and the rated voltage of the unit shall be clearly marked on the box. Spare fibre tubing shall be supplied in suitable hardboard boxes, the quantity and the voltage rating applicable shall be clearly marked on the boxes 9.0 INFORMATION TO BE SUPPLIED WITH THE OFFER 9.1 The following information in the English Language shall be furnished with the offer. (a) (b) Catalogues describing the equipment and indicating the model number. Literature describing the operational and constructional features of the equipment and materials used for components 6

CEB STANDARD 008:2000

(c)

Overall dimensional drawings and separate dimensional drawing of the mounting arrangement, movable and stationary contacts, clamping terminals, toggle/tongue mechanism and insulator support. Drawing of nameplate to scale, incorporating the particulars called for. Completed schedule of guaranteed technical particulars (Annex A) A list of names and addresses of the major purchasers in the recent past of the Expulsion Fuses of same Type/Model indicating the quantities supplied, time of delivery.

(d) (e) (f)

9.2

Type Test Certificates The following Certificates of Type Tests carried out in accordance with the IEC 282 (1995) and IEC 60 (1994) at a reference frequency of 50 Hz where applicable shall be furnished with the offer. i) Dielectric tests; ii) Temperature rise tests; iii) Test for time /current characteristics iv) Mechanical Test Breaking tests; Symmetrical current rating Asymmetrical current rating X/R ratio 36 kV 6.8 kA 10 kA 12 12kV 8.0 kA 9.6 kA 4.0

v)

The Test Certificate shall indicate the name of the Manufacturer, Type, Model and the Serial Number of the equipment tested. The test certificates referred to, shall be issued from in a Recognized Independent Testing Authority acceptable to the Purchaser. Offers of Bidders who fail to furnish the particulars requested in Clause 9.1, 9.2 and sample as per Clause 10 shall be rejected. 10.0 SAMPLE One sample of the model offered of the expulsion fuse unit complete with fuse carrier and mounting bracket shall accompany the Bid to facilitate analysis and evaluation. One sample of spare tubing shall also be provided for each voltage rating offered. While analysing samples, the purchaser reserves the right to check dimensions, inspect workmanship, and perform tests as prescribed in relevant Standards. 11.0 INSPECTION AND TESTING 11.1 Inspection

The successful Bidder shall make necessary arrangements for inspection by an Engineer appointed by the Purchaser to carry out in his presence the necessary Sample / Acceptance tests on equipment and materials offered. Routine test reports as per IEC 282-2 shall also be made available for the observation of the Inspector. 11.2 Sample / Acceptance Tests 7

CEB STANDARD 008:2000

The following Sample / Acceptance tests as per IEC 282-2 shall be witnessed by the Representative of the Purchaser. (a) (b) (c) Dielectric tests Temperature rise tests Breaking tests Symmetrical current rating Asymmetrical current rating X/R ratio

36 kV 6.8 kA 10 kA 12

12kV 8.0 kA 9.6 kA 4.0

In the event the cost of carrying out the sample/acceptance test has to be borne by the purchaser, the bidder shall indicate the cost of such testing in the offer. These costs shall be added to the tender price for the purpose of tender evaluation. 12.0 TECHNICAL LITERATURE AND DRAWINGS All relevant drawings, technical literature, hand-books etc. required for installation, operation, and maintenance of the equipment, shall be supplied with the equipment. Routine test report shall also be supplied with the equipment.

13.0

ANNEX Annex A - Schedule of Guaranteed Technical Particulars (To be filled by the Bidders) Annex B - Expulsion Fuse Mounting Bracket Assembly Drawing No. DS&S/08/2000

CEB STANDARD 008:2000

ANNEX - A SCHEDULE OF GUARANTEED TECHNICAL PARTICULARS FOR EXPULSION FUSE CUTOUTS (To be filled by the Bidder for each type) a) b) c) d) e) f) g) h) Name of Manufacturer & Country of Origin Class Designation Model/Catalogue No Rated Voltage Rated continuous current Rated frequency Mounting Angle to the vertical Type, Size and Material of i) ii) iii) iv) i) Upper Terminal Clamps Lower Terminal Clamps Moving Contacts Fixed Contacts kV A Hz deg. 12kV 36kV

Temperature rise for i) Contact 1) Upper 2) Lower ii) Terminals 3) Upper 4) Lower

C. C. C. C. kA

j) (k)

Symmetrical / Asymmetrical (rms) interrupting rating at specified X/R ratio Insulation level :Dry Impulse withstand voltage (1.2/50 s) peak (positive & negative polarity) i) Across the isolating distance of the fuse base To earth and between poles

ii)

+kV -kV +kV -kV

Dry and wet 1 min. Power frequency 50 Hz withstand voltage kV rms. i) Across the isolating distance of the Fuse base Dry Wet To earth and between poles Dry Wet

kV kV kV kV mm 9

ii)

l)

Total creepage distance .

CEB STANDARD 008:2000

m) n) o) p) q) r)

Protected creepage distance Type of Mounting Bracket Galvanizing thickness Type Test Certificates conforming to Clause 9.2 furnished Whether 02 Nos. spare insulated fiber tubes for each fuse unit is supplied Whether the cost of sample/acceptance tests has to be borne by the Purchaser or Bidder Whether the cost of sample/acceptance tests is indicated in the Schedule of Prices, if the cost of same has to be borne by the Purchaser

mm

mm

yes/no yes/no -

yes/no

s)

Any deviations

Seal and Signature of the Manufacturer/Bidder

. Date

10
