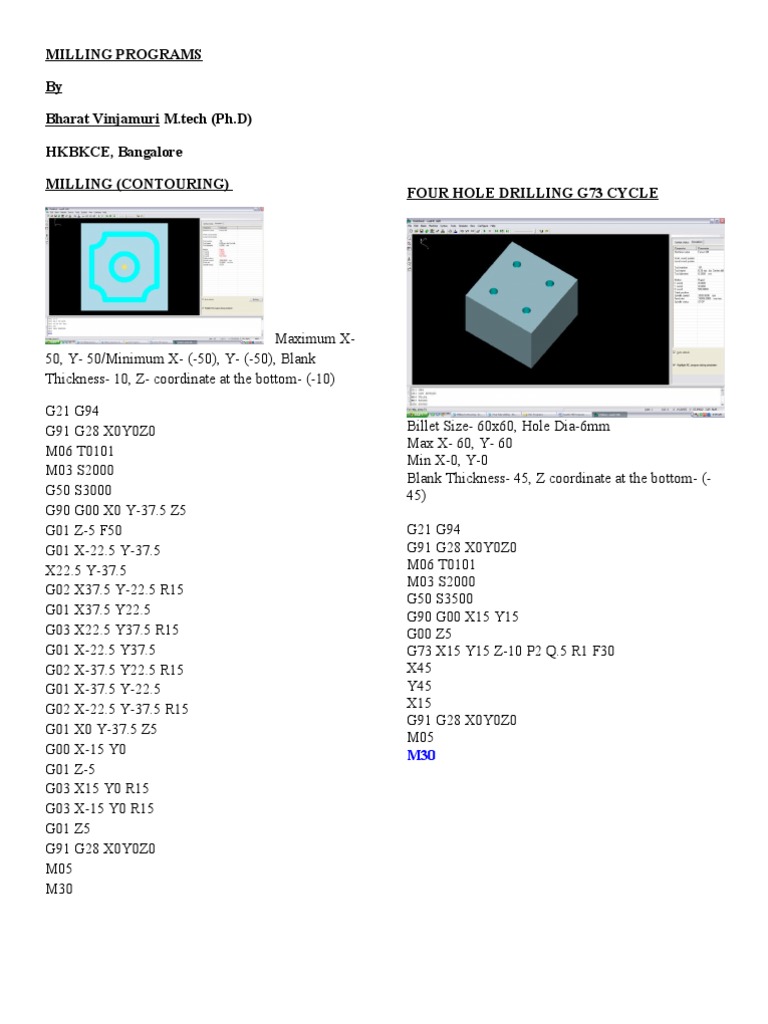

    MILLING PROGRAMS

    By
    Bharat Vinjamuri M.tech (Ph.D)
    HKBKCE, Bangalore
    MILLING (CONTOURING)

    FOUR HOLE DRILLING G73 CYCLE

    Maximum X50, Y- 50/Minimum X- (-50), Y- (-50), Blank


    Thickness- 10, Z- coordinate at the bottom- (-10)
    G21 G94
    G91 G28 X0Y0Z0
    M06 T0101
    M03 S2000
    G50 S3000
    G90 G00 X0 Y-37.5 Z5
    G01 Z-5 F50
    G01 X-22.5 Y-37.5
    X22.5 Y-37.5
    G02 X37.5 Y-22.5 R15
    G01 X37.5 Y22.5
    G03 X22.5 Y37.5 R15
    G01 X-22.5 Y37.5
    G02 X-37.5 Y22.5 R15
    G01 X-37.5 Y-22.5
    G02 X-22.5 Y-37.5 R15
    G01 X0 Y-37.5 Z5
    G00 X-15 Y0
    G01 Z-5
    G03 X15 Y0 R15
    G03 X-15 Y0 R15
    G01 Z5
    G91 G28 X0Y0Z0
    M05
    M30

    Billet Size- 60x60, Hole Dia-6mm


    Max X- 60, Y- 60
    Min X-0, Y-0
    Blank Thickness- 45, Z coordinate at the bottom- (45)
    G21 G94
    G91 G28 X0Y0Z0
    M06 T0101
    M03 S2000
    G50 S3500
    G90 G00 X15 Y15
    G00 Z5
    G73 X15 Y15 Z-10 P2 Q.5 R1 F30
    X45
    Y45
    X15
    G91 G28 X0Y0Z0
    M05
    M30

    MILLING (CONTOURING)

    Max X-90, Y-90


    Min X-0, Y-0
    Blank Thickness- 20, Z coordinate at the bottom- (20)
    G21 G94
    G91 G28 X0Y0Z0
    M06 T0101
    M03 S2000
    G50 S3500
    G90 G00 X20 Y20
    Z2
    G01 Z-5 F50
    X70 Y20
    X70 Y70
    X20 Y70
    X20 Y20
    Z5
    G91 G28 X0Y0Z0
    M05
    M30

    FACE MILLING

    Max X- 100, Y-100


    Min X-0, Y-0
    Blank Thickness- 10, Z coordinate at the bottom- (10)
    G21 G94
    G91 G28 X0Y0Z0
    G50 S3500
    M06 T0101
    M03 S2000
    G90 G00 X-30 Y15 Z5
    G01 Z-10 F50
    G01 X0 Y15
    X100 Y15
    X100 Y55
    X0 Y55
    X0 Y85
    X100 Y85
    X100 Y100
    X0 Y100
    G01 Z5
    X-30 Y15
    G91 G28 X0Y0Z0
    M05
    M30

    CIRCULAR CONTOURING
    Max X-50, Y-50
    Min X-(-50), Y-(-50)
    Blank Thickness- 20, Z coordinate at the bottom- (20)

    Max X- 30, Y- 30
    Min X- (-30), Y- (-30)
    Blank Thickness- 10, Z coordinate at the bottom- (10)
    G21 G94
    G91 G28 X0Y0Z0
    M06 T0101
    M03 S2000
    G50 S3500
    G90 G00 X-15 Y0
    G00 Z2
    G01 Z-5 F50
    G03 X15 Y0 R15
    G03 X-15 Y0 R15
    G01 Z5
    G91 G28 X0Y0Z0
    M05
    M30
    POCKET MILLING

    G21 G94
    G91 G28 X0Y0Z0
    M06 T0101
    M03 S2500
    G50 S3500
    G90 G00 X0Y0
    G00 Z2
    G01 Z0 F200
    G90 G01 Z-10 F200
    G01 X4 Y0
    X4 Y4
    X-4 Y4
    X-4 Y-4
    X8 Y-4
    X8 Y8
    X-8 Y8
    X-8 Y-8
    X12 Y-8
    X12 Y12
    X-12 Y12
    X-12 Y12
    X-12 Y-12
    X16 Y-12
    X16 Y16
    X-16 Y16
    X-16 Y-16
    X20 Y-16
    X20 Y20
    X-20 20
    X-20 Y20
    X-20 Y-20

    X20 Y-20
    G00 X0 Y0
    G91 G28 X0Y0Z0
    M05
    M30
