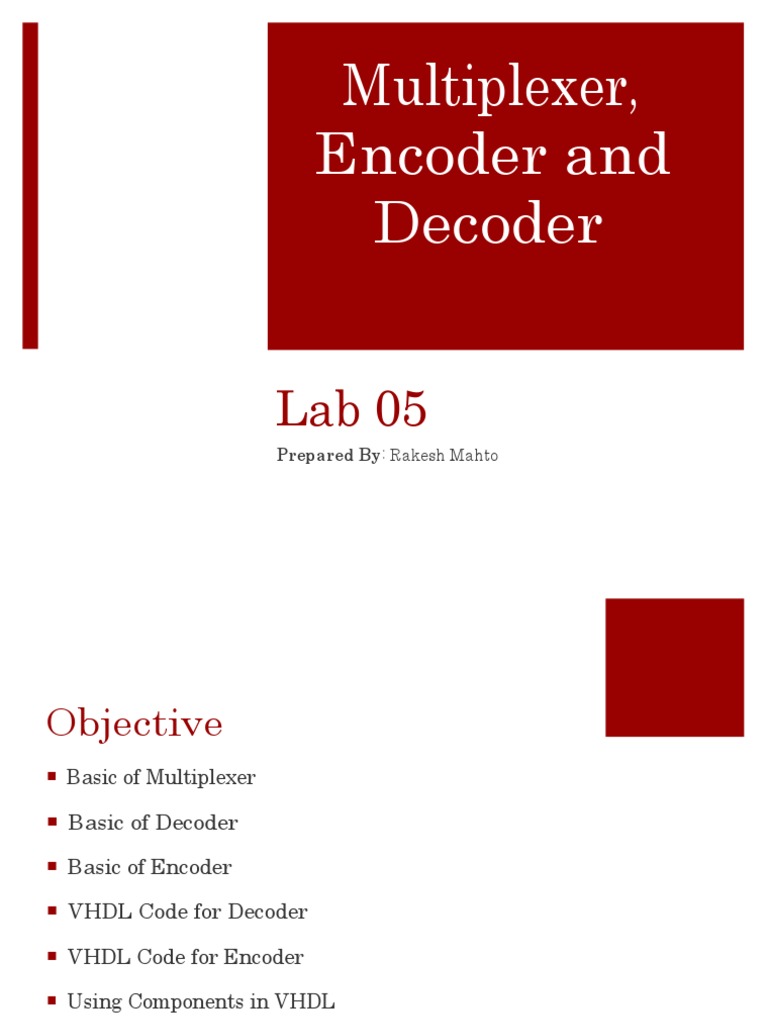

Multiplexer, Encoder and Decoder

Lab 05
Prepared By: Rakesh Mahto

Objective
Basic of Multiplexer Basic of Decoder Basic of Encoder VHDL Code for Decoder VHDL Code for Encoder Using Components in VHDL

Multiplexer
Input A3 A2 A1 A0 S1 S0 VHDL Code Output B S1 0 0 1 1 S0 0 1 0 1 B A0 A1 A2 A3

case S is when 00 => when 01 => when 10 => when others => end case;

B B B B

<=A(0); <=A(1); <=A(2); <=A(3);

Decoder

Decoder

Encoder
An encoder performs the inverse function of a decoder. If input yi is 1 and the other inputs are 0, then abc outputs represent a binary number equal to i. For example, if y3 = 1, then abc = 011. If more than one input is 1, the highest numbered input determines the output. An extra output, d, is 1 if any input is 1, otherwise d is 0. This signal is needed to distinguish the case of all 0 inputs from the case where only y0 is 1.

8-to-3 Priority Coder

y0 y1 y2 y3 y4 y5 y6 y7 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 X 1 0 0 0 0 0 0 X X 1 0 0 0 0 0 X X X 1 0 0 0 0 X X X X 1 0 0 0 X X X X X 1 0 0 X X X X X X 1 0 X X X X X X X 1

a 0 0 0 0 0 1 1 1 1

b 0 0 0 1 1 0 0 1 1

c 0 0 1 0 1 0 1 0 1

d 0 1 1 1 1 1 1 1 1

VHDL code for decoder

process (I) begin case I is when "00" => O <= "0001"; when "01" => O <= "0010"; when "10" => O <= "0100"; when "11" => O <= "1000"; when others => O <= "XXXX"; end case; end process;
Note: Input and output are considered as Std_Logic_Vector

VHDL code for encoder

entity prio_encoder42 is port( r: in std_logic_vector(3 downto 0); code: out std_logic_vector(1 downto 0); active: out std_logic ); end prio_encoder42; architecture cond_arch of prio_encoder42 is begin code <= "11" when (r(3)=1) else "10" when (r(2)=1) else "01" when (r(1)=1) else "00"; active <= r(3) or r(2) or r(1) or r(0); end cond_arch;
input r 1XXX 01XX 001X 0001 0000 Output code 11 10 01 00 00 active 1 1 1 1 0

Component Declaration
component component_name generic( generic_declaration; generic_declaration; ); Port( port_declaration; port_declaration; . );

Components in VHDL
architecture xor_arch of even_detector is signal odd: std_logic; begin even <= not odd <= a(2) xor a(1) xor a(0); end xor_arch;

Courtesy: Dr. James Plusquellic

Continue

Courtesy: Dr. James Plusquellic

architecture str_arch of even_detector is component xor2 -- declaration for xor gate port( i1, i2: in std_logic; o1: out std_logic ); end component; component not1 -- declaration for inverter port( i1: in std_logic; o1: out std_logic ); end component; signal sig1,sig2: std_logic; begin -- instantiation of the 1st xor instance unit1: xor2 port map (i1 => a(0), i2 => a(1), o1 => sig1); -- instantiation of the 2nd xor instance unit2: xor2 port map (i1 => a(2), i2 => sig1, o1 => sig2); ---instantiation of inverter unit3: not1 port map (i1 => sig2, o1 => even); end str_arch;

Reference
Pong P. Chu, RTL Hardware Design Using VHDL. Charles H. Roth Jr., Larry L. Kinney, Fundamentals of Logic Design.
