    P-tec Corp.

    Tel:(866) 695 4162 2405 Commerce Circle Tel:(719) 589 3122 Alamosa CO 81101 Fax:(719) 589 3592 www.p-tec.net

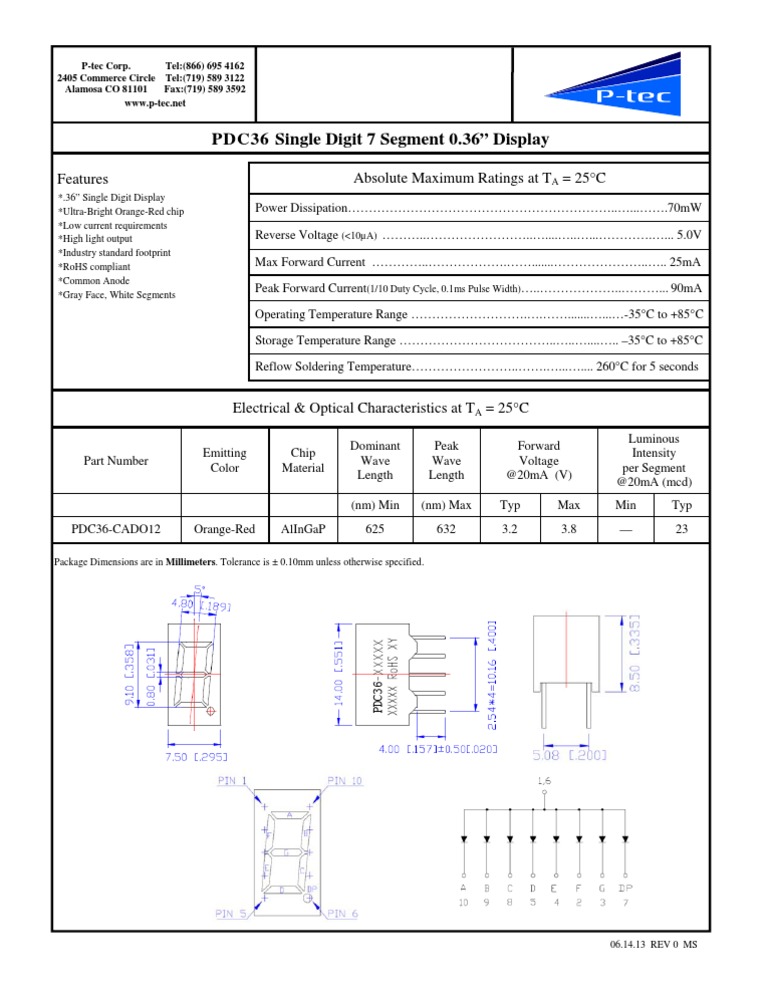

    PDC36 Single Digit 7 Segment 0.36 Display


    Features
    *.36 Single Digit Display *Ultra-Bright Orange-Red chip *Low current requirements *High light output *Industry standard footprint *RoHS compliant *Common Anode *Gray Face, White Segments

    Absolute Maximum Ratings at TA = 25C


    Power Dissipation......70mW Reverse Voltage (<10A) ................. 5.0V Max Forward Current .............. 25mA Peak Forward Current(1/10 Duty Cycle, 0.1ms Pulse Width)....... 90mA Operating Temperature Range ............-35C to +85C Storage Temperature Range .......... 35C to +85C Reflow Soldering Temperature.......... 260C for 5 seconds

    Electrical & Optical Characteristics at TA = 25C


    Emitting Color Chip Material Dominant Wave Length (nm) Min PDC36-CADO12 Orange-Red AlInGaP 625 Peak Wave Length (nm) Max 632 Forward Voltage @20mA (V) Typ 3.2 Max 3.8 Luminous Intensity per Segment @20mA (mcd) Min Typ 23

    Part Number

    Package Dimensions are in Millimeters. Tolerance is 0.10mm unless otherwise specified.

    PDC36

    06.14.13 REV 0 MS
