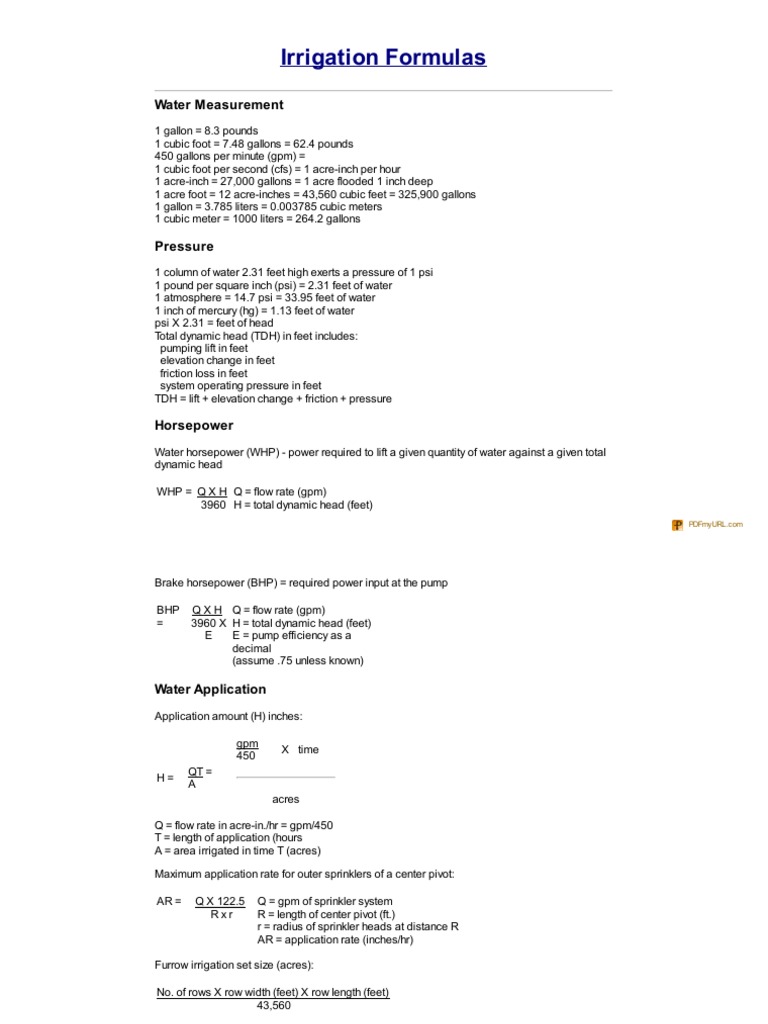

Irrigation Formulas

Water Measurement
1 gallon = 8.3 pounds 1 cubic foot = 7.48 gallons = 62.4 pounds 450 gallons per minute (gpm) = 1 cubic foot per second (cfs) = 1 acre-inch per hour 1 acre-inch = 27,000 gallons = 1 acre flooded 1 inch deep 1 acre foot = 12 acre-inches = 43,560 cubic feet = 325,900 gallons 1 gallon = 3.785 liters = 0.003785 cubic meters 1 cubic meter = 1000 liters = 264.2 gallons

Pressure
1 column of water 2.31 feet high exerts a pressure of 1 psi 1 pound per square inch (psi) = 2.31 feet of water 1 atmosphere = 14.7 psi = 33.95 feet of water 1 inch of mercury (hg) = 1.13 feet of water psi X 2.31 = feet of head Total dynamic head (TDH) in feet includes: pumping lift in feet elevation change in feet friction loss in feet system operating pressure in feet TDH = lift + elevation change + friction + pressure

Horsepower
Water horsepower (WHP) - power required to lift a given quantity of water against a given total dynamic head WHP = Q X H Q = flow rate (gpm) 3960 H = total dynamic head (feet)
PDFmyURL.com

Brake horsepower (BHP) = required power input at the pump BHP = Q X H Q = flow rate (gpm) 3960 X H = total dynamic head (feet) E E = pump efficiency as a decimal (assume .75 unless known)

Water Application
Application amount (H) inches: gpm 450 H= QT = A acres Q = flow rate in acre-in./hr = gpm/450 T = length of application (hours A = area irrigated in time T (acres) Maximum application rate for outer sprinklers of a center pivot: AR = Q X 122.5 Rxr Q = gpm of sprinkler system R = length of center pivot (ft.) r = radius of sprinkler heads at distance R AR = application rate (inches/hr) X time

Furrow irrigation set size (acres): No. of rows X row width (feet) X row length (feet) 43,560 Approximate acreage covered by a pivot:
PDFmyURL.com

Radius of pivot wetted area*,feet) 2 X 3.14 43,560 *Wetted radius includes radius of end gun Flood irrigation set time: T= A X D T = pumping time to flood a field to depth (D), in hours Q D = depth of flood (inches)** A = area of field to be flooded (acres) Q = flow rate acre-inches/hr = GPM **Allow for 1" additional water for seepage and other losses on newly flooded fields. Maximum economical pipe flow capacities: RULE - Based on maximum velocity of 5 ft/sec.
