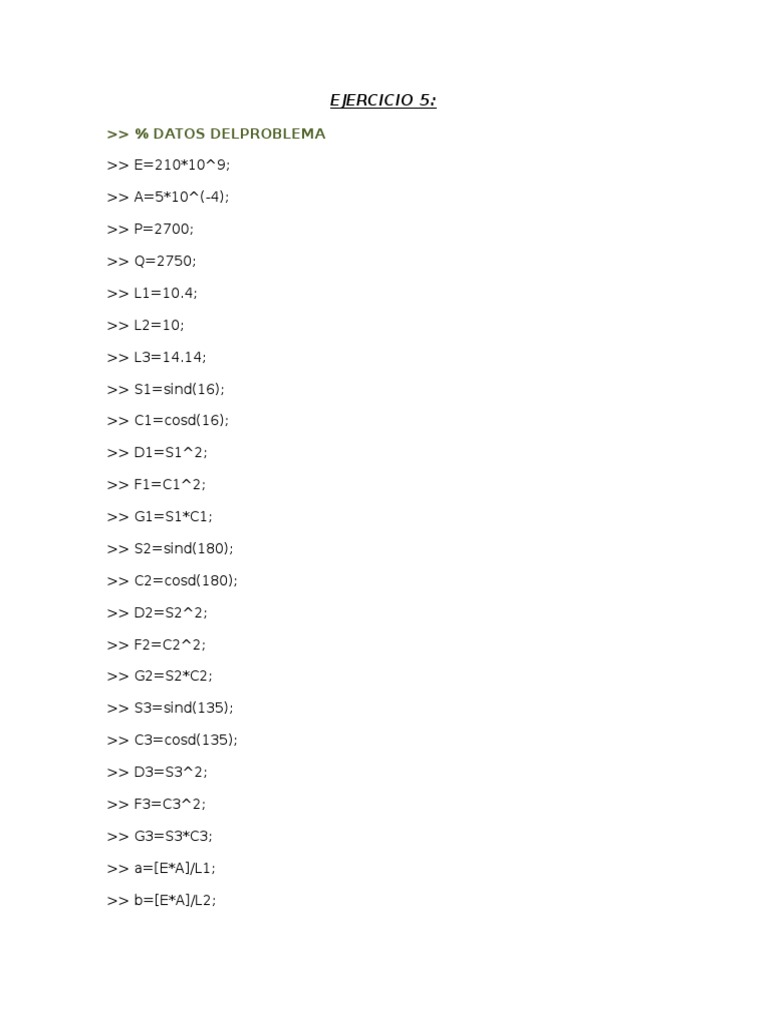

EJERCICIO 5:

>> % DATOS DELPROBLEMA

>> E=210*10^9;
>> A=5*10^(-4);
>> P=2700;
>> Q=2750;
>> L1=10.4;
>> L2=10;
>> L3=14.14;
>> S1=sind(16);
>> C1=cosd(16);
>> D1=S1^2;
>> F1=C1^2;
>> G1=S1*C1;
>> S2=sind(180);
>> C2=cosd(180);
>> D2=S2^2;
>> F2=C2^2;
>> G2=S2*C2;
>> S3=sind(135);
>> C3=cosd(135);
>> D3=S3^2;
>> F3=C3^2;
>> G3=S3*C3;
>> a=[E*A]/L1;
>> b=[E*A]/L2;

>> c=[E*A]/L3;
>> %MATRIZ DE RIGIDEZ 1
>> K1= a*[F1 G1 -F1 -G1 0 0 0 0;G1 D1 -G1 -D1 0 0 0 0; -F1 -G1 F1 G1 0 0 0 0;
-G1 -D1 G1 D1 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 0 0
0 0 0 0]

>> %MATRIZ DE RIGIDEZ 2

>> K2= b*[0 0 0 0 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 F2 G2 -F2 -G2 0 0; 0 0 G2
D2 -G2 -D2 0 0; 0 0 -F2 -G2 F2 G2 0 0; 0 0 -G2 -D2 G2 D2 0 0; 0 0 0 0 0
0 0 0; 0 0 0 0 0 0 0 0]

>> K3= c*[0 0 0 0 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 F3 G3 0 0 -F3 -G3; 0 0 G3

D3 0 0 -G3 -D3; 0 0 0 0 0 0 0 0; 0 0 0 0 0 0 0 0; 0 0 -F3 -G3 0 0 F3 G3; 0
0 -G3 -D3 0 0 G3 D3]

>> K=K1+K2+K3

>> M=1.0e+07 *[2.3542

M=

23542000

-1038000

-1038000

4480000

>> f=[2750; -2700]

f=
2750
-2700

>> u=inv(M)*f
u=

1.0e-03 *
0.0912
-0.5816

-0.1038; -0.1038

0.4480]

CALCULO DE ESFUERZOS
>> EZ12=(E/L1)*[-1 1]*[C1 S1 0 0; 0 0 C1 S1]*[0; 0; 1.0e-03 *0.0912;
1.0e-03 *-0.5816]
EZ =
-1.4668e+06
>> EZ23=(E/L2)*[-1 1]*[C2 S2 0 0; 0 0 C2 S2]*[ 1.0e-03 *0.0912; 1.0e03 *-0.5816; 0; 0]
EZ23 =
1.9152e+06
>> EZ24=(E/L3)*[-1 1]*[C3 S3 0 0; 0 0 C3 S3]*[ 1.0e-03 *0.0912; 1.0e03 *-0.5816; 0; 0]
EZ24 =
7.0655e+06
