CEE 3320-001 Structural Mechanics (Spring 2015)

HW #4
Due Monday, February 06, 2015

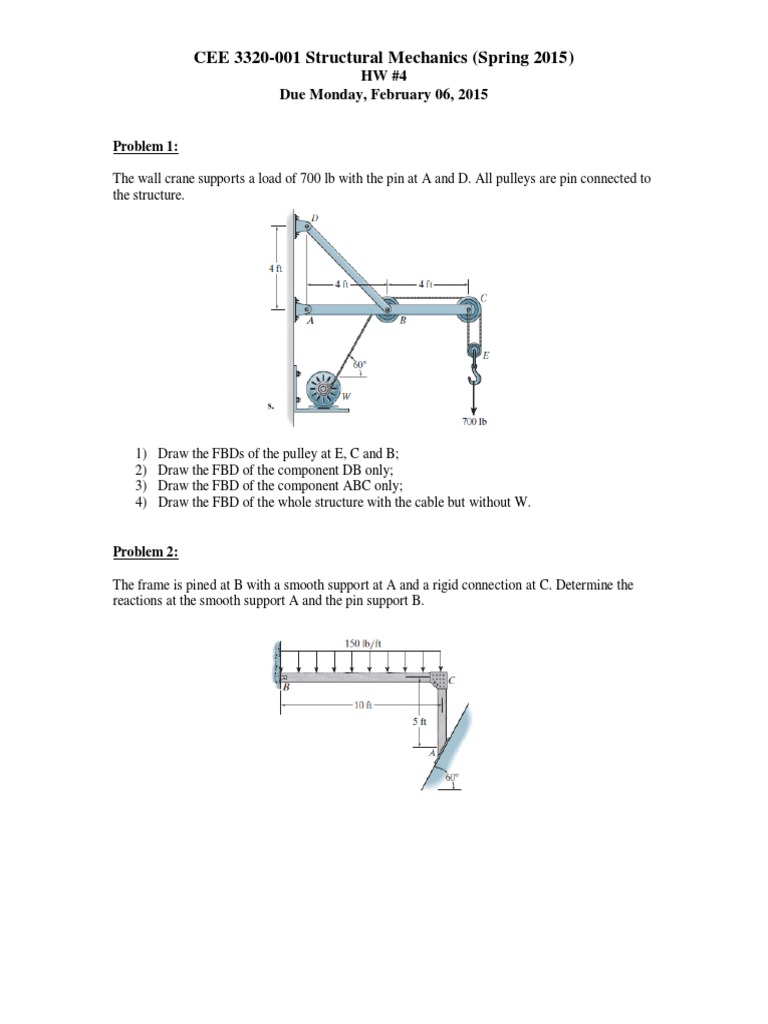

Problem 1:
The wall crane supports a load of 700 lb with the pin at A and D. All pulleys are pin connected to
the structure.

1)
2)
3)
4)

Draw the FBDs of the pulley at E, C and B;

Draw the FBD of the component DB only;
Draw the FBD of the component ABC only;
Draw the FBD of the whole structure with the cable but without W.

Problem 2:
The frame is pined at B with a smooth support at A and a rigid connection at C. Determine the
reactions at the smooth support A and the pin support B.

CEE 3320-001 Structural Mechanics (Spring 2015)

HW #4
Due Monday, February 06, 2015

Problem 3:
The compound beam is fixed at A and supported by a roller at B and C. There are pins at D and
E. 1) Draw all FBDs for your calculation; 2) Determine the reactions at the supports A, B and C
for both case (a) and (b); 3) Draw the internal force diagrams for axial force, N, shear force, V,
and bending moment, M for bothe case (a) and (b).

20 kN

(a)

20 kN

(b)
