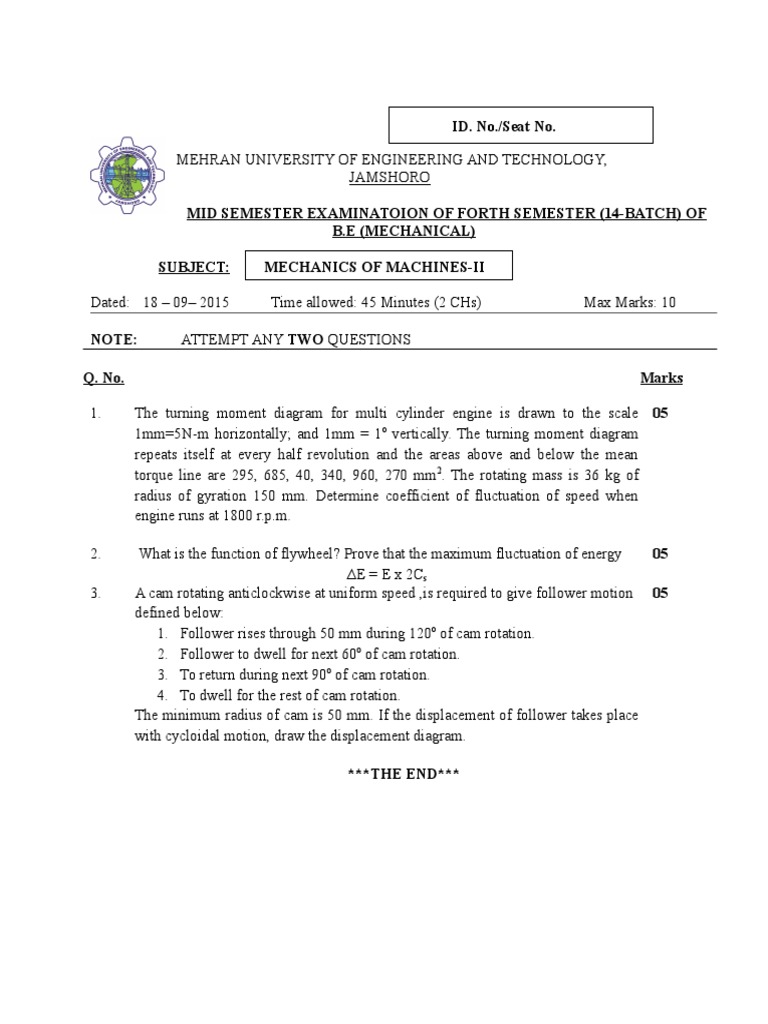

ID. No./Seat No.

MEHRAN UNIVERSITY OF ENGINEERING AND TECHNOLOGY,

JAMSHORO
MID SEMESTER EXAMINATOION OF FORTH SEMESTER (14-BATCH) OF
B.E (MECHANICAL)
SUBJECT:

MECHANICS OF MACHINES-II

Dated: 18 09 2015

Time allowed: 45 Minutes (2 CHs)

NOTE:

Max Marks: 10

ATTEMPT ANY TWO QUESTIONS

Q. No.

Marks

1.

The turning moment diagram for multi cylinder engine is drawn to the scale 05
1mm=5N-m horizontally; and 1mm = 1o vertically. The turning moment diagram
repeats itself at every half revolution and the areas above and below the mean
torque line are 295, 685, 40, 340, 960, 270 mm2. The rotating mass is 36 kg of
radius of gyration 150 mm. Determine coefficient of fluctuation of speed when
engine runs at 1800 r.p.m.

2.

What is the function of flywheel? Prove that the maximum fluctuation of energy
05
E = E x 2Cs
A cam rotating anticlockwise at uniform speed ,is required to give follower motion 05
defined below:
1. Follower rises through 50 mm during 120o of cam rotation.
2. Follower to dwell for next 60o of cam rotation.
3. To return during next 90o of cam rotation.
4. To dwell for the rest of cam rotation.
The minimum radius of cam is 50 mm. If the displacement of follower takes place
with cycloidal motion, draw the displacement diagram.

3.

***THE END***
