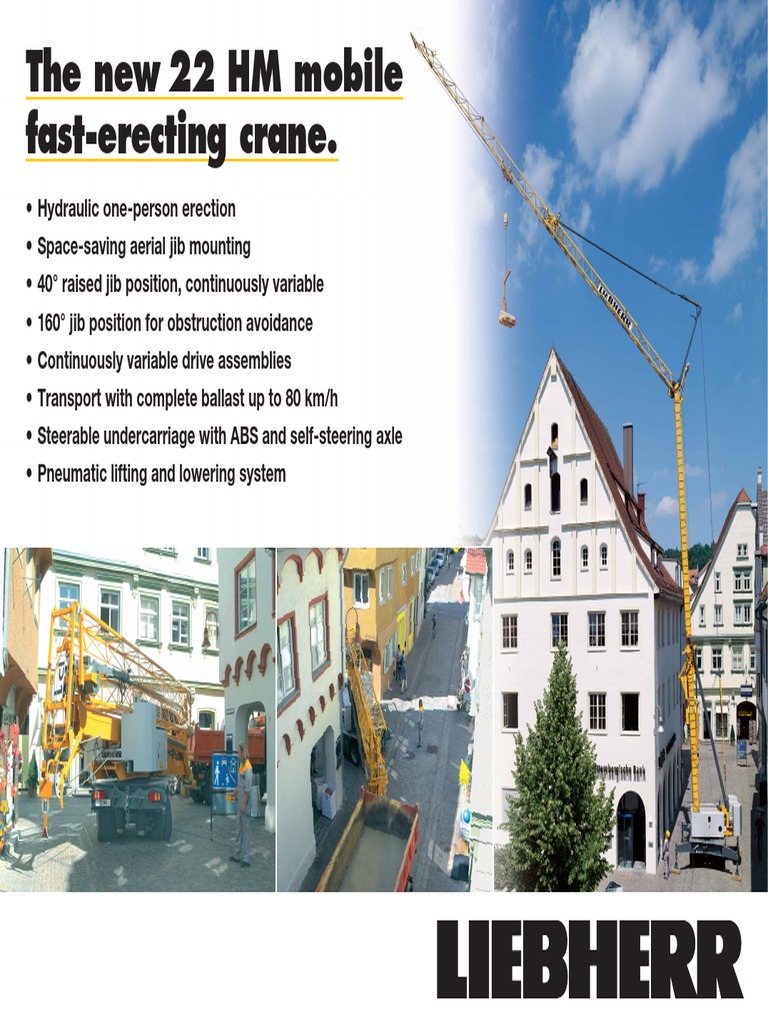

The new 22 HM mobile

fast-erecting crane.

Hydraulic one-person erection


Space-saving aerial jib mounting
40 raised jib position, continuously variable
160 jib position for obstruction avoidance
Continuously variable drive assemblies
Transport with complete ballast up to 80 km/h
Steerable undercarriage with ABS and self-steering axle
Pneumatic lifting and lowering system

40

33.4 m
ste
ss

ple

21.8 m
400 kg

20
26.2 m

ss

steple

25.5 m
700 kg

27.0 m
700 kg

22 HM Technical data:

Printed in Germany by BK LBC-616-09.06-3gb

This information is supplied without liability.

Liebherr-Werk Biberach GmbH, Postfach 1663, D-88396 Biberach an der Ri


+49 7351 41-0, Fax +49 7351 41-22 25, [Link], E-Mail: [Link]@[Link]
Liebherr Industrias Metlicas, S.A., Polgono Industrial Agustinos, Apartado 4096, E-31014 Pamplona
+34 948 29 70 00, Fax +34 948 29 70 29, [Link], E-Mail: [Link]@[Link]

Working radius:

25.0 / 27.0 m

Load capacity at jib end:

800 / 700 kg

Max. load capacity:

2,000 kg

Hook height:

19.0 m

20 steep-angle hook height:

26.2 m

40 steep-angle hook height:

33.4 m

Transport length:

13.95 m

Transport width:

2.5 m

Transport height:

3.6 m (3.1 m)

Slewing radius:

2.4 m

Subject to technical modifications.
