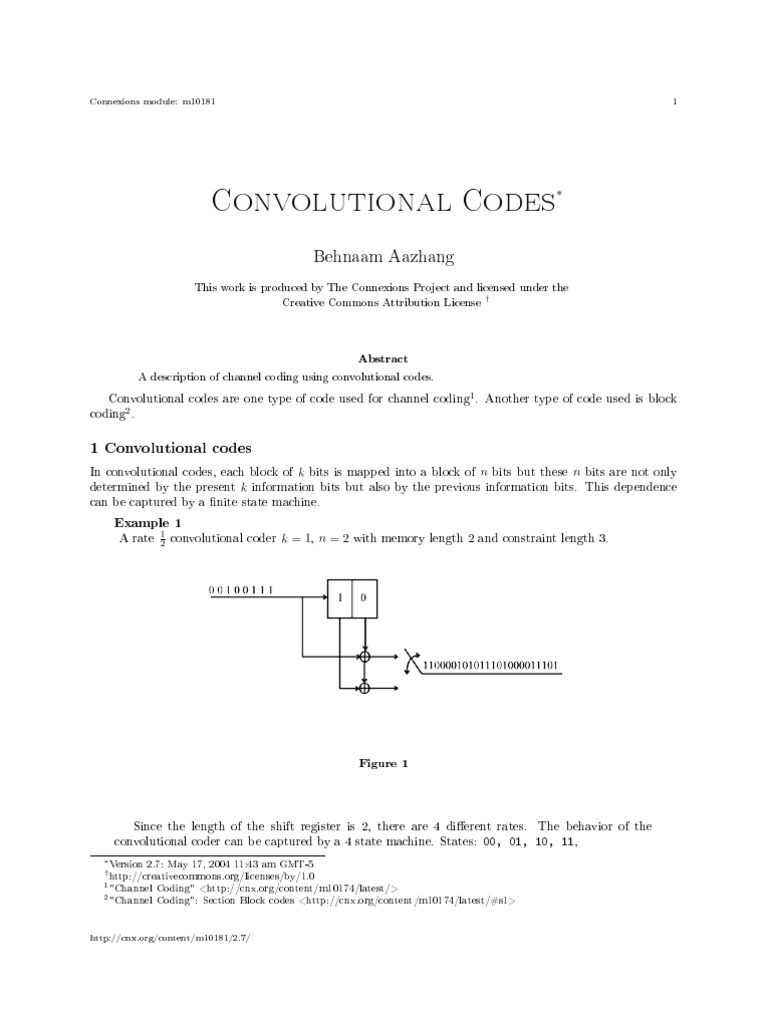

    Connexions module: m10181 1

    Convolutional Codes ∗

    Behnaam Aazhang
    This work is produced by The Connexions Project and licensed under the
    †
    Creative Commons Attribution License

    Abstract
    A description of channel coding using convolutional codes.

    Convolutional codes are one type of code used for channel coding . Another type of code used is block
    1

    coding .
    2

    1 Convolutional codes
    In convolutional codes, each block of k bits is mapped into a block of n bits but these n bits are not only
    determined by the present k information bits but also by the previous information bits. This dependence
    can be captured by a nite state machine.
    Example 1
    A rate 21 convolutional coder k = 1, n = 2 with memory length 2 and constraint length 3.

    Figure 1

    Since the length of the shift register is 2, there are 4 dierent rates. The behavior of the
    convolutional coder can be captured by a 4 state machine. States: 00, 01, 10, 11,
    ∗ Version 2.7: May 17, 2004 11:43 am GMT-5
    † http://creativecommons.org/licenses/by/1.0
    1 "Channel Coding" <http://cnx.org/content/m10174/latest/>
    2 "Channel Coding": Section Block codes <http://cnx.org/content/m10174/latest/#s1>

    http://cnx.org/content/m10181/2.7/
    Connexions module: m10181 2

    For example, arrival of information bit 0 transitions from state 10 to state 01.
    The encoding and the decoding process can be realized in trellis structure.

    Figure 2

    If the input sequence is


    1 1 0 0
    the output sequence would be
    11 10 10 11
    The transmitted codeword is then 11 10 10 11. If there is one error on the channel 11 00 10 11

    Figure 3

    http://cnx.org/content/m10181/2.7/
    Connexions module: m10181 3

    Starting from state 00 the Hamming distance between the possible paths and the received
    sequence is measured. At the end, the path with minimum distance to the received sequence is
    chosen as the correct trellis path. The information sequence will then be determined.
    Convolutional coding lends itself to very ecient trellis based encoding and decoding. They are very
    practical and powerful codes.

    http://cnx.org/content/m10181/2.7/
