    CIRCUITS LABORATORY

    FALL 2011

    Experiment 5

    Software

    OP-AMP CIRCUITS

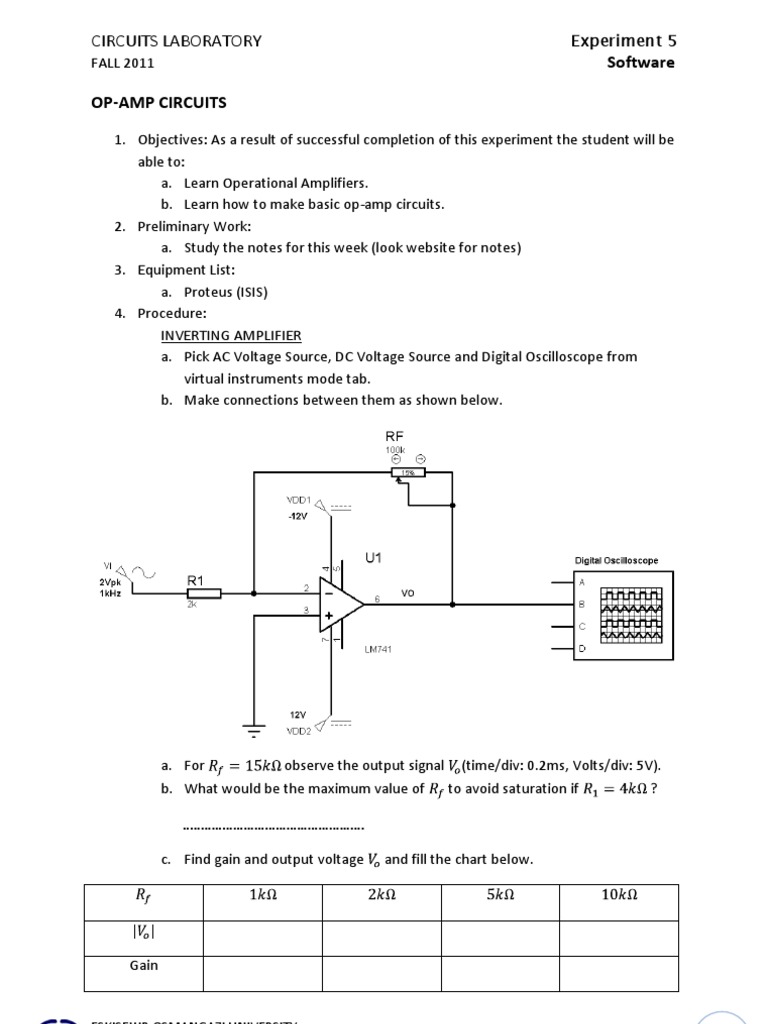

    1. Objectives: As a result of successful completion of this experiment the student will be able to: a. Learn Operational Amplifiers. b. Learn how to make basic op-amp circuits. 2. Preliminary Work: a. Study the notes for this week (look website for notes) 3. Equipment List: a. Proteus (ISIS) 4. Procedure: INVERTING AMPLIFIER a. Pick AC Voltage Source, DC Voltage Source and Digital Oscilloscope from virtual instruments mode tab. b. Make connections between them as shown below.

    a. For observe the output signal (time/div: 0.2ms, Volts/div: 5V). b. What would be the maximum value of to avoid saturation if ? c. Find gain and output voltage and fill the chart below.

    Gain

    ESKISEHIR OSMANGAZI UNIVERSITY ELECTRICAL AND ELECTRONICS ENGINEERING DEPARTMENT

    CIRCUITS LABORATORY
    FALL 2011

    Experiment 5

    Software
    NON-INVERTING AMPLIFIER a. Pick AC Voltage Source, DC Voltage Source and Digital Oscilloscope from virtual instruments mode tab. b. Make connections between them as shown below.

    c. For observe the output signal (time/div: 1ms, Volts/div: 10V). d. What would be the maximum value of to avoid saturation if ? e. Find gain and output voltage and fill the chart below.

    Gain

    ESKISEHIR OSMANGAZI UNIVERSITY ELECTRICAL AND ELECTRONICS ENGINEERING DEPARTMENT

    CIRCUITS LABORATORY
    FALL 2011

    Experiment 5

    Software
    SUMMING AMPLIFIER a. Pick Digital Oscilloscope from virtual instruments mode tab. b. For AC voltage source, set amplitude: , angle: frequency: c. Make connections between them as shown below.

    d. Observe the output voltage . e. Change input voltages of AC voltage sources and again observe the output voltage on oscilloscope screen.

    ESKISEHIR OSMANGAZI UNIVERSITY ELECTRICAL AND ELECTRONICS ENGINEERING DEPARTMENT

    CIRCUITS LABORATORY
    FALL 2011

    Experiment 5

    Software
    VOLTAGE FOLLOWER a. Pick Digital Oscilloscope from virtual instruments mode tab. b. For AC voltage source, set amplitude: , angle: frequency: c. Make connections between them as shown below.

    d. Observe the output voltage . e. Explain the difference between

    and

    ESKISEHIR OSMANGAZI UNIVERSITY ELECTRICAL AND ELECTRONICS ENGINEERING DEPARTMENT
