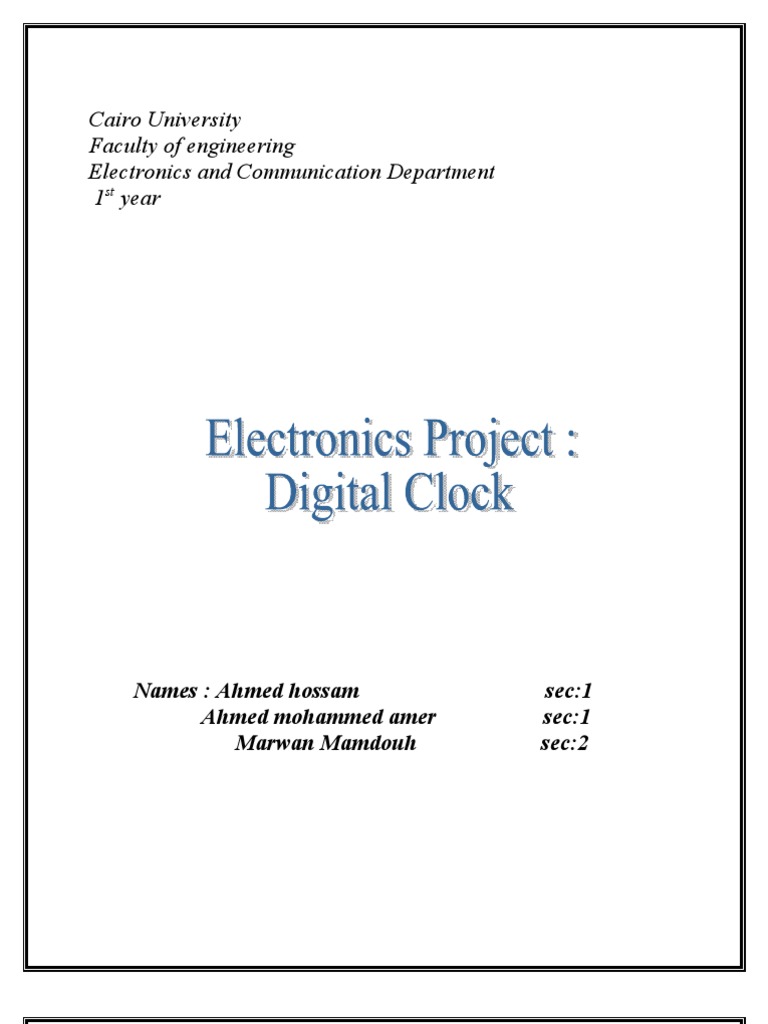

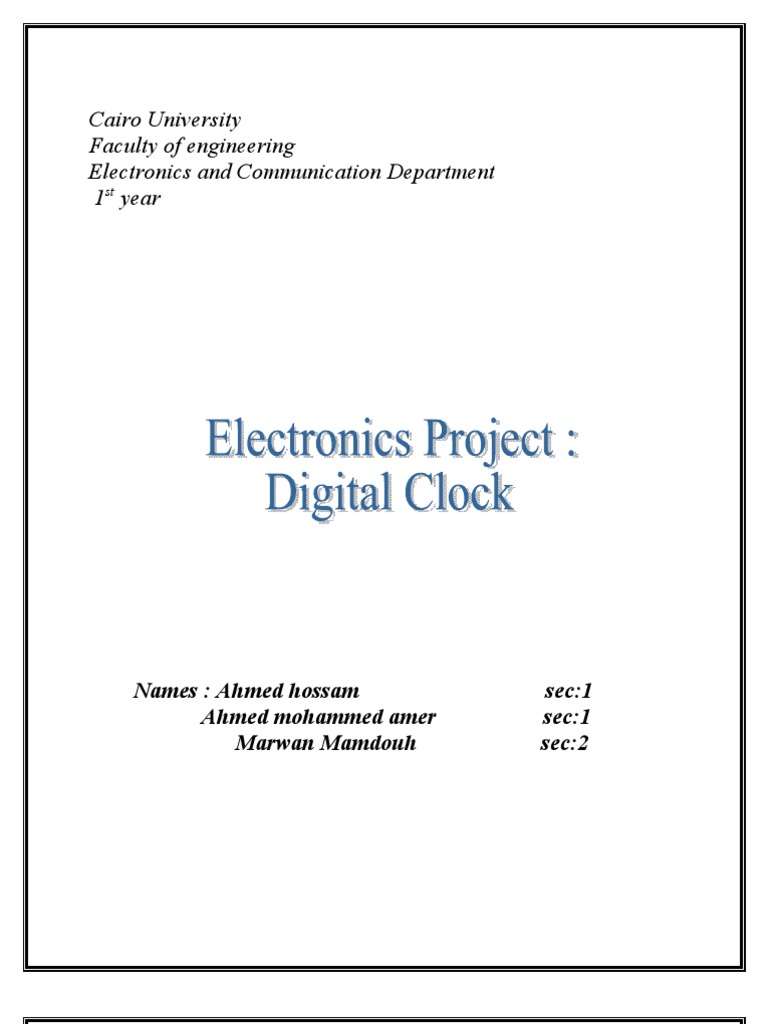

Cairo University Faculty of engineering Electronics and Communication Department 1st year

Names : Ahmed hossam Ahmed mohammed amer Marwan Mamdouh

sec:1 sec:1 sec:2

Project objective ..3 Material required 3 Microcontroller ..4 Circuit diagram ..5 Results6

The object of the project is to make a circuit for a digital clock using (AT89C4051) microcontroller to display "TIME" with am/pm, "DAY" and "DATE",on a 16 x 2 lines LCD.

Name AT89C4051 LM7805 16 x 2 line LCD IN4001 diode 11.0592 MHz Crystal 10 k pot 10k resistors 8.2 resistor Push button switch 30 PF capacitors 10F capacitors 0.1 F capacitor 9V Battery

Quantity 1 1 1 1 1 1 3 1 3 2 2 1 1

Microcontroller is a small computer on a single integrated circuit containing a processor core, memory, and programmable input- output peripherals . In this circuit: Port 1 of the controller (AT89C4051) is used as the data lines for the LCD (starting from pin 7- pin14 of LCD) Port 3 is used for the clock setting and it also provides the necessary control signals for the LCD. As shown in the diagram below, switch3 will be used to select the parameter which need to be changed, switch 1 and 2, are used to increase or decrease the selected parameter value.

Main module circuit :

Power supply module :
