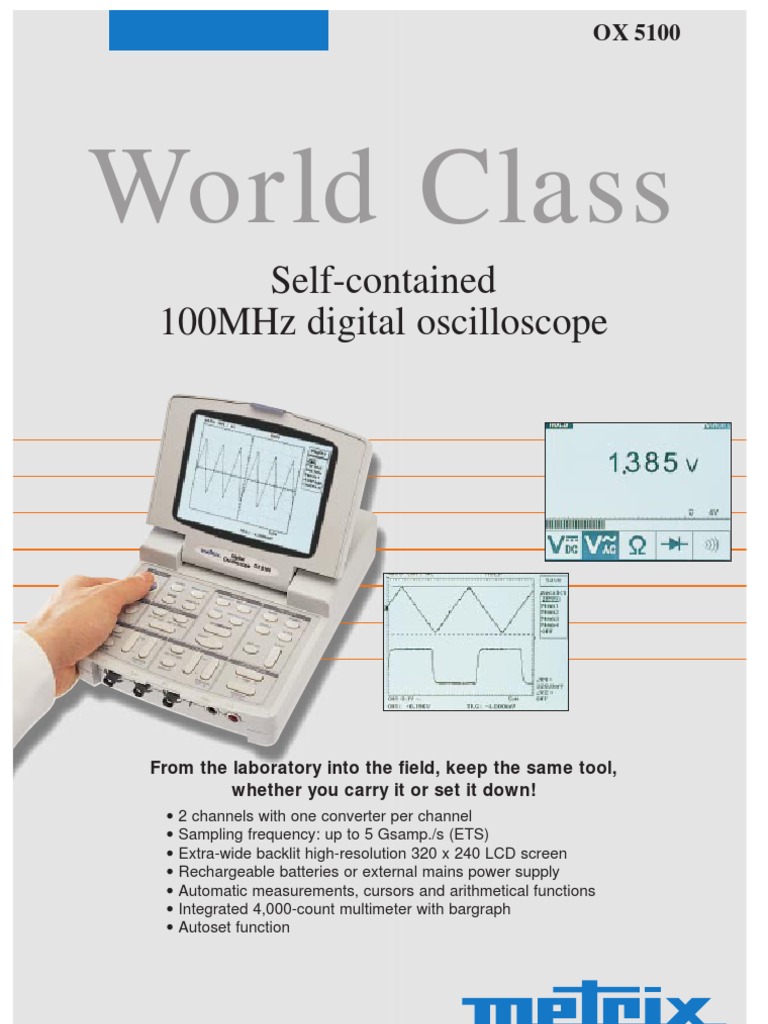

OX 5100

World Class
Self-contained 100MHz digital oscilloscope

From the laboratory into the field, keep the same tool, whether you carry it or set it down!
2 channels with one converter per channel Sampling frequency: up to 5 Gsamp./s (ETS) Extra-wide backlit high-resolution 320 x 240 LCD screen Rechargeable batteries or external mains power supply Automatic measurements, cursors and arithmetical functions Integrated 4,000-count multimeter with bargraph Autoset function

Division of Chauvin Arnoux

OX 5100 : Self-contained 100MHz digital oscilloscope!

The original ergonomics of the OX 5100 and its bag mean that you can keep both hands free when you use it on site.

Incomparable readability
Naturally, the dimensions of the LCD screen and its 320 x 240 point resolution offer excellent display quality. But you will also appreciate the backlighting which, because it is powerful and evenly distributed, ensures excellent visibility even when the lighting conditions are difficult.

Look - no hands
Whether you work sitting down or standing up, the OX 5100 leaves your hands free! Indeed, when you place it on a table, it fits in harmoniously with a PC, while on site you will appreciate the ergonomics of the shoulder bag. As well as serving to store and protect it when you travel, it also allows you to view the curves without holding the instrument in your hand.

A clear keyboard
To make the instrument easier to use, the keyboard has been split into several areas which are clearly identifiable for a user accustomed to traditional oscilloscopes: vertical deviation of channels 1 and 2; horizontal deviation; trigger modes, cursors, etc. The AUTOSET key is immediately recognizable. Also, apart from the configuration menus, all the functions can be accessed directly.

In multimeter mode, the screen of the OX 5100 becomes a 4,000-point display with a bargraph. The functions available are clearly visible from a distance.

An integrated multimeter
The OX 5100 can be transformed into a 4,000-count multimeter by simply pressing a key. The choice of this mode then gives access to new functions such as measurement of DC and AC voltages and resistances, as well as diode and continuity testing

The keyboard is divided into several clearly identifiable areas so that the user can quickly master the instrument's functionalities.

PC screen with SX-METRO : display of the signal (CH1), its Fourrier transform and the cursor measurements (frequency and amplitude in V or in dB)

Computer analysis or paper

With its RS232 link, it is possible to connect the OX 5100 directly to a PC. The user then benefits from the powerful SX-METRO software: analysis of the curves, mathematical processing such as FFT, etc. A "HARD COPY" key confirms or stops the transfer of the data to a printer for direct output on paper.

Explicit menus
The "MENU" area contains the secondary functions or utilities. All you therefore have to do is select what you want and then confirm using the "ENTER" key. As on any computer, the "SHIFT" key can be used to access the secondary functions and the "ESC" key can be used to move up a level.
The T or V measurements can also be performed with cursors by moving them manually using the directaccess keys, either one after the other (dotted and full line) or both together (two full lines).

Nothing could be easier than choosing the parameters measured automatically and which will be displayed on the left-hand side of the screen.

General characteristics Display Power supply Autonomy Charging Operating temperature Relative humidity Storage temperature Consumption Dimension (closed) Weight Warranty

OX 5100 Monochrome 320 x 240 point LCD 84 x 84 mm backlit (CCFL) AC adapter/recharger or internal batteries typically 1.5 h typically 15 h 0 to 40 C 80% (0 - 40 C) -20 to 60 C typically 14.5 W 184 x 258 x 66 2 kg 2 years

Directly-accessible settings
A large number of settings can be accessed directly: settings of the channels, time base, triggers, cursors, etc. The settings selected are constantly displayed at the top and bottom of the screen, outside the curve display area, so that they are easy to read. Accessories and information for ordering Accessories included
Each instrument is delivered with its battery, an AC adapter, a set of multimeter leads and a users manual.

Optional accessories Oscilloscope probe x100 HA1317 HA1316 Oscilloscope probe x10 AE0235 Shoulder bag To order OX5100 Portable digital oscilloscope OX5100-L Portable digital oscilloscope
with shoulder bag, 2 x probe HA1316, and the SX-METRO software

When placed on a desk or laboratory bench top, the OX 5100 oscilloscope has the same ergonomics as a PC. Its small size remains a significant advantage.

TECHNICAL CHARACTERISTICS Vertical deviation Bandwidth Number of channels Input impedance Maximum security voltage Sensitivity Display mode Horizontal deviation Scan speed Expansion of the time base (zoom) Pre-triggering Triggering Mode Coupling Level Sensitivity Digital memory Sampling frequency: Acquisition memory A/D conversion Operating modes Display modes Menu keys DISPLAY UTILITY SAVE/RECALL MATH Automatic measurements Functions on channels Cursors Types of measurement Complementary functions AUTOSET Screen copy and PC communication Compensation of probe ratios Independent multimeter Type / Safety AC or DC voltage Ranges / Resolution Basic accuracy Resistance Ranges / Resolution Basic accuracy Other measurements / Additional functions

OX 5100 100 MHz 2 1 M / 25 pF Cat. II, 42 V / Cat. III, 420 V with probe 1 mV/div. to 5 V/div. CH1, CH2, DUAL, INV, ADD, SUB, XY 5 ns/div. to 5 s/div. 2,5 to 10 times 0 to 10 div. Auto, Normal, Single, TV line, TV frame DC, AC, HFr, LFr Manual (with display of the value) or automatic (50%) Int: 0,5 to 2 div. / Ext: 0,2 Vpp Single-shot 25 Msamp./s simultaneously on the 2 channels Repetitive (ETS) 5 Gsamp./s simultaneously on the 2 channels 2 k/channel 2 x 8 bits Flash converter Repetitive, Single Shot, Roll, Go-NoGo Counts, Dotjoin, Exponential averaging, Envelope, XY Graticule, interpolation, persistance, contraste Probe (x1, x10, x100), RS232, Internal calibration, Automatic shutdown Recording of curves and (2 x 5 memories) configurations (5 memories) Amplitude (P/P, RMS, average), frequency, rise/fall time, period, pulse width (pos./neg.), duty cycle of pulses Addition, subtraction, inversion V, T, 1/T, refrence, track yes with search RS232 interface in standard version 1/1, 1/10, 1/100 4000 counts and bargraph / Cat II - 400 V 400 mV - 4 V - 40 V - 400 V / 0.1 mV to 100 mV 0,7% 400 - 4 k - 40 k - 400 k - 4 M / 0,1 to 1 k 0,7% Current by clamps, Diode test, Continuity / MIN, MAX, PP, REL, HOLD

Characteristics subject to modifications according to technological developments.
