Students Project - Autodesk Inventor

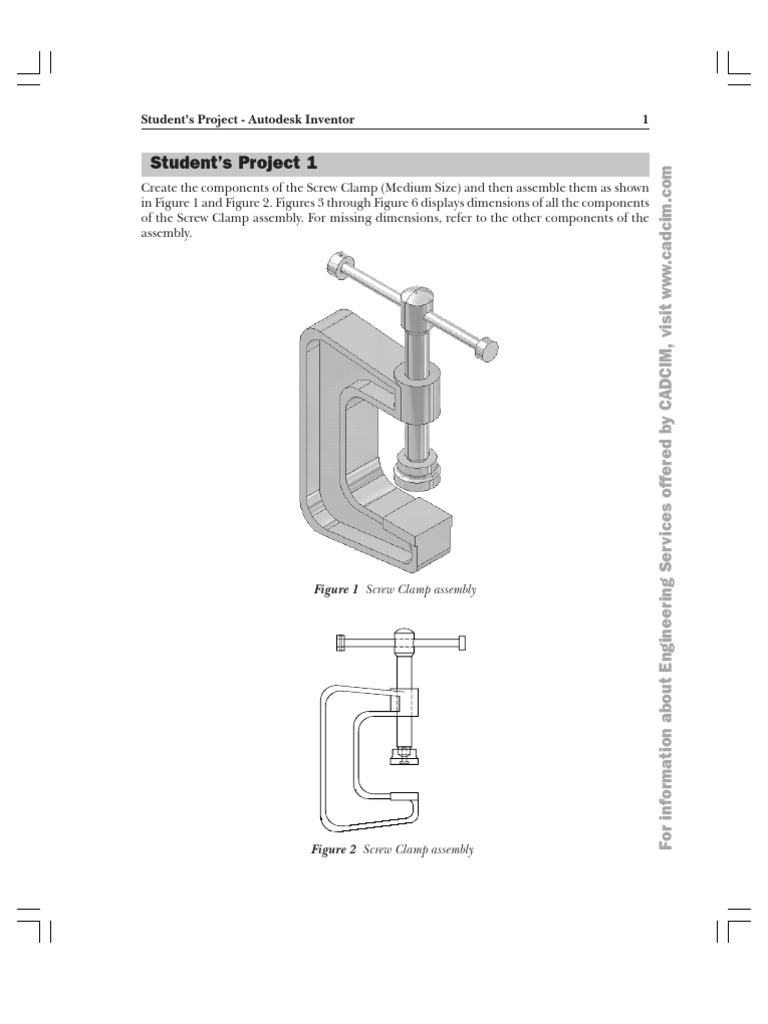

Create the components of the Screw Clamp (Medium Size) and then assemble them as shown in Figure 1 and Figure 2. Figures 3 through Figure 6 displays dimensions of all the components of the Screw Clamp assembly. For missing dimensions, refer to the other components of the assembly.
Figure 1 Screw Clamp assembly
Figure 2 Screw Clamp assembly
For information about Engineering Services offered by CADCIM, visit www.cadcim.com
Students Project 1
Students Projects - Autodesk Inventor
For getting training on high-end CAD/CAM packages, visit www.cadcim.com

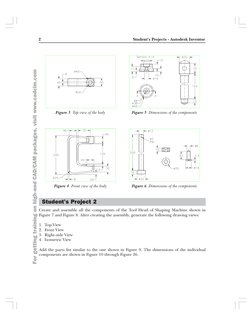

Figure 3 Top view of the body
Figure 5 Dimensions of the components
Figure 4 Front view of the body
Figure 6 Dimensions of the components
Students Project 2
Create and assemble all the components of the Tool Head of Shaping Machine shown in Figure 7 and Figure 8. After creating the assembly, generate the following drawing views: 1. 2. 3. 4. Top View Front View Right-side View Isometric View
Add the parts list similar to the one shown in Figure 9. The dimensions of the individual components are shown in Figure 10 through Figure 26.
Students Project - Autodesk Inventor

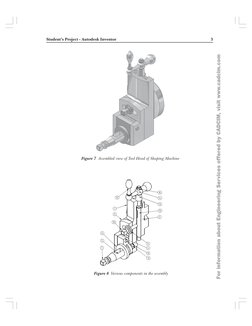

Figure 7 Assembled view of Tool Head of Shaping Machine
Figure 8 Various components in the assembly
For information about Engineering Services offered by CADCIM, visit www.cadcim.com
Students Projects - Autodesk Inventor
For getting training on high-end CAD/CAM packages, visit www.cadcim.com

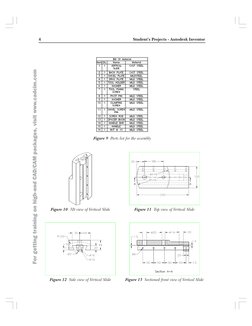

Figure 9 Parts list for the assembly
Figure 10 3D view of Vertical Slide
Figure 11 Top view of Vertical Slide
Figure 12 Side view of Vertical Slide
Figure 13 Sectioned front view of Vertical Slide
Students Project - Autodesk Inventor

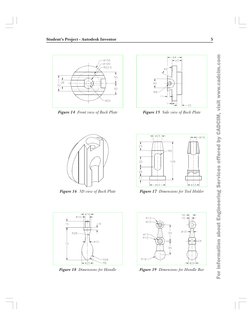

Figure 14 Front view of Back Plate
Figure 15 Side view of Back Plate
Figure 16 3D view of Back Plate
Figure 17 Dimensions for Tool Holder
Figure 18 Dimensions for Handle
Figure 19 Dimensions for Handle Bar
For information about Engineering Services offered by CADCIM, visit www.cadcim.com
Students Projects - Autodesk Inventor
For getting training on high-end CAD/CAM packages, visit www.cadcim.com

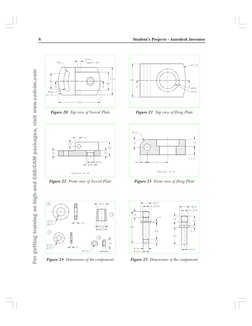

Figure 20 Top view of Swivel Plate
Figure 21 Top view of Drag Plate
Figure 22 Front view of Swivel Plate
Figure 23 Front view of Drag Plate
Figure 24 Dimensions of the components
Figure 25 Dimensions of the components
Students Project - Autodesk Inventor
Figure 26 Dimensions of the components
Students Project 3
Create and assemble all the components of the Radial Engine Subassembly shown in Figure 27 and Figure 28. After creating the assembly, generate the following drawing views of the assembly: 1. 2. 3. 4. Top view. Front view. Left-side view. Isometric view of the front view.
The dimensions of the components of the assembly are shown in Figure 29 through Figure 36. The parts list of the assembly is shown in Figure 37.
For information about Engineering Services offered by CADCIM, visit www.cadcim.com
Students Projects - Autodesk Inventor
For getting training on high-end CAD/CAM packages, visit www.cadcim.com

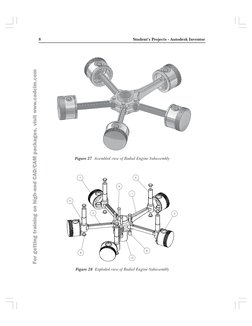

Figure 27 Assembled view of Radial Engine Subassembly
Figure 28 Exploded view of Radial Engine Subassembly
Students Project - Autodesk Inventor
Figure 29 Dimensions for Piston
Figure 30 Dimensions for Piston
Figure 31 Top view of Master Rod
Figure 33 Top view of Articulated Rod
Figure 32 Front view of Master Rod
Figure 34 Front view of Articulated Rod
For information about Engineering Services offered by CADCIM, visit www.cadcim.com
10
Students Projects - Autodesk Inventor
For getting training on high-end CAD/CAM packages, visit www.cadcim.com
Figure 35 Dimensions of the components
Figure 36 Dimensions of the components
Figure 37 Parts list of the assembly
