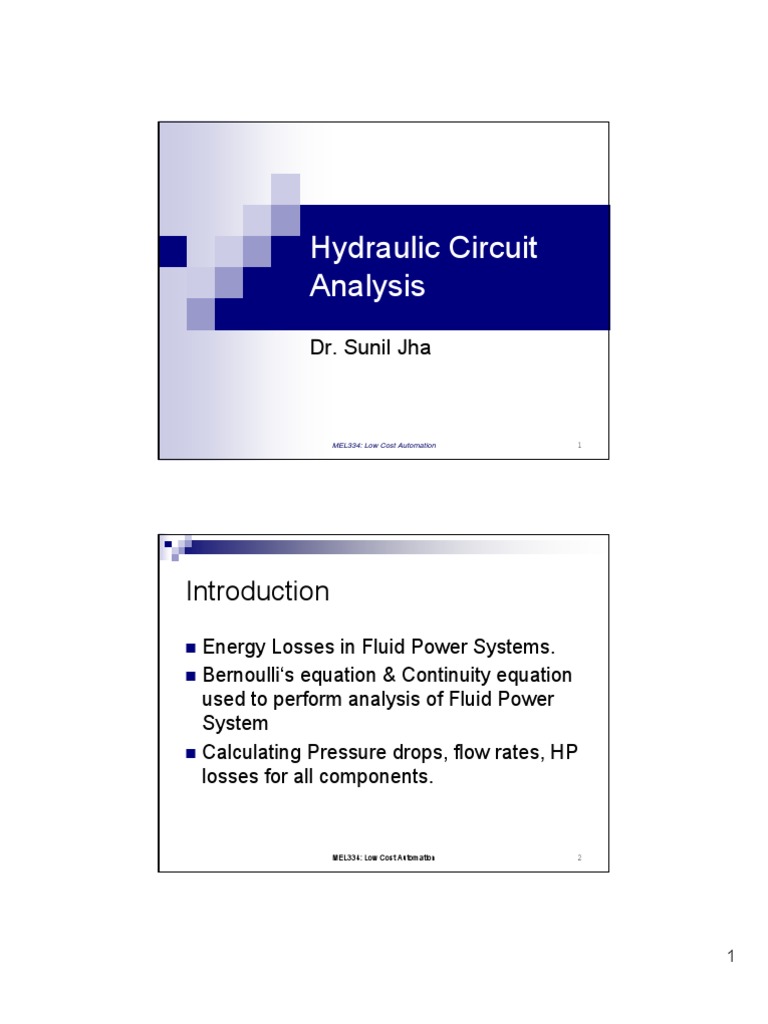

Hydraulic Circuit Analysis
Dr. Sunil Jha
MEL334: Low Cost Automation
Introduction
Energy Losses in Fluid Power Systems. Bernoullis equation & Continuity equation used to perform analysis of Fluid Power System Calculating Pressure drops, flow rates, HP losses for all components.
MEL334: Low Cost Automation
Laminar or Turbulent Flow
Reynolds number <2000 : LAMINAR >4000 : TURBULENT CRITICAL ZONE Greater losses in Turbulent flow Fluid power system designed to operate in LAMINAR flow region.
MEL334: Low Cost Automation 3
Friction Losses
Friction Main cause of losses Loss in Pressure head Head Loss
Losses in Pipes Losses in Fittings
Head loss in Pipes DARCYs Equation
MEL334: Low Cost Automation
DARCYs Equation
HL = f (L/D)(v2/2g)
f = friction factor (dimensionless) L = length of pipe D = pipe inside diameter v = avg. fluid velocity g = Acceleration due to gravity
Used for Laminar as well as Turbulent flow Difference lies in evaluation of friction factor.
MEL334: Low Cost Automation 5
Frictional Losses in Laminar Flow
Friction Factor f = 64/(Reynolds Number) Hagen Poiseuille Equation
HL = (64/NR)(L/D)(v2/2g)
MEL334: Low Cost Automation
Frictional Losses in Turbulent Flow
Relative roughness = /D
= absolute roughness D = Pipe inside diameter
Typical values of Roughness (m)
Drawn tubing = 1.524 Commercial steel = 45.72 Cast Iron = 121.92 Galvanized Iron = 152.4 Riveted Steel = 1828.8
Moody diagram used to calculate friction factor
MEL334: Low Cost Automation 7
Moody Diagram
MEL334: Low Cost Automation
Losses in Valves & Fittings
Energy losses in valves and fittings such as Tees, Elbows, and Bends Nature of flow through Valves and Fittings is very complex. Head Loss HL = Kv2/2g K factor for Valves and Fittings
Gate Valve (wide open) = 0.19 open = 0.90, open = 4.5, open = 24.0
MEL334: Low Cost Automation 9
K-Factor
Return Bend Standard Tee 90 deg Elbow 45 deg Elbow Ball Check valve
= 2.2 = 1.8 = 0.75 = 0.42 = 4.0
MEL334: Low Cost Automation
10
Equivalent Length Technique
Darcys Equation
Friction head loss in pipes proportional to
Square of Fluid Velocity Length of Pipe
Head Loss in valves & fitting
Proportional to square of fluid velocity
Possible to find a length of pipe that for the same flow rate would produce same head loss as a valve or fitting.
MEL334: Low Cost Automation 11
Equivalent Length Technique
HL(valve or Fitting) = HL(Pipe) K(v2/2g) = f(L/D)(v2/2g) Since velocities are equal Equivalent Length Le = KD/f Convenient method for analyzing hydraulic circuits where frictional energy losses are to be taken in to account.
MEL334: Low Cost Automation
12
Problem
For the Hydraulic System shown, following data are given:
Pump is adding 5 hp (3730 W) to fluid Pump flow is 0.001896 m3/s Pipe has 0.0254 m inside dia Sp. Gravity of oil = 0.9 Kinematic viscosity of oil is 100 cS Elevation difference between station 1 & 2 is 6.096 m Pipe lengths: 1 ft = 0.305 m, 4 ft = 1.22 m, 16 ft = 4.88 m
Find pressure available at inlet to hydraulic motor. The pressure at the oil top surface level in the hydraulic tank is atmospheric (0 MPa). The head loss HL due to friction between stations 1 & 2 is not given.
13
MEL334: Low Cost Automation
Problem
MEL334: Low Cost Automation
14
Solution
Bernoullis equation between stations 1 & 2 Z1+P1/+v12/2g+Hp-Hm-HL = Z2+P2/ +v22/2g
Hp = Head added by pump Hm = Head removed by Hydraulic Motor HL = Head lost in friction
Hm = 0 , No Hyd motor between 1 & 2 V1 = 0, P1/ = 0 Z2 Z1 = ?
MEL334: Low Cost Automation 15
Solution
Solve for v2 Evaluate velocity head at station 2 Find Reynolds Number
NR = vD/ = vD/(Kinematic Viscosity) SI unit Kinematic Viscosity = m2/s Stokes = cm2/s
Laminar or Turbulent ? Find friction factor
MEL334: Low Cost Automation 16
Solution
Determine Head loss due to friction
Darcys equation Calculate L Use Leq for standard elbow, K = 0.9
Substitute in Bernoullis equation to solve for Pressure head at 2. Calculate Pump Head
Hp = 0.762 (HP)/Q(m3/s).Sg
Solve for P2 , use water = 9797 N/m2
MEL334: Low Cost Automation 17
Problem for Exam
Determine the External load F that the hydraulic cylinder can sustain while moving in The extending direction.
MEL334: Low Cost Automation 18
