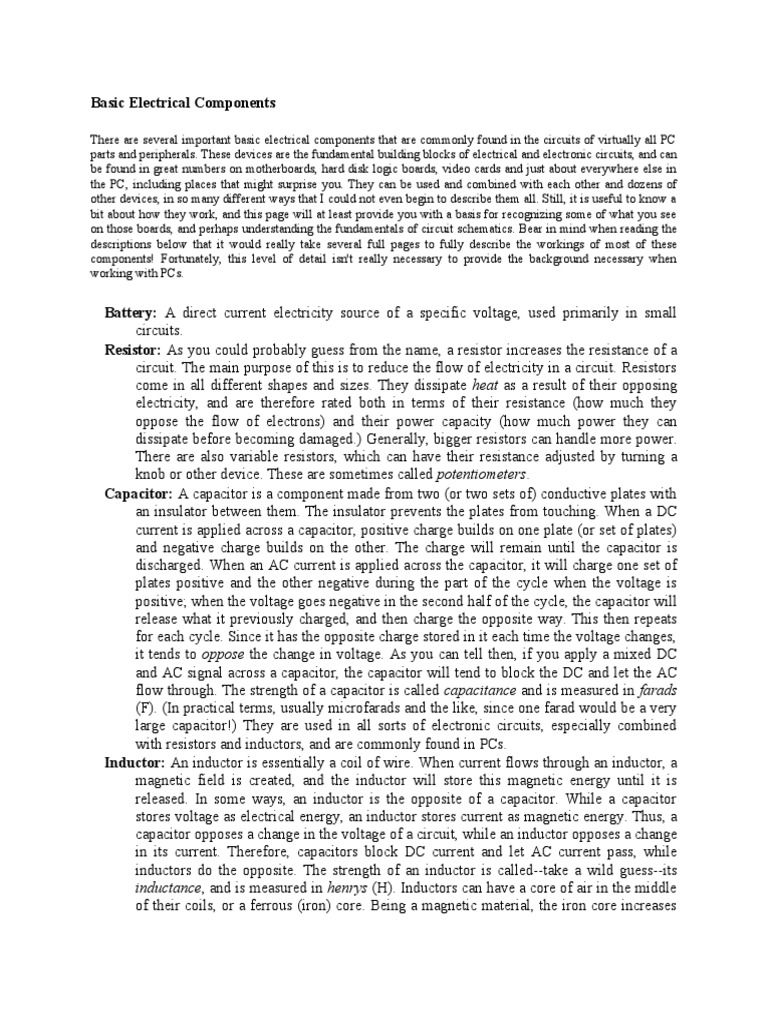

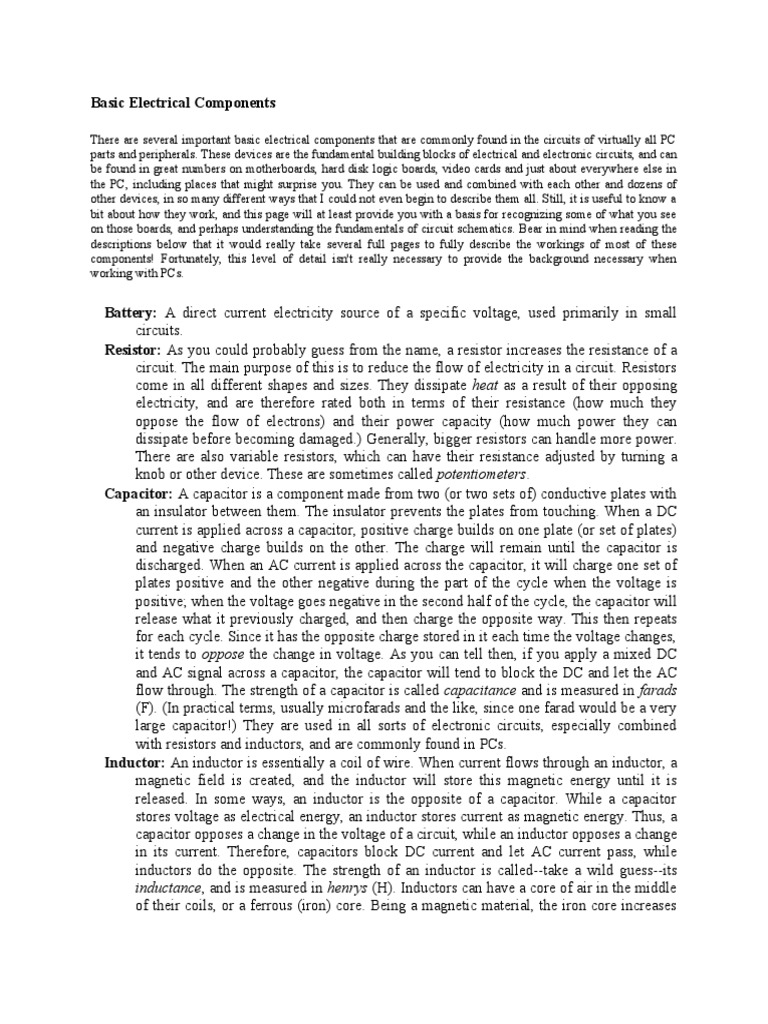

Basic Electrical Components

There are several important basic electrical components that are commonly found in the circuits of virtually all PC parts and peripherals. These devices are the fundamental building blocks of electrical and electronic circuits, and can be found in great numbers on motherboards, hard disk logic boards, video cards and just about everywhere else in the PC, including places that might surprise you. They can be used and combined with each other and dozens of other devices, in so many different ways that I could not even begin to describe them all. Still, it is useful to know a bit about how they work, and this page will at least provide you with a basis for recognizing some of what you see on those boards, and perhaps understanding the fundamentals of circuit schematics. Bear in mind when reading the descriptions below that it would really take several full pages to fully describe the workings of most of these components! Fortunately, this level of detail isn't really necessary to provide the background necessary when working with PCs.

Battery: A direct current electricity source of a specific voltage, used primarily in small circuits. Resistor: As you could probably guess from the name, a resistor increases the resistance of a circuit. The main purpose of this is to reduce the flow of electricity in a circuit. Resistors come in all different shapes and sizes. They dissipate heat as a result of their opposing electricity, and are therefore rated both in terms of their resistance (how much they oppose the flow of electrons) and their power capacity (how much power they can dissipate before becoming damaged.) Generally, bigger resistors can handle more power. There are also variable resistors, which can have their resistance adjusted by turning a knob or other device. These are sometimes called potentiometers. Capacitor: A capacitor is a component made from two (or two sets of) conductive plates with an insulator between them. The insulator prevents the plates from touching. When a DC current is applied across a capacitor, positive charge builds on one plate (or set of plates) and negative charge builds on the other. The charge will remain until the capacitor is discharged. When an AC current is applied across the capacitor, it will charge one set of plates positive and the other negative during the part of the cycle when the voltage is positive; when the voltage goes negative in the second half of the cycle, the capacitor will release what it previously charged, and then charge the opposite way. This then repeats for each cycle. Since it has the opposite charge stored in it each time the voltage changes, it tends to oppose the change in voltage. As you can tell then, if you apply a mixed DC and AC signal across a capacitor, the capacitor will tend to block the DC and let the AC flow through. The strength of a capacitor is called capacitance and is measured in farads (F). (In practical terms, usually microfarads and the like, since one farad would be a very large capacitor!) They are used in all sorts of electronic circuits, especially combined with resistors and inductors, and are commonly found in PCs. Inductor: An inductor is essentially a coil of wire. When current flows through an inductor, a magnetic field is created, and the inductor will store this magnetic energy until it is released. In some ways, an inductor is the opposite of a capacitor. While a capacitor stores voltage as electrical energy, an inductor stores current as magnetic energy. Thus, a capacitor opposes a change in the voltage of a circuit, while an inductor opposes a change in its current. Therefore, capacitors block DC current and let AC current pass, while inductors do the opposite. The strength of an inductor is called--take a wild guess--its inductance, and is measured in henrys (H). Inductors can have a core of air in the middle of their coils, or a ferrous (iron) core. Being a magnetic material, the iron core increases

the inductance value, which is also affected by the material used in the wire, and the number of turns in the coil. Some inductor cores are straight in shape, and others are closed circles called toroids. The latter type of inductor is highly efficient because the closed shape is conducive to creating a stronger magnetic field. Inductors are used in all sorts of electronic circuits, particularly in combination with resistors and capacitors, and are commonly found in PCs. Transformer: A transformer is an inductor, usually with an iron core, that has two lengths of wire wrapped around it instead of one. The two coils of wire do not electrically connect, and are normally attached to different circuits. One of the most important components in the world of power, it is used to change one AC voltage into another. As described above, when a coil has a current passed through it, a magnetic field is set up proportional to the number of turns in the coil. This principle also works in reverse: if you create a magnetic field in a coil, a current will be induced in it, proportional to the number of turns of the coil. Thus, if you create a transformer with say, 100 turns in the first or primary coil, and 50 turns in the second or secondary coil, and you apply 240 VAC to the first coil, a current of 120 VAC will be induced in the second coil (approximately; some energy is always lost during the transformation). A transformer with more turns in its primary than its secondary coil will reduce voltage and is called a step-down transformer. One with more turns in the secondary than the primary is called a step-up transformer. Transformers are one of the main reasons we use AC electricity in our homes and not DC: DC voltages cannot be changed using transformers. They come in sizes ranging from small ones an inch across, to large ones that weigh hundreds of pounds or more, depending on the voltage and current they must handle. Diode / LED: A diode is a device, typically made from semiconductor material, that restricts the flow of current in a circuit to only one direction; it will block the bulk of any current that tries to go "against the flow" in a wire. Diodes have a multitude of uses. For example, they are often used in circuits that convert alternating current to direct current, since they can block half the alternating current from passing through. A variant of the common diode is the light-emitting diode or LED; these are the most well-known and commonly-encountered kind of diode, since they are used on everything from keyboards to hard disks to television remote controls. An LED is a diode that is designed to emit light of a particular frequency when current is applied to it. They are very useful as status indicators in computers and battery-operated electronics; they can be left on for hours or days at a time because they run on DC, require little power to operate, generate very little heat and last for many years even if run continuously. They are now even being made into low-powered, long-operating flashlights. Fuse: A fuse is a device designed to protect other components from accidental damage due to excessive current flowing through them. Each type of fuse is designed for a specific amount of current. As long as the current in the circuit is kept below this value, the fuse passes the current with little opposition. If the current rises above the rating of the fuse-due to a malfunction of some sort or an accidental short-circuit--the fuse will "blow" and disconnect the circuit. Fuses are the "heroes" of the electronics world, literally burning up or melting from the high current, causing a physical gap in the circuit and saving other devices from the high current. They can then be replaced when the problem condition has been corrected. All fuses are rated in amps for the amount of current they can tolerate before blowing; they are also rated for the maximum voltage they can tolerate. Always

replace a blown fuse only with another of the same current and voltage rating.
