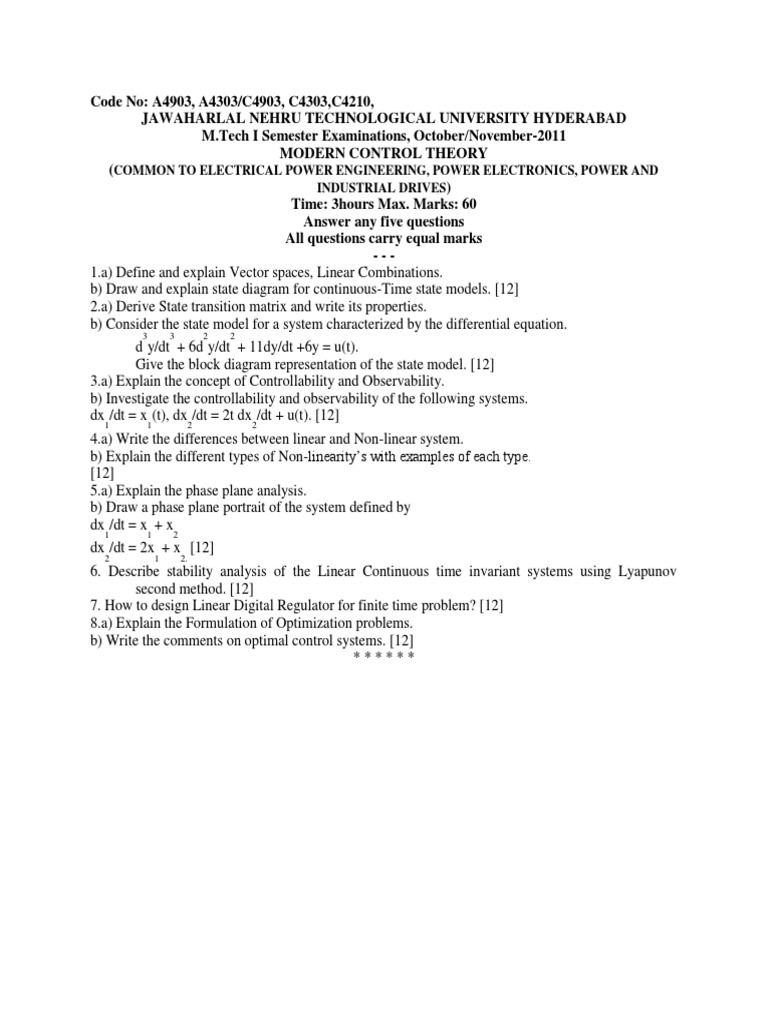

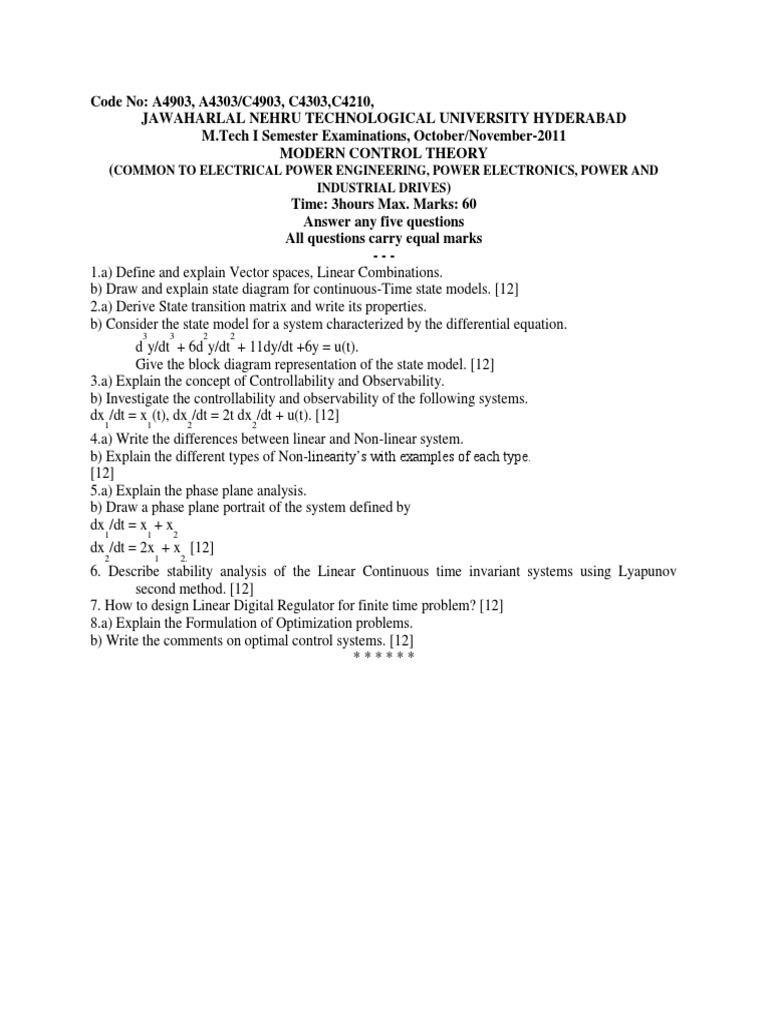

Code No: A4903, A4303/C4903, C4303,C4210, JAWAHARLAL NEHRU TECHNOLOGICAL UNIVERSITY HYDERABAD M.

Tech I Semester Examinations, October/November-2011 MODERN CONTROL THEORY (COMMON TO ELECTRICAL POWER ENGINEERING, POWER ELECTRONICS, POWER AND INDUSTRIAL DRIVES) Time: 3hours Max. Marks: 60 Answer any five questions All questions carry equal marks --1.a) Define and explain Vector spaces, Linear Combinations. b) Draw and explain state diagram for continuous-Time state models. [12] 2.a) Derive State transition matrix and write its properties. b) Consider the state model for a system characterized by the differential equation.
3 3 2 2

d y/dt + 6d y/dt + 11dy/dt +6y = u(t). Give the block diagram representation of the state model. [12] 3.a) Explain the concept of Controllability and Observability. b) Investigate the controllability and observability of the following systems. dx /dt = x (t), dx /dt = 2t dx /dt + u(t). [12]
1 1 2 2

4.a) Write the differences between linear and Non-linear system. b) Explain the different types of Non-linearitys with examples of each type. [12] 5.a) Explain the phase plane analysis. b) Draw a phase plane portrait of the system defined by dx /dt = x + x
1 2 1 2

dx /dt = 2x + x [12]
1 2.

6. Describe stability analysis of the Linear Continuous time invariant systems using Lyapunov second method. [12] 7. How to design Linear Digital Regulator for finite time problem? [12] 8.a) Explain the Formulation of Optimization problems. b) Write the comments on optimal control systems. [12] ******

Code No: A7506/C7505 JAWAHARLAL NEHRU TECHNOLOGICAL UNIVERSITY HYDERABAD M.Tech I - Semester Examinations, October/November-2011 ADVANCED INSTRUMENTATION SYSTEMS (CONTROL SYSTEMS) Time: 3hours Max. Marks: 60 Answer any five questions All questions carry equal marks --1.a) Derive the expression for oexee in the case of a potentiometric transducer. If pmRR is < 0.1, what is the maximum error?
2

b) Explain the principle of a potentiometer to generate the function V = kd with usual notation. [6+6] 2.a) Draw the circuit and derive the expression for oenee of the transducer. b) Explain about constructional features and applications of LVDT. [6+6] 3.a) What are the naturally occurring and synthetic Piezoelectric materials used for Transducers? Explain about their properties. b) Define various Piezoelectric Coefficients and deduce the relationships between them. [6+6] 4.a) Draw the schematic and explain the principle and working of self balancing potentiometric transducers. b) Explain the principle and working of feedback pneumatic load cell. [6+6] 5. What are the salient features of Dual slope Integrating type ADC? With the help of equations, prove the same. Explain the principle and working of this type of ADC with the help of graphs. [12] 6.a) Compare Land Line and Radio Telemetry systems in all respects. b) Explain about FDM Telemetry system. [6+6] 7.a) Explain about Direct Recording Type of Magnetic Tape Recording system. b) Draw the schematic of X-Y Recorder system and explain about the same. [6+6] 8. Write notes on any TWO: a) Floppy Discs b) Non-contact position measurement c) S/H circuits. [4+4+4] ******

Code No: A7504/C7503 JAWAHARLAL NEHRU TECHNOLOGICAL UNIVERSITY HYDERABAD M.Tech I - Semester Examinations, October/November-2011 ADVANCED MICROPROCESSORS (CONTROL SYSTEMS) Time: 3hours Max. Marks: 60 Answer any five questions All questions carry equal marks --1.a) Draw the architecture of 8086 microprocessor and explain briefly about each unit. b) List the assembler directives of 8086 and explain them [12] 2.a) Explain the instruction format of data transfer instruction of 8086 MOV AX, [BX]. b) Draw the timing diagram of write operation of 8086 in minimum mode. [12] 3.a) Write an assembly language Program for 8086 to word disassemble. e.g.: If AX has 4835H store 05H, 03H, 08H and 04H in 4 successive memory locations in Extra segment. b) Write an assembly language program for 8086 to insert a substring into a solid string at an appropriate position. [12] 4.a) Draw the block diagram of co- processor of 8086. [12] b) What is meant by paging technique? How does it improve the memory management in a system? 5.a) Explain the architectural features of 80386. [12] b) How is memory management carried in Pentium processor while two level Cache is used in the system? 6.a) Briefly compare RISC processor with CISC processor. b) Give a detail note on features of Power PC family [12] 7. Explain the Timer/ Counter operation in different modes of 8051. [12] 8. Write a brief note on a) Advancements of 486 processor over 80386. [12] b) I/O processor 8089 architecture. ******
