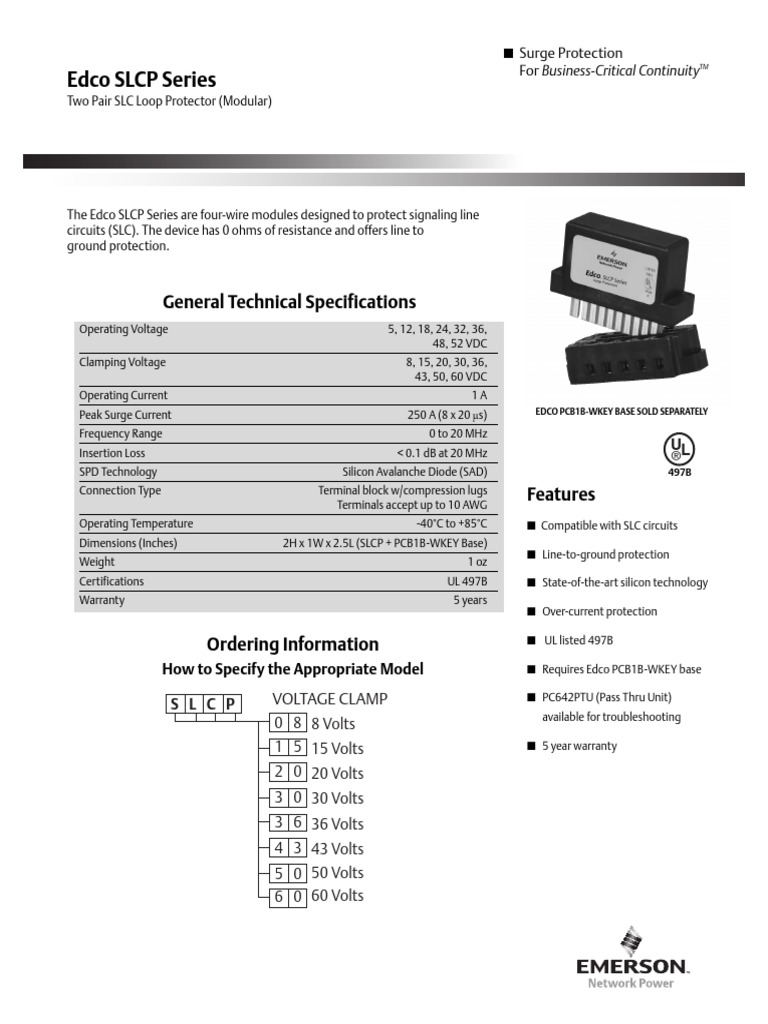

Edco SLCP Series

Two Pair SLC Loop Protector (Modular)


Surge Protection
For Business-Critical Continuity
TM
The Edco SLCP Series are four-wire modules designed to protect signaling line
circuits (SLC). The device has 0 ohms of resistance and offers line to
ground protection.
Features
Compatible with SLC circuits
Line-to-ground protection
State-of-the-art silicon technology
Over-current protection
UL listed 497B
Requires Edco PCB1B-WKEY base
PC642PTU (Pass Thru Unit)
available for troubleshooting
5 year warranty
U
L

497B
General Technical Specifications
Ordering Information
How to Specify the Appropriate Model
Operating Voltage 5, 12, 18, 24, 32, 36,
48, 52 VDC
Clamping Voltage 8, 15, 20, 30, 36,
43, 50, 60 VDC
Operating Current 1 A
Peak Surge Current 250 A (8 x 20 s)
Frequency Range 0 to 20 MHz
Insertion Loss < 0.1 dB at 20 MHz
SPD Technology Silicon Avalanche Diode (SAD)
Connection Type Terminal block w/compression lugs
Terminals accept up to 10 AWG
Operating Temperature -40C to +85C
Dimensions (Inches) 2H x 1W x 2.5L (SLCP + PCB1B-WKEY Base)
Weight 1 oz
Certifications UL 497B
Warranty 5 years
EDCO PCB1B-WKEY BASE SOLD SEPARATELY









VOLTAGE CLAMP
43 Volts
50 Volts
60 Volts
36 Volts
30 Volts
20 Volts
15 Volts
8 Volts 0 8
1 5
2 0
3 0
3 6
4 3
S L C P
5 0
6 0
Unprotected Pair 2
Unprotected Pair 1
Protected Pair 2
Protected Pair 1
Keying Pin
Even Terminals Odd Terminals
Field Side
Electronics Side
9
7
5
3
1
10
8
6
4
2
1.0
{
}
}
{
2.125" 2.4"
Ground Terminal 1 OR 10 (internally tied together) to Building Approved Ground.
DO NOT daisy chain grounds.
NOT intended for shield termination. Install ground in accordance with all applicable codes. PCB1B-WKEY accommodates 26
to 10 AWG wire.
Installation
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Control
Racks and Integrated Cabinets
Services
Precision Cooling Surge Protection
Emerson Network Power.
The global leader in enabling
Business-Critical Continuity
TM
.
IO-50116 2/09 Rev. 2 Printed in USA
Business-Critical Continuity, Emerson Network Power and the Emerson Network Power
logo are trademarks and service marks of Emerson Electric Co. 2009 Emerson Electric Co.
www.emersonnetworkpower.com Emerson Network Power Contact information
Headquarters
Surge Protection
328 Water Street 650 SW 27th Avenue
Binghamton, NY 13901 Ocala, FL 34471
T: (607) 721-8840 T: (352) 732-3029
T: (800) 288-6169 T: (800) 648-4076
F: (607) 722-8713 F: (352) 867-1237
E: contactsurge@emerson.com
Edco PCB1B-WKEY:
