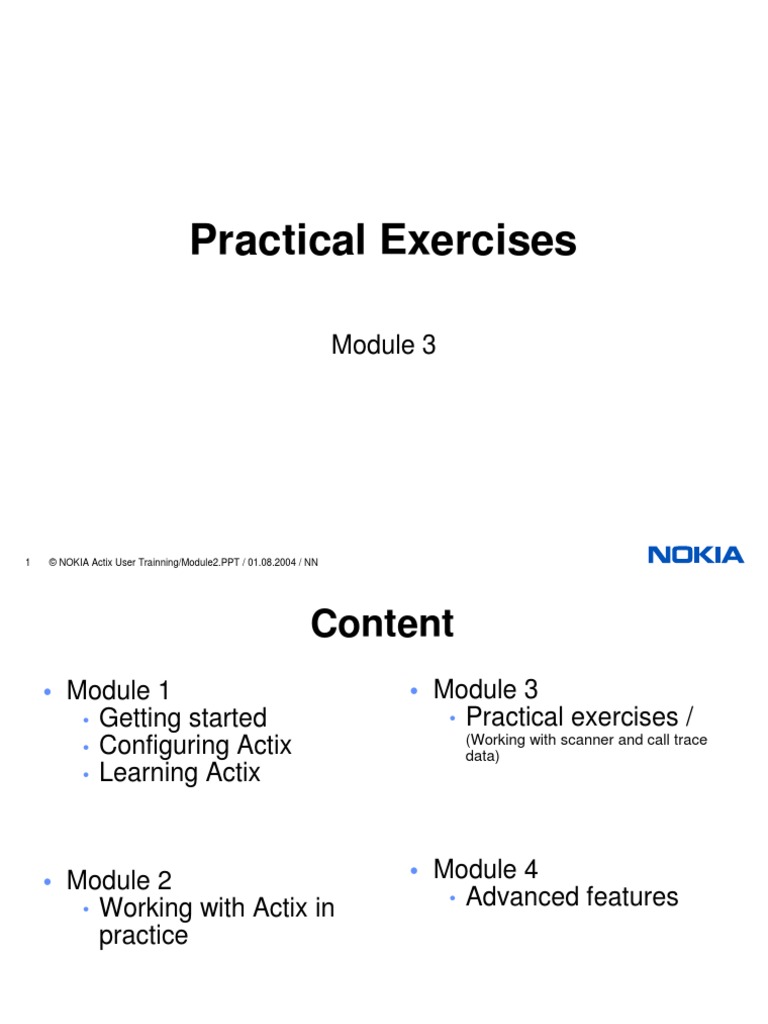

1 NOKIA Actix User Trainning/Module2.PPT / 01.08.

2004 / NN
Practical Exercises
Module 3
2 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Content

Module 1
Getting started
Configuring Actix
Learning Actix

Module 2
Working with Actix in
practice

Module 3
Practical exercises /
(Working with scanner and call trace
data)

Module 4
Advanced features
3 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Practical Exercises

Site Verification

Cluster Verification

SHO Analysis
4 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Site Verification

Site to be verified is Erstein

Following issues need to be verified:

All sectors are performing normally and radiating
Check cross-feeder
Voice call establishes normally
SHO occours successfully
Receiving end of Node be is performing normally
(MHA, cabling receiver)
5 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Site Verification (2)

Maps to be saved for Site Verification reports

RSCP and Ec/Io from Scanner (best server) and NEMO

(stronger in the active set)

Dominance plot from Scanner and NEMO

Tx Power

Active set count from NEMO

6 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Cluster verification

Check for Pilot pollution

Check for sites with no dominance

Find non working sites

Check performance (throughtput)

Check what is the minumun value of RSCP during

successfull SHO
7 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Cluster Verification (2)

PIlot pollution is detected with the following criteria:

RSCP > -92 and Ec/Io < -9

Sectors not operating can be detected looking at the list

of measured SC in scanner measurements
8 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Binned Query for Pilot Pollution
9 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Binned Query for Pilot Pollution (2)

Element must be picked from

list

Notice that the two part of the

expression separated by
theAND are enclosed in
brackets

After selecting elements from

Nth Nth Best, the index must
be specified
Data Format
must be selected
Querys
Description
10 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
Binned Query for Pilot Pollution (3)
11 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
SHO analysis
Check what is the minumun value of RSCP
during successfull SHO

This kind of analysis can be performed exporting attribute

data to Excel Workbook

First thing to do is to load all NEMO files (*.dt1) and

superstream them

From the superstrem we can export some attributes to

Excel WOrkbook
12 NOKIA Actix User Trainning/Module2.PPT / 01.08.2004 / NN
SHO analysis (2)

Attributes to be exported:
3G UMTS -> Event Data -> Handoff Events -> Uu_HandoffOK
3G UMTS -> Downlink Measurements -> Uu_ActiveSet_RSCP ->
Uu_ActiveSet_RSCP_0
3G UMTS -> Downlink Measurements -> Uu_ActiveSet_EcNo ->
Uu_ActiveSet_EcNo_0
Data Testing -> Application Measurements -> App_Throughput_DL

In Excel Workbook
Data -> Filter Autofilter
In Column Uu_HandoffOK select Handover Ok
In Column App_Thgroughtput_DL select Custom -> is greater than
120
Data -> Sort
Sort by.. RSCP
