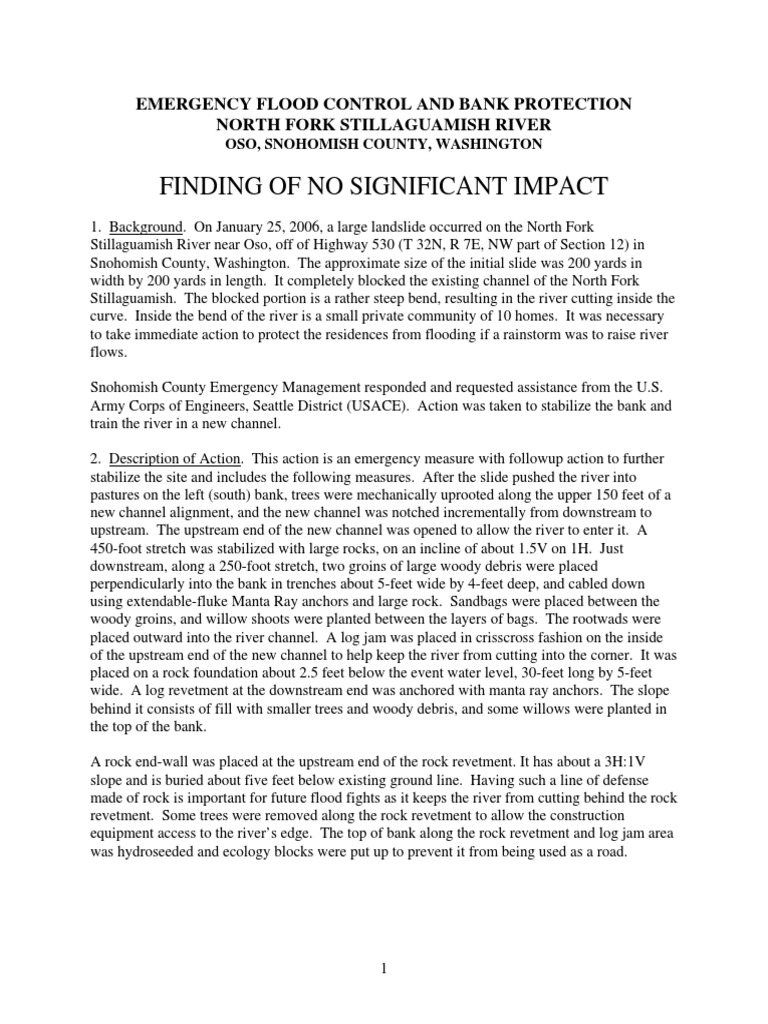

1. Background. On J anuary 25, 2006, a large landslide occurred on the North Fork Stillaguamish River near Oso, off of Highway 530 (T 32N, R 7E, NW part of Section 12) in Snohomish County, Washington. The approximate size of the initial slide was 200 yards in width by 200 yards in length. It completely blocked the existing channel of the North Fork Stillaguamish. The blocked portion is a rather steep bend, resulting in the river cutting inside the curve. Inside the bend of the river is a small private community of 10 homes. It was necessary to take immediate action to protect the residences from flooding if a rainstorm was to raise river flows.
Snohomish County Emergency Management responded and requested assistance from the U.S. Army Corps of Engineers, Seattle District (USACE). Action was taken to stabilize the bank and train the river in a new channel.
2. Description of Action. This action is an emergency measure with followup action to further stabilize the site and includes the following measures. After the slide pushed the river into pastures on the left (south) bank, trees were mechanically uprooted along the upper 150 feet of a new channel alignment, and the new channel was notched incrementally from downstream to upstream. The upstream end of the new channel was opened to allow the river to enter it. A 450-foot stretch was stabilized with large rocks, on an incline of about 1.5V on 1H. J ust downstream, along a 250-foot stretch, two groins of large woody debris were placed perpendicularly into the bank in trenches about 5-feet wide by 4-feet deep, and cabled down using extendable-fluke Manta Ray anchors and large rock. Sandbags were placed between the woody groins, and willow shoots were planted between the layers of bags. The rootwads were placed outward into the river channel. A log jam was placed in crisscross fashion on the inside of the upstream end of the new channel to help keep the river from cutting into the corner. It was placed on a rock foundation about 2.5 feet below the event water level, 30-feet long by 5-feet wide. A log revetment at the downstream end was anchored with manta ray anchors. The slope behind it consists of fill with smaller trees and woody debris, and some willows were planted in the top of the bank.
A rock end-wall was placed at the upstream end of the rock revetment. It has about a 3H:1V slope and is buried about five feet below existing ground line. Having such a line of defense made of rock is important for future flood fights as it keeps the river from cutting behind the rock revetment. Some trees were removed along the rock revetment to allow the construction equipment access to the rivers edge. The top of bank along the rock revetment and log jam area was hydroseeded and ecology blocks were put up to prevent it from being used as a road.
1 A new road was built with 4x8 quarry spalls overlaid with 1-inch gravel. Sand bags were placed near residences by the local fire department and the Snohomish County Department of Emergency Management.
Following the emergency action, the Stillaguamish Tribe built a log revetment set back to the right (north) of the new channel, bracing the toe of the slide. That was not part of the action being evaluated in this EA.
In fall of 2006 a flood of record occurred, and the river migrated rightward (northward) to the base of that revetment. A gravel bar was formed at the toe of the new rock revetment, effectively setting the emergency bank armoring back from the river.
Snohomish County proposes mitigation at two sites.
Steelhead Haven: Since the new channel was created in early 2006, the channel has migrated northward toward the cribwall and deposited a gravel bar between the emergency bank protection structures and the thalweg. The gravel bar extends out from the riprap approximately 100 feet to the water during typical winter flows. The riprap forms the margin of the active channel during higher flows.
The county will re-grade the bank at a 3-to-1 slope using materials from the gravel bar. The bank currently is 8 to 10 feet above the gravel bar. Grading would be done from the gravel bar by pushing material up to the bank using a bulldozer or similar piece of machinery. Snohomish County will build a soil lift on the upper two feet of bank to provide a planting area. The front edge of the planting area would be formed using logs anchored into the bank. Besides forming a solid front edge to retain soils, the logs would protect the planting area during high water events. The planting area will be approximately 10 to 15 feet wide and extend from the wood structure at the upper end of the project area down to the wood structure at the lower end of the project, approximately 600 feet. The plant community will comprise native woody vegetation typical of disturbed areas and suited to growing in well-drained soils and full sun (conceptual plant list: red alder, Douglas fir, snowberry and thimbleberry). The planting area will be covered with three to four inches of wood chip mulch to assist plant establishment by providing erosion control, protection against weed establishment, and moisture retention. The area will be monitored and maintained for 10 years to ensure establishment of native species and control of invasive species. The area is already being treated for control of J apanese knotweed as part of a larger control effort within the basin.
Chatham Acres: Chatham Acres is located several miles upstream from the Steelhead Haven site on the North Fork Stillaguamish. The 23-acre site is armored by 4 rock groins and riprap between the groins. The bank was armored in 2000 to protect homes from high flows. The Chatham Acres development was purchased by Snohomish County several years ago as part of a Flood Emergency Prevention grant. All of the homes have been removed, and the site is being
restored by Snohomish Countys Surface Water Management Native Plant Program. The site is on the inside of the meander bend, mostly forested, and has a large side channel complex that cuts across the site. 2
Snohomish County will remove three of the four rock groins, 200 feet of large randomly spaced rock, and 100-foot sections of rock between groins 1 and 2 and between groins 3 and 4. Combined, over 450 lineal feet of rock will be removed. In order to access these areas, an overgrown access road would need to be cleared. This road was used in 2000 when the rock was placed and is mostly vegetated with Himalayan blackberry. Rock removal would be done from the banks, and minimal in-water work is anticipated. All disturbed areas will be planted with native woody vegetation. These plantings would not be monitored and maintained as those at Steelhead Haven but would be included in the revegetation efforts at the site by the Native Plant Program.
3. Summary of Impacts. Main impacts of the preferred alternative include the following, none of which are considered significant:
Short-term stabilization of river channel Unquantifiable contribution to global climate change through machinery exhaust emissions Prevention of channel migration leftward toward residential area Short-term sediment loading (though possibly less than with no action) Minor short-term impacts to air quality due to exhaust emissions Stabilization which might promote regrowth of vegetation and forest Short-term impact on fish habitat and, therefore, fish production including loss of shade, cover, and insect and organic input; also short-term sedimentation Relatively quick re-establishment of a migration channel compared to the no-action alternative Short-term loss of riparian habitat for birds and mammals including a feeding and migration corridor Likely adverse effects to species listed under the Endangered Species Act including Puget Sound Chinook, Puget Sound steelhead, and Coastal/Puget Sound bull trout, for which mitigation is proposed Minor effects to esthetics
4. Permits and Approvals.
a. ESA. The ESA (16 U.S.C. 1531-1544), amended in 1988, establishes a national program for the conservation of threatened and endangered species of fish, wildlife, and plants and the habitat upon which they depend. Section 7(a) of the ESA requires that Federal agencies consult with the USFWS and NMFS (Services), as appropriate, to ensure that their actions are not likely to jeopardize the continued existence of endangered or threatened species or to adversely modify or destroy their critical habitats.
The emergency action may have adversely affected Puget Sound Chinook, Chinook critical habitat, Puget Sound steelhead, Coastal/Puget Sound bull trout, and bull trout critical habitat. Separate biological assessments were prepared and sent to NMFS and the USFWS, outlining likely adverse effects and initiating formal consultation, in letters dated J anuary 31 and March 13, 2008, respectively. The Services provided to the Corps a joint Biological Opinion dated 3 J une 30, 2008 for the emergency action and follow-on mitigation actions. The County will physically implement actions recommended by NMFS and USFWS for retention of emergency features and implementation of mitigation actions.
The Corps will add special conditions as follows from the Biological Opinion through its review and approval process under Section 404 of the Clean Water Act when it receives a permit application from Snohomish County for retention of emergency features and implementation of mitigation actions.
Conservation Recommendations:
1. Monitor and maintain both sites (Oso slide and Chatham Acres) to ensure success of newly planted vegetation.
2. Please notify both the NMFS and the USFWS if the COE carries out any of these recommendations so that we will be kept informed of actions that minimize or avoid adverse effects and those that benefit listed species or their designated critical habitats.
Reasonable and Prudent Measures:
1. The COE shall ensure that incidental take from project construction activities within the OHWL, including downstream turbidity, is minimized.
2. The COE shall ensure that incidental take from shoreline and channel modification is minimized.
3. The COE shall ensure completion of a monitoring and reporting program to confirm that this Opinion is meeting its objective of limiting the extent of take and minimizing take from permitted activities, per (50 CFR 402.14(i)(1)(iv) and (I)(3).
Terms and Conditions:
1. To implement Reasonable and Prudent Measure No. 1, the COE shall ensure that: a. Any in-water work is conducted during the most current WDFW approved in-water work window. b. Erosion control T&Cs, including conservation measures and best management practices, are monitored and corrective action will be taken, if necessary, to ensure the protection of riparian areas and waterways.
2. To implement Reasonable and Prudent Measure No. 2, the COE shall ensure that planting plans for disturbed areas are designed to provide successful establishment of native vegetation on site in the long-term. These plans should be provided to the Services for review following planting.
4 3. To implement Reasonable and Prudent Measure No. 3, the COE shall ensure that a report documenting implementation of the action as proposed and compliance with the terms and conditions indicated above is completed. This report shall include the estimated areas of disturbance and volumes of removal and fill. The report will include dates and times of activities, by activity type. The report should include photographs of the project area before, during, and after construction. The report should also include the level of incidental take that has been observed, including captured, distressed, or dead bull trout or Chinook salmon. All required reports shall be submitted to the Western Washington Fish and Wildlife Office and Washington State Habitat Office of the National Marine Fisheries Service within one year of project completion.
b. Clean Water Act. The Federal action was undertaken to prevent imminent loss of property in an emergency. Snohomish County will apply for permits under Sections 401 and 404 of the Clean Water Act for emergency features to be retained and for implementation of mitigation actions. A Section 404 analysis for the emergency action is appended to this Environmental Assessment.
c. Coastal Zone Management Act, and Snohomish County Unified Development Code. A CZMA consistency determination is appended to the Environmental Assessment and concludes that the emergency activities comply with the policies, general conditions, and activities as specified in the Washington Shoreline Management Program (Washington Administrative Code 173-27-040), and the Snohomish County plan (Snohomish County Unified Development Code, Sec. 30-44.110). The emergency action is considered to be consistent to the maximum extent practicable with the State of Washington Shoreline Management Program and policies and standards of the Snohomish County Unified Development Code. As part of its permit application under the Clean Water Act Section 404 and the Rivers and Harbors Act Section 10, Snohomish County will seek concurrence on this determination, and obtain all necessary permits for permanent retention of emergency and follow-on features, including mitigation features.
d. National Historic Preservation Act. Section 106 of the NHPA (16 U.S.C. 470) requires that Federal agencies evaluate the effects of Federal undertakings on historical, archeological, and cultural resources and afford the Advisory Council on Historic Preservation opportunities to comment on the proposed undertaking. The lead agency must examine whether feasible alternatives exist that would avoid eligible cultural resources. If an effect cannot reasonably be avoided, measures must be taken to minimize or mitigate potential adverse effects. An evaluation was conducted, and is referenced in this document. No listed properties or archeological resources are known in the project area. A letter was sent to the Stillaguamish Tribe on September 26, 2006, soliciting information or concerns on historic properties that may
