    Home Products & Services Impervious Graphite Equipment Impervious Graphite Heat Exchangers

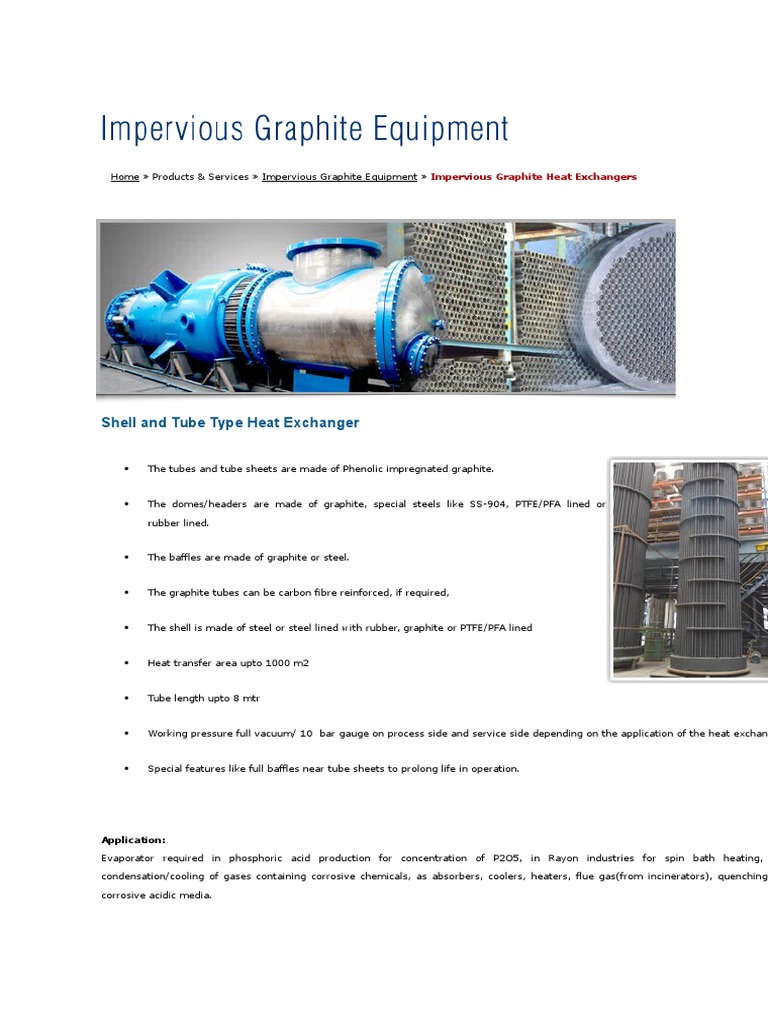

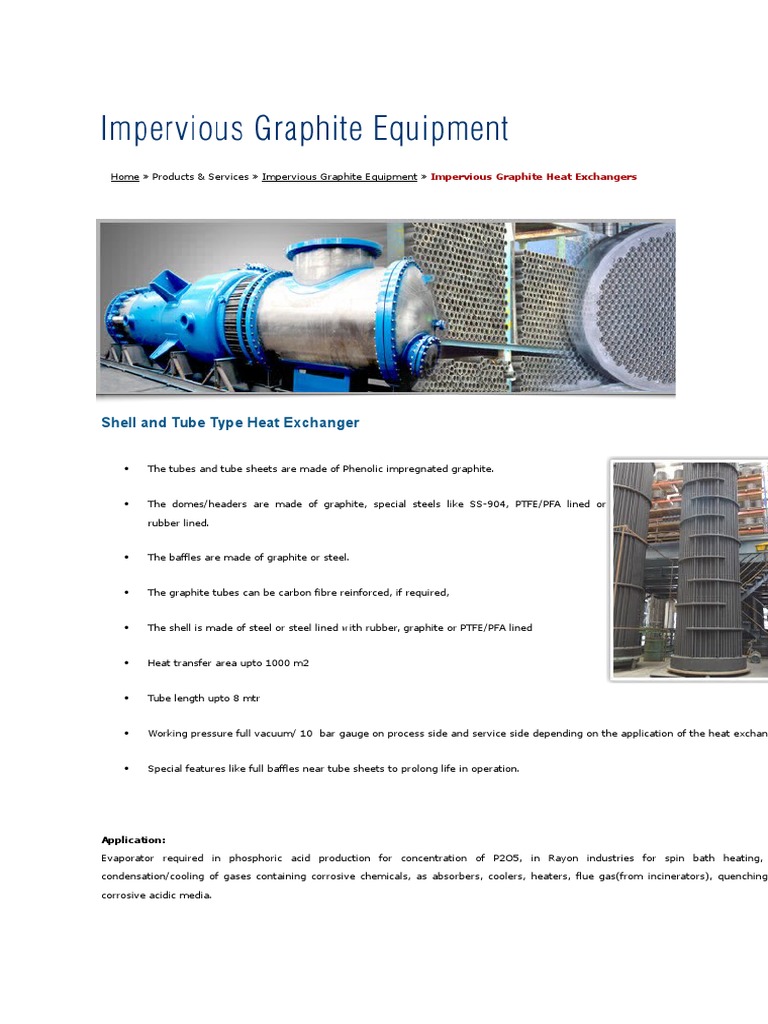

    Shell and Tube Type Heat Exchanger

    The tubes and tube sheets are made of Phenolic impregnated graphite.

    The domes/headers are made of graphite, special steels like SS-904, PTFE/PFA lined or
    rubber lined.

    The baffles are made of graphite or steel.

    The graphite tubes can be carbon fibre reinforced, if required,

    The shell is made of steel or steel lined with rubber, graphite or PTFE/PFA lined

    Heat transfer area upto 1000 m2

    Tube length upto 8 mtr

    Working pressure full vacuum/ 10 bar gauge on process side and service side depending on the application of the heat exchang

    Special features like full baffles near tube sheets to prolong life in operation.

    Application:
    Evaporator required in phosphoric acid production for concentration of P2O5, in Rayon industries for spin bath heating,
    condensation/cooling of gases containing corrosive chemicals, as absorbers, coolers, heaters, flue gas(from incinerators), quenching
    corrosive acidic media.
