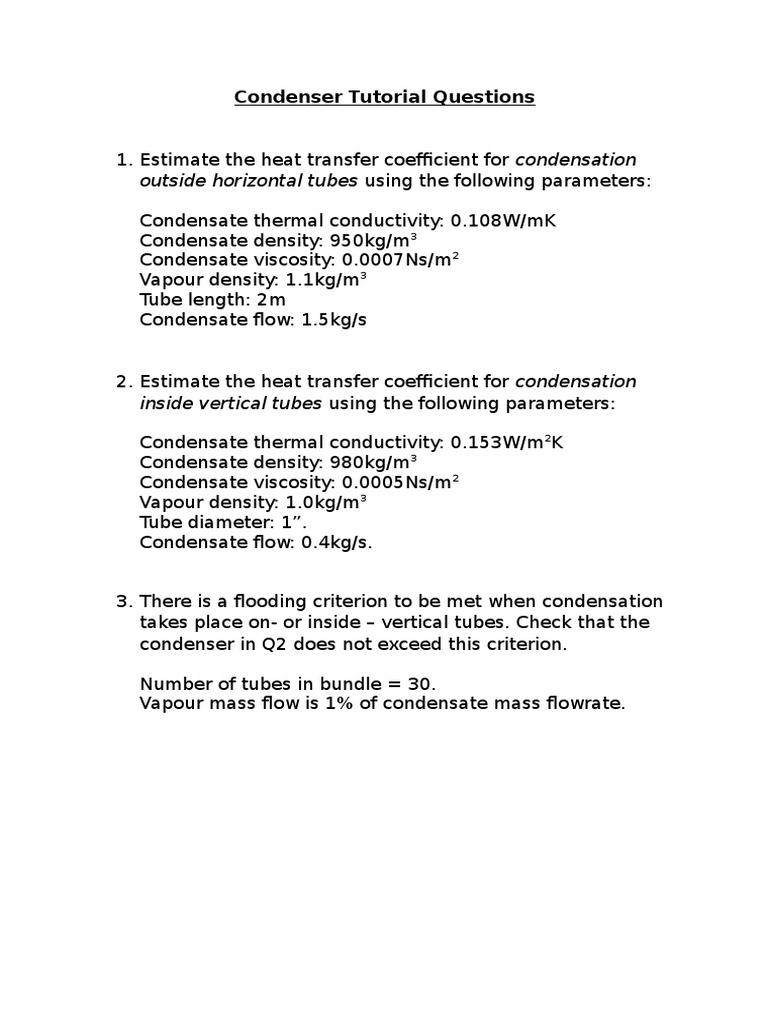

1. Estimate the heat transfer coefficient for condensation
outside horizontal tubes using the following parameters: Condensate thermal conductivity: 0.108W/mK Condensate density: 950kg/m3 Condensate viscosity: 0.0007Ns/m2 Vapour density: 1.1kg/m3 Tube length: 2m Condensate flow: 1.5kg/s 2. Estimate the heat transfer coefficient for condensation inside vertical tubes using the following parameters: Condensate thermal conductivity: 0.153W/m2K Condensate density: 980kg/m3 Condensate viscosity: 0.0005Ns/m2 Vapour density: 1.0kg/m3 Tube diameter: 1. Condensate flow: 0.4kg/s. 3. There is a flooding criterion to be met when condensation takes place on- or inside vertical tubes. Check that the condenser in Q2 does not exceed this criterion. Number of tubes in bundle = 30. Vapour mass flow is 1% of condensate mass flowrate.
4. An annular flow regime exists in horizontal tubes inside
which a vapour is condensing. Assuming that the vapour completely condenses in the tubes, calculate the heat transfer coefficient. Data: Condensate thermal conductivity: 0.12W/m2K Condensate density: 880kg/m3 Vapour density: 1.5kg/m3 Tube internal diameter: 1 No. of tubes: 25. Total mass flowrate: 1.6kg/s. Condensate viscosity: 0.0008Ns/m2 Specific heat capacity of condensate: 1968J/kgK 5. What would the heat transfer coefficient be if stratified flow existed in the condenser?
