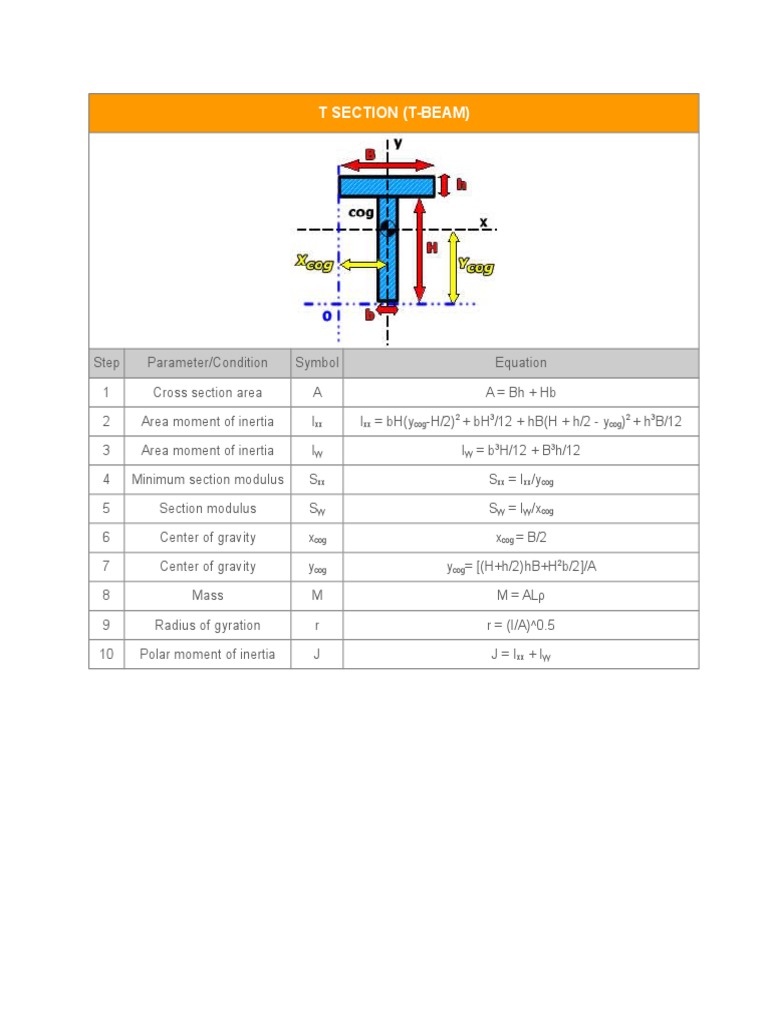

    T SECTION (T-BEAM)

    Step

    Parameter/Condition

    Symbol

    Equation

    Cross section area

    A = Bh + Hb

    Area moment of inertia

    Ixx

    Ixx = bH(ycog-H/2)2 + bH3/12 + hB(H + h/2 - ycog)2 + h3B/12

    Area moment of inertia

    Iyy

    Iyy = b3H/12 + B3h/12

    Minimum section modulus

    Sxx

    Sxx = Ixx/ycog

    Section modulus

    Syy

    Syy = Iyy/xcog

    Center of gravity

    xcog

    xcog = B/2

    Center of gravity

    ycog

    ycog= [(H+h/2)hB+H2b/2]/A

    Mass

    M = AL

    Radius of gyration

    r = (I/A)^0.5

    10

    Polar moment of inertia

    J = Ixx + Iyy
