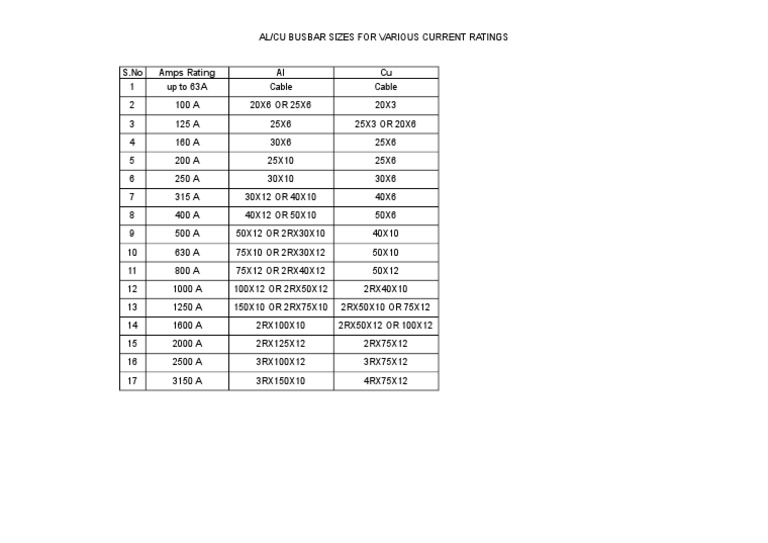

AL/CU BUSBAR SIZES FOR VARIOUS CURRENT RATINGS

S.No Amps Rating Al Cu

1 up to 63A Cable Cable

2 100 A 20X6 OR 25X6 20X3

3 125 A 25X6 25X3 OR 20X6

4 160 A 30X6 25X6

5 200 A 25X10 25X6

6 250 A 30X10 30X6

7 315 A 30X12 OR 40X10 40X6

8 400 A 40X12 OR 50X10 50X6

9 500 A 50X12 OR 2RX30X10 40X10

10 630 A 75X10 OR 2RX30X12 50X10

11 800 A 75X12 OR 2RX40X12 50X12

12 1000 A 100X12 OR 2RX50X12 2RX40X10

13 1250 A 150X10 OR 2RX75X10 2RX50X10 OR 75X12

14 1600 A 2RX100X10 2RX50X12 OR 100X12

15 2000 A 2RX125X12 2RX75X12

16 2500 A 3RX100X12 3RX75X12

17 3150 A 3RX150X10 4RX75X12
